HDPE Spiral Corrugated Sewer Pipe Machine 300-1200mm Diameter

This production line is designed for manufacturing HDPE spiral wound drainage pipes with a diameter range of 300-1200mm. These pipes are widely used in municipal sewerage and drainage systems, gradually replacing traditional materials such as cement pipes and cast iron pipes.

The advantages of these pipes include low installation cost, easy operation, convenient connection, and economical construction, making them highly promising in the market.

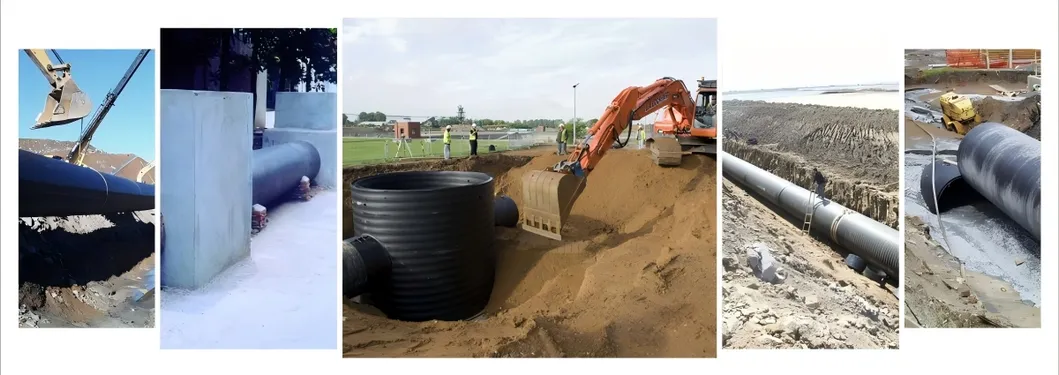

Urban drainage systems
Stormwater and sewage separation projects
Industrial wastewater discharge
Tunnel drainage
Agricultural irrigation systems

---The production line comprises two main parts, PE pipe extrusion line & Spiral forming line.
1. PE pipe extrusion line includes equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder and diehead mould
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine


2. Winding forming line includes equipments and devices as below,
1set High-efficiency single screw extruder and diehead
1set Spiral forming unit
1set Cutting machine,
1set Stacker
1set PLC controlling system

Pipe Features
High ring stiffness
High impact strength with low weight
Good resistance to creep deformation
Strong external pressure resistance
Excellent erosion resistance (acid, alkali, salt, etc.)
Long service life of approximately 50 years, non-polluting

Production Line Features
Dual Extrusion System:
First extruder for square profile pipe extrusion
Second extruder for melting adhesive material
Low Energy Consumption & Low-Temperature Plasticization:
Special screw design separates solid and molten materials
High mixing performance ensures uniform and stable plasticization

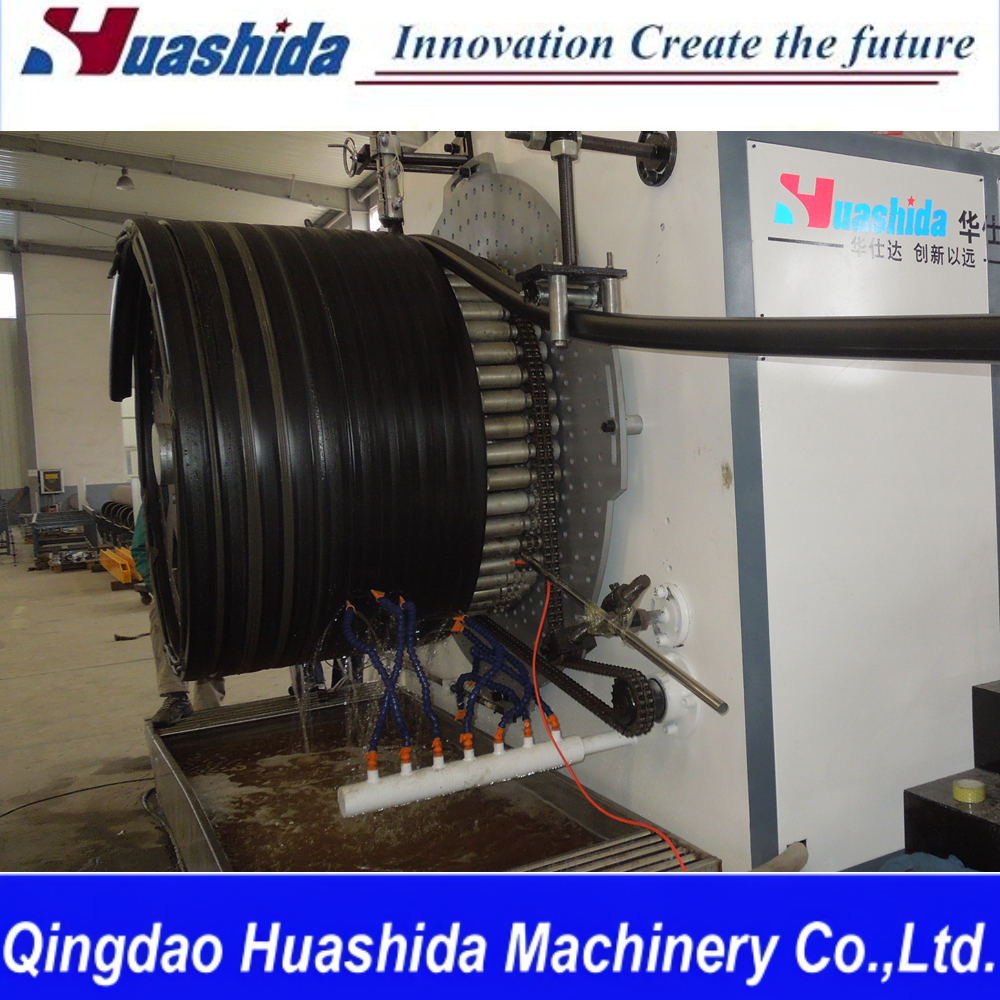

Spiral Forming Unit:
Multi-axis transmission box ensures high torque and stable operation
Composite die-head design with rotational molding
Adhesive extruder is adjustable in multiple directions
Equipped with PLC and touch screen for automatic operation
Cutting System:
Saw cutting with precise length control
PLC control system from OMRON or MITSUBISHI ensures stable performance
PLC Control System:
High-speed operation with large storage capacity
Multi-point synchronous control of extrusion, adhesive extrusion, winding, and cutting
Two extruders and winding unit can be controlled separately using dual touch screens

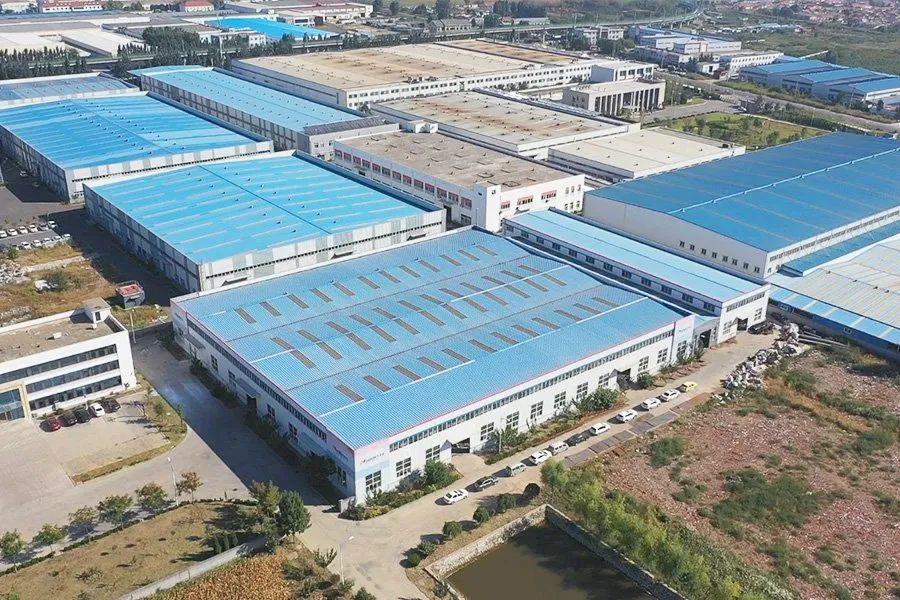

Qingdao Huashida Machinery Co., Ltd. is a specialized manufacturer engaged in the development and production of plastic pipe machinery, municipal pipe equipment, pipe insulation and anti-corrosion systems, as well as pipe jointing and anti-corrosion materials.

Our main product lines include:

HDPE Jacket Pipe Production Line for Pre-insulated Pipes (Diameter: 110-2000mm)

Rigid Pre-insulated Pipe Production Line

Flexible PERT Pre-insulated Pipe Production Line

Steel Pipe Anti-corrosion Coating Line for FBE, 2LPE, and 3LPE coatings

Steel Pipe Surface Derusting (Shot Blasting) Line

PE Pressure Pipe / Water and Gas Supply Pipe Extrusion Line

PP/PE Plastic Sheet, Board, and Geomembrane Production Line

NBR/PVC Thermal Insulation Tube and Sheet Production Line

Pipeline Anti-corrosion Materials & Tools, including:

            ○Heat Shrink Joint Coating Sleeves

            ○Electrofusion Weldable Joint Sleeves

            ○Portable Plastic Welding Guns (Extruders)

           ○ PE/PP Welding Rods

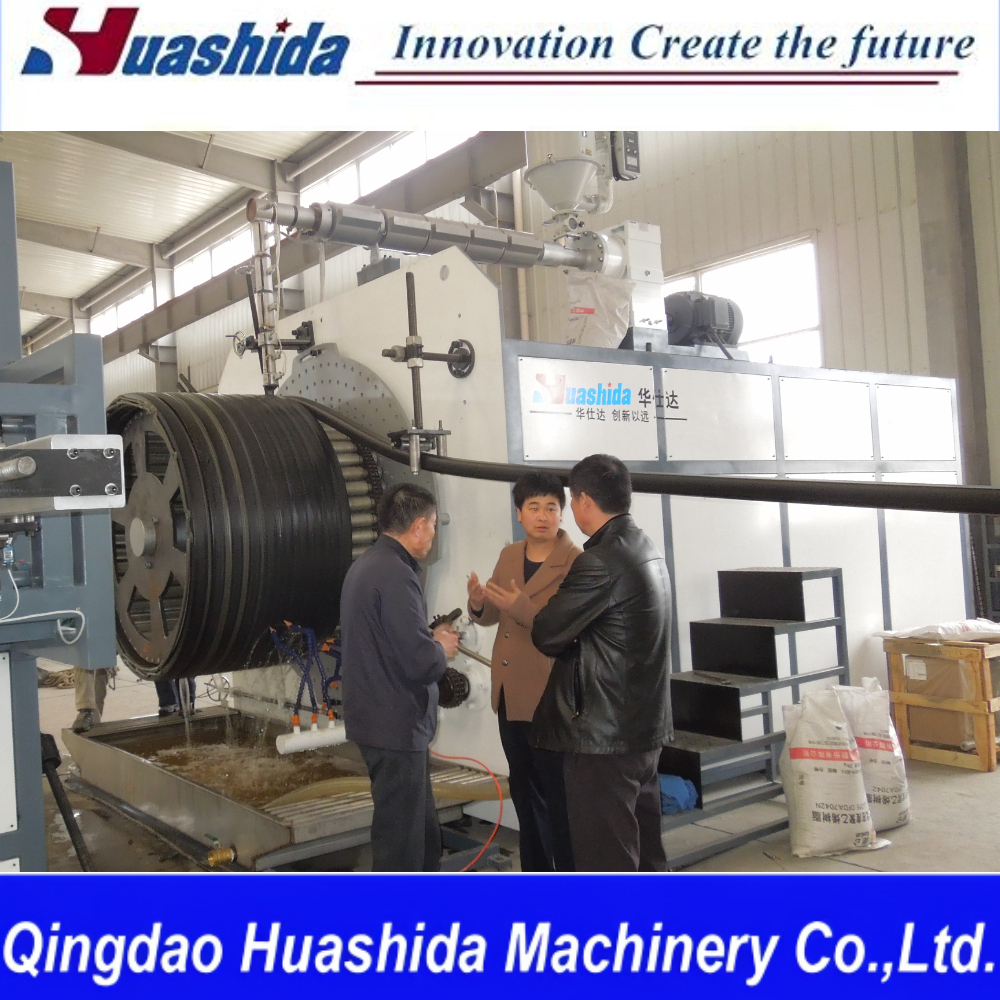

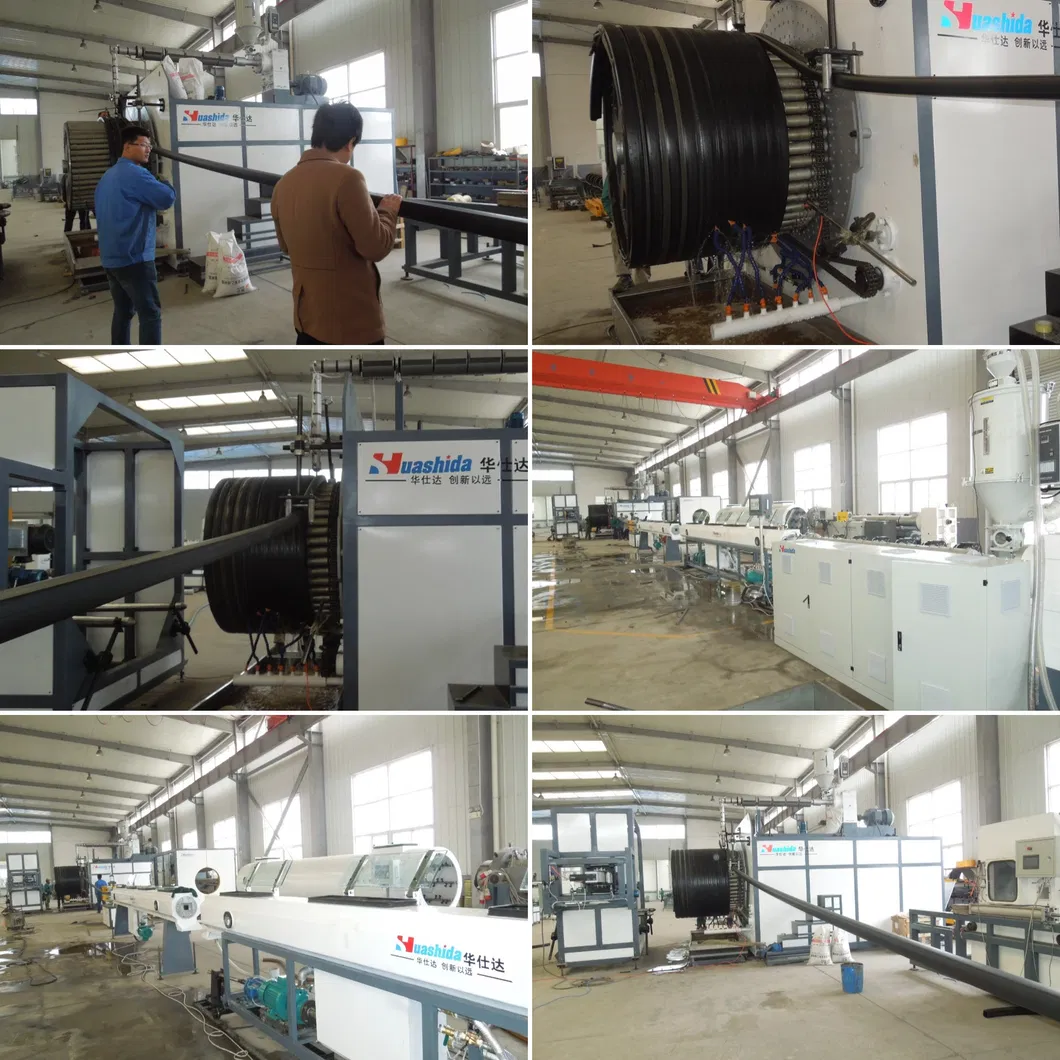

- client -

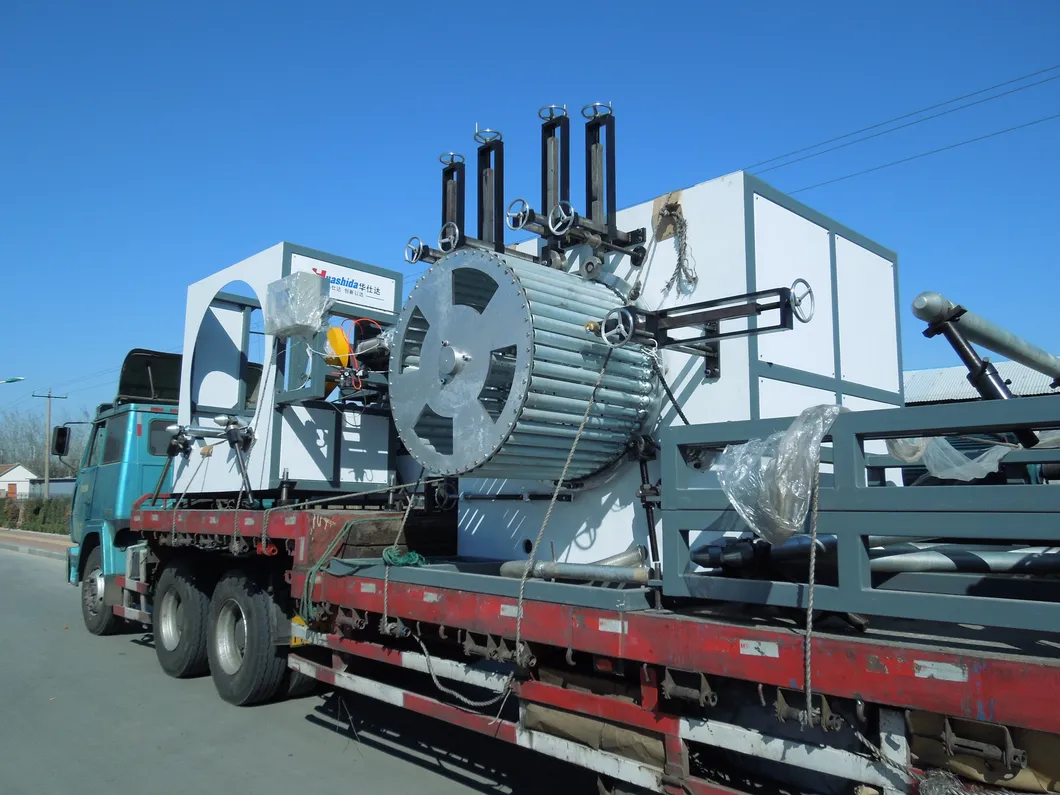

- packaging -
