HDPE Krah Pipe Extrusion Line for Large Diameter Spiral Pipes

Qingdao Huashida Machinery Co., Ltd. has developed a complete production line for spiral structured wall HDPE pipes, leveraging advanced German technology and holding independent intellectual property rights. This production line achieves international advanced performance standards and is highly automated, controlled by a Siemens PLC system.

High Ring Stiffness
High Impact Strength and Low Weight
Good Creep Deformation Resistance
Outer Pressure Resistance
Erosion Resistance (such as acid, alkali, and salt)
Long Service Life: Approximately 50 years.

√ Storm Water Management
√ Storm Water Attenuation Applications
√ Sewerage Pipelines
√ Drainage Pipelines
√ Culverts
√ Pipe Rehabilitation
√ Landfill Drainage/Leachate
√ Mine Drainage
√ HDPE Manholes / Manhole Drops
√ Floats
√ Irrigation

Technical process:
Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).

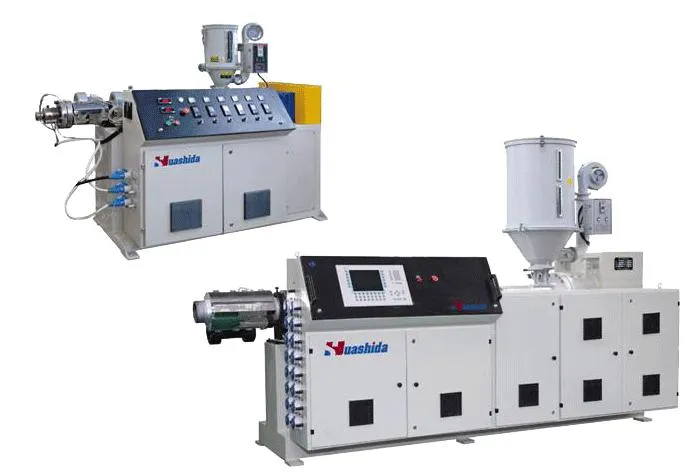

Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket

High-efficiency single screw extruder
The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.




Qingdao Huashida Machinery Co., Ltd. is a specialized manufacturer engaged in the development and production of plastic pipe machinery, municipal pipe equipment, pipe insulation and anti-corrosion systems, as well as pipe jointing and anti-corrosion materials.

Our main product lines include:

HDPE Jacket Pipe Production Line for Pre-insulated Pipes (Diameter: 110-2000mm)

Rigid Pre-insulated Pipe Production Line

Flexible PERT Pre-insulated Pipe Production Line

Steel Pipe Anti-corrosion Coating Line for FBE, 2LPE, and 3LPE coatings

Steel Pipe Surface Derusting (Shot Blasting) Line

PE Pressure Pipe / Water and Gas Supply Pipe Extrusion Line

PP/PE Plastic Sheet, Board, and Geomembrane Production Line

NBR/PVC Thermal Insulation Tube and Sheet Production Line

Pipeline Anti-corrosion Materials & Tools, including:

            ○Heat Shrink Joint Coating Sleeves

            ○Electrofusion Weldable Joint Sleeves

            ○Portable Plastic Welding Guns (Extruders)

           ○ PE/PP Welding Rods
