Pipe Bend 3lpe 3PE Feb Coated Steel Pipe Elbow Coating Production Line

The external 3PE anti-corrosion production line for bent pipes can complete tasks such as pipe rust removal, epoxy powder spraying, and 3PE winding on bent pipes.The Qingdao Huashida steel elbow 3PE anti-corrosion production line is mainly used in various fields, such as industrial oil and gas transportation, water supply transportation, sewage transportation, and chemical transportation.

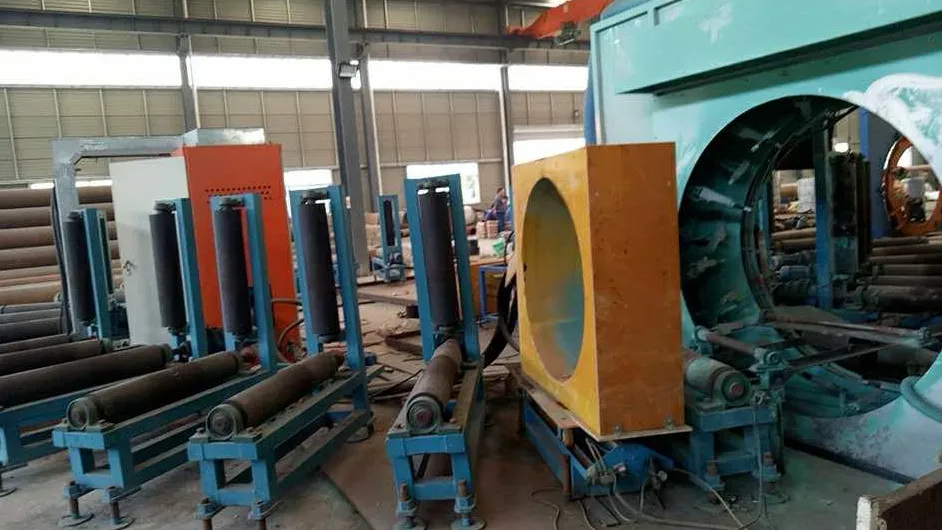

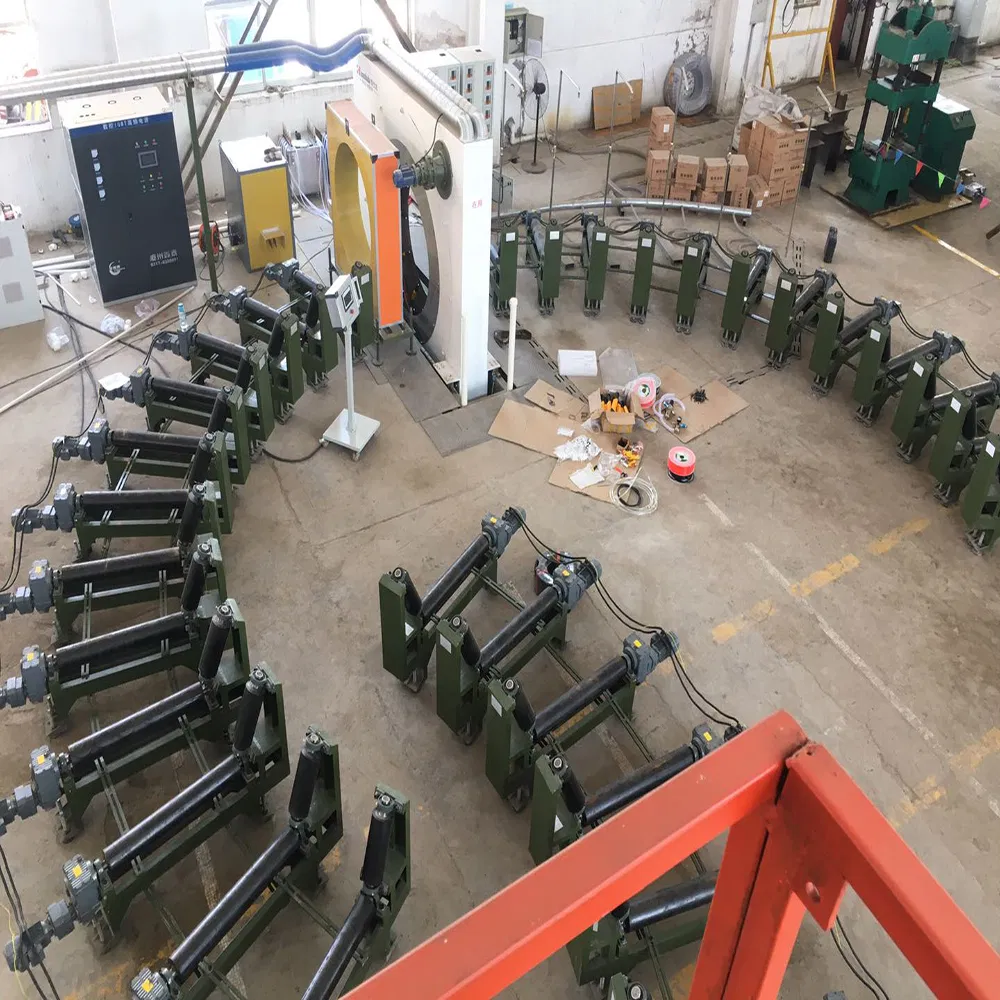

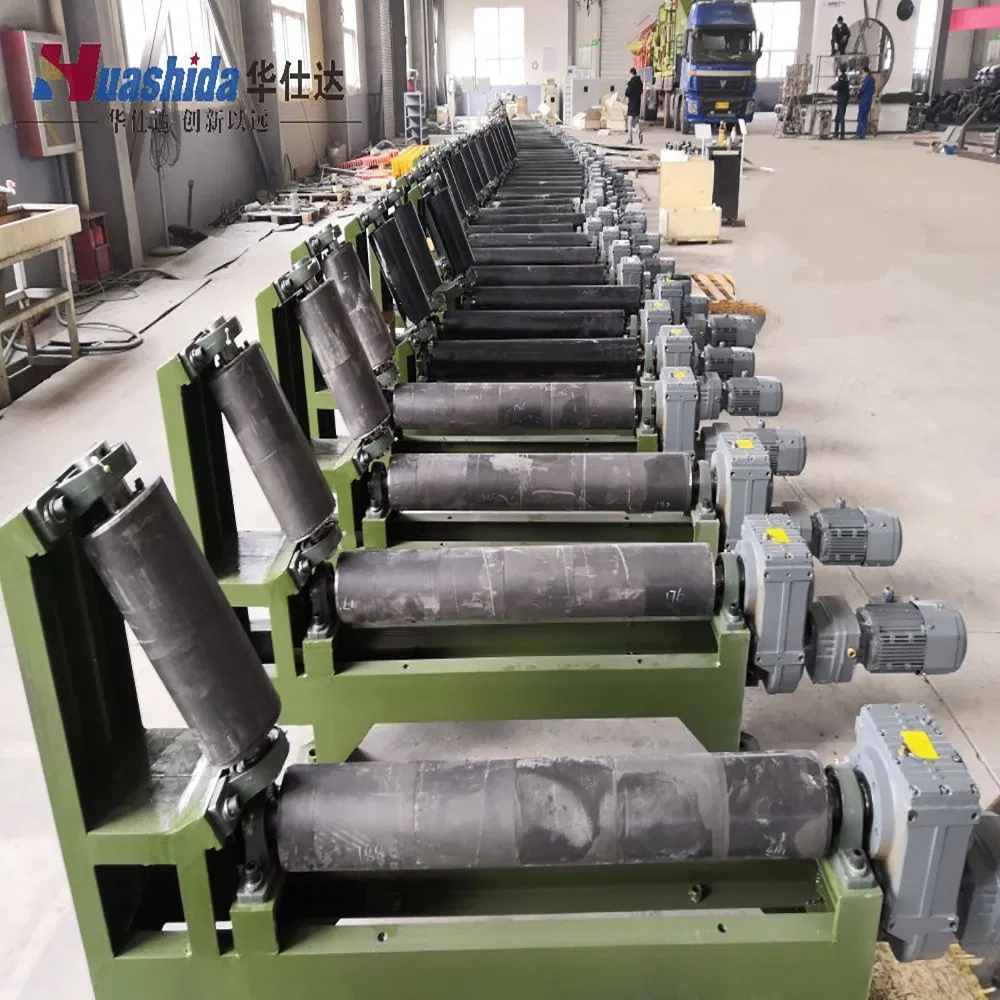

At least sixteen sets of Elbow pipe conveying structures have been set up, with Elbow pipes placed on the conveying structures. The rotating shaft of the driving mechanism is driven by a rotating motor to rotate the gear plate, and the rotational power is transmitted through the driving mechanism as the center. Adjust the height of the hanging rubber roller using the lifting device of the Elbow pipe conveying structure to adapt to the uniform center height of different pipe diameters.


Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.


The diameter of steel pipe: 426, 630, 720, 820, 1020, 1220
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

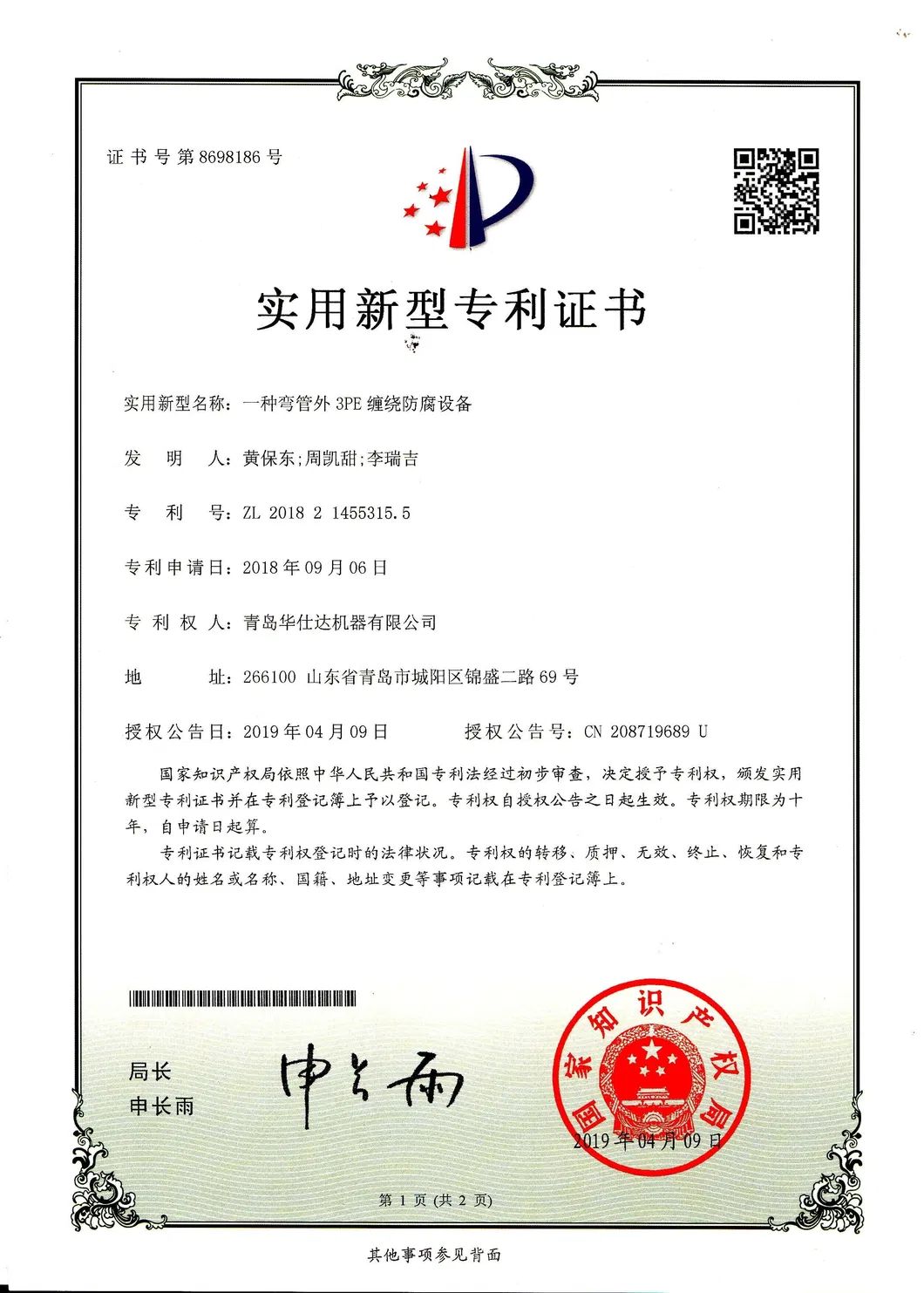

certificate: A 3pe winding anti-corrosion equipment for the outside of elbow pipes

The 3PE anti-corrosion production line for elbow pipes can complete tasks such as rust removal of elbow pipes, epoxy powder spraying of elbow pipes, and 3PE winding of elbow pipes. This equipment uses PLC intelligent integrated control to automatically adjust the production line. It has a particularly high degree of automation, stable process, reliable quality and excellent performance.
