HDPE Double Wall Corrugated Pipe Production Line
We supply the double wall corrugated pipe extrusion lines with the pipe of diameter from 110mm up to 1200m
Equipment list
1. Effective single screw extruder 2 sets
2. Effective vacuum feeder and dry hopper

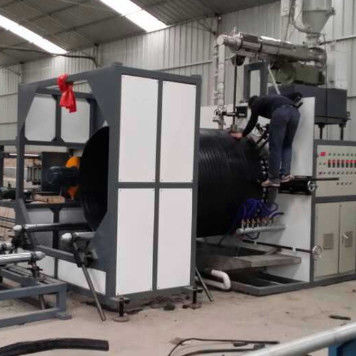

3. High speed corrugated pipe forming machine
4. Vacuum machine
5. Effective spray cooling tank
6. Automatic planetary cutting machine
7. Automatic stacker
8. Pipe puncher
9. Pipe package machine
10. 2-position coiler(single wall 90-160mm)
Pipe diameter
(ID. mm) |
110 |
160 |
200 |
225 |
300 |
400 |
500 |
600 |
800 |
SN8
(kg/m) |
0.9 |
1.7 |
2.1 |
2.8 |
5.1 |
8.0 |
12.5 |
18.5 |
31 |
SN4
(kg/m) |
0.75 |
1.5 |
1.8 |
2.5 |
4.2 |
6.0 |
10.0 |
13.5 |
25 |
Line speed
(m/min)/
Capacity (kg/h) |
≥6 |
≥5 |
≥4.2 |
≥3.8 |
≥2.8 |
≥1.9 |
≥1.3 |
≥1.1 |
≥0.8
|
Pipe extrusion according to requirements of:
ASTM_D790-2003, GBT2918-1998, ISO_1133-2005, GB3682-2000,
BS EN ISO 1133-2005,CJT 225-2011,GBT_19472.1-2004,NEN-EN 13476-1
Unique design adopted by mold running system, the compact structure ensure the corrugated pipe forming machine running smoothly, so the equipment has a longer service life.
New structure of circulating water tubing system avoid the inertial impact happened in present machines with old design.
The tubing system connected with the mold block adopts "slip-on connection" and "Plane sealing ring", it is much easier to change different sizes. You are not required to remove any tubes,
so it will save your much of time.
