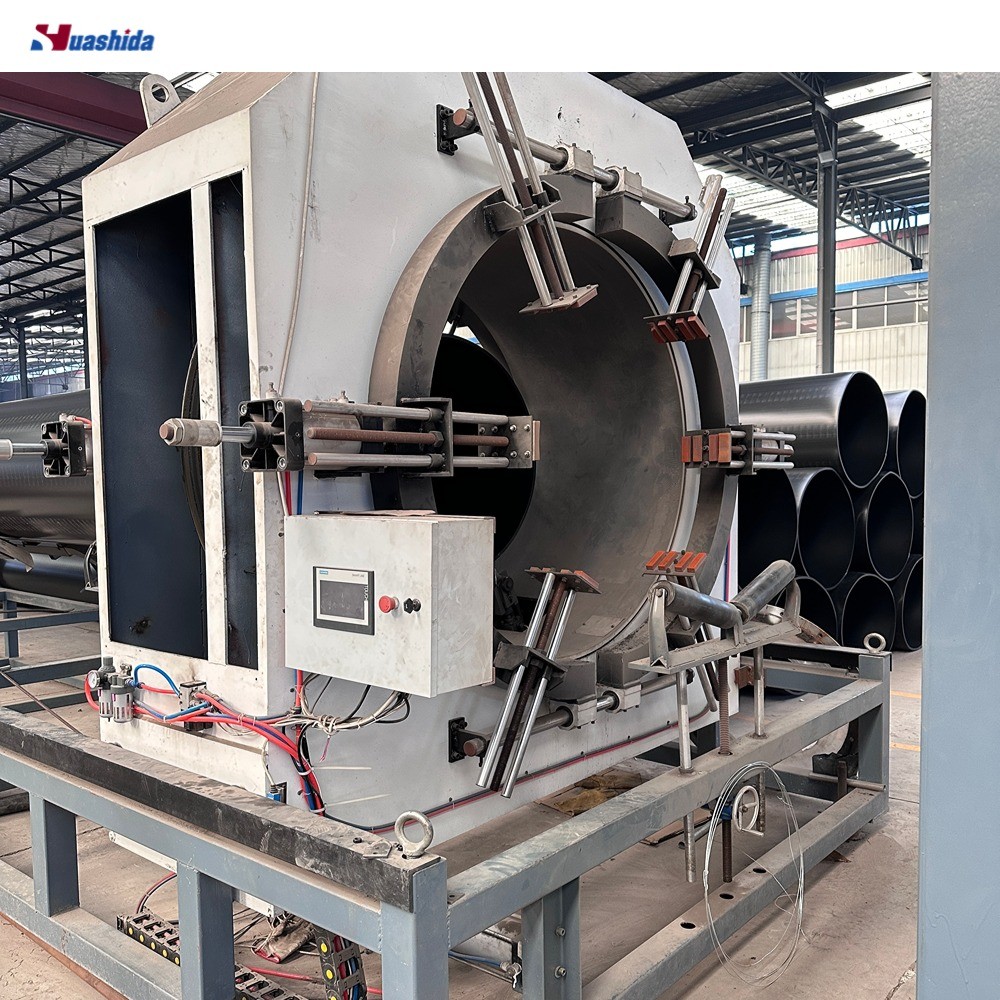

HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line

1 set
MOQ
US$100,000.00-3,000,000.00
Price
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

HDPE pre-insulated pipe line

,

jacket pipe production line

,

pre-insulated pipe line 90-2000mm
Basic Infomation
Place of Origin: China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Model Number: 90-2000 mm
Payment & Shipping Terms
Packaging Details: Strech film. If wooden boxces and pallets are required, the cost shall be borne by the buyer.
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 100 sets/year
Product Description



                                        HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line



Basic Info.

Model NO.
420-2000mm
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
After-sales Service
1 Year
Pipe Material
PE, HDPE
Calibration Method
Vacuum Calibration
Cooling Method
Water
Diameter Range
90-2000mm
Transport Package
Standard Package
Specification
ISO9001: 2008
Trademark
HSD
Origin
Qingdao China
HS Code
8477209000
Production Capacity
50 Sets/Year

Packaging & Delivery

Package Size
1200.00cm * 220.00cm * 260.00cm
Package Gross Weight
4000.000kg

Product Description

     HDPE Jacket Pipe Pre-insulated 90-2000 mm Line

Product Description

 Polyurethane Foam Pre-insulated Pipe HDPE Casing Jacket Pipe Machine is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of  PU foam thermal Pre-insulated Pipe according to international standards.
The HDPE shell pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.


Product Parameters
Production range: 90-2000mm (by different models)

Production line composition:
-1 set Vacuum loader
-1 set Hopper dryer
-1 set High-efficiency single screw extruder
-1 set Vacuum calibration table
-1 set Water spraying tank
-1set  Hauling machine
-1 set Cutting machine
-1 set Discharging Frame
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760m Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 26m 32m 36m 40m 45m
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line
Our Advantages


-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output and stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.

In other words:

High efficiency single spiral screw of innovative structural design, lifting productivity by 30% and saving 20% energy.

No more material waste. Precise feeding control , making raw material go forward fast.

No sudden downtime. Two pumps, one working, one on standby, production never stops.

No extra work. Planetary cutter gets the job done in one go, no need for extra manual touch-ups.

No shoddy quality. Extrusion is stable, pipe surface is smooth, passing all inspections easily.

No complicated operations. Easily run the whole machine, saving you time and labor.




HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line
Company Profile




Exhibition




Certifications
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line





Packaging & Shipping



HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line

Our machines make products what are widely used as
jacket pipe of PU foam insulation pipe in municipal heating pipe system;
municipal water supplying and drainage pipeline;
oil and gas pipeline;
pipe joints of plastic drainage water pipes,
PU foam insulation pipelines,
2PE/3PE oil and gas pipelines;
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
