Steel Pipe Internal FBE External 3lpe Anti-Corrosion Coating  Machinery with Extruder system

External 3PE anti-corrosion:

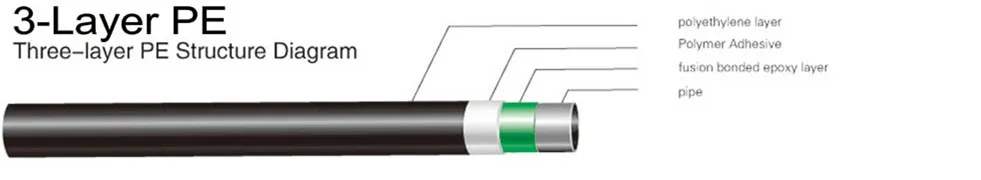

The product adopts a three-layer composite structure: the bottom layer is epoxy powder to achieve anti-corrosion function; The middle layer is an adhesive to enhance the bonding strength between layers. The outer layer is made of polyethylene, which combines mechanical protection and environmental tolerance.

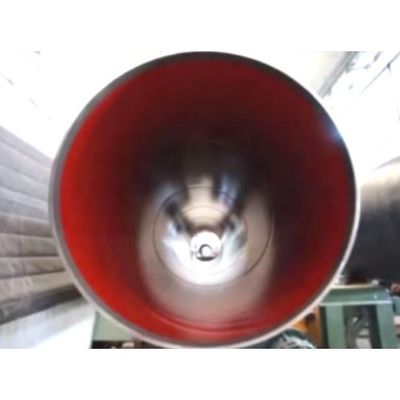

Internal anti-corrosion:
By spraying epoxy paint, taking advantage of its strong adhesion and excellent chemical corrosion resistance, it prevents the oil, gas, water and other media transported inside the steel pipe from corroding.




To meet the anti-corrosion requirements of pipelines, a dual solution of external 3PE composite structure (chemical anti-corrosion + mechanical protection) and internal epoxy coating is adopted: the outer 3PE enhances the anti-corrosion ability through interlayer synergy, while the inner epoxy coating specifically addresses the problem of medium corrosion. The overall solution is highly efficient, durable and has a long service life.

It has been widely applied in fields such as oil transportation, natural gas pipelines, and water supply and drainage pipe networks, effectively ensuring the long-term safe and stable operation of various pipelines.

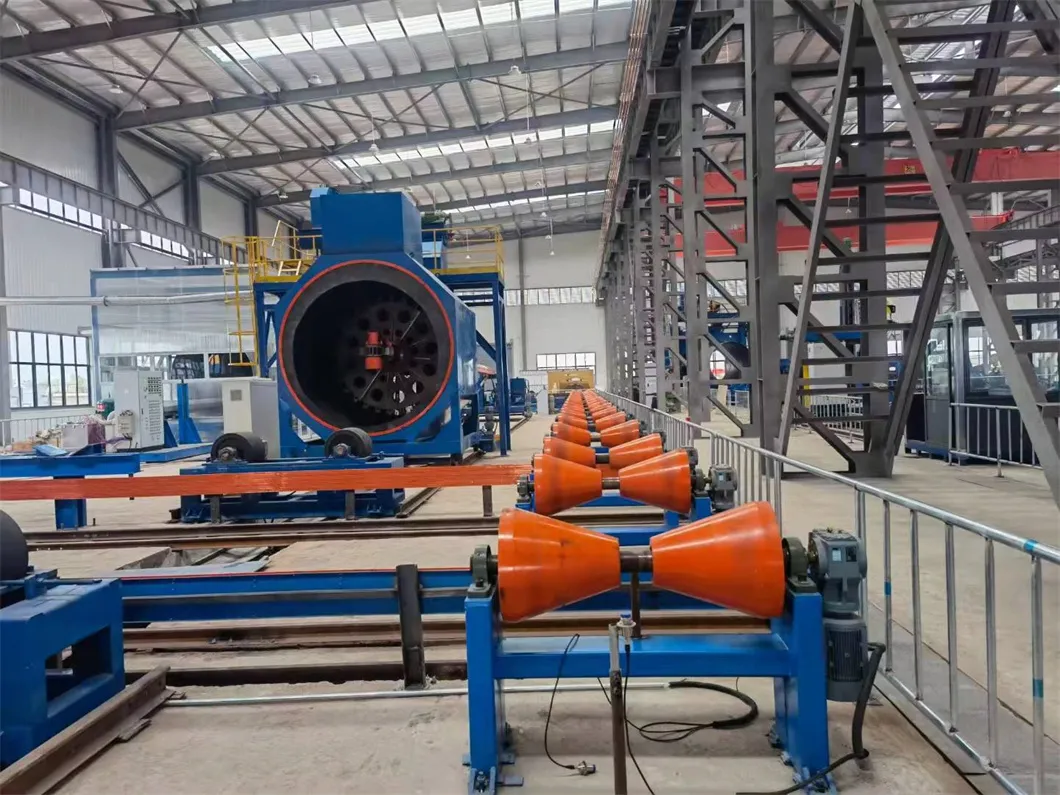

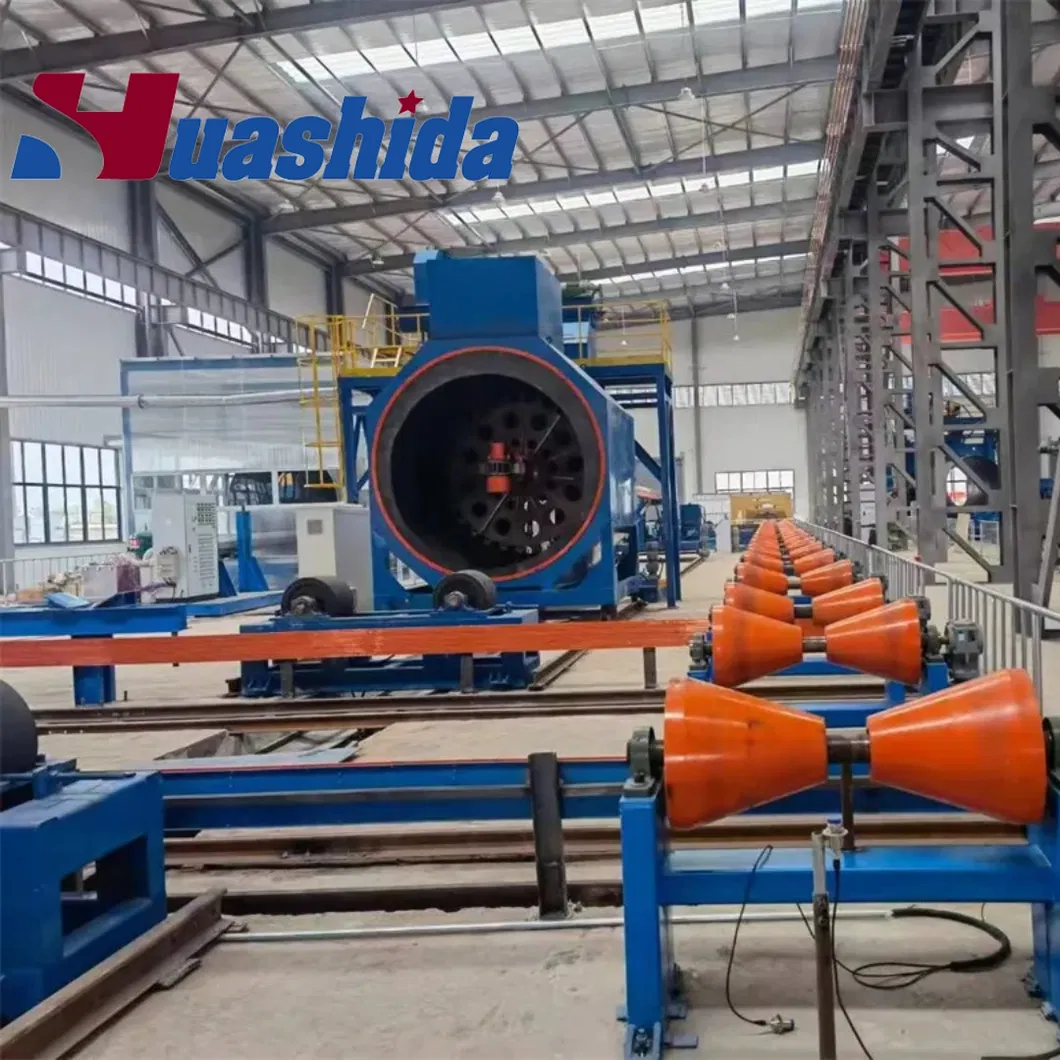

The anti-corrosion coating processing line includes:
-steel pipe transmission system

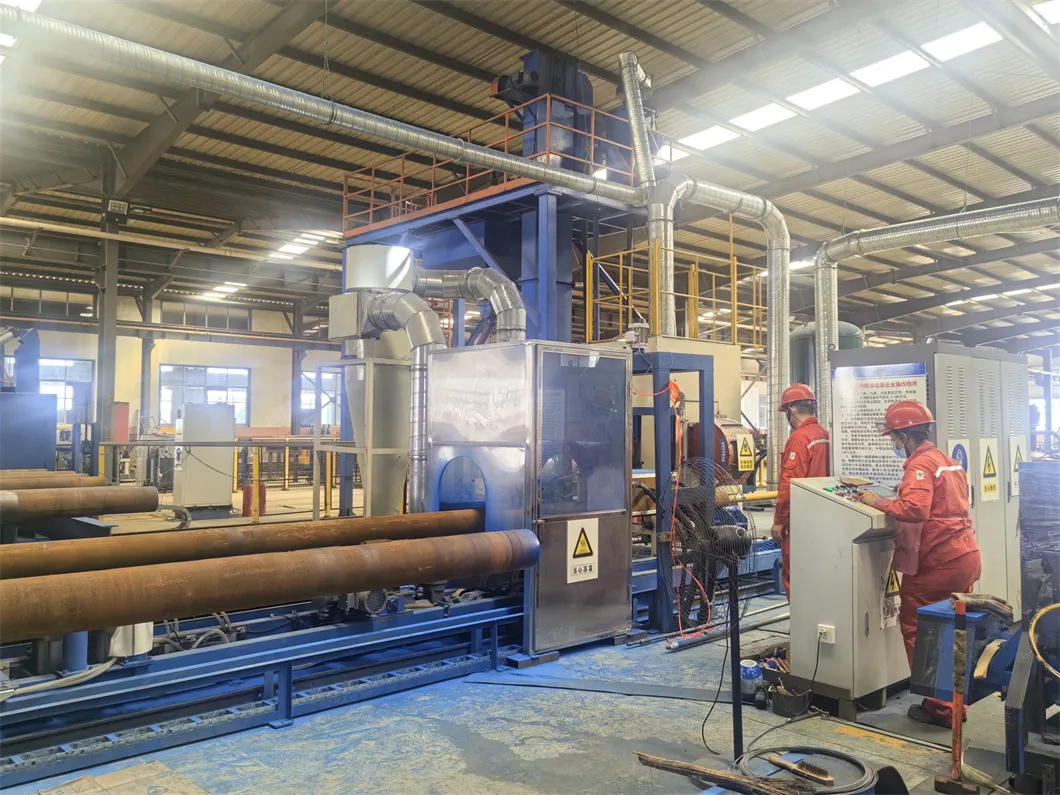

-Internal and external shot blasting system
-dust collection system
-pipe heating system
-electrostatic spraying system
-PE coating system

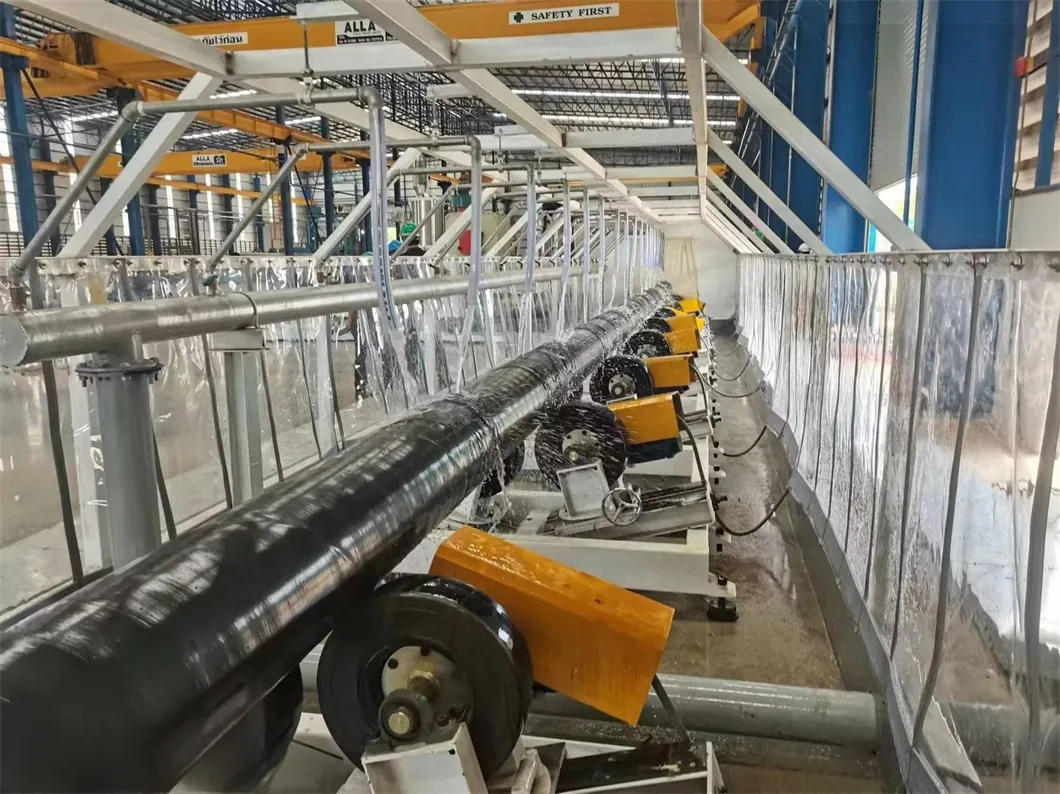

-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-PLC electronic control system

Upload pipes→pipes screw conveyor→inernal rust removal →external rust removal→ intermediate frequency heating→Internal Epoxy powder coating→External Epoxy powder coating→ outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes



√ High-sealing design, energy-saving, cost-reducing and environmentally friendly.
√ The operation is simple and efficient, with a service life of 30 to 50 years.
√ Low-temperature impact resistance and stability, safe and reliable.

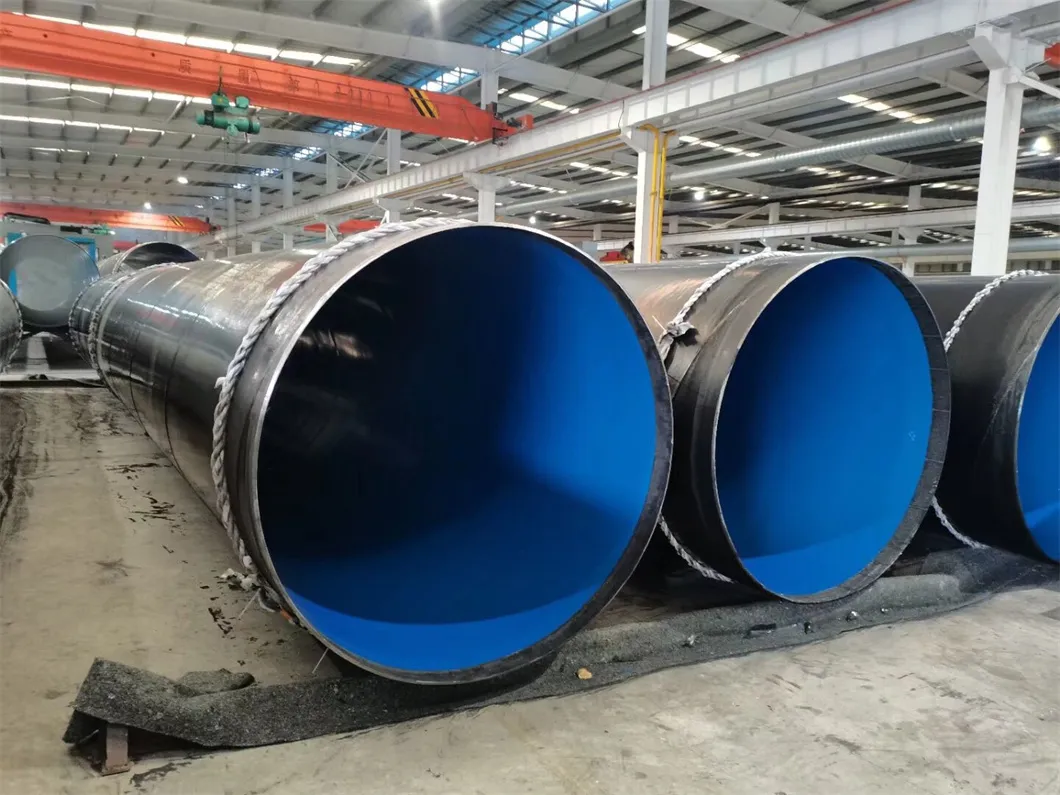

√ Internal and external anti-corrosion: The inner wall is resistant to media, while the outer wall is of high strength and low water absorption.
√ PLC intelligent control linkage sensors achieve high-precision production.

1. Pipe diameter: 159-4200mm
2. Processing capacity: ≥250m²/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene
