Features

Specifications

Feature: Insulation

Operating Temperature: 60c-110c

Specification: Thickness 0.8-3.0mm

Application: Construction, Ocean, Electronics, Metallurgy, Chemical, Petroleum

Basic Infomation

Place of Origin: China

Certification: ISO, CE

Payment & Shipping Terms

Delivery Time: 10 days

Payment Terms: T/T,D/A

Supply Ability: 8 Ton/Day

Gallery

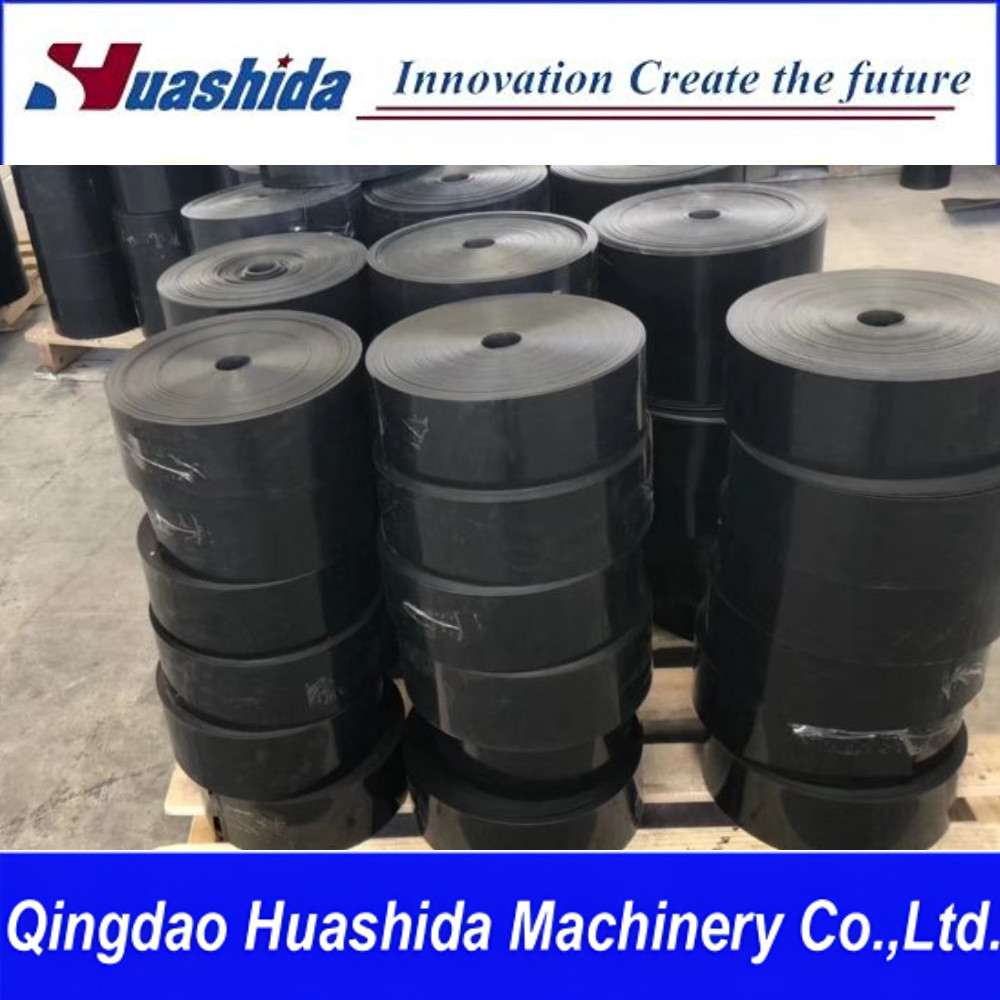

3PE Pipeline Joint Radiation Cross-Linked HDPE Plastic Heat Shrink Sleeve Tape

Product Description

3PE pipeline joint Radiation Cross-Linked HDPE plastic Heat Shrink Sleeve tape

Feature
Fast shrinkage speed, good waterproof performance, good anti-corrosive performance, long service life, convenient transportation and fast construction.

Application scope
It's mainly used for heat pipe network, steel pipe corrosion resistance and insulation, chemical pipes and sewage pipes etc

installation

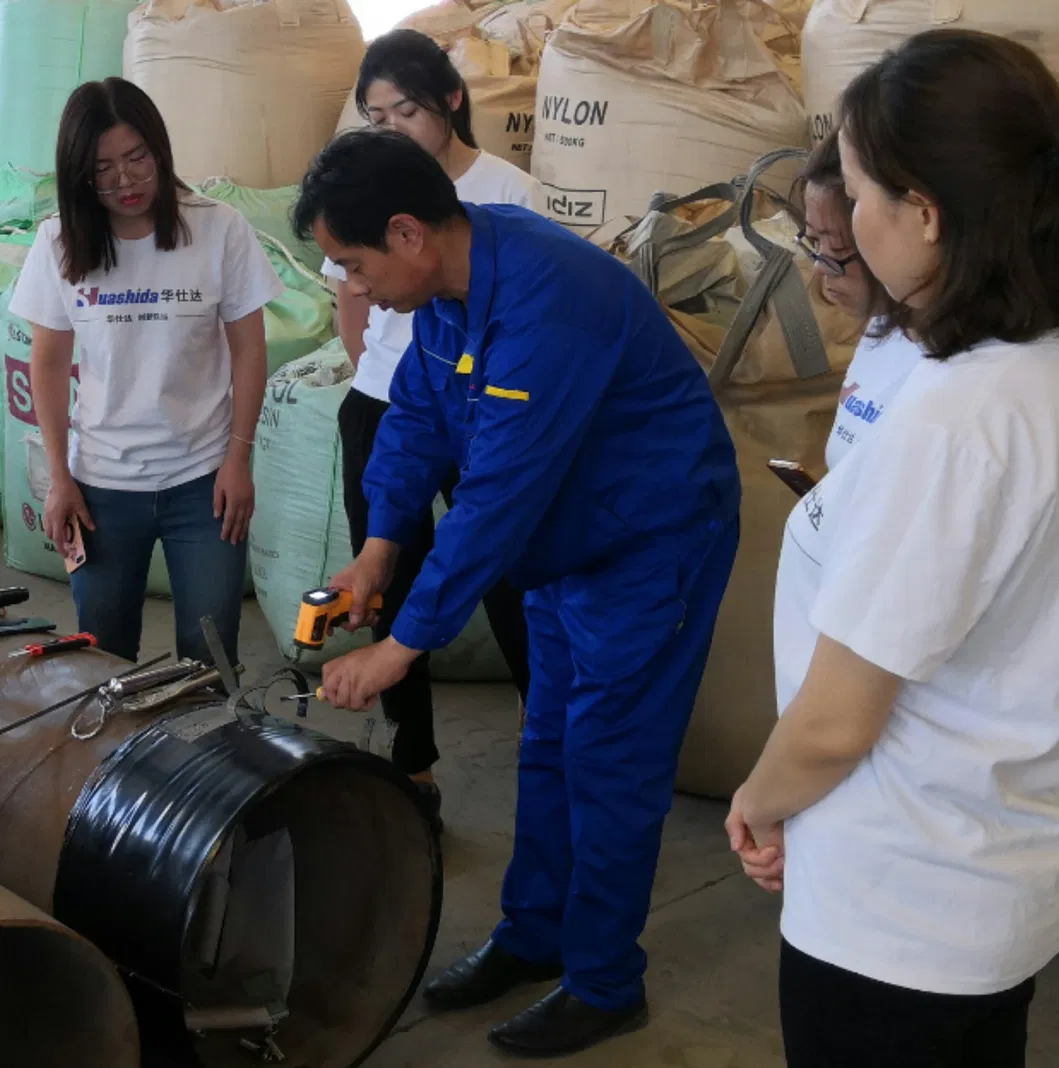

When heat is applied to the sleeve wrapped around a joint, the adhesive melts and becomes a liquid while the sleeve backing begins to shrink. The radial shrinking forces of the sleeve squeezes the fluid adhesive into all the pipe surface irregularities, while the sleeve conforms tightly to the joint profile. On cooling, the adhesive solidifies, creating a tough bond to the pipe and the coating.

3PE Pipeline Joint Radiation Cross-Linked HDPE Plastic Heat Shrink Sleeve Tape

	ITEM	Standard	UNIT	Data
Adhesive	softening point	ASTM E 28	°C	70-80
Adhesive	shear strength	DIN 30 672	N/cm	≥100
Basic	specific density	ASTM D792	r/cm 3	0.935-0.96
	tensile strength	ASTM D638	Mpa	15-20
	Elongation at break	ASTM D792	%	350
	hardness	ASTM D2240	ball	48

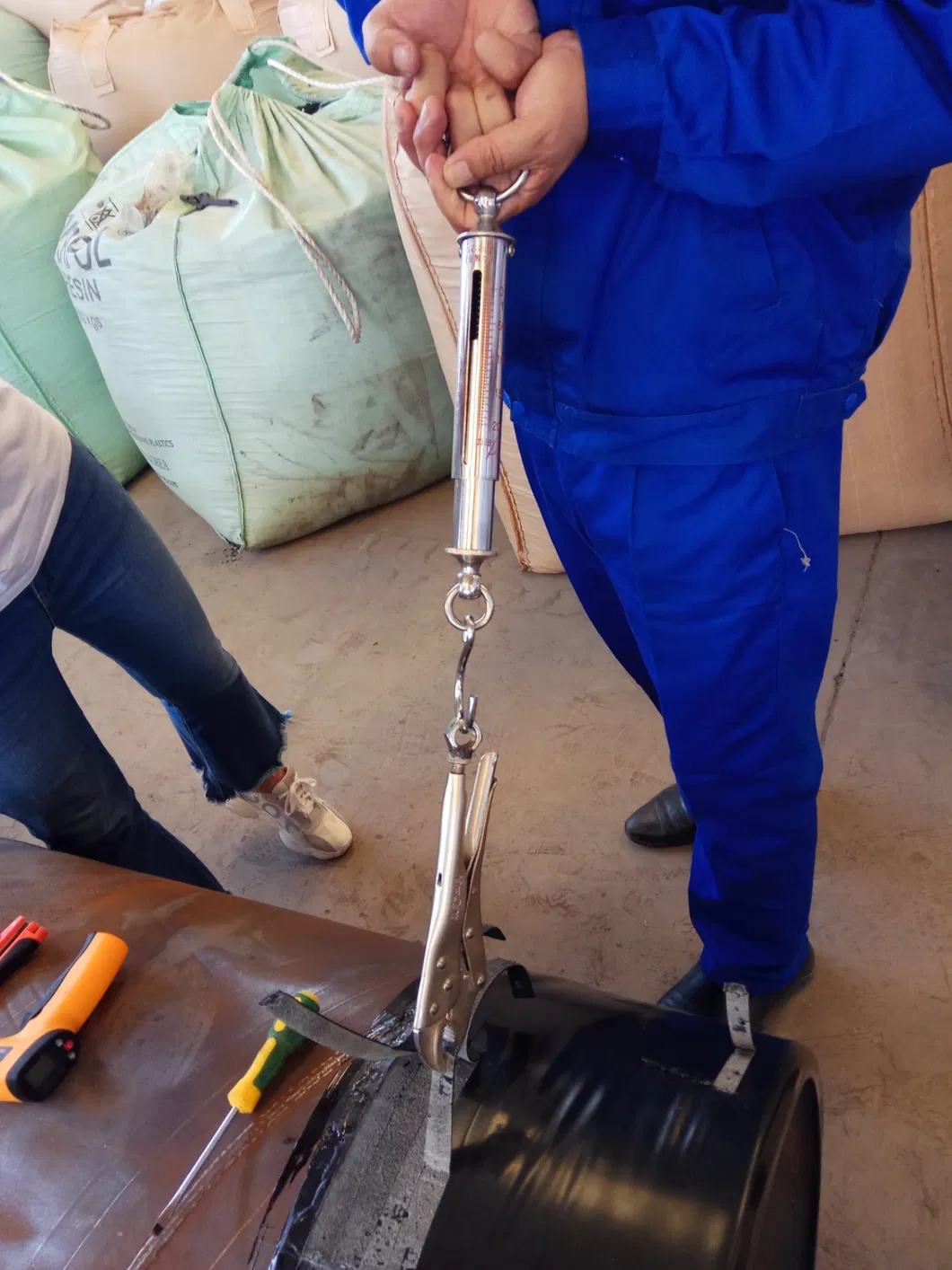

Heat Shrinkable Sleeve	peel strength	ASTM D1000	N/cm	>150
Heat Shrinkable Sleeve	water-intake rate	ASTM D570	%	0.05
