Multi-Layer Internal External FBE 3LPE Coating Machinery for Steel Pipe
Product Description
The epoxy powder anti-corrosion process for the inner and outer walls of steel pipes is currently an efficient and reliable solution for pipeline anti-corrosion. The treated steel pipe has significant advantages: its coating not only has excellent corrosion resistance, capable of resisting the long-term erosion of various chemical media such as acids, alkalis and salts, but also has a smooth and dense surface structure, which can effectively reduce the frictional resistance during fluid transportation and improve the transmission efficiency of the pipeline. This type of anti-corrosion steel pipe, with its outstanding comprehensive performance, is widely used in multiple key fields such as long-distance oil and gas pipelines, urban water supply and drainage networks, and industrial fluid transportation.
Internal & External FBE Powder coating
Epoxy powder, as a thermosetting non-toxic coating material, forms a high-molecular cross-linked structure coating after curing, which combines excellent chemical anti-corrosion performance with mechanical strength. Its base layer is bonded and cured on the surface of the steel pipe to form a continuous and dense coating, providing excellent adhesion, chemical corrosion resistance and cathodic disbondment resistance. The polymer adhesive bonds the epoxy powder before gelation and is closely connected with the top layer of polyethylene, making the three-layer structure a unified protective whole.
Main equipment:
| Item |
Process Flow |
| 1 |
Upload pipes |
| 2 |
pipes sprial conveyor |
| 3 |
external blasting |
| 4 |
internal blasting |
| 5 |
Rust removal |
| 6 |
intermediate frequency heating |
| 7 |
FBE powder coating |
| 8 |
Powder recycling system |
| 9 |
load down pipe rack |

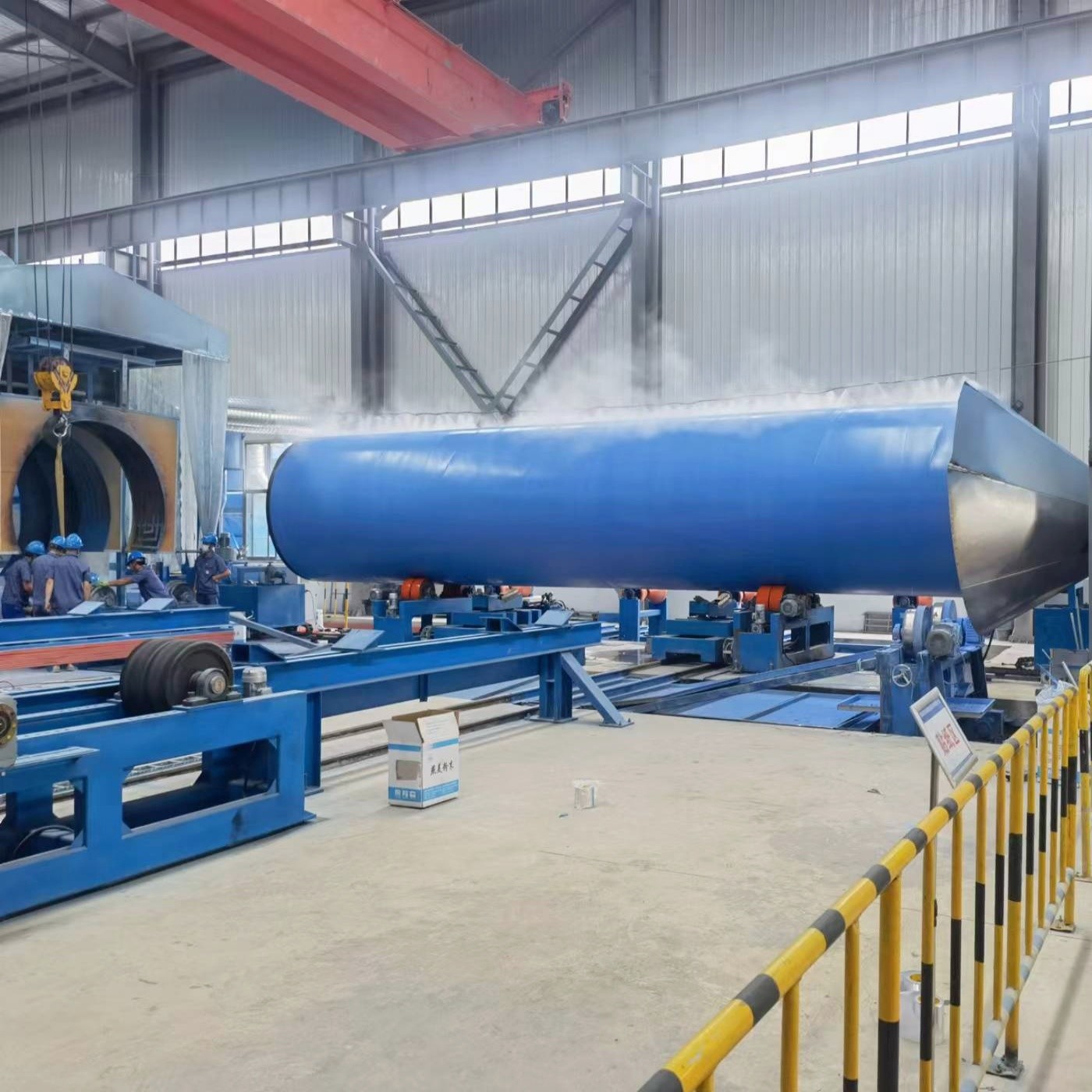

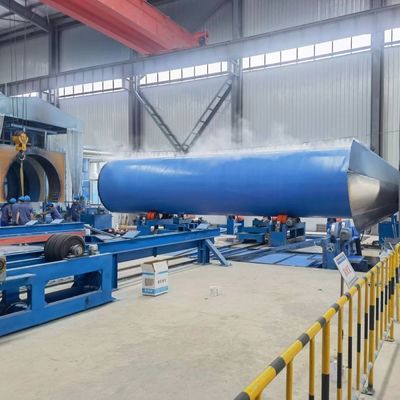

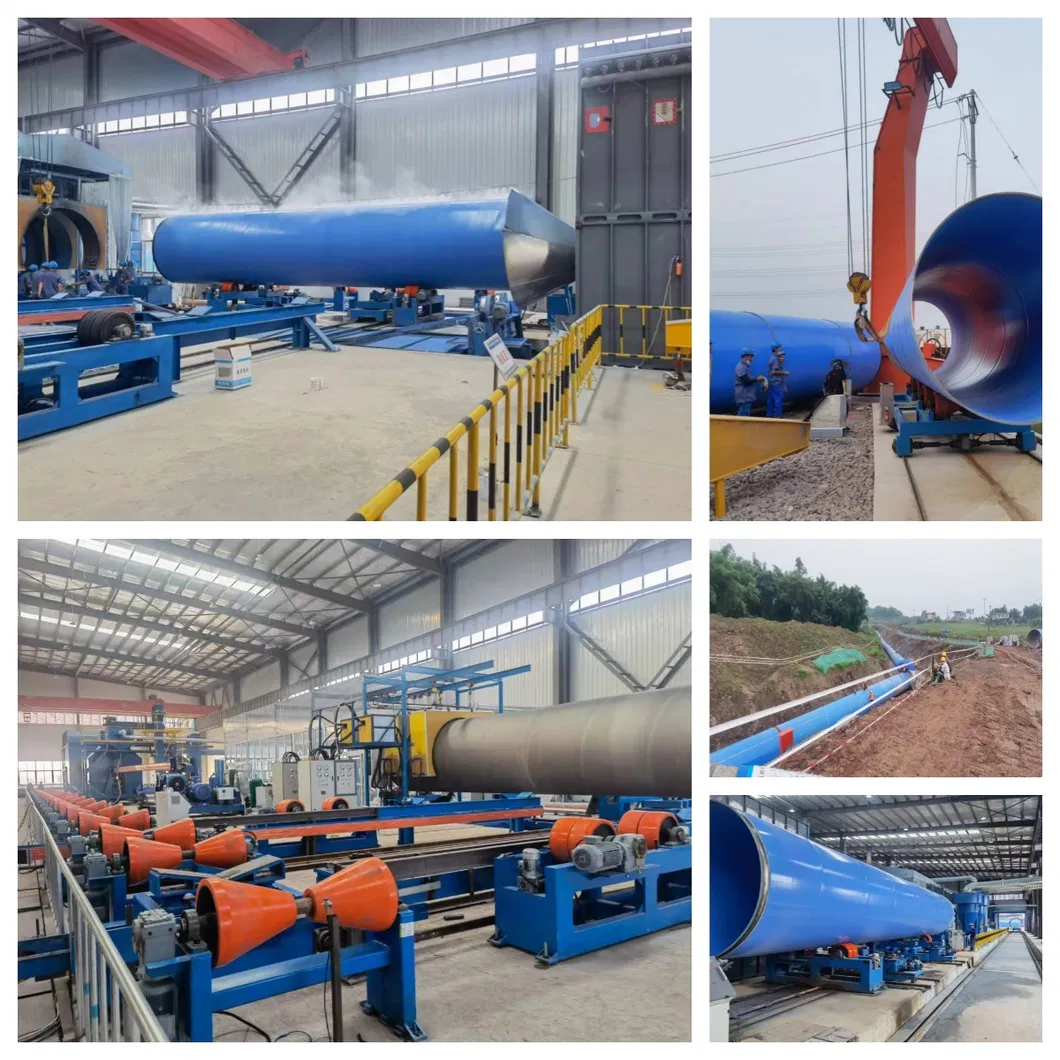

Detailed Photos
Our Advantages
√ Full-process automation: One-click operation for feeding, sandblasting, heating, spraying and discharging, reducing human errors
√ High material utilization rate: The powder recovery system increases the raw material utilization rate to over 95%, which is environmentally friendly and economical
√ Customization capability: A team of 9 senior engineers supports personalized design of pipe diameter and coating process
FAQ
Question & Answer:
Q1. Pipe Diameter Range?
A: 48-219mm / 219-1220mm / 325-1600mm / 508-2400mm / 1000-3200mm.
Q2. Descaling Grade?
A: SA2.5.
Q3. Coating Standards?
A: Complies with SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , NACE/AMPP, DNV, and CNPC38-2002.
Q4. Delivery Time?
A: 2-3 months after deposit confirmation.
Q5. Production Capacity?
A: Max. 3-8 km/day (varies by pipe size); Annual output: 2 million square meters m² (Φ508mm).
Q6. Coating Thickness?
A: 80-800 μm (customizable).
Q7. Export Countries?
A: Russia, UAE, India, Iran, Kazakhstan, Belarus, etc. (50+ lines installed globally).
Q8. Warranty & Support?
A: 12-month mechanical warranty / 6-month electrical warranty; Free training & technical guidance.
