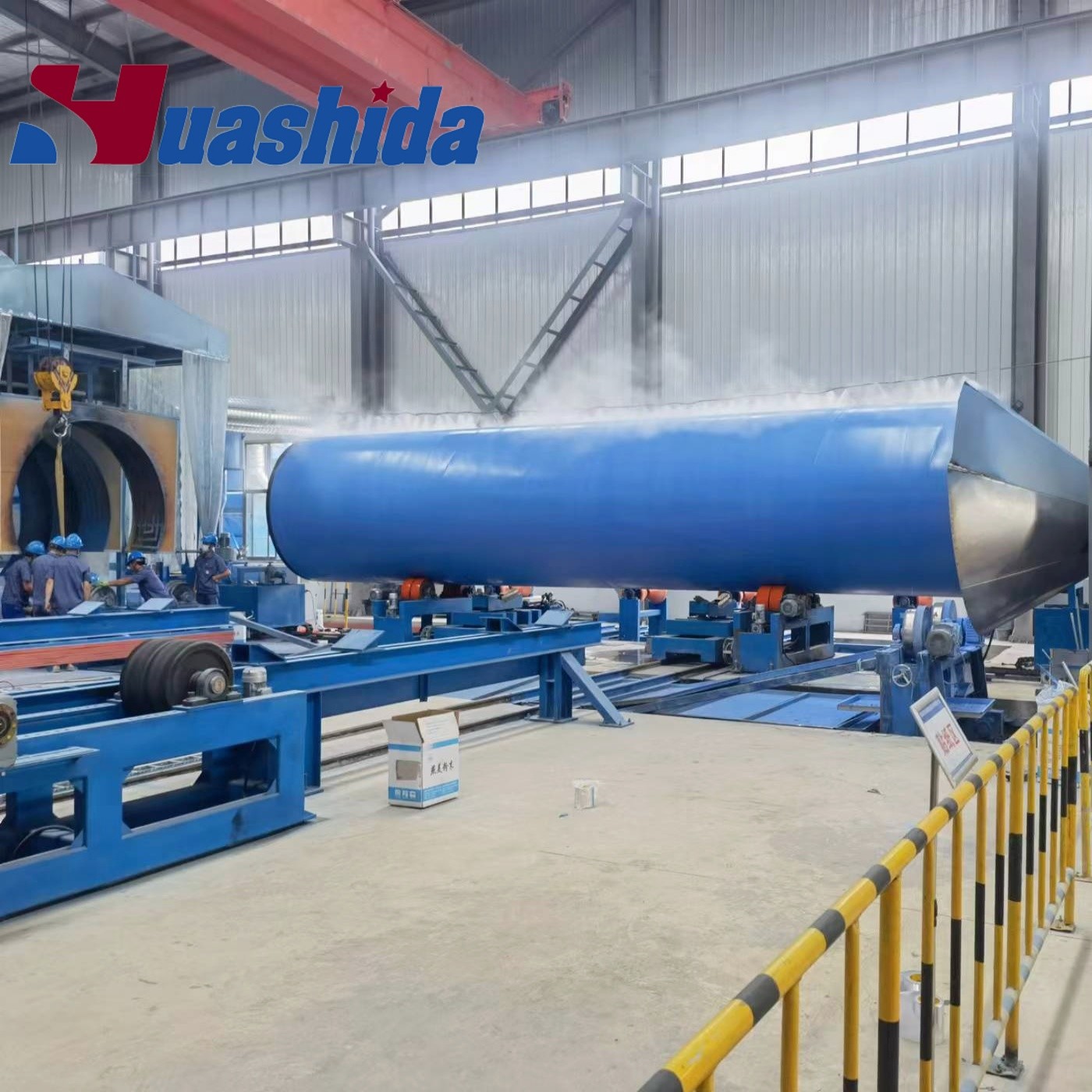

Internal & External FBE Powder coating
Epoxy powder, as a thermosetting non-toxic coating material, forms a high-molecular cross-linked structure coating after curing, which combines excellent chemical anti-corrosion performance with mechanical strength.  Its base layer is bonded and cured on the surface of the steel pipe to form a continuous and dense coating, providing excellent adhesion, chemical corrosion resistance and cathodic disbondment resistance.  The polymer adhesive bonds the epoxy powder before gelation and is closely connected with the top layer of polyethylene, making the three-layer structure a unified protective whole.

It has the following characteristics:
1. Efficient anti-corrosion technology
Steel pipe inside and outside the epoxy powder anti-corrosion, chemical corrosion resistance, long anti-corrosion life.
2. Coating performance advantages
Smooth surface and small friction, improve medium delivery efficiency and reduce energy consumption.
3. Wide application fields
Oil/gas transportation, water supply and drainage pipelines and other key projects preferred anti-corrosion solutions.

Process adaptability
It supports separate spraying or composite coating of inner and outer walls (such as outer 3LPE inner FBE) to meet different scenarios such as civil water supply and long-distance oil and gas transportation
Efficient and stable
The temperature control accuracy of intermediate frequency heating is ±2ºC to ensure uniform melting and adhesion of the powder. The rotational speed of the spiral conveying system is adjustable to adapt to the conveying efficiency of different pipe diameters
Environmental compliance
The powder recovery device conforms to CE, ISO14001 environmental standards, no dust pollution
Global service network
50 + domestic and foreign projects, such as Russia, Iran, United Arab Emirates, Iran, India, Belarus, Kazakhstan, etc.

Question & Answer:

Q1. Production line parameters?

A:(1) Steel pipe coverage: 114mm-4200mm
   (2) Processing capacity: ≤250m² /h
   (3) Cleaning level: Sa2.5
   (4) Materials used: dissolved epoxy resin powder

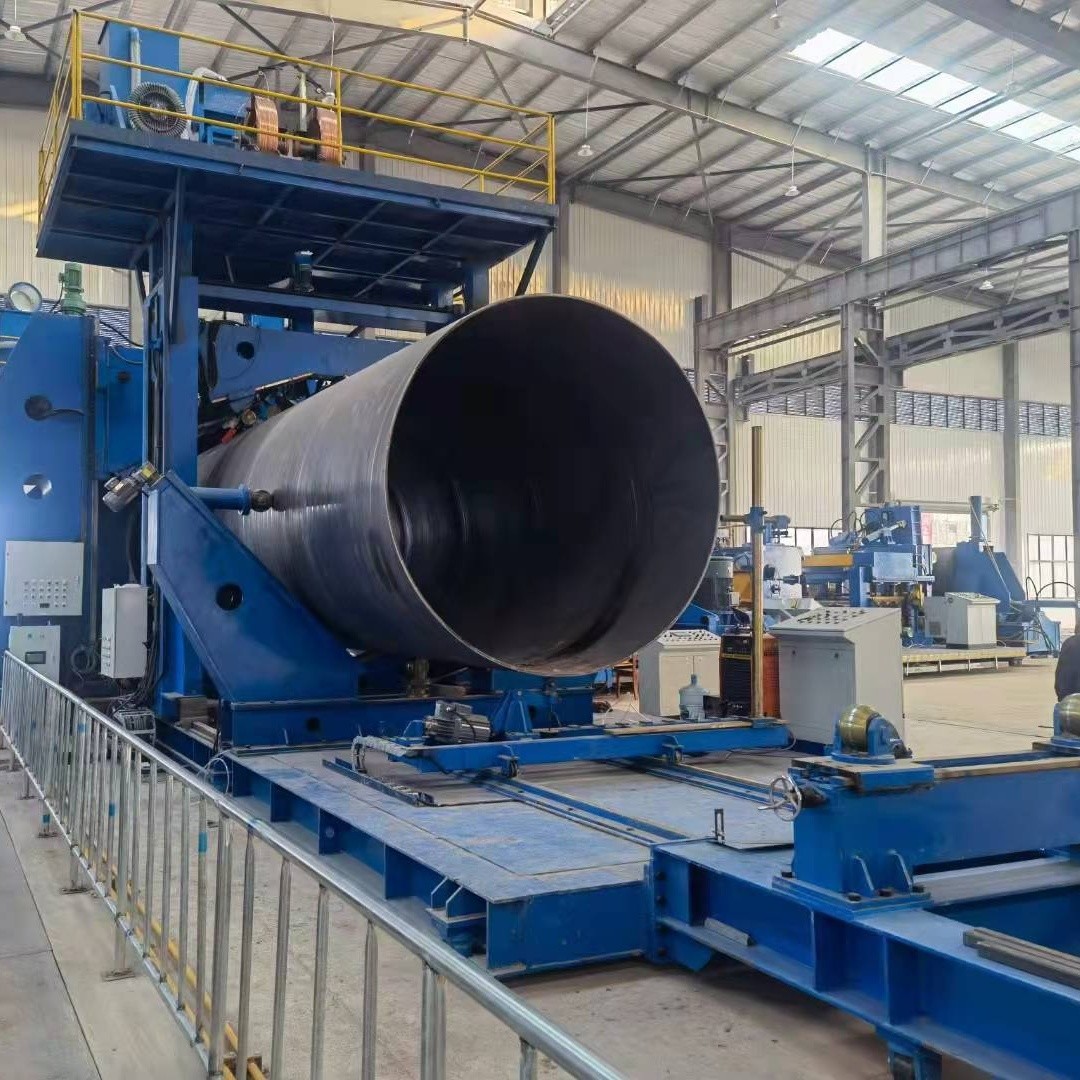

Q2. Main equipment?

 A:(1) Upload pipes
    (2) pipes sprial conveyor
    (3) external blasting
    (4) internal blasting
    (5) Rust removal
    (6) intermediate frequency heating
    (7) FBE powder coating
    (8) Powder recycling system
    (9) load down pipe rack

Q3.   Delivery Time?
A: 2-3 months after deposit confirmation

Q4.   Coating Thickness?
A: 80-800 μm (customizable)

Q5.   Export Countries?
A: Russia, UAE, India, Iran, Kazakhstan, Belarus, etc. (50+ lines installed globally)

Q6.   Warranty ?
A: 12-month mechanical warranty / 6-month electrical warranty

Q7.  Scope of service?
A: Pre-sale: provide free workshop planning and capacity measurement scheme
     Sale: engineer on-site guidance installation and commissioning,free training
     After-sales: 24 hours remote technical support
