Name: Automated 3pe 2lpe Fbe Powder Internal External Coating Production Line For Oil And Gas Steel Pipes
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 300-4200mm
Price: 1,550,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Clean Level: >=SA2.5

Coating Layer: Internal&External Pipe Wall

Control System: PLC

Product Type: Pipe Coating Machine

Corrosion Resistance: High

Highlight:

Internal External Coating Production Line

Automated 3LPE Coating Pipe Production Line

Automated 2LPE Coating Pipe Production Line

Basic Infomation

Place of Origin: qingdao,china

Brand Name: Huashida

Certification: ISO/CE/RoHS

Model Number: 300-4200mm

Payment & Shipping Terms

Packaging Details: Standard Package For Export

Delivery Time: 60 Days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 30 Sets/year

Gallery

Automated 3pe 2lpe Fbe Powder Internal External Coating Production Line For Oil And Gas Steel Pipes

Product Description

Automated 3pe 2lpe Fbe Powder Internal & External Coating Production Line For Oil And Gas Steel Pipes

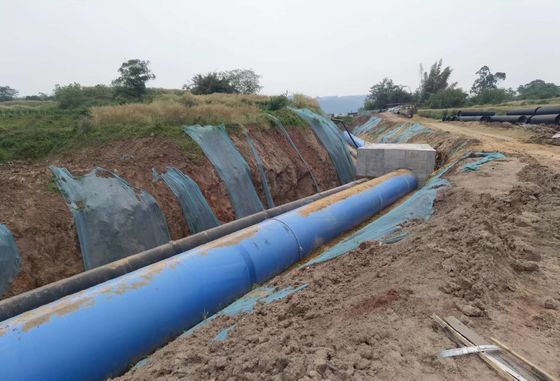

It is an efficient method to make the epoxy powder of inside and outside the steel pipe for anti-corrosion. The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.
Automated 3pe 2lpe Fbe Powder Internal External Coating Production Line For Oil And Gas Steel Pipes 0

Application:

Steel pipe internal&external FBE powder coating process, with the steel pipe internal wall blasting and external wall blasting , FBE epoxy powder coating applied to the water supply for civil use.

Advantages of epoxy powder:
The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring good chemical anticorrosion and higher mechanical properties. The function of epoxy powder bottom layer is to form continuous coating, providing excellent adhension by agglutinate and solidifying the steel tube surface with good chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together.

Main equipment:

Item	Process Flow
1	Upload pipes
2	pipes sprial conveyor
3	external blasting
4	internal blasting
5	Rust removal
6	intermediate frequency heating
7	FBE powder coating
8	Powder recycling system
9	load down pipe rack

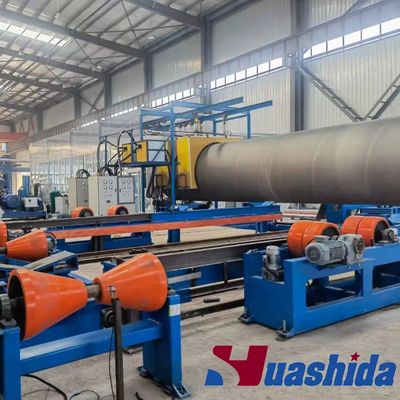

Equipment show

Automated 3pe 2lpe Fbe Powder Internal External Coating Production Line For Oil And Gas Steel Pipes 1

1.Incorporate cutting-edge technology
2.Ensure stable and consistent operation
3.Feature a high level of automation to reduce labor costs
4.Deliver excellent anti-corrosion performance that meets international standards
5.Provide comprehensive production solutions covering design, installation, commissioning, and training
6.Offer 389 sets of global production experiences
7.Employ a team of 9 professional senior engineers
8.House a high-end expert workstation for plastic machinery equipment in China

Question & Answer:

Q1. What is Size of Pipe Dia. your equipment can produce ?
A: We can produce four main Model:
Diameter of steel Pipe:
48-219mm.
219-1220 - mm
325-1600 - mm
508-2400 - mm
1000-3200mm

Q2. What is Descaling grade?
A:SA2.5?

Q3. What is your anticorrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.

Q4. What is Delivery Time
A: 2-3monthes after deposit.

Q5. Production output:
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).

Q6. Coating thickness:
A: 80~800um

Q7. Which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan and so on.

Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months for the electrical part. The seller provides free technical services and provides training and guidance to buyer operators.
Automated 3pe 2lpe Fbe Powder Internal External Coating Production Line For Oil And Gas Steel Pipes 3
