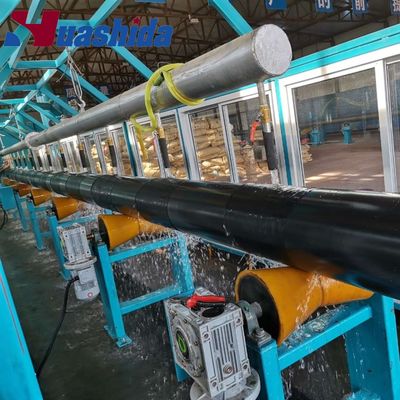

Large-Scale 2LPE / 3LPE O-Type Extrusion Coating Equipment for Pipe Manufacturing
Product Description
A complete set of O-type Extrusion Anti-Corrosion 3LPE 2LPE FBE Coating Machine includes systems of steel pipe transmission, shot blasting, dust collector, pipe heating, electrostatic spraying powder, PE and adhesive coating, water cooling, edge cutting, hydraulic and pneumatic device, detecting and electric controlling system.

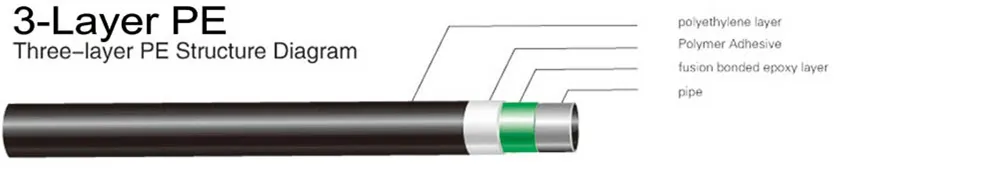

The O-type extrusion 3LPE anti-corrosion coated steel pipe exhibits excellent chemical resistance, capable of withstanding corrosion from various chemical substances including acids, alkalis, salts, and oxidizing agents. Its robust protective properties make it ideal for medium transportation across diverse environmental conditions, significantly extending the steel pipe's operational lifespan. This corrosion-resistant piping solution finds extensive applications in oil and gas transmission pipelines, water supply/drainage systems, and numerous industrial sectors.
Technological processes
Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→unload pipes
Product Parameters
(1) Steel pipe range:50mm-426mm
(2) Processing capacity:≥150m2/h
(3) Cleaning level:Sa2.5
(4) Materials for production: Epoxy powder, adhesive, polyethylene
Our Advantages
Why do 80% of our customers repurchase our equipment?
- Over 400 global customer production lines have been successfully launched
- A team of 9 engineers with over 15 years of experience
- A 24-hour global service response mechanism
- 0 Recruitment: Intelligent systems replace 80% of manual labor
- Over 80 invention patents and utility model patents
- Over 50 export countries and regions
- 70% of the customers are overseas
Main equipment list
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |
Pipe-converying Equipment |
1 |
| 2 |

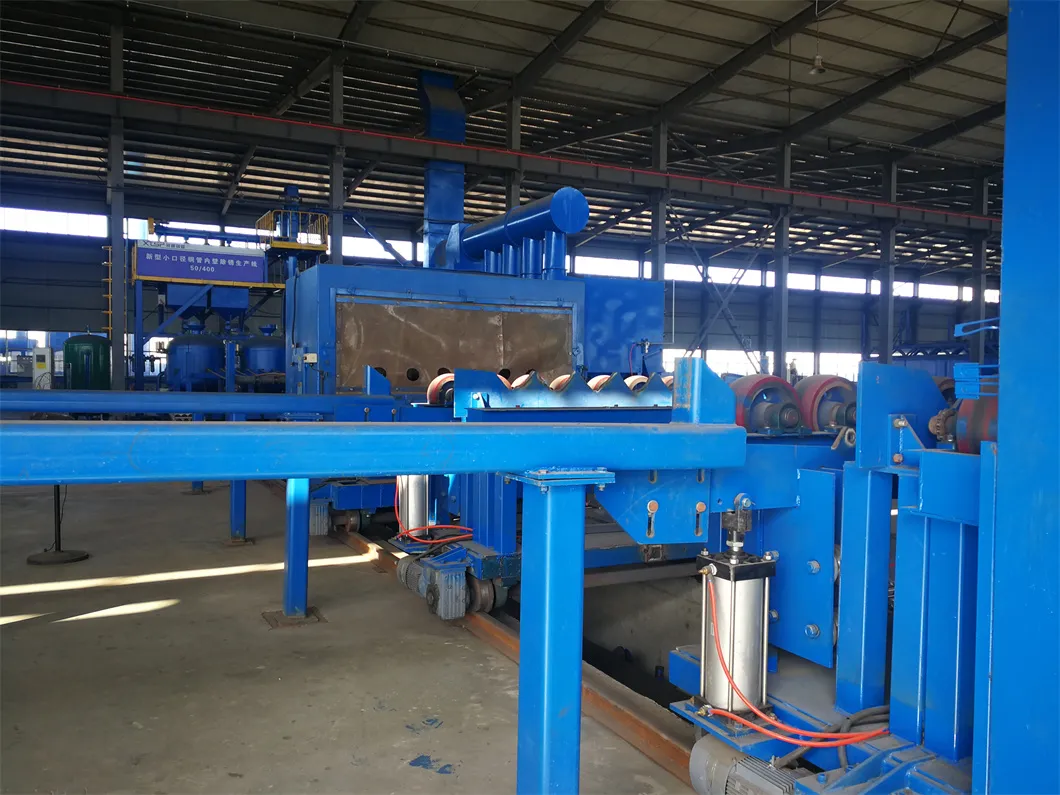

Shot Blast Cleaning Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC control system |
1 |
| B. Coating equipment |
| 1 |
Coating transfer equipment |
1 |
| 2 |
IF heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |

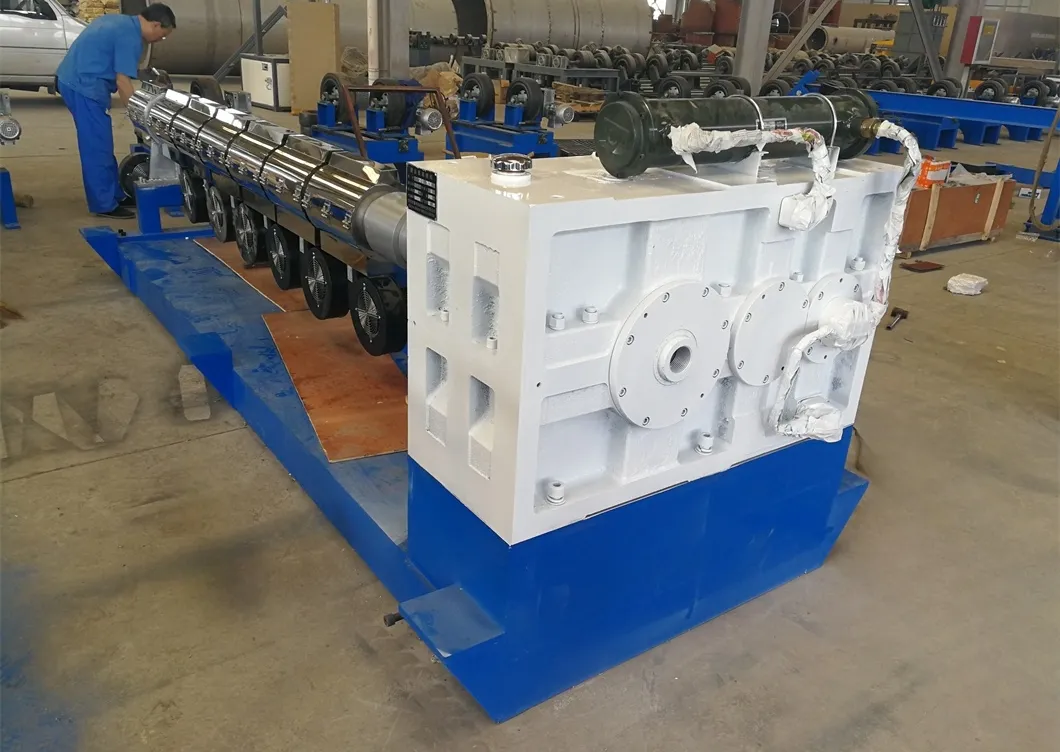

SJ-65/30 Extruder |
1 |
| 6 |
SJ-90/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |
PE extruder head mold |
1 |
| 9 |
Hot melt adhesive/PE coating device |
1 |
| 10 |
Cooling Spray equipment |
1 |
| C.Platform Equipment |
| 1 |
Steel pipe platform |
1 |
| 2 |
Post-rust removal transition platform |
1 |
| 3 |
Product tube storage platform |
1 |
| 4 |
Hydraulic Equipment |
2 |
| D.Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |

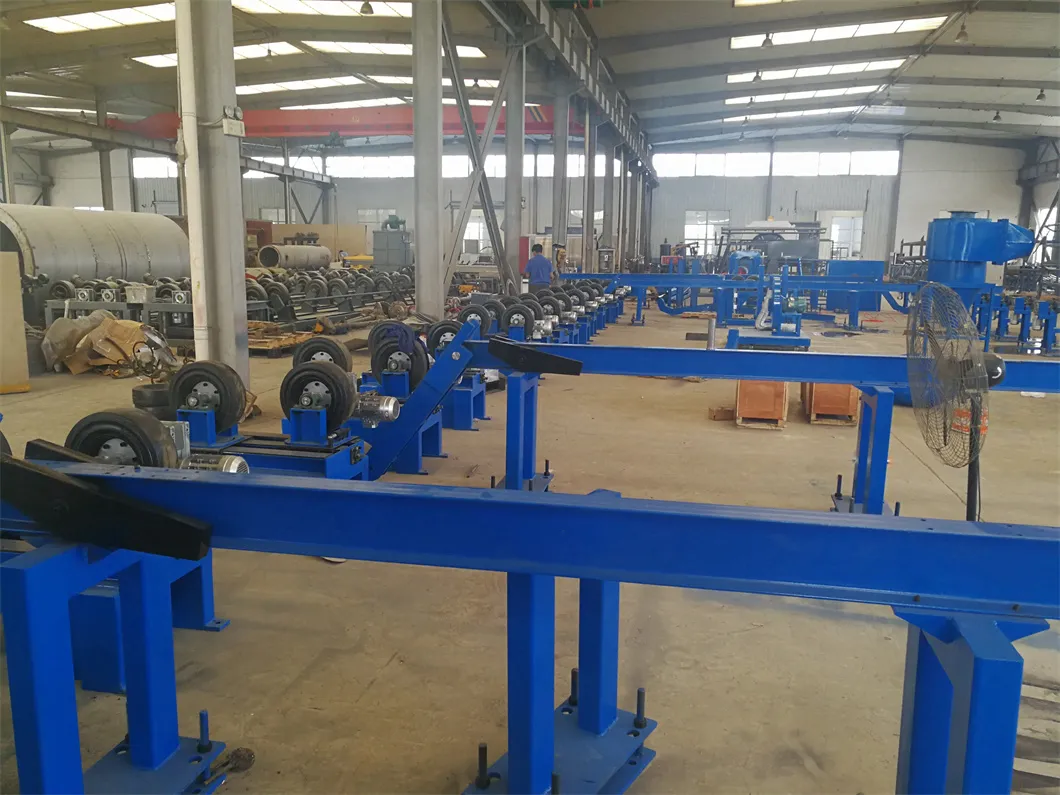

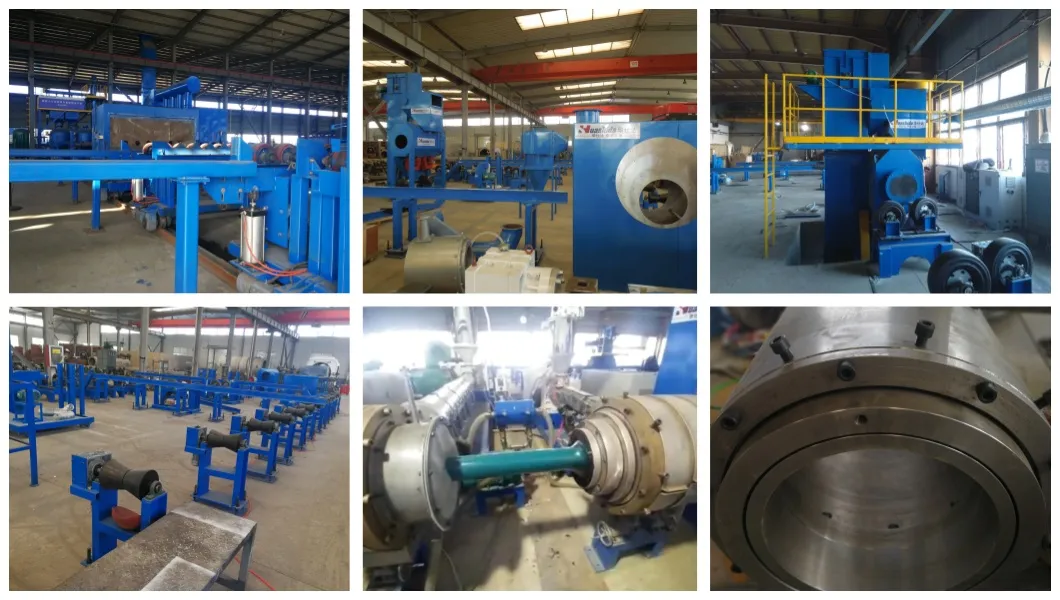

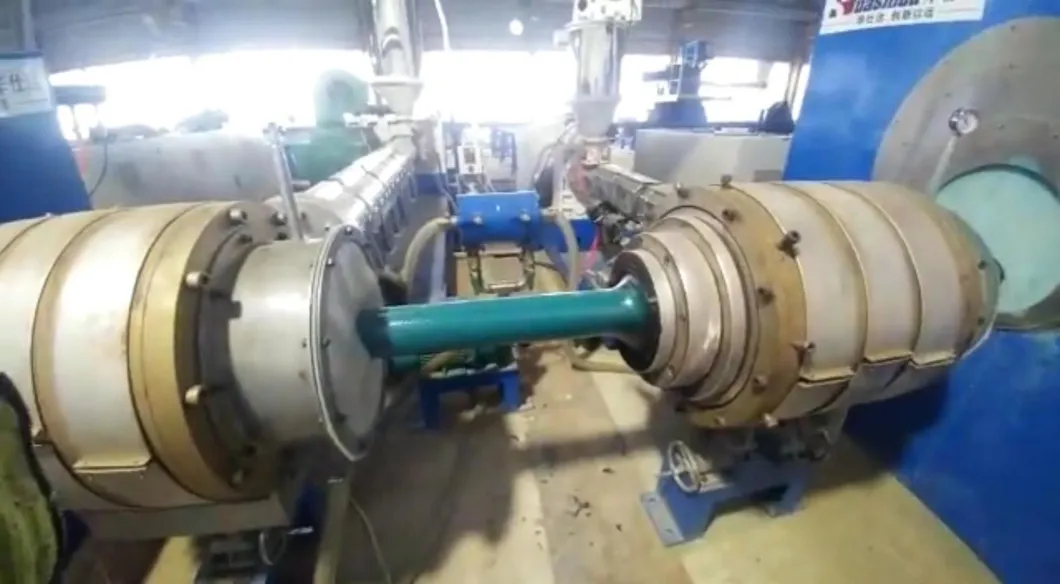

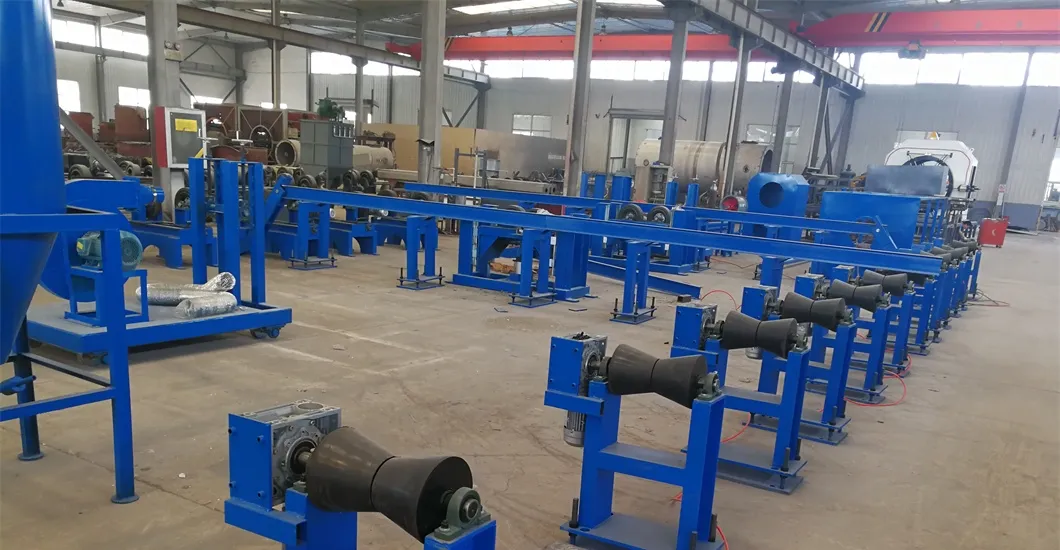

Detailed Photos
Customer cases
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

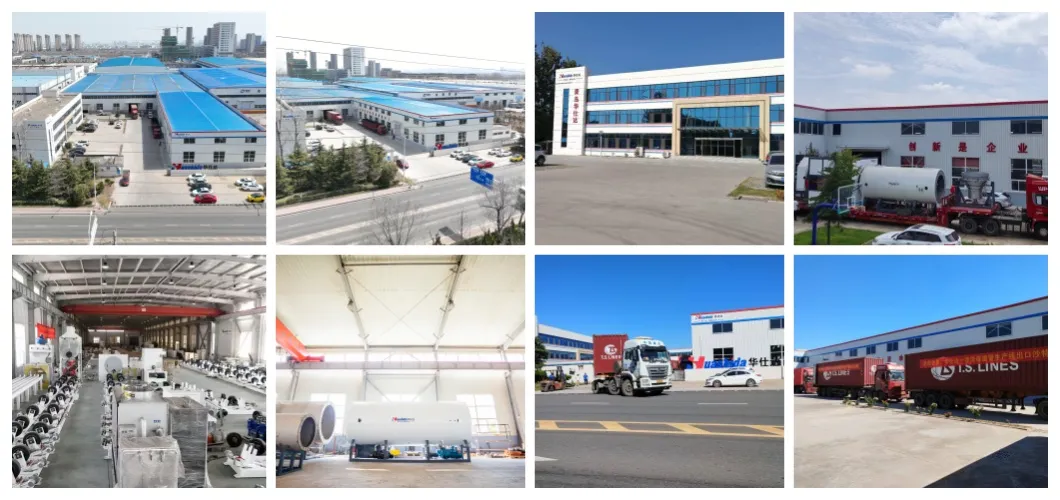

Factory overview
