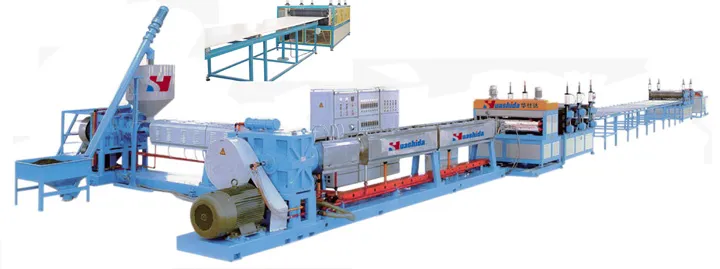

High Efficiency Plastic Sheet Extrusion Line For PP / PE / ABS / PS Materials

The sheet extrusion line is one of the most complete, high-performance, and reliable sheet production systems available. We offer three configurations equipped with 65mm, 90mm, or 120mm extruders to meet various production capacity requirements. It is widely used for manufacturing a variety of plastic sheets and film products.

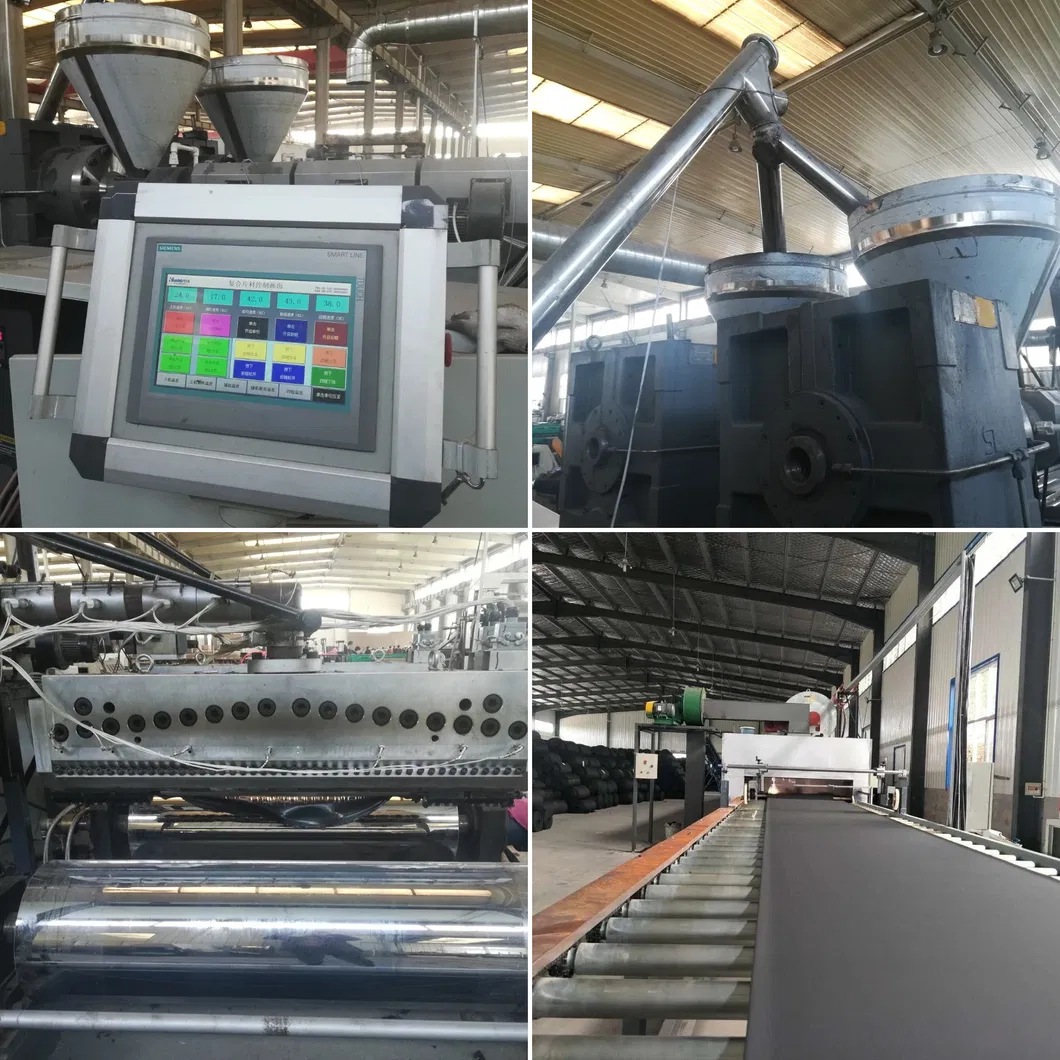

Main Components

• Loader & Hopper Dryer

• Extruder (Single-screw or Twin-screw optional)

• Screen Changer

• Melt Pump

• T-Die

• Three-Roller or Multi-Roller Calender

• Cooling Device

• Edge Cutter

• Haul-off System

• Plate Cutter or Winder

• Electrical Control System

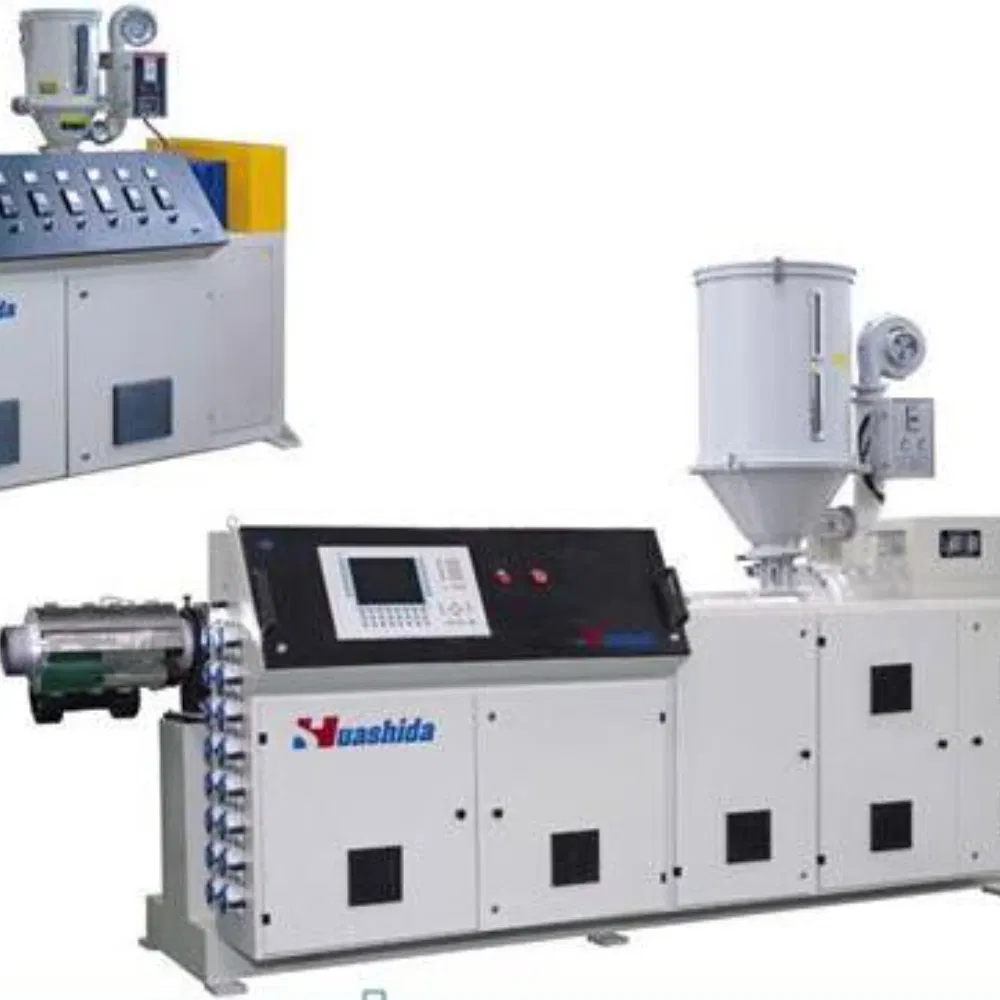

• High-Efficiency Extruder: Equipped with high-performance motor, digital control system, vacuum degassing, fast screen changer, and precision gearbox. The screw is specially designed for HIPS, PP, PET, and other materials.

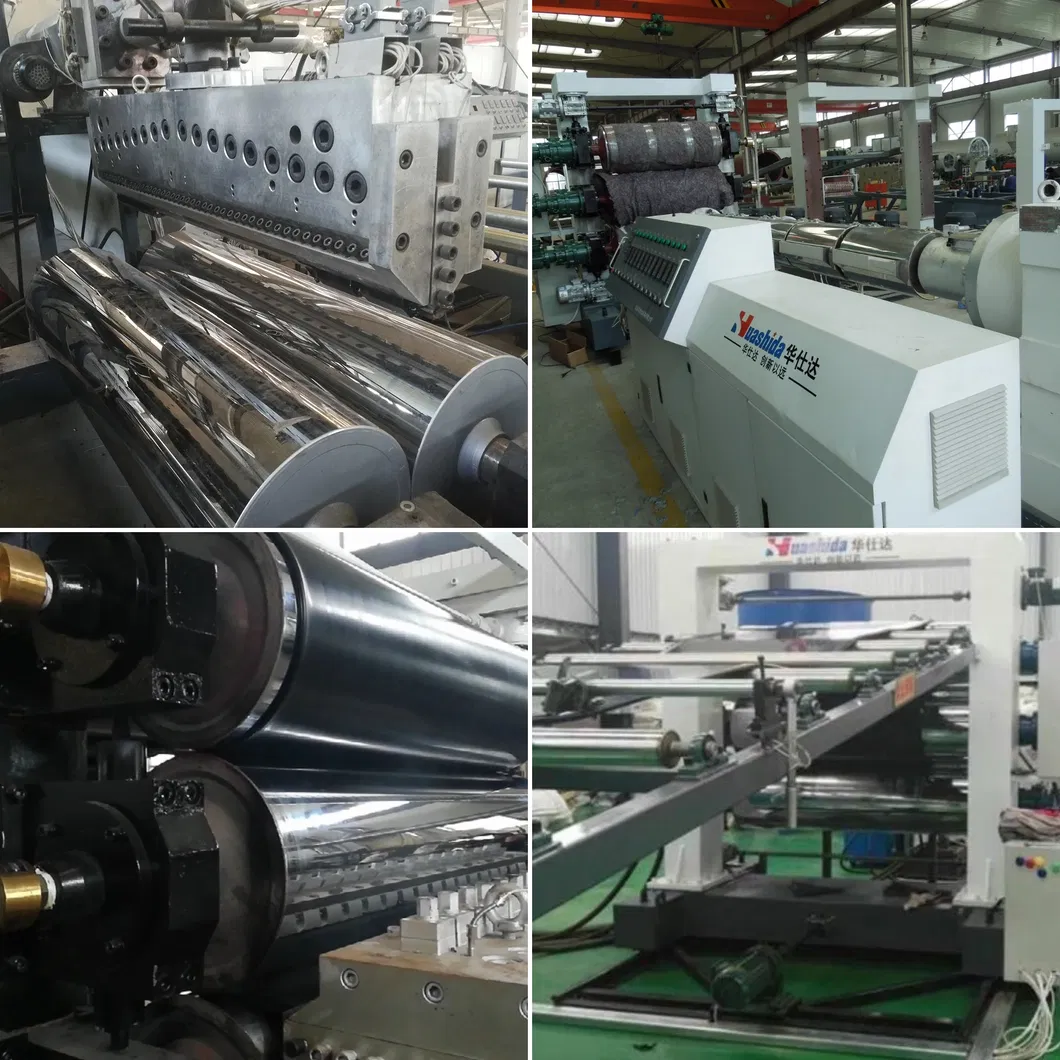

• Three-Roller Calender: Three rollers with hard surface and mirror chromium plating, providing excellent heat transfer performance. Each roller is equipped with an independent high-flow temperature control system to ensure sheet flatness and smoothness.

• High-Performance Cooling System: Adopts forced water-cooling to improve production efficiency and ensure dimensional stability of the sheets.

• Optimized T-Die Design: Provides uniform melt flow and thickness distribution, avoiding material stagnation.

• Durable Mechanical Structure: Screw, barrel, and die head are made from high-strength 38CrMoAlA alloy steel with nitriding treatment for high hardness, corrosion resistance, and long service life.

Working Process

Plastic raw materials are heated and melted in the extruder, transitioning from the glassy state to the elastic state and then to the viscous flow state. Under the screw force, the melt is extruded through the T-die, then calendared, cooled, shaped, edge-trimmed, hauled off, and finally cut or wound into final sheet or film products.

Applicable Materials

• PC/PP Hollow Cross-Section Sheets

• Transparent Soft and Rigid PVC Sheets

• Foamed PVC Boards

• PMMA/ABS Bathing Sheets

• Refrigerator Interior Sheets

• Multi-layer Co-Extrusion Sheets and Films

• ABS Sheets: Refrigerator inner liners, drawers, and other parts

• PS Sheets: Electronics, semiconductor, and communication device applications

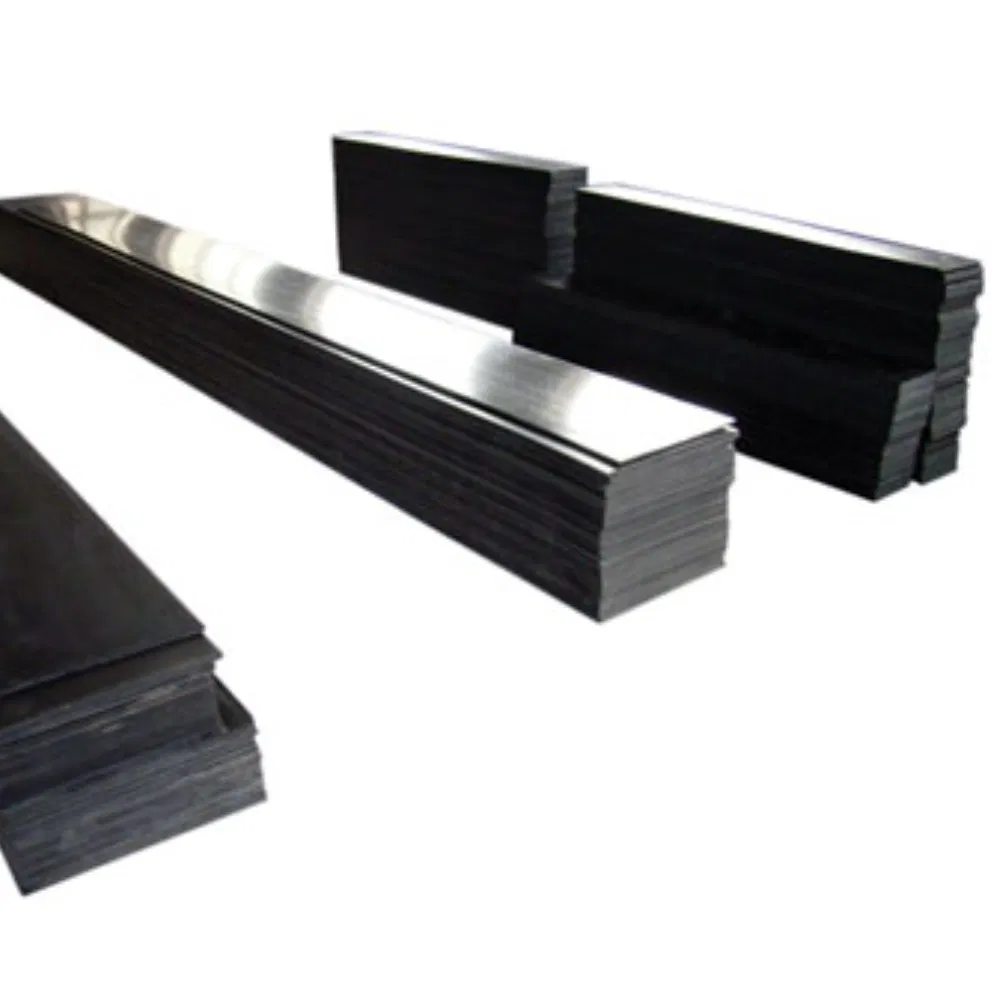

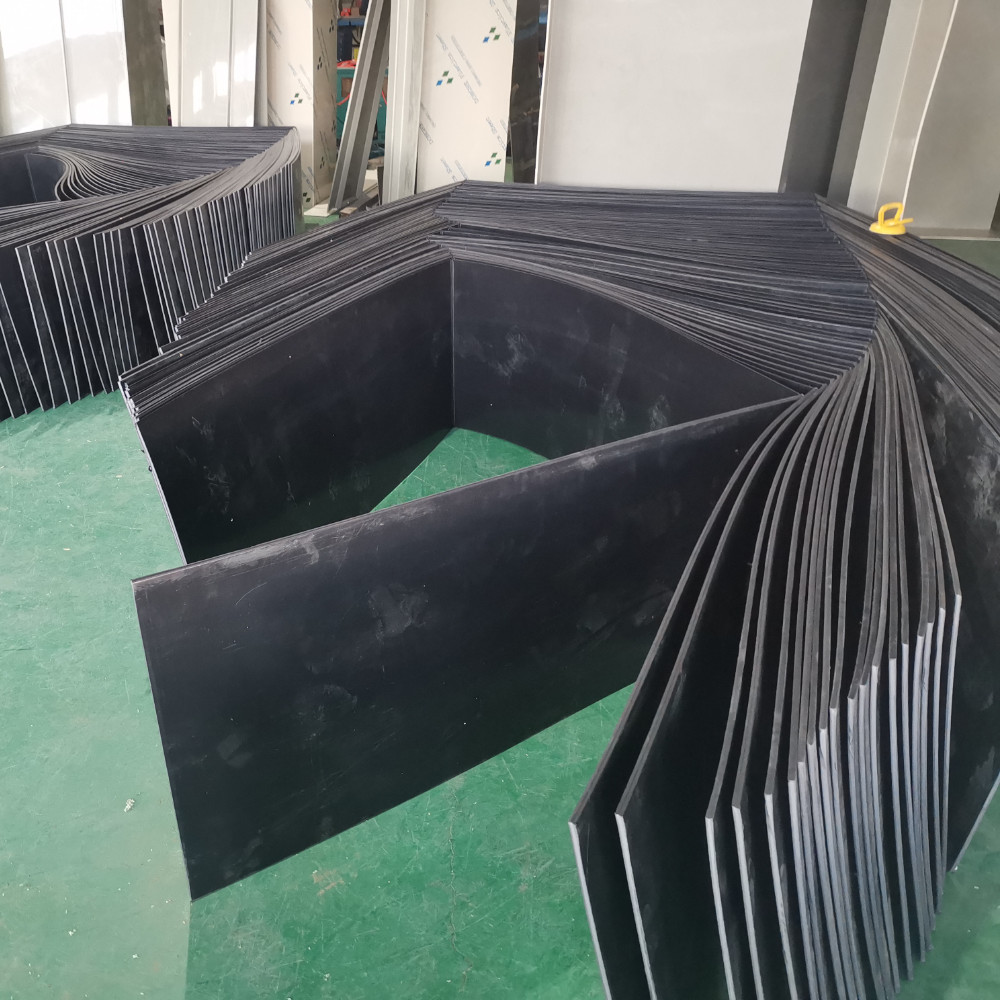

• PE/PP Sheets: Corrosion-resistant and food-grade sheets widely used in container manufacturing and chemical anti-corrosion fields

Energy-Saving Features

• Water-cooled forced feeding system to reduce main motor energy consumption

• Long L/D ratio and high-efficiency mixing head to ensure high plasticization and high output

• Intelligent temperature control system for accurate roller temperature management and improved product quality

• Developed in cooperation with National Rubber and Plastic Laboratory

• Holder of 76 national technology patents

• 30% energy saving with optimized electricity and water usage

• Siemens PLC intelligent control system for efficient automation

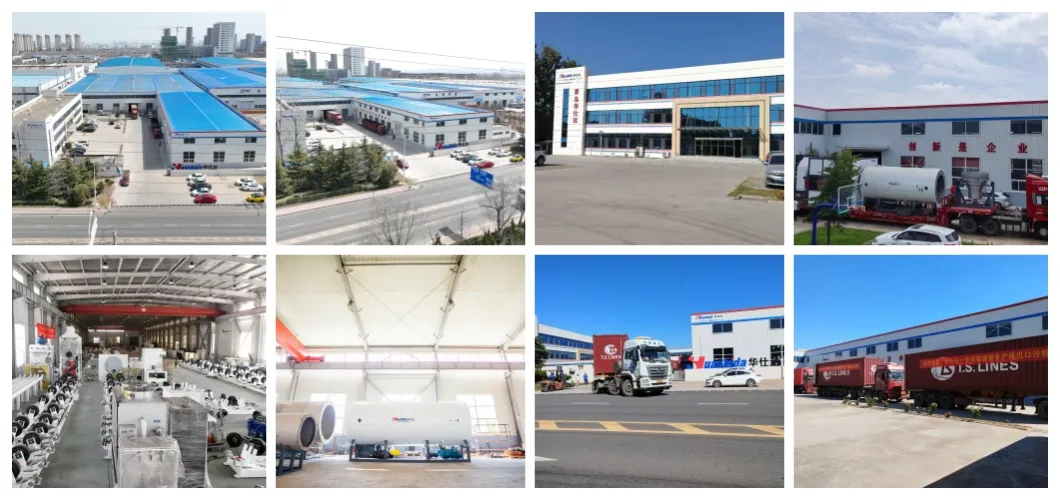

Qingdao Huashida Machinery Co., Ltd. was established 21 years ago, specializing in the research and development of plastic pipe machines, pipe insulation & anti-corrosion equipment, and pipe jointing & anti-corrosion materials. Our main products include:

• HDPE Jacket Pipe Production Line

• Rigid Pre-insulated Pipe Production Line

• Huashida Machinery has established partnerships with over 400 customers from countries including Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and others, exporting products to these regions.

• Flexible Pre-insulated Pipe (PERT) Production Line

• Steel Pipe FBE/2LPE/3LPE Anti-corrosion Coating Line

• Steel Pipe Derusting Line

• PE Pressure Pipe/Water Gas Supply Pipe Production Line

• PP/PE Plastic Sheet/Geomembrane Production Line

• Nitrile PVC Insulation Pipe/Sheet Production Line

• Pipeline Anti-corrosion Materials and Equipment: Heat Shrink Sleeves, Electro-fusion Weldable Sleeves, Portable Welding Machines (Extruders), PE/PP Welding Rods, etc.
