3LPE 2LPE FBE Pipe Making Machine For Pipeline Anticorrosion Coating System

3PE 2PE FBE Pipe Making Machine For Pipeline Anticorrosion Coating System

It is an efficient method to make the epoxy powder of inside and outside the steel pipe for anti-corrosion. The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gastransmission pipelines, water supply and drainage pipelines and many other fields.

Application of FBE Powder Coating

Overview

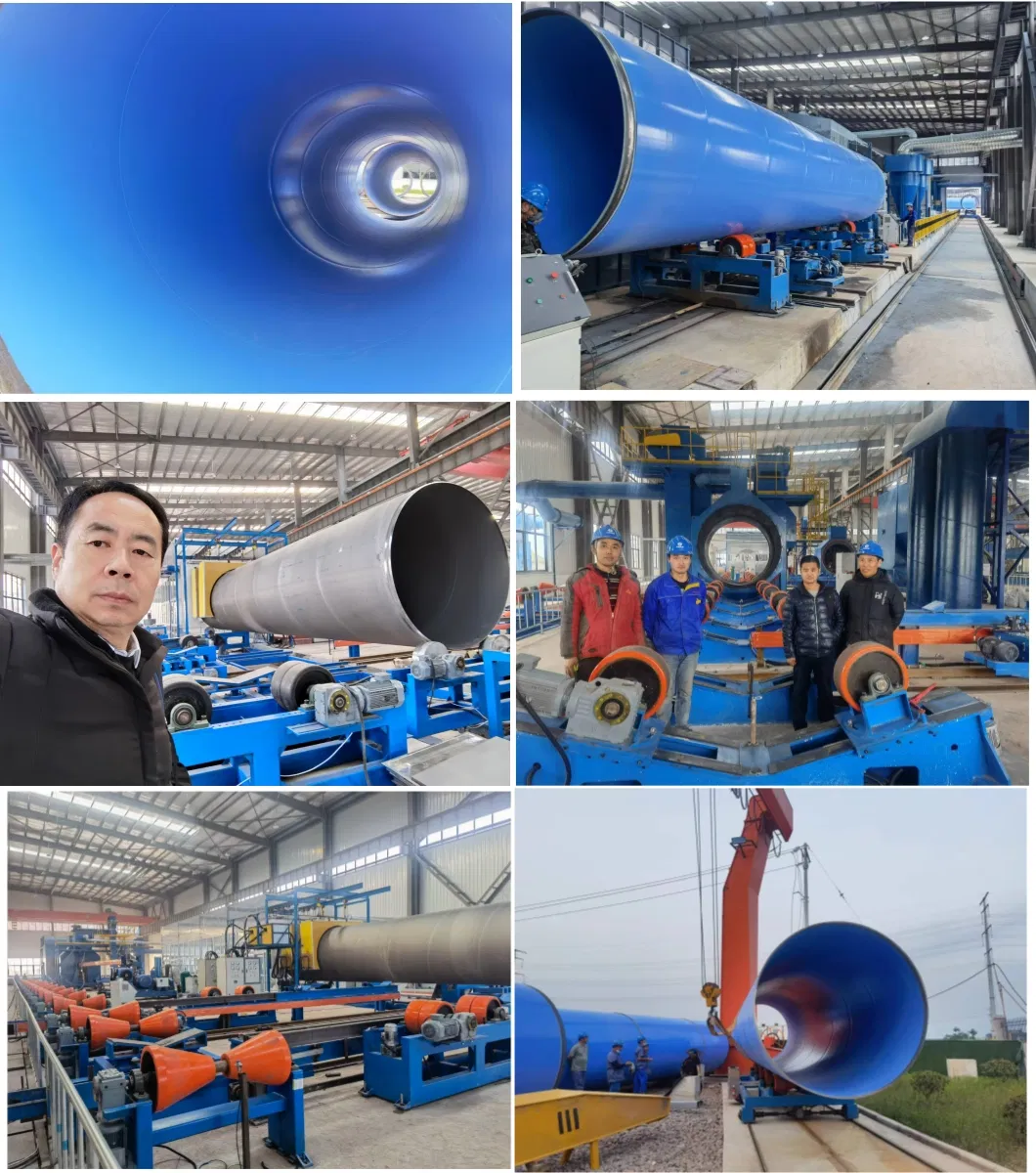

The Steel Pipe Internal & External FBE Powder Coating process involves blasting both the internal and external walls of steel pipes, followed by the application of FBE epoxy powder coating, making it particularly suitable for water supply applications in civil use.

The process begins with internal wall blasting to remove contaminants and enhance adhesion, while external wall blasting ensures a strong bond with the coating on the outer surface.

The application of FBE epoxy powder creates a protective layer that offers excellent corrosion resistance.

This epoxy powder coating features a thermosetting non-toxic formulation that forms a high molecular weight cross-linking structure upon solidification, enhancing durability.

It provides strong resistance against various corrosive substances and boasts higher mechanical properties for improved strength and resilience. The coating system consists of a bottom layer of epoxy powder that forms a continuous coating adhering well to the steel surface, along with a polymer adhesive layer that binds the epoxy before gelation, uniting it with the polyethylene top layer.

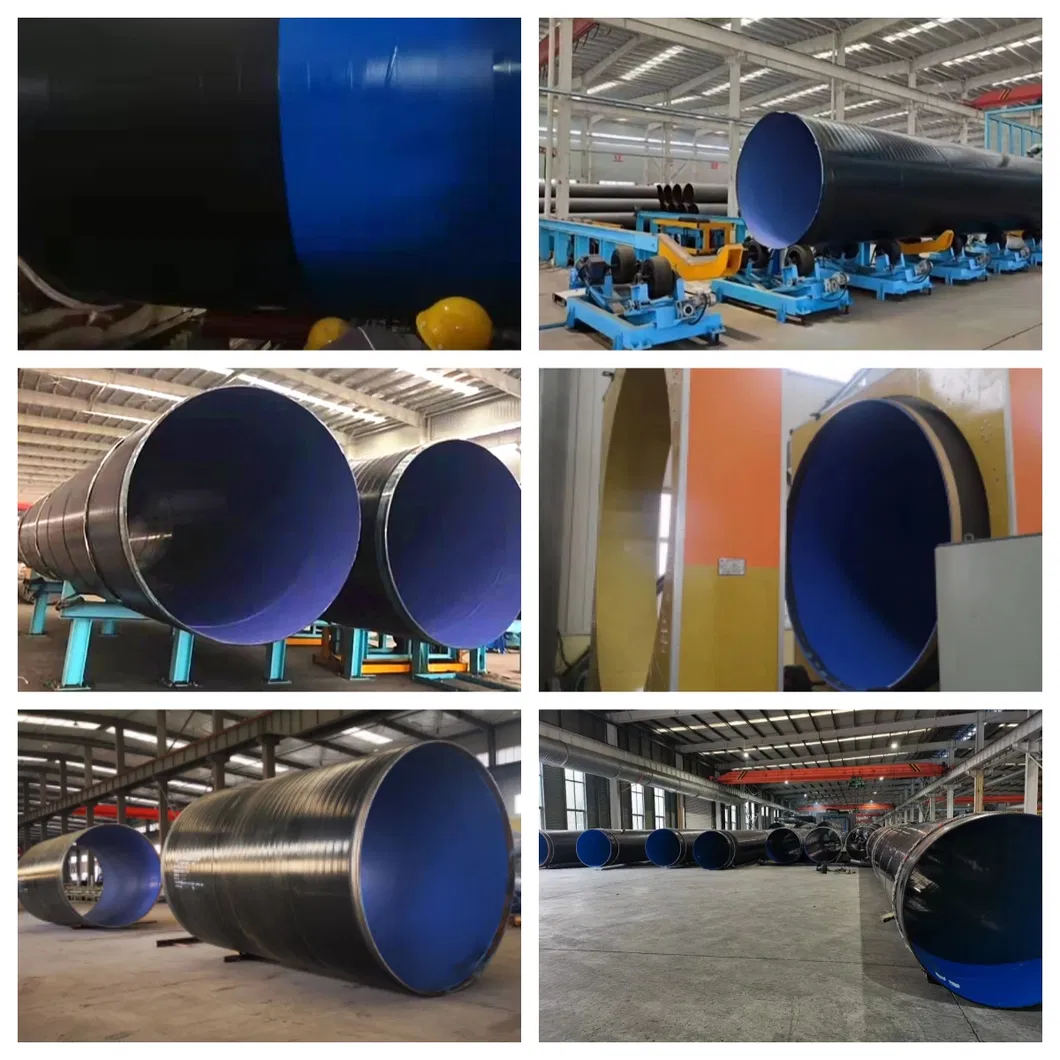

This advanced coating system effectively protects steel pipes used in water supply applications, significantly extending their service life and performance.

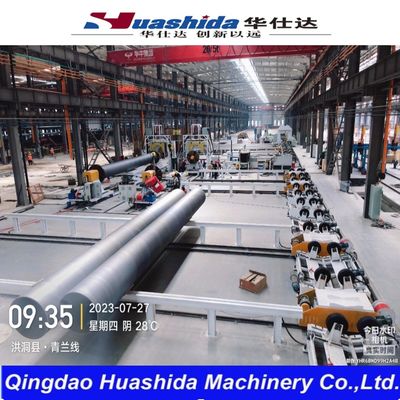

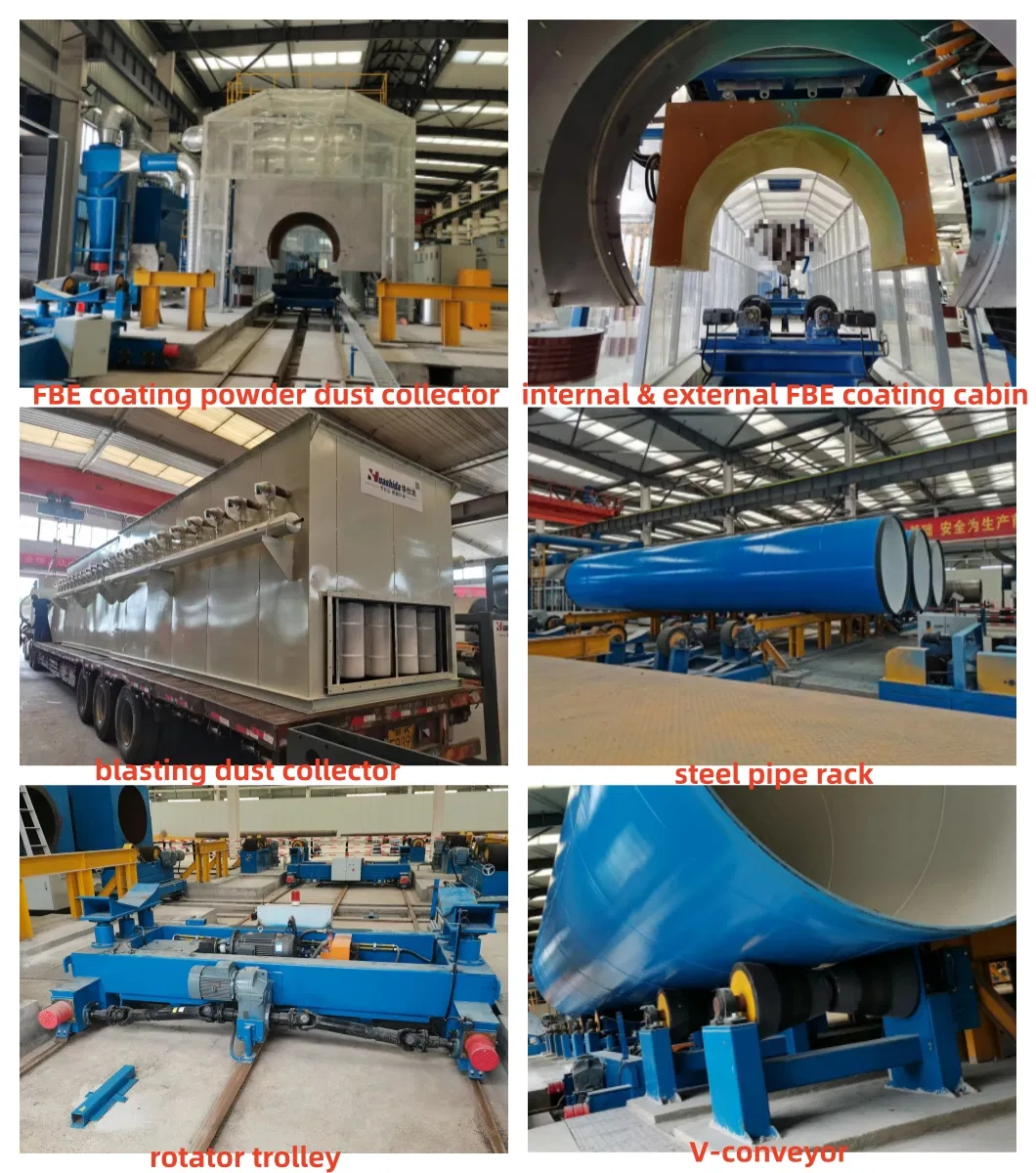

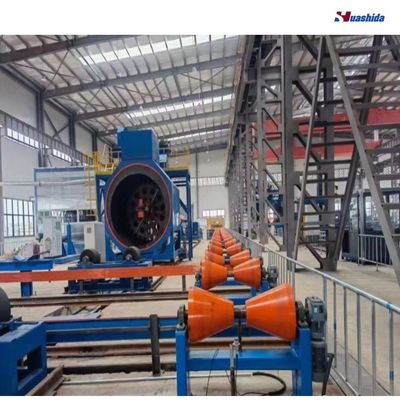

Main equipment:

We also can make External 3LPE internal FEB powder coating Line

-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

Question & Answer

Q1: What is the size of the pipe diameter your equipment can produce?
A: We can produce steel pipes in the following models:

• 48-219 mm
• 219-1220 mm
• 325-1600 mm
• 508-2400 mm
• 1000-3200 mm

Q2. What is Descaling grade?
A:SA2.5?

Q3. What is your anticorrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.

Q4. What is Delivery Time
A: 2-3monthes after deposit.

Q5. Production output:
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).

Q6. Coating thickness:
A: 80~800um

Q7. Which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan and so on.

Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months for the electrical part. The seller provides free technical services and provides training and guidance to buyer operators.

Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

Up to now, we have successfully entered overseas markets, including Russia, Iran, UAE, India, Belarus, and Kazakhstan. Our pipeline production line consists of nearly 50 sets deployed both domestically and internationally.

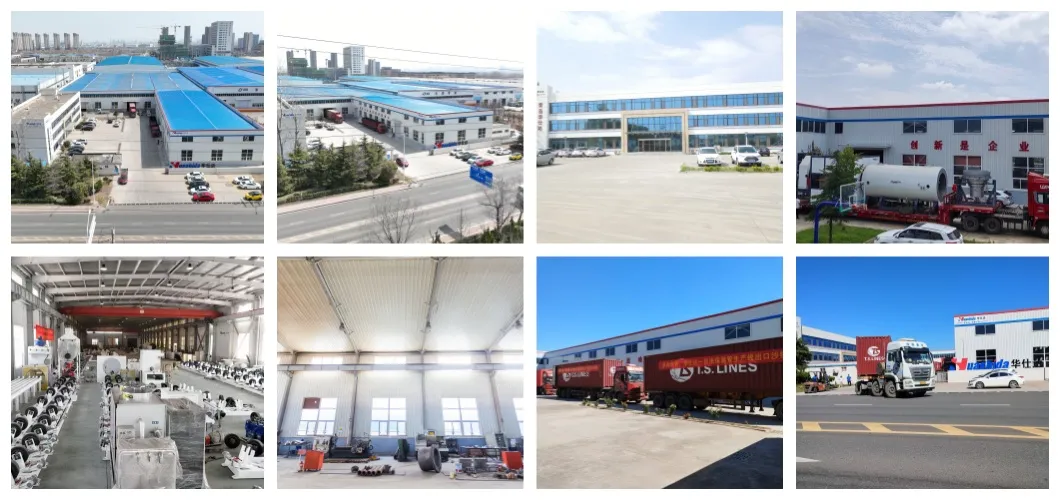

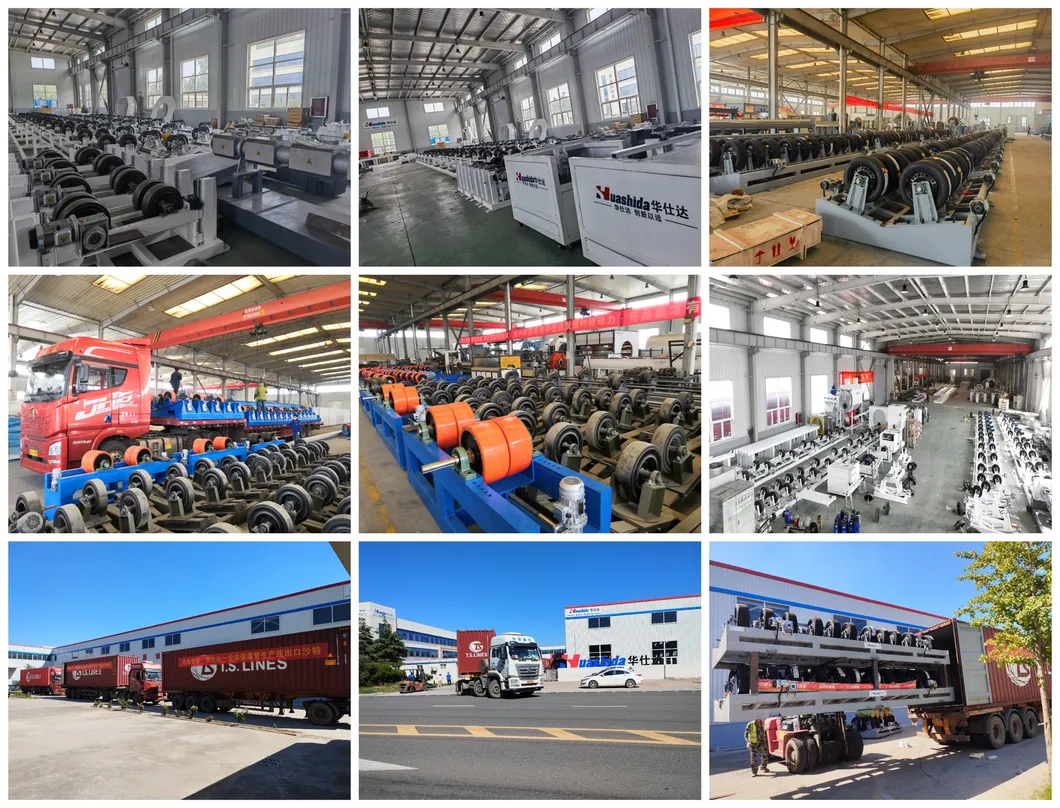

The Huashida factory is located in the Qingdao High & New Technology Industrial Area, covering an area of approximately 4,000 square meters. We have obtained more than 10 patents and numerous industry certifications recognized both at home and abroad.

Huashida boasts a highly qualified and experienced team dedicated to research and design, manufacturing, and site operations. Our robust production capacity enables us to offer a diverse range of reliable products tailored to meet our customers' specific needs. Additionally, our outstanding R&D and design capabilities ensure we effectively address unique requirements. We provide timely and convenient technical support through our comprehensive after-sales service system.
