3LPE 3PE FBE VUS Insulation Anti-Corrosion pipe coating production line for Steel Pipe
Product Description
Steel pipe anti-corrosion coating line is used for anti-corrosion coating steel pipe in the factory with various diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
They are capable of implementing various anti-corrosion coating techniques, including Fusion Bonded Epoxy (FBE), two-layer FBE, two-layer Polyethylene (PE), two-layer Polypropylene (PP), and three-layer PE coatings.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.
Steel pipe 3LPE anti-corrosion coating line
(Dia. 159-4200mm)
Steel pipe internal external FBE coating line
(Dia. 500-4200mm)
Internal FBE external 3LPE coating line
(Dia. 159-4200mm)
Small size steel pipe O-type extrusion 3LPE coating line
(Dia. 57-426mm)
Steel Bend pipe FBE &3LPE coating Production Line
Application
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipeline.
The 3 - layer PE anti - corrosion coating can enhance the pipeline's mechanical properties. It also endows the pipeline with high electrical resistance, as well as excellent waterproof, wear - resistant, and anti - aging performances.
Detailed Photos

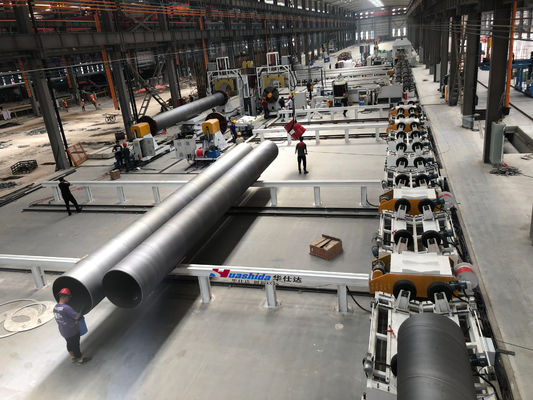

The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.
Technological processes
Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
Main Equipment List
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Shot Blasting Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC |
1 |
| B. Coating equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Induction heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |

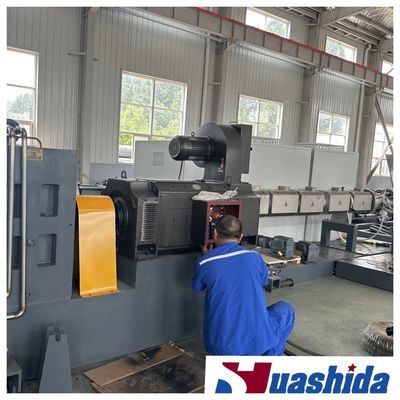

SJ-65/30 Extruder |
1 |
| 6 |
SJ-120/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |
PE sheet extruder head mold |
1 |
| 9 |
Hot melt adhesive/PE sheet coating device |
1 |
| 10 |
Environmental Protection Ventilation equipment |
1 |
| 11 |
Cooling Spray equipment |
1 |
| C.Platform Equipment |
| 1 |
Steel pipe uploading platform |
1 |
| 2 |
Downloading platform |
1 |
| 3 |
Pipe storage platform |
1 |
| 4 |
Turnover machanism |
3 |
| D.Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |
| 4 |
PLC automatic control system |
1 |
Product Parameters
1. Pipe diameter: 50-4200mm
2. Processing capacity: ≥250m2/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene
