Vacuum Calibration Pre Insulated Pipe Production HDPE Plastic Jacket Pipe Casing Extrusion Line

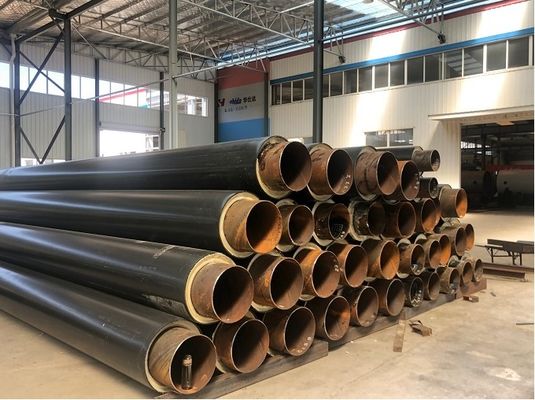

HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of  PU foam thermal Pre-insulated Pipe according to international standard.

The HDPE jacket pipe is manufactured using the vacuum calibration method, featuring smooth inner and outer walls, an extended service life, excellent anti-corrosion insulation, and strong mechanical properties.

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder

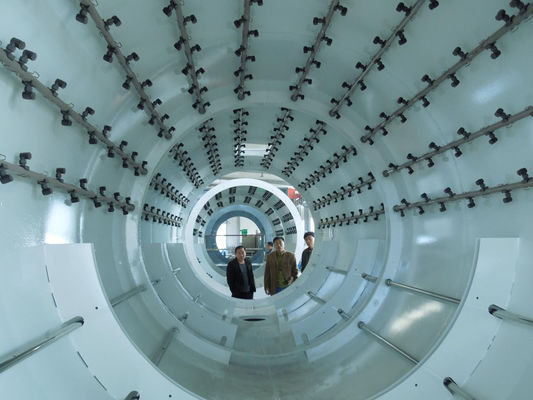

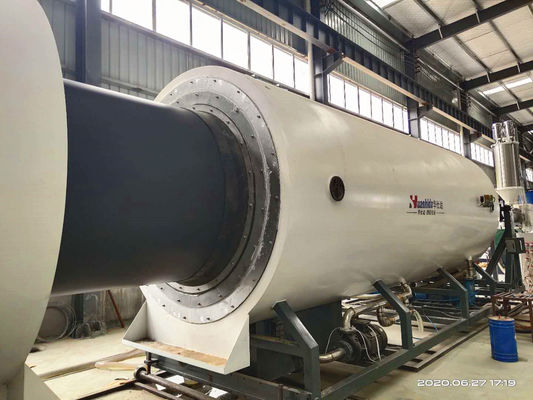

-1set   Vacuum calibration table
-1set   Water spraying tank

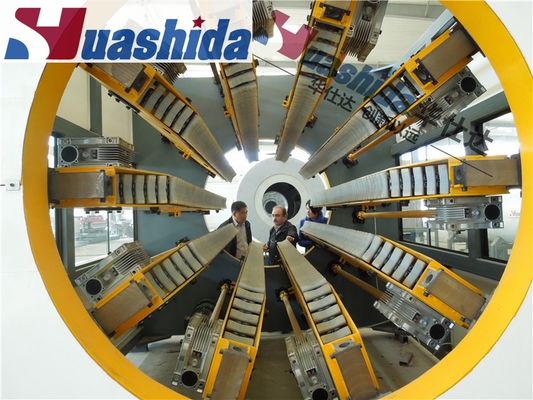

-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame

-1set  PLC computer control system


PE-110/500

Features of Production line of HDPE jacket pipe

-small dimension
-high level of automation, can be operated by one person, saving labor costs
-a long service life.
-high-efficiency extruder gives larger output, stable performance
-pipe wall is average and smooth
-no waste of raw material
-once forming.  No need trim edge.

-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China


Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
