Automatic Pre-Insulated Pipe Making Equipment For ISO9001 2008 Certified And Automated Production

Product Description:

Product Description

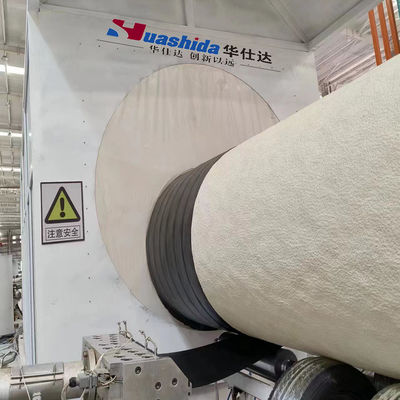

Polyurethane spraying Polyethylene winding pre insulation pipe production line, developed independently by HUASHIDA company, owns a number of national patents. According to the third-party standardization evaluation, the technical advancement level is level 5, reaching the domestic advanced level. It won the title of the first set of technical equipment in Shandong Province. The unit adopts continuous spraying or intermittent spraying production process. High degree of automation, fast production efficiency, saving raw materials, foaming closed cell rate increased, water absorption reduced, trinity molding, more reliable performance. Low carbon environmental protection and higher economic and social benefits.

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:
No. Name
1 External wall Shot blasting rust removal machine
2 Medium-frequency induction heating furnace
3 Polyurethane spray foaming unit
4 Pipe rotator trolley
5 Single screw extruder and diehead mould
6 Finished pipe ends trimming machine
7 Pipe Conveyors and racks
8 Electrical system and PLC

Company Profile

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development, collaborating closely with Beijing University of Chemical Technology, Qingdao University of Technology and scientific research institutions. By absorbing advanced technology at home and abroad, after 20 years of endeavor, we now rank as one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Technical Parameters:

Process Steps:

1. Remove rust from steel pipe surface

2. Preheat the steel pipe to get it ready for polyurethane spraying

3. Spray polyurethane evenly on steel pipe outer surface

4. Wrap melted HDPE strap around the PU foam

5. Trim the pipe ends

Specifications:

(1) Steel pipe range: 206mm-1820mm

(2) Processing capacity: ≤250㎡/h

(3) Cleaning class: Sa2.5

(4) Used material: ISO (isocyanate), POLY (premixed polyether polyols), PE

(5) Main equipment: Shot blasting and rust removal production line, Polyurethane spray production line, PE winding production line

Applications:

Hot Chiller Water/Oil /Chemical Material Pipeline

This pipeline is designed to carry hot chiller water, oil, and chemical materials. It's specifically constructed to handle high-temperature fluids effectively and ensure the safe transport of these substances. The pipeline plays a crucial role in various industrial processes where precise temperature control is required. With its specialized design, it offers a reliable solution for the efficient transfer of hot liquids and chemicals within a facility.

Customization:

Product Customization Services for the Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine:

- Brand Name: Huashida

- Model Number: 420-2000

- Place Of Origin: Qingdao

- Certification: CE, ISO9001:2008

- Minimum Order Quantity: 1

- Price: $1,000,000 - $1,300,000

- Packaging Details: Wooden Box

- Delivery Time: 2 Months

- Payment Terms: L/C, T/T, DP, Western Union, Paypal

- Supply Ability: 30 Sets/Year

- Foaming Thickness: 30-100mm

- Raw Material: HDPE

- Application: Hot Chiller Water/Oil/Chemical Material Pipeline

- Origin: Qingdao, China

- Computerized: Computerized

Support and Services:

The Product Technical Support and Services for the Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine include:

- On-site installation and commissioning support

- Training for machine operation and maintenance

- Troubleshooting assistance

- Spare parts supply

- Upgrades and customization services

Packing and Shipping:

Product: Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine

Description: This machine is designed to efficiently manufacture preinsulated steel pipes using polyurethane spraying foam technology.

Packaging: The machine will be securely packed in a wooden crate to ensure safe transportation and delivery.

Shipping: We offer worldwide shipping options with reliable carriers to deliver the machine to your desired location.

FAQ:

Q: What is the brand name of this Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine?

A: The brand name is Huashida.

Q: What is the model number of this machine?

A: The model number is 420-2000.

Q: Where is this machine manufactured?

A: This machine is manufactured in Qingdao.

Q: What certifications does this machine have?

A: This machine is certified with CE and ISO9001:2008.

Q: What are the accepted payment terms for purchasing this machine?

A: The accepted payment terms are L/C, T/T, DP, Western Union, and Paypal.
