3LPE Preinsulated HDPE Pipeline Field Shrinkable

Product Overview

The HSSC-1 Heat Shrinkable Sleeve (2-layer) is developed and manufactured by Qingdao Huashida Machinery Co., Ltd for pipeline anti-corrosion applications. This sleeve consists of radiation cross-linked polyethylene backing and high-shear strength melt adhesive, featuring shape memory functionality. The hot melt adhesive is pressed into the joint by the shrink force, forming a perfect seal after heating. The HSSC-1 sleeve is compatible with standard pipe coatings, and is ideal for use with bare pipes, replacement pipe sections, and large-radius bends. It is particularly suited for large-diameter wastewater pipes, requiring minimal preheating during installation.

In addition, we also offer a three-layer reinforced heat shrinkable sleeve, which is composed of three layers of material designed to enhance the sleeve's durability, protective capacity, and anti-corrosion properties. The middle mesh layer is typically a reinforced mesh (subject to customer requirements), and its main function is to enhance the mechanical strength and tensile resistance of the heat shrinkable sleeve.

Available Products

• Pre-Cut Sleeve and Separate Closure Patch
• Pre-Cut Sleeve with Pre-Attached Closure Patch
• Tape in Roll (Closure Patch to be Ordered Separately)

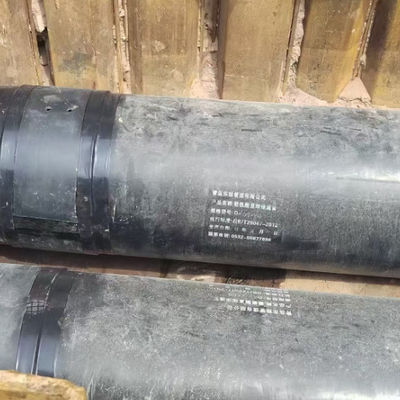

• Field joint corrosion protection for gas and oil pipelines
• Field joint corrosion protection for water supply pipelines
• 3LPE coating repairs
• Used for heat pipe networks, steel pipe corrosion resistance, chemical pipes, and sewage pipelines

Key Features

1. Fast Shrinkage Speed - Quickly adapts to the joint for efficient installation.
2. Excellent Waterproof Performance - Provides superior water resistance after application.
3. High Anti-Corrosive Performance - Protects the pipeline against corrosion for extended service life.
4. Long Service Life - Durable and reliable even in harsh environments.
5. Easy to Operate - Simple installation with minimal preheating required.
6. High Chemical Resistance - Stands up to a variety of chemicals, ensuring long-term protection.
7. Convenient Transportation - Lightweight, easy to handle and transport.

Product Parameters

	ITEM	Standard	UNIT	Data
Adhesive	softening point	ASTM E 28	°C	70-80
	shear strength	DIN 30 672	N/cm	≥100
Basic	specific density	ASTM D792	r/cm 3	0.935-0.96
	tensile strength	ASTM D638	Mpa	15-20
	Elongation at break	ASTM D792	%	350
	hardness	ASTM D2240	ball	48
Heat Shrinkable Sleeve	peel strength	ASTM D1000	N/cm	>150

Specification of the pre-cut heat-shrinkable sleeve and separate closure patch (or customized)

Thickness: 1.5-3.5mm

No.	Size, mm	Length, mm	Patch
			Length, mm	Width, mm
1	Ф159*500	670	500	80
2	Ф219*500	860		100
3	Ф273*500	1000		100
4	Ф325*500	1200		100
5	Ф355*500	1300		100
6	Ф406*500	1460		120
7	Ф508*500	1800		120
8	Ф610*500	2170		120
9	Ф711*500	2500		150
10	Ф813*500	2880		150
11	Ф1016*500	3480		150
12	Ф1219*500	4120		200
13	Ф1420*500	4780		200

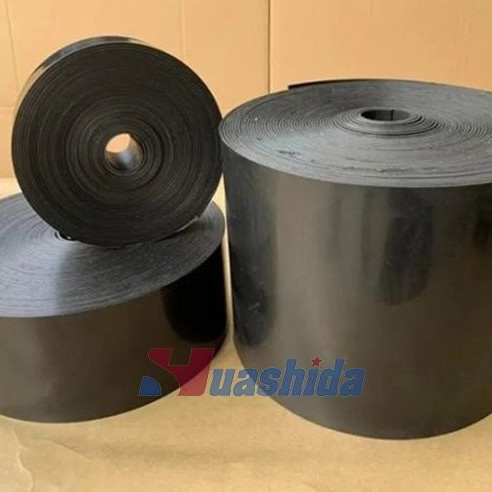

Specification of heat shrinkable tape in roll (or customized)

Width (mm)	Length	Thickness
100	The standard length is 5, 10, 15, 20, 30 meters per roll.	PE layer  1.2mm Hot melt adhesive layer, 0.8mm

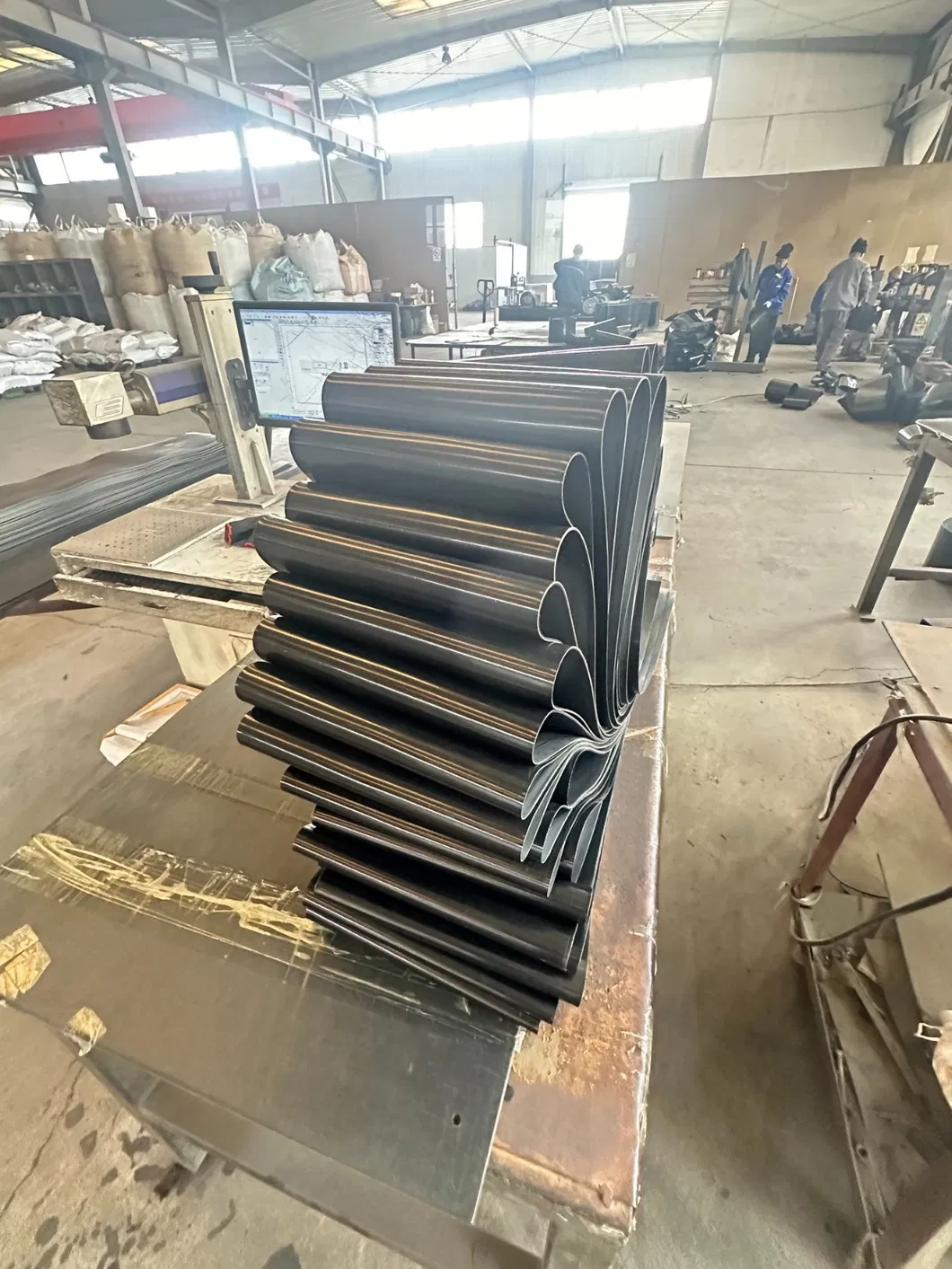

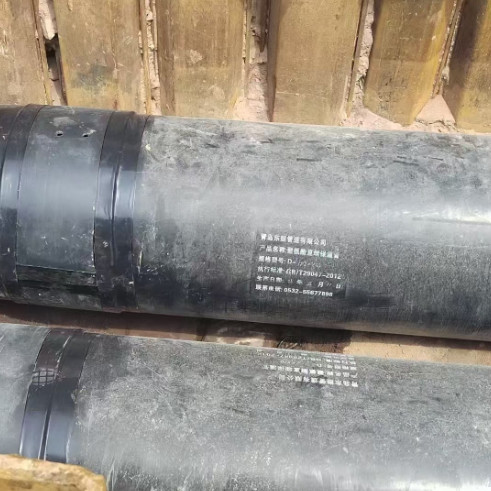

Detailed Photos

Certifications

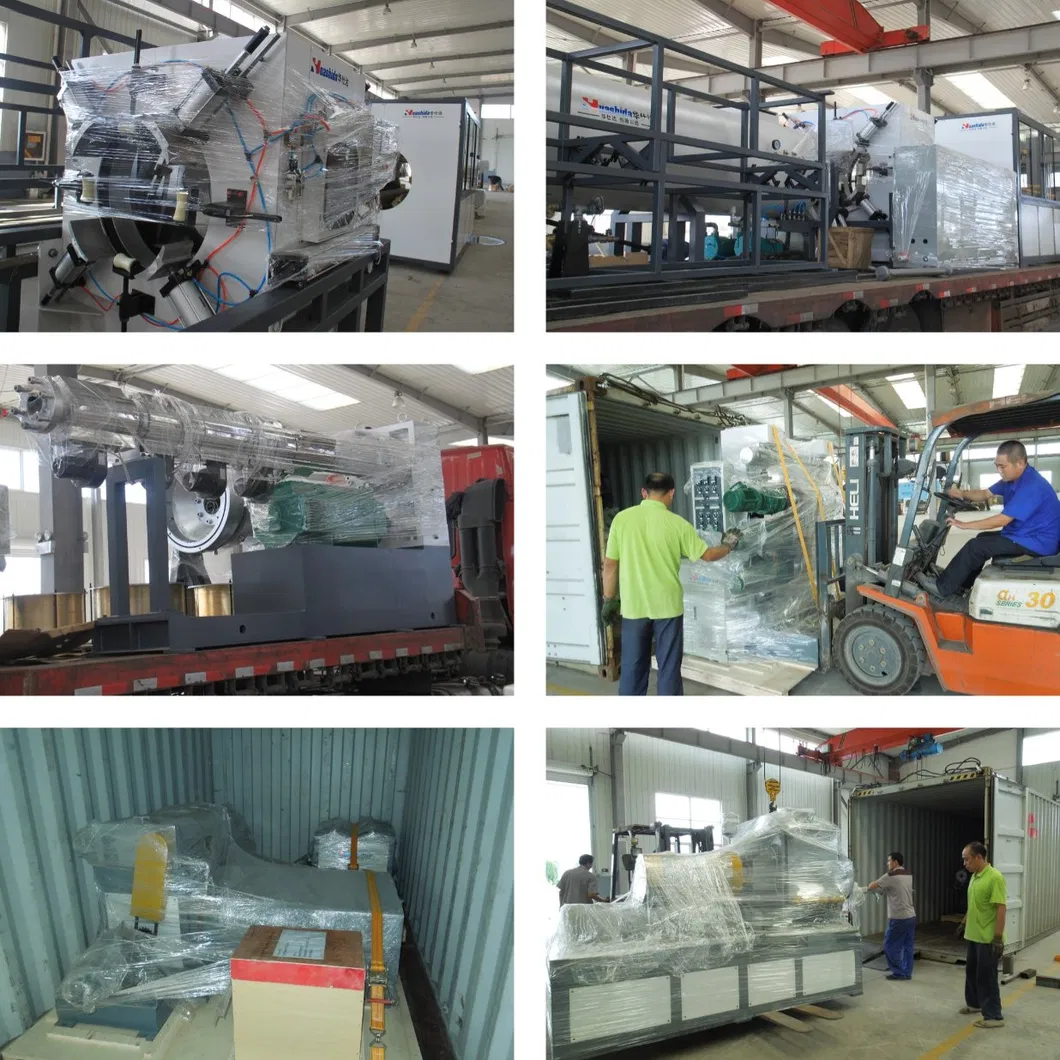

Packaging & Shipping

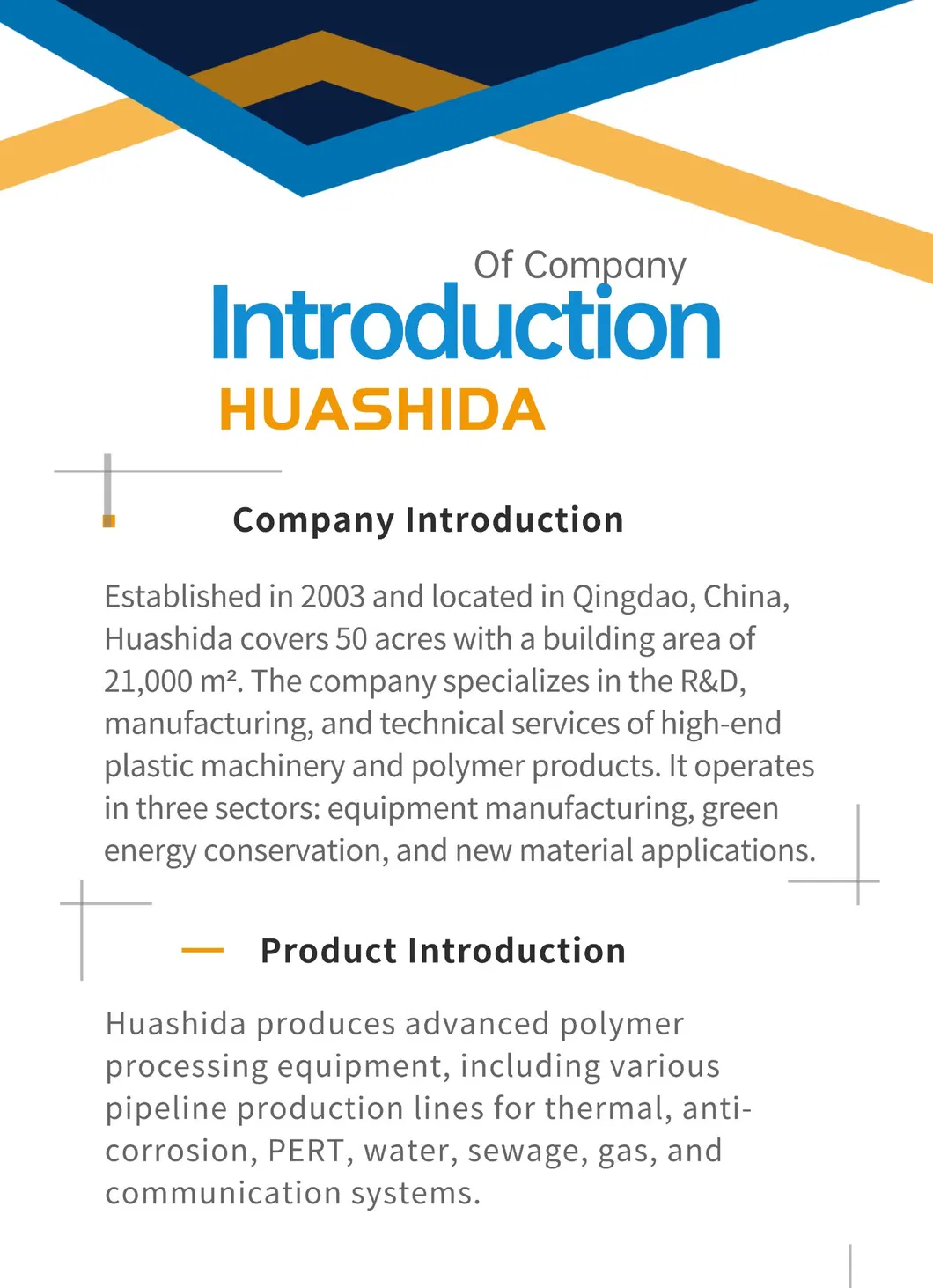

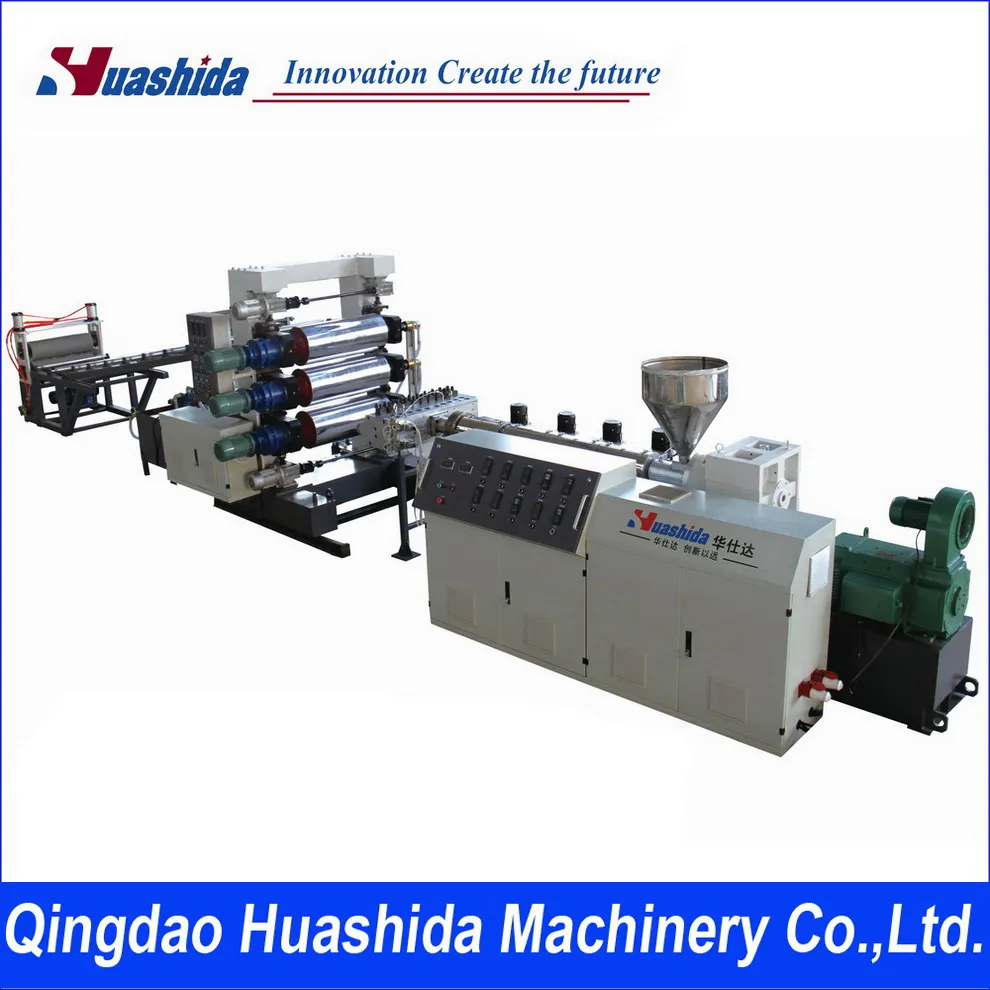

Company Profile
