Name: HDPE Thermal Ppu Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: HSD-001
Price: 200,000.00 USD
Availability: InStock

HDPE Thermal Ppu Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Line

1 set

MOQ

US$100000-300000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Color: Custom

Cutting Method: Dust-Free Planetary Cutting

Calibration Method: Vacuum And Water Spraying Cooling

Specification: 110-2200

Highlight:

HDPE PE Pipe Extrusion Machine

Thin Wall PE Pipe Extrusion Machine

Basic Infomation

Place of Origin: Qingdao,China

Brand Name: Huashida

Certification: CE,ISO9001,ETC.

Model Number: HSD-001

Payment & Shipping Terms

Packaging Details: Stardard Package

Delivery Time: 45 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50 setS/year

Gallery

HDPE Thermal Ppu Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Line

Product Description

HDPE Thermal Ppu Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Line

---Pipe diameter range: 600-1200mm

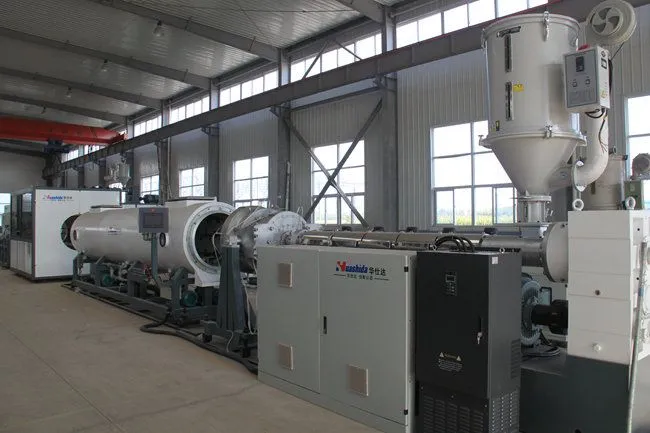

---The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder

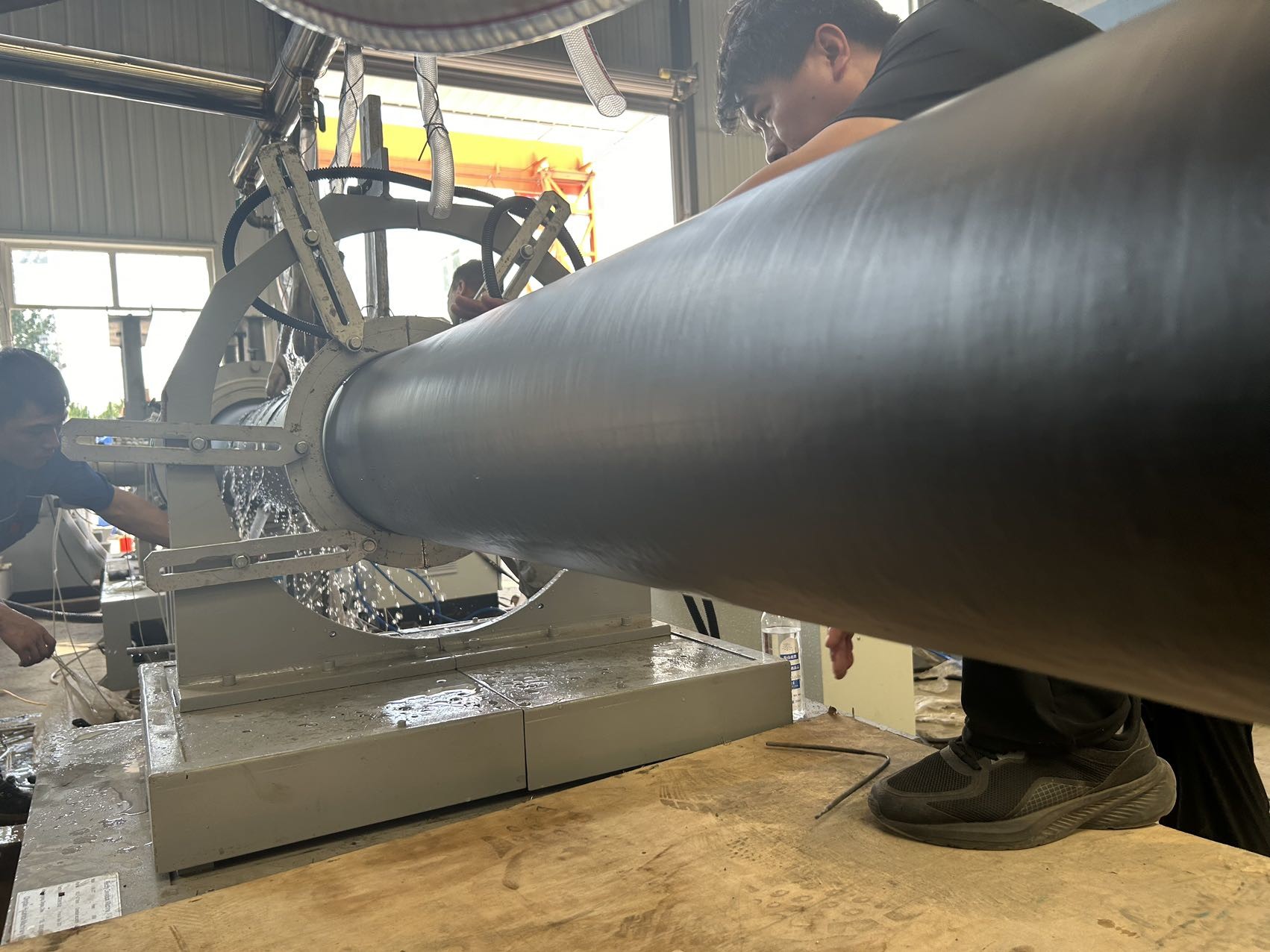

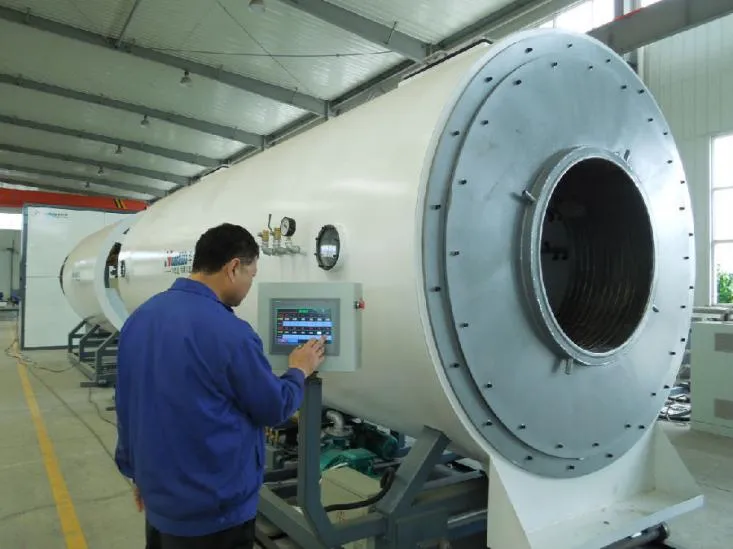

1set Vacuum calibration table

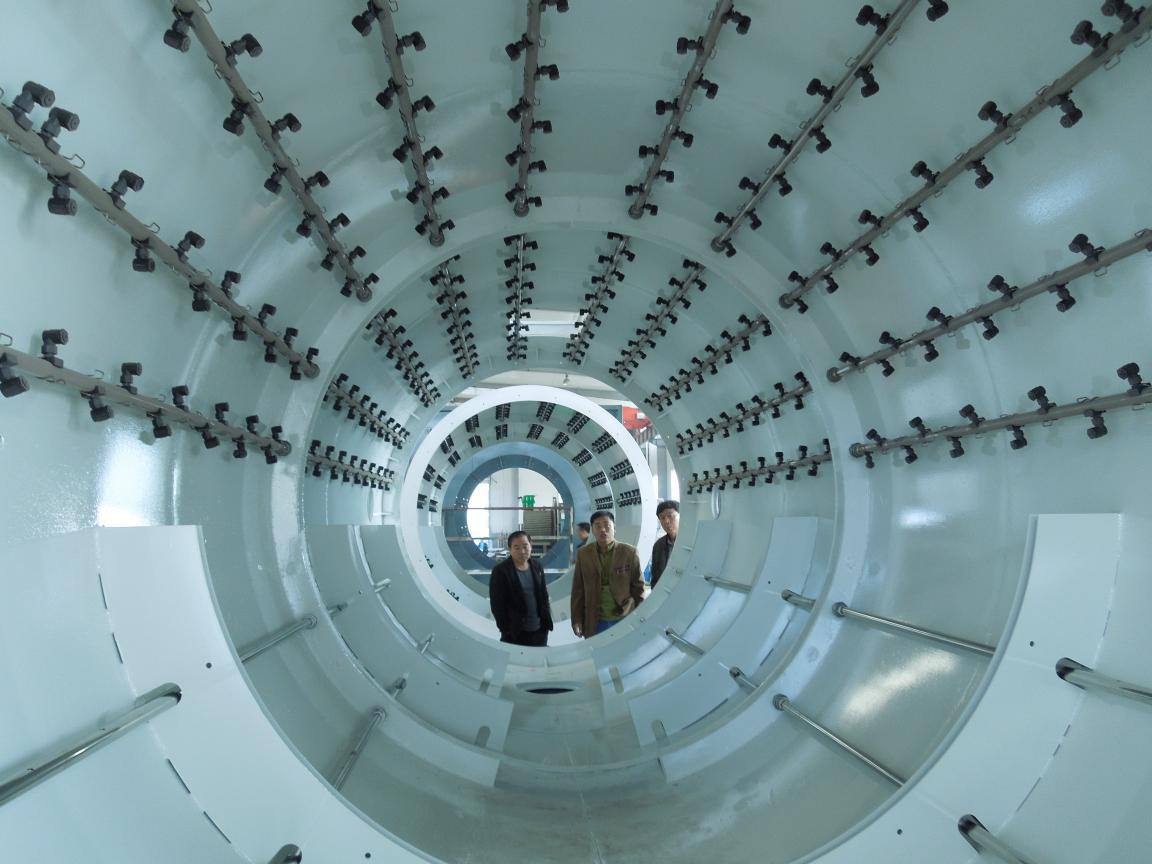

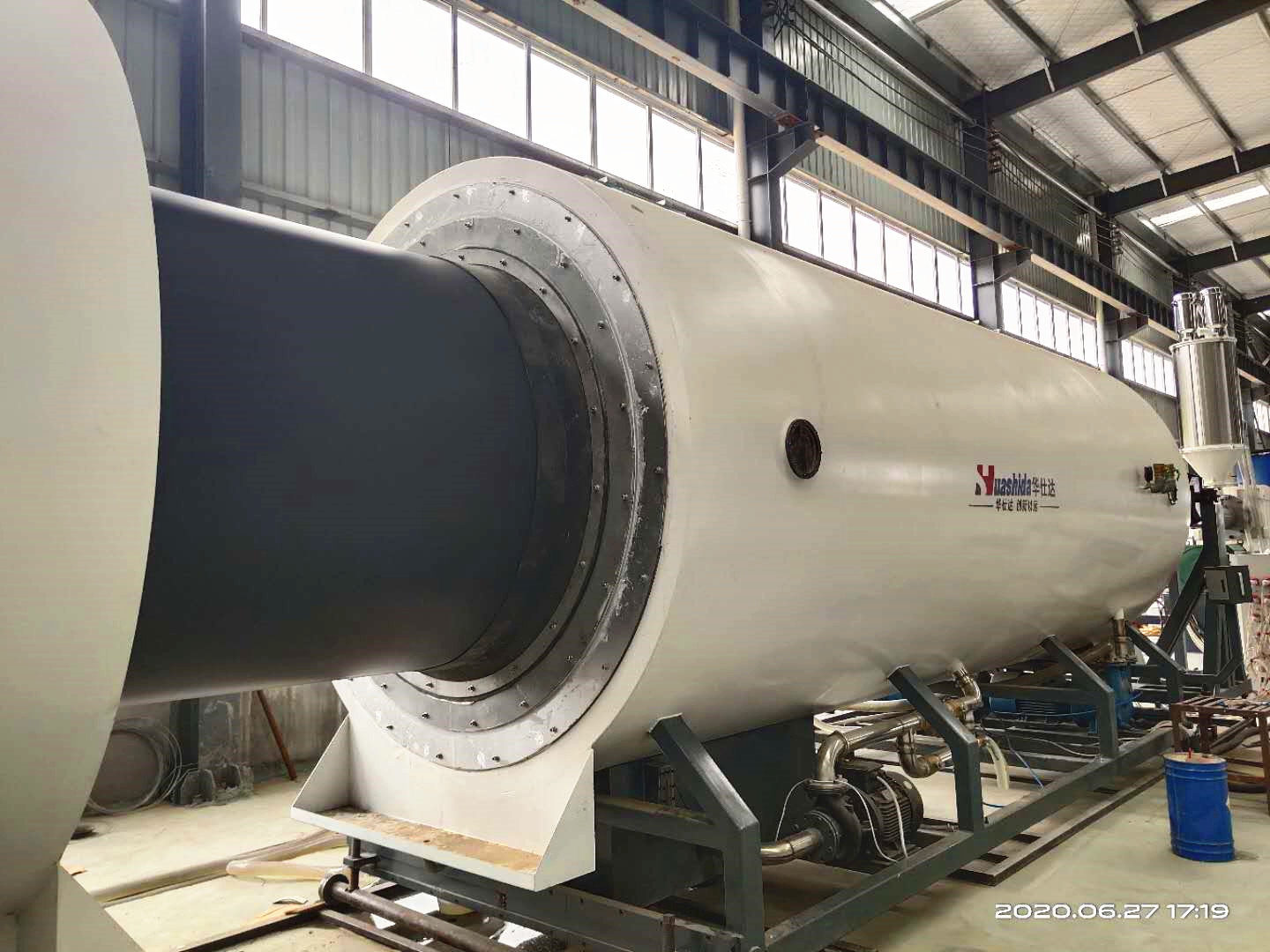

1set Water spraying tank
1set Hauling machine

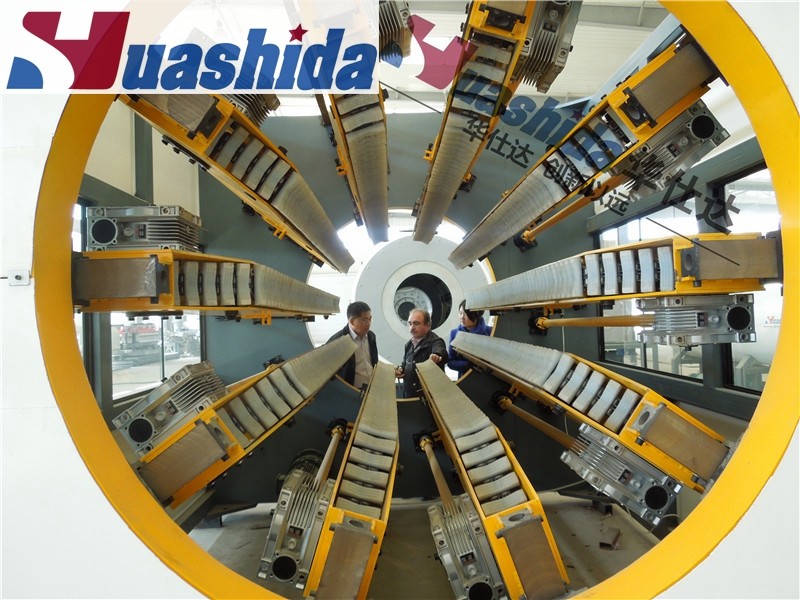

1set Cutting machine
1set Stacker

Style	PE-365/760	PE-420/960	PE-850/1372	PE-960/1680
Main extruder	SJ-90/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ365-960mm	Φ 420-Φ 960 mm	Φ 850-Φ 1372 mm	Φ 960-Φ 1680mm
Capacity	550-700kg/h	550~700 kg/h	700~900 kg/h	800-1200kg/h
Installed power	360kw	380 kw	440 kw	580kw
Length	35m	36 m	40 m	48m

I. Pipe Usage

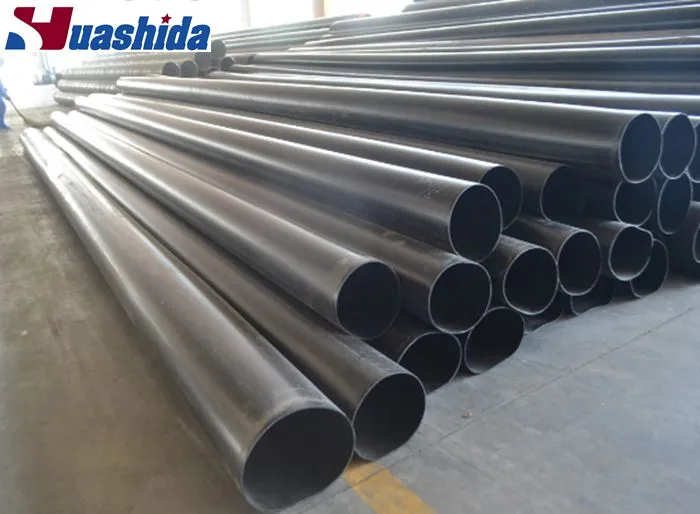

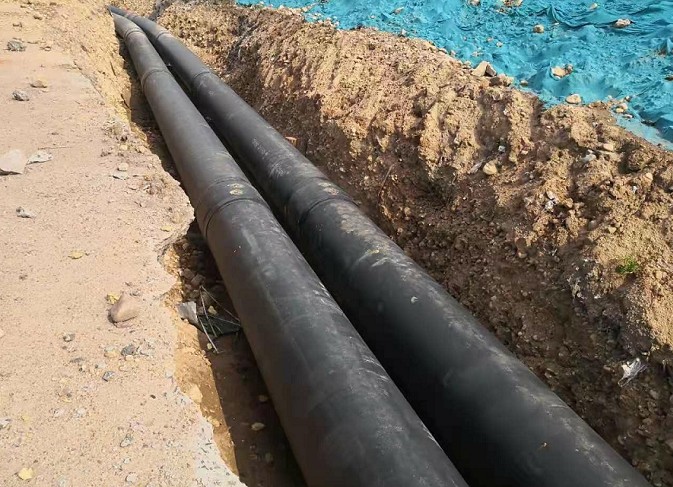

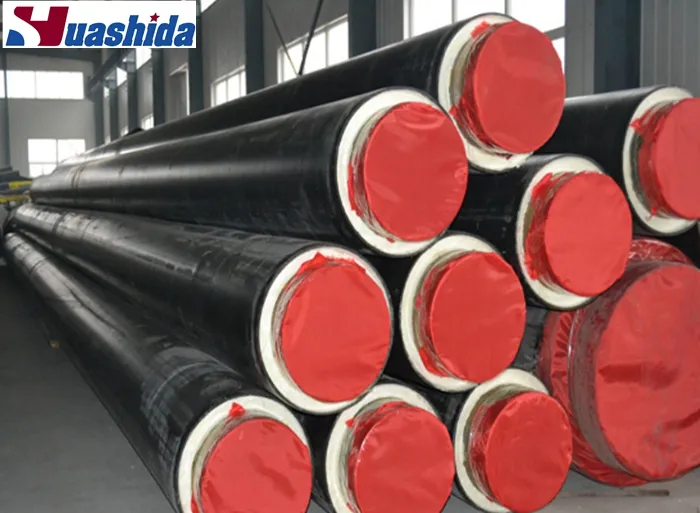

---HDPE jacket pipe is out casing of thermal insulating pipe, which is widely used in central heating, oil, natural gas and other industrial areas.

HDPE Thermal Ppu Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Machine

II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is less waste pipe and material, no need for workers to crush waste material.
3. High-efficiency.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5. No need to trim edge, once forming.

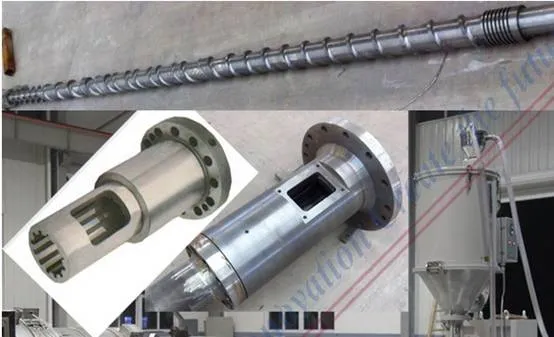

III. Main machine- High-efficiency single screw extruder
---Single screw is with barrier & mixing head; barrel is a new model with slotting (channel), Both make the security of good jellification, large output and stable performance.

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.

V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors

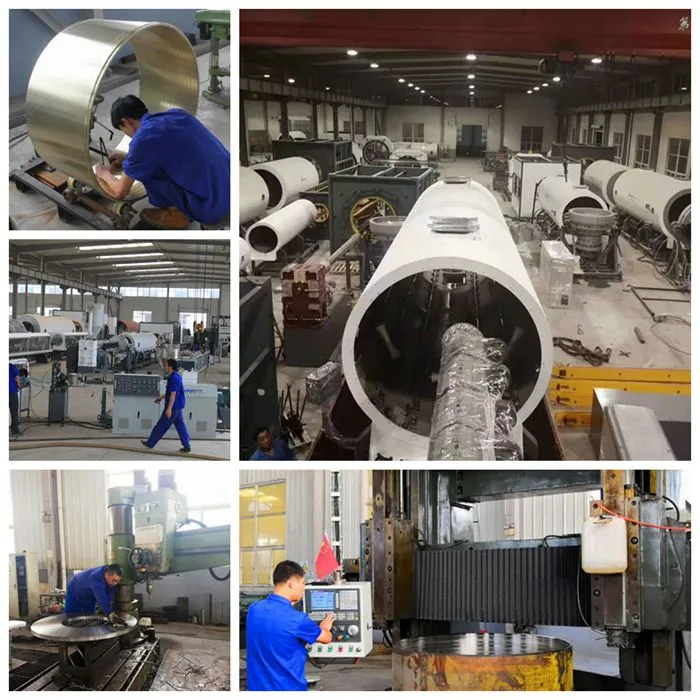

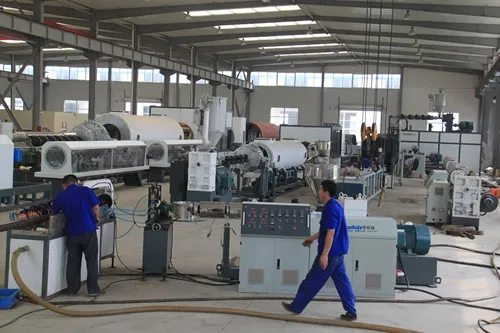

Factory&Workshop
