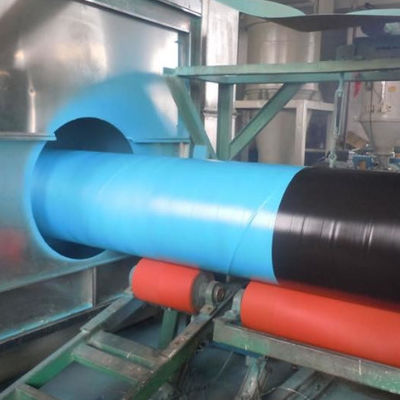

Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line

1 set
MOQ
US$100,000.00-3,000,000.00
Price
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Anti-corrosive Equipment Production Line

,

3PE Steel Pipe Anti-corrosive Equipment

,

Customizable 3PE Steel Pipe Production Line
Basic Infomation
Place of Origin: China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Model Number: 50-4200mm
Payment & Shipping Terms
Packaging Details: Standard Package for Export
Delivery Time: 2 months
Payment Terms: T/T
Supply Ability: 30 set/year
Product Description




                                            3PE steel pipe anticorrosive equipment production line



















Model NO.
50-4200mm
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
CE, ISO, RoHS
Condition
New
Package Gross Weight
3000.000kg
Surface Treatment Grade
≥SA2.5
Coating Type
Internal, External
Coating Material
Epoxy Powder, Adhesive, Polyethylene
Coating Structure
Fbe, 2lpe, 3lpe
Heating Method
Induction Heating
Transport Package
Standard Package for Export
Specification
1000.00cm * 220.00cm * 180.00cm
Trademark
HUASHIDA
Origin
Qingdao China
HS Code
8477209000
Production Capacity
30 Set/Year
Product Description

Steel pipe anti-corrosion coating line is used for anti-corrosion coating steel pipe in the factory with various diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.

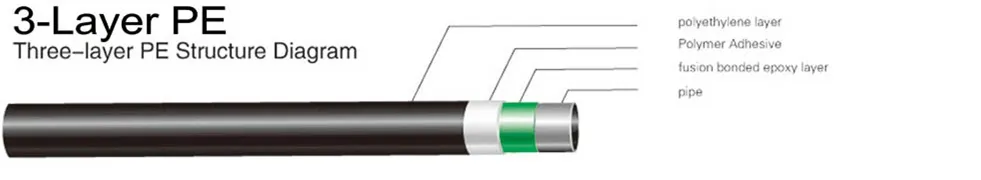

3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 0

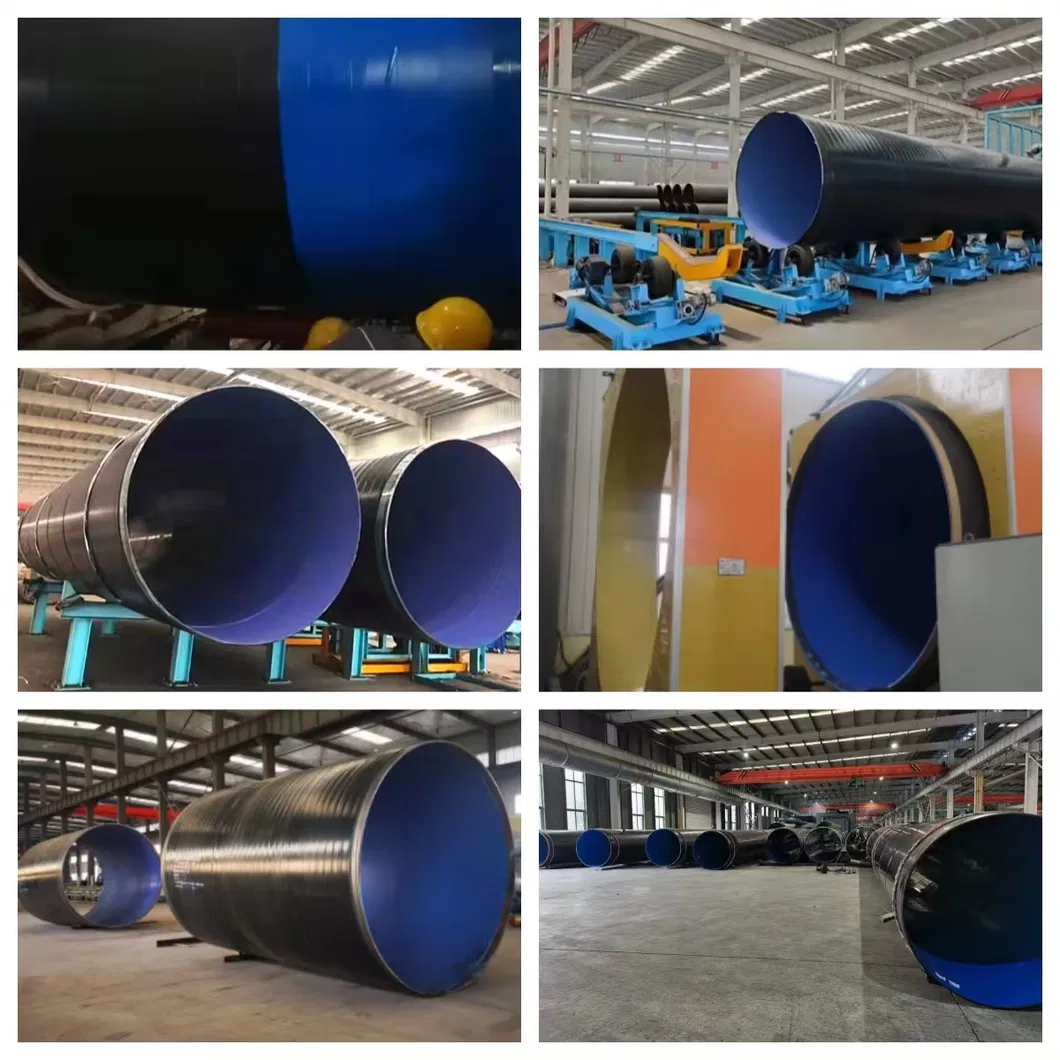

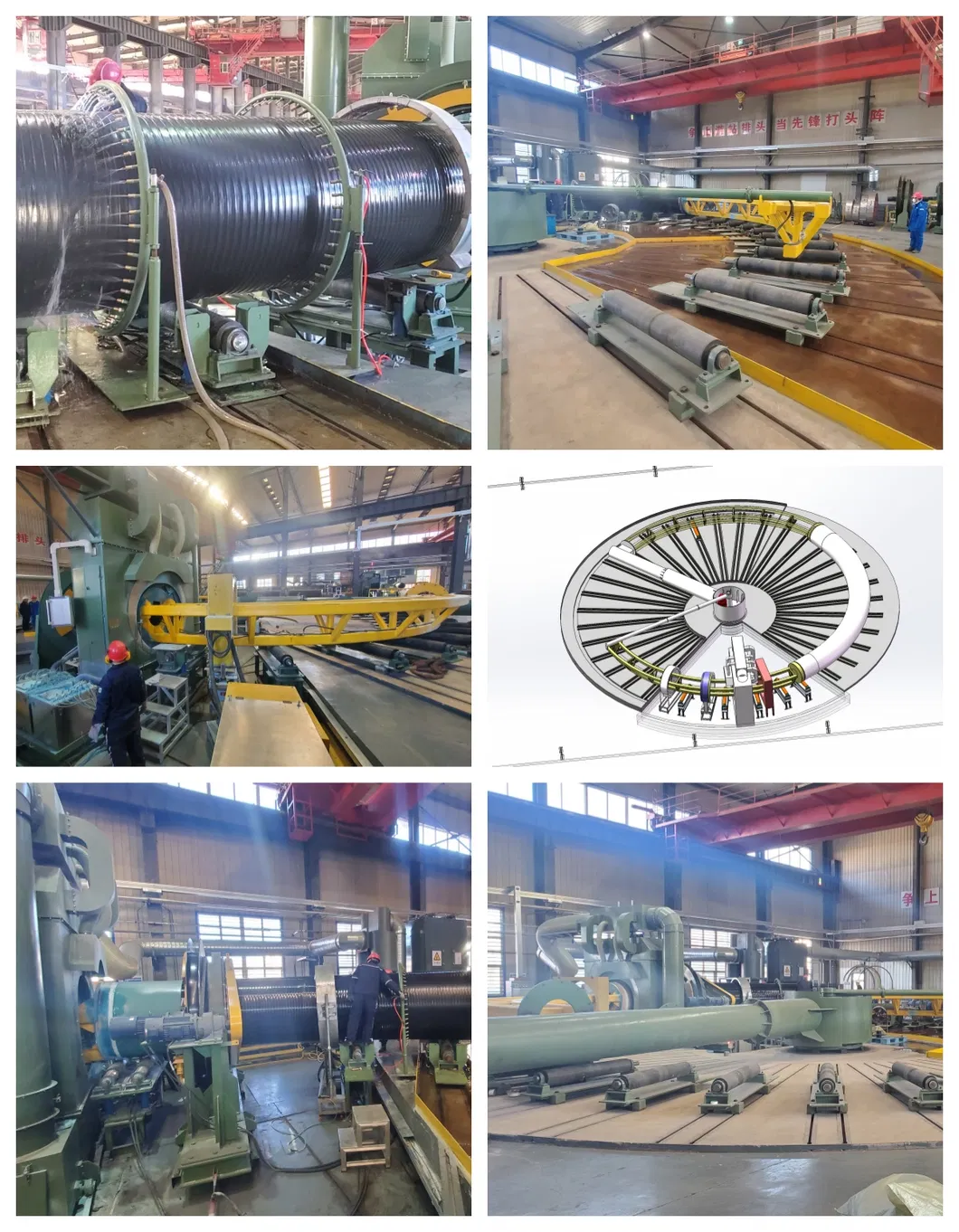

Steel pipe 3LPE anti-corrosion coating line
(Dia. 159-4200mm)
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 1Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 2

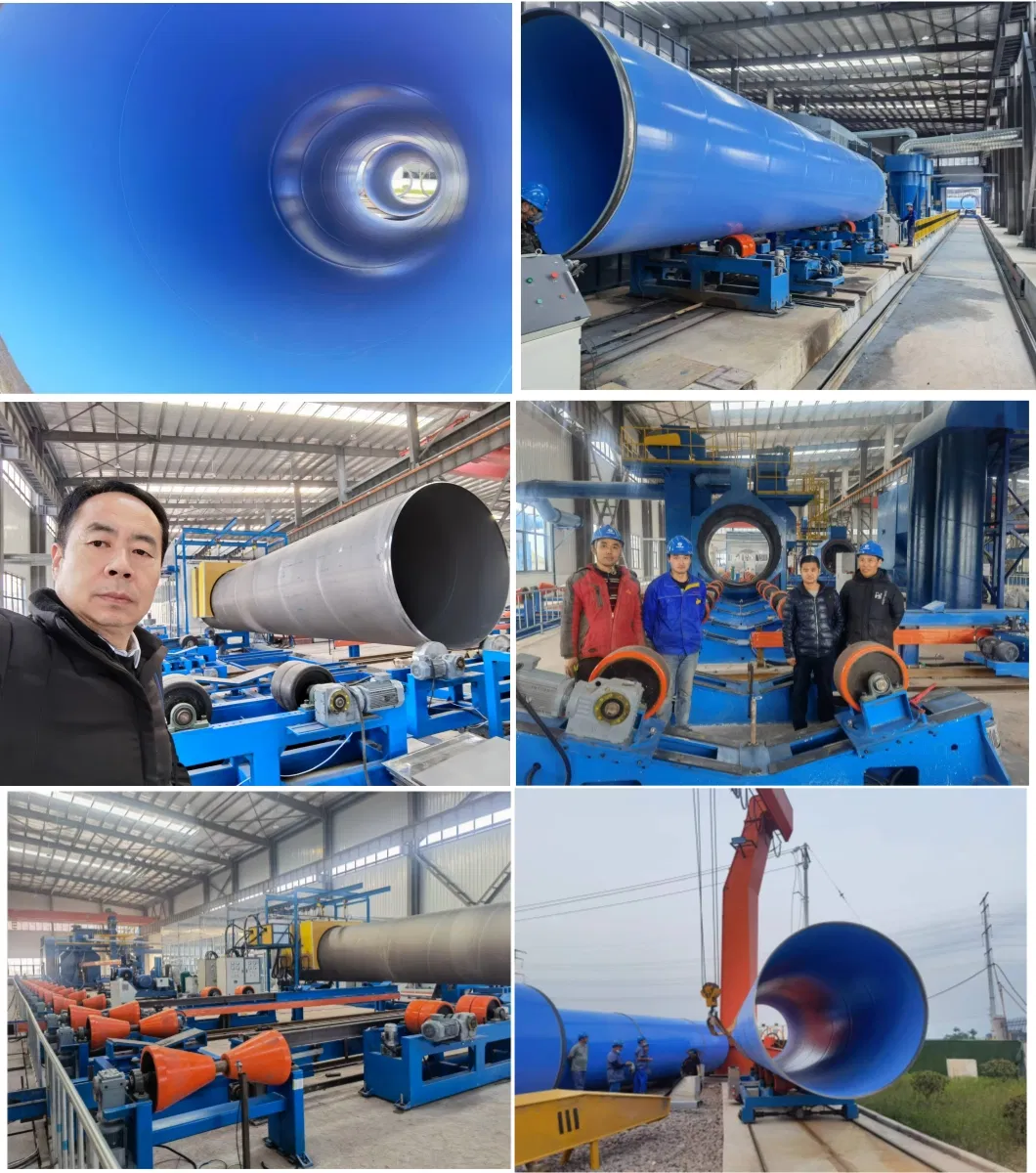

                                     Steel Bend pipe FBE &3LPE coating Production Line click for detail
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 6
Application

The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipeline. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable and anti-aging performance.

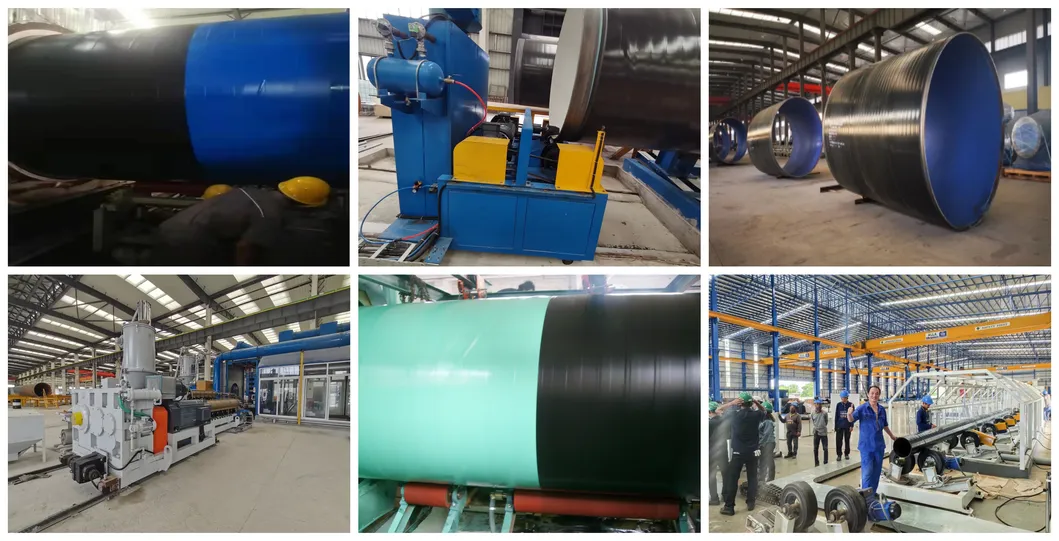

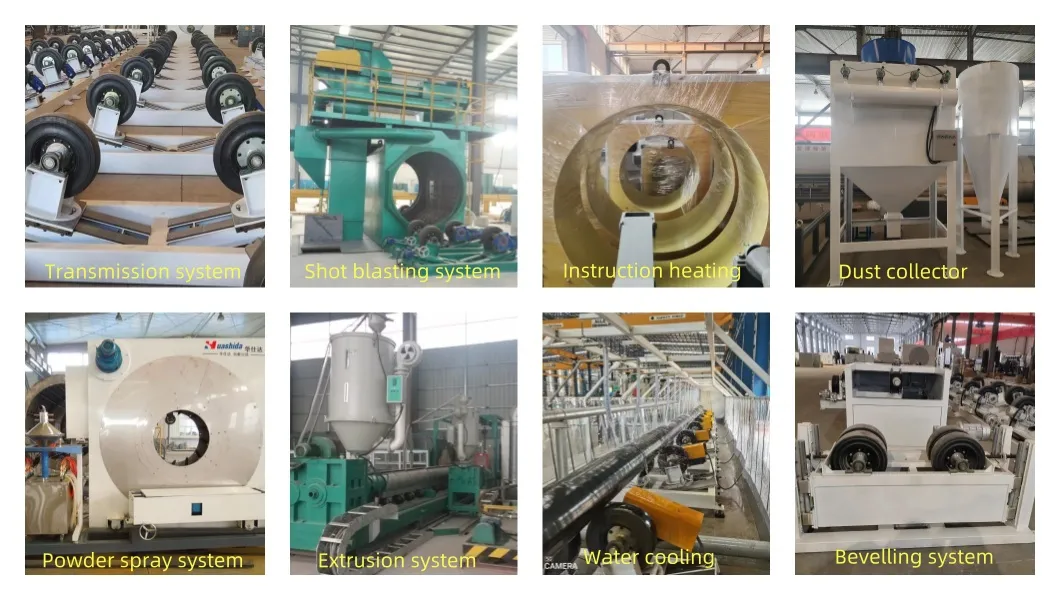

Detailed Photos

The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.

Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 7

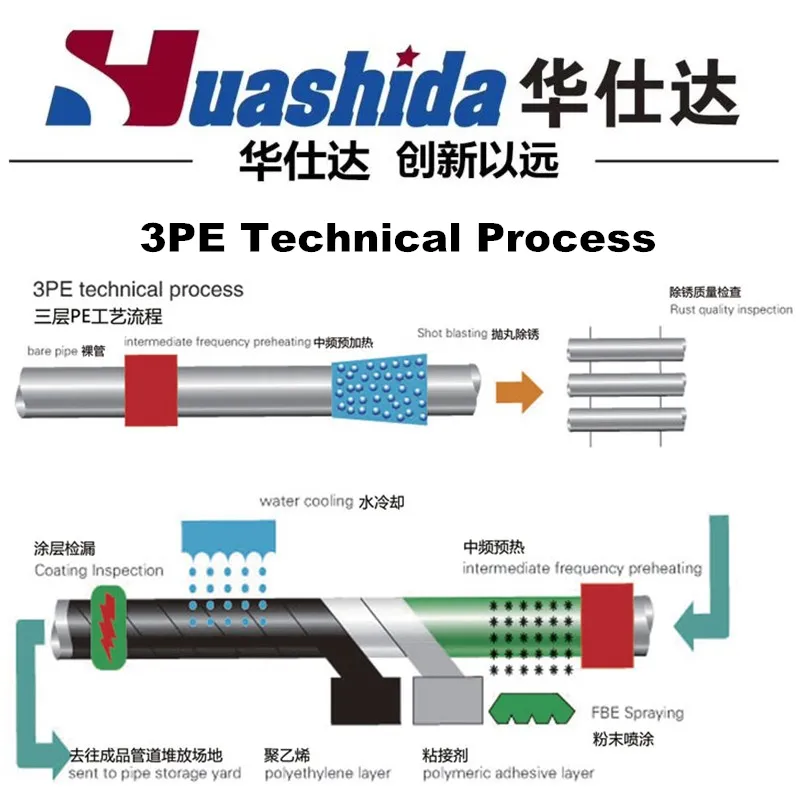

Technological processes

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 8

Our Advantages

-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China


Main Equipment List
No. Name Set
A. Derusting Equipment
1 Pipe wheel conveyor 1
2 Shot Blasting Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC 1
B. Coating equipment
1 Pipe wheel conveyor 1
2 Induction heating device 1
3 Powder spraying device 1
4 Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-120/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE sheet extruder head mold 1
9 Hot melt adhesive/PE sheet coating device 1
10 Environmental Protection Ventilation equipment 1
11 Cooling Spray equipment 1
C.Platform Equipment
1 Steel pipe uploading platform 1
2 Downloading platform 1
3 Pipe storage platform 1
4 Turnover machanism 3
D.Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1
4 PLC automatic control system 1

Product Parameters

1. Pipe diameter: 50-4200mm
2. Processing capacity: ≥250m2/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene

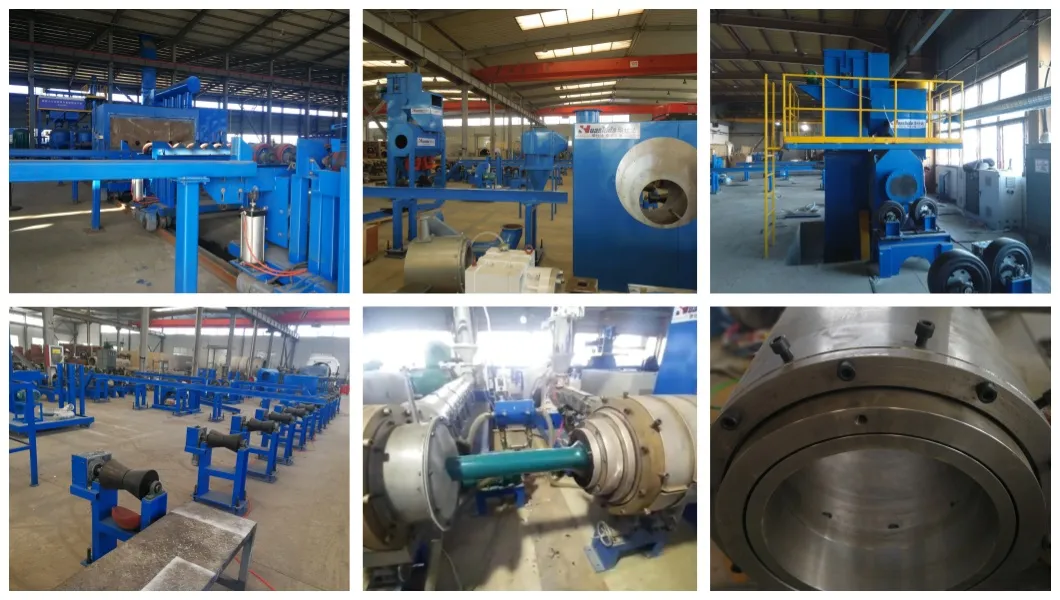

Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 9

Customer cases

Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 10

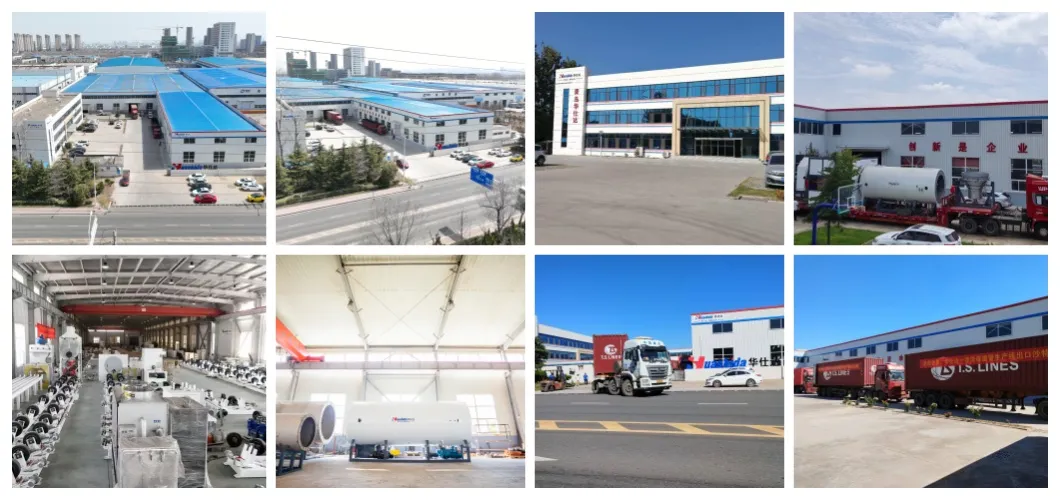

Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.


We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 11
Our team
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 12

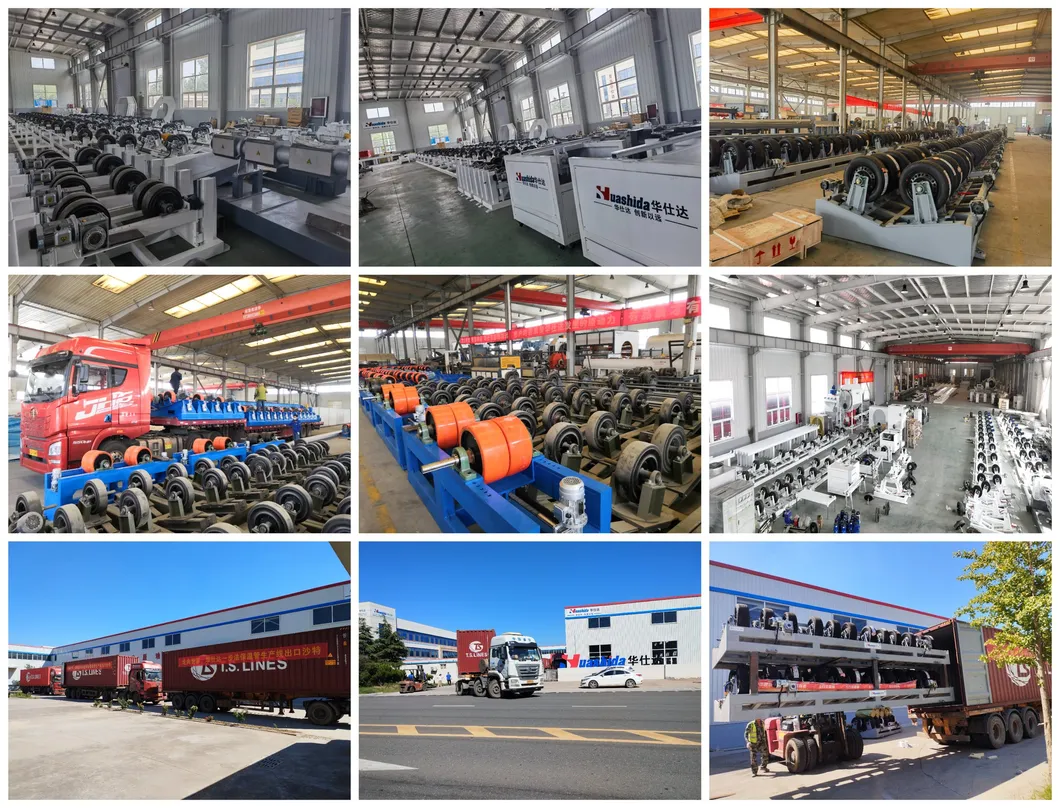

Delivery
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 13
Exhibition
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 14
Certifications
Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 15Customizable 3PE Steel Pipe Anti Corrosive Equipment Production Line 16
