Name: Custom PP/PE / HEPE Plastic Corrugated Double Wall Pipe Extrusion Suppliers In China
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: HSD
Price: 150,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: HSD -2000

Screw No.: Single-screw

Automation: Automatic

Computerized: Computerized

Certification: ISO9001:2008, QS

Customized: Customized

Condition: New

Transport Package: Wooden Cases And Pallets

Specification: CE, SGS

Trademark: Huashida

Origin: Qingdao, China

HS Code: 8477209000

Production Capacity: 50 Units/ Year

Highlight:

huashida hdpe pipe extrusion machine

huashida corrugated pipe extrusion machine

Basic Infomation

Place of Origin: Qingdao,China

Brand Name: Huashida

Certification: CE,ISO9001,SGS,etc.

Model Number: HSD

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 45 Day

Payment Terms: T/T

Supply Ability: 50 sets / Year

Gallery

Custom PP/PE / HEPE Plastic Corrugated Double Wall Pipe Extrusion Suppliers In China

Product Description

Custom PP/PE / HEPE Plastic Corrugated Double Wall Pipe Extrusion Suppliers In China

HDPE Drainage Pipe Production Machine

Technology: Achieves international advanced standards.
Automation: Features a highly automated Siemens PLC control system.
Production Range: Produces large HDPE pipes with diameters from 200mm to 3000mm.
Connection Methods:
- Electric Fusion Sleeves
- Heat Shrink Sleeves
Construction Advantages: Offers convenience and cost-effectiveness.

Custom PP/PE / HEPE Plastic Corrugated Double Wall Pipe Extrusion Suppliers In China 0

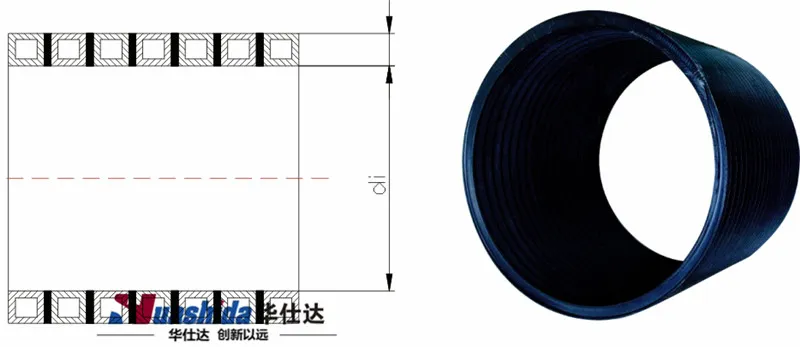

Features of Weholite Structured Wall HDPE Pipe
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximately 50 years.

Applications of HDPE structured wall pipe:

- Storm Water Management./ Storm water Attenuation Application / Storm water pipelines.

- Sewerage Pipelines
- Drainage Pipelines
- Culverts.
- Pipe rehabilitations.
- Landfill drainage/Leachate.
- Mine drainage.
- HDPE manholes. / Manhole Drops
- Floats
- Irrigation

Technical process:
Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→Caterpillar traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket

HDPE Structured Wall Pipe Drainage Weholite Extrusion Line

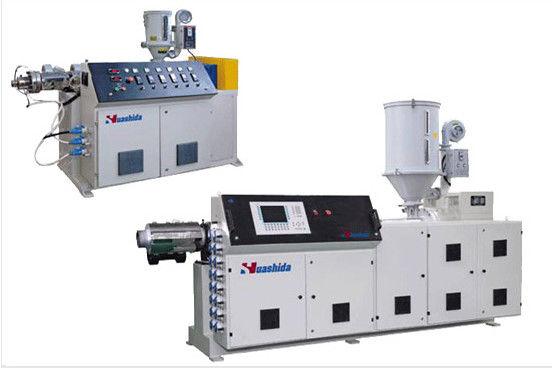

High-efficiency single screw extruder
The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.

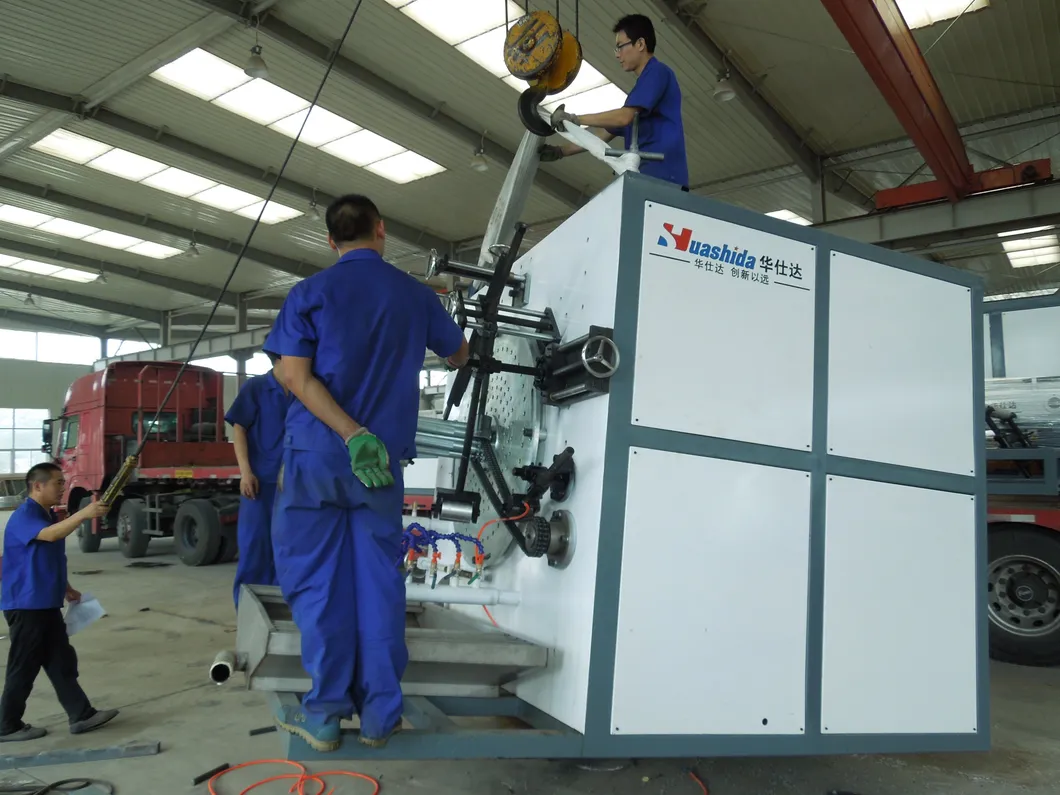

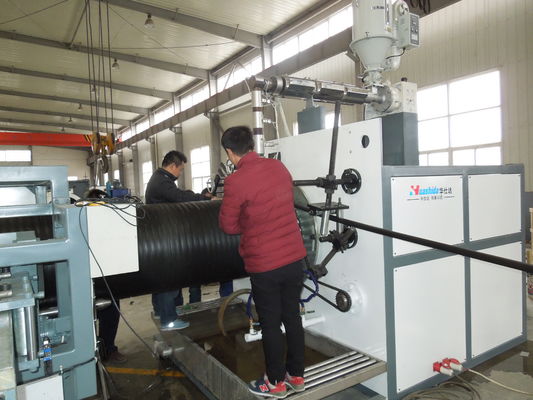

Spiral forming machine
Spiral spinning forming, exquisite structure, unique design, ensuring high product quality.

Control System
PLC computer control system with touch screen:
With super high speed and large storage capacity.
Multi points control: pipe extrusion, adhesive extrusion, winding and cutting process can be controlled synchronously or separately.

Data sheet

Model	Pipe Diameter(mm)	Extruder	Speed of forming	Max. output	Installed Power	dimension
SKRG-1200	Ø400-Ø1200	SJ-65(50)X30	1-12m/h	320kg/h	230KW	26X18X5
SKRG-1600	Ø800-Ø1600	SJ-80(50)X30	1-6m/h	500kg/h	310KW	27X18X5
SKRG-2200	Ø1000-Ø2200	SJ-90(65)X30	0.5-5m/h	650kg/h	380KW	28X19X5
SKRG-3000	Ø1600-Ø3000	SJ-90(65)X30	0.3-3m/h	800kg/h	390KW	48X26X6

Expert team supporting

Delivery

Qingdao Huashida Machinery Co., Ltd. absorbs German advanced technology and developed the complete production line with independent intellectual property rights- spiral structured wall HDPE pipe production line
