Features

Specifications

Model NO.: HSD -2000

Screw No.: Single-screw

Automation: Automatic

Computerized: Computerized

Certification: ISO9001:2008, QS

Customized: Customized

Condition: New

Transport Package: Wooden Cases And Pallets

Specification: CE, SGSISO9001 Etec.

Trademark: Huashida

Origin: Qingdao, China

HS Code: 8477209000

Highlight:

huashida pipe extrusion production line

huashida corrugated pipe production line

Basic Infomation

Place of Origin: Qingdao

Brand Name: Huashida

Certification: CE,ISO9001

Model Number: HSD

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 45 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50 sets / Year

Gallery

Plastic double wall corrugated pipe making machine drain pipe corrugated pipe production line

Product Description

Plastic double wall corrugated pipe making machine drain pipe corrugated pipe production line

Performance

International Standards: Reaches advanced international performance levels.
Automation: Highly automated with a Siemens PLC control system.

Production Capabilities

Pipe Sizes: Produces large plastic pipes ranging from 200 mm to 3000 mm in diameter.

Connection Method

Pipe Fittings: Uses special fittings (electric fusion sleeves, heat shrink sleeves) for convenient and economical construction.

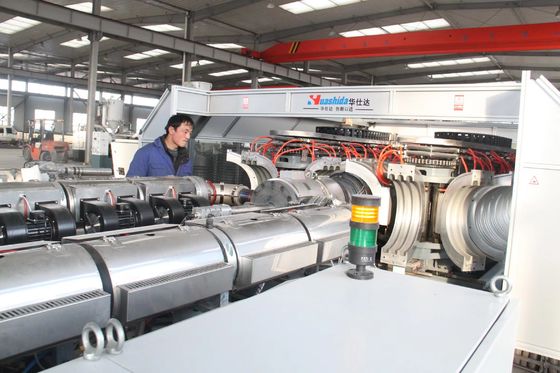

Plastic double wall corrugated pipe making machine drain pipe corrugated pipe production line 0

Plastic double wall corrugated pipe making machine drain pipe corrugated pipe production line 1

Features of Weholite Structured Wall HDPE Pipe
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximately 50 years.

Applications of HDPE structured wall pipe:

- Storm Water Management./ Storm water Attenuation Application / Storm water pipelines.

- Sewerage Pipelines
- Drainage Pipelines
- Culverts.
- Pipe rehabilitations.
- Landfill drainage/Leachate.
- Mine drainage.
- HDPE manholes. / Manhole Drops
- Floats
- Irrigation

Technical process:
Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→Caterpillar traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket

HDPE Structured Wall Pipe Drainage Weholite Extrusion Line

High-efficiency single screw extruder
The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.

Spiral forming machine
Spiral spinning forming, exquisite structure, unique design, ensuring high product quality.

Control System
PLC computer control system with touch screen:
With super high speed and large storage capacity.
Multi points control: pipe extrusion, adhesive extrusion, winding and cutting process can be controlled synchronously or separately.

Data sheet

Model	Pipe Diameter(mm)	Extruder	Speed of forming	Max. output	Installed Power	dimension
SKRG-1200	Ø400-Ø1200	SJ-65(50)X30	1-12m/h	320kg/h	230KW	26X18X5
SKRG-1600	Ø800-Ø1600	SJ-80(50)X30	1-6m/h	500kg/h	310KW	27X18X5
SKRG-2200	Ø1000-Ø2200	SJ-90(65)X30	0.5-5m/h	650kg/h	380KW	28X19X5
SKRG-3000	Ø1600-Ø3000	SJ-90(65)X30	0.3-3m/h	800kg/h	390KW	48X26X6

Expert team supporting

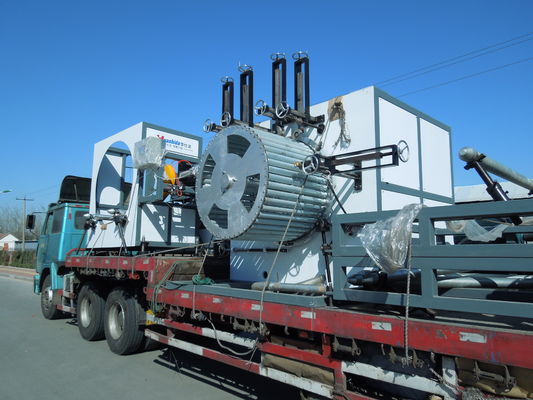

Delivery

Spiral Structured Wall HDPE Pipe Production Line

Overview

Manufacturer: Qingdao Huashida Machinery Co., Ltd.
Technology: Incorporates advanced German technology.

Features

Complete Production Line:
- Developed with independent intellectual property rights.
Design:
- Specifically engineered for producing spiral structured wall HDPE pipes.
