Features

Specifications

Product Type: PE Board

Board Layers: Single Plate

Screw No.: Single-screw

Automation: Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Condition: New

Sheet Width: 300-7000mm

Thickness: 0.2-30mm

Color: By Buyer′s Opinion

Extrusion System: Mono-Layer Or Multi-Layer

Raw Material: PE/ PP

Transport Package: Wooden Cases And Pallets

Specification: CE, ISO9001: 2008, SGS

Trademark: Huashida

Origin: Qingdao, China

HS Code: 8477209000

Production Capacity: 100 Sets /year

Highlight:

iso9001 hdpe sheet extrusion line

huashida hdpe sheet extrusion line

iso9001 pe pp sheet / board extrusion line

Basic Infomation

Place of Origin: Qingdao,China

Brand Name: HSD

Certification: CE,ISO9001

Model Number: HSD-S001

Payment & Shipping Terms

Packaging Details: Stardard Package

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Gallery

20- Year Professional HDPE, PE, PVC, Geomembrane Waterproof Liner Sheet Extrusion Line

Product Description

20- Year Professional HDPE, PE, PVC, Geomembrane Waterproof Liner Sheet Extrusion Line

Name: 20- Year Professional HDPE, PE, PVC, Geomembrane Waterproof Liner Sheet Extrusion Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: HSD-S001
Price: 43000 USD
Availability: InStock

It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; Equipped with auxiliary downstream accessories and moulds, it can produce: PP, PE and other board & sheet.

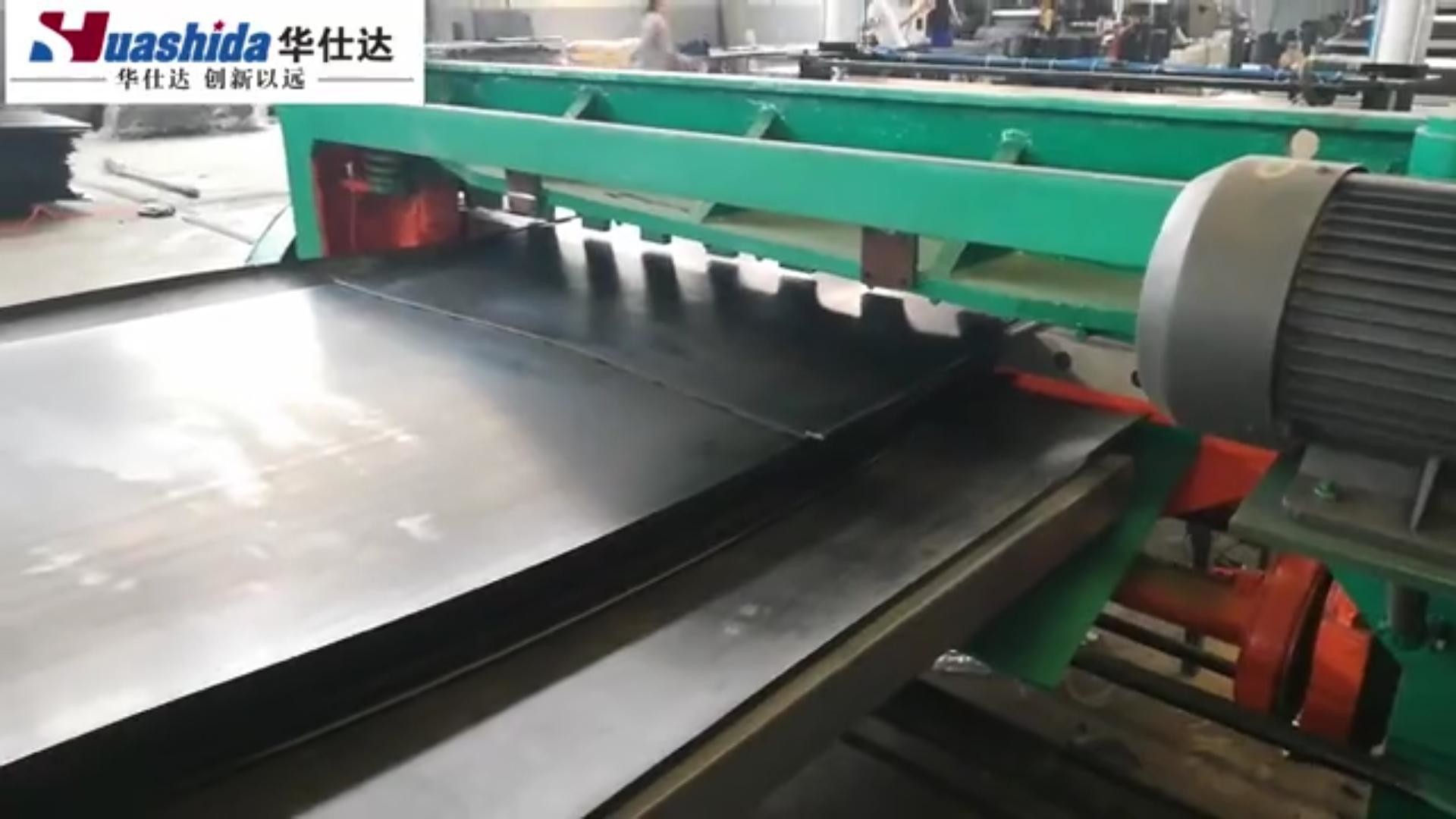

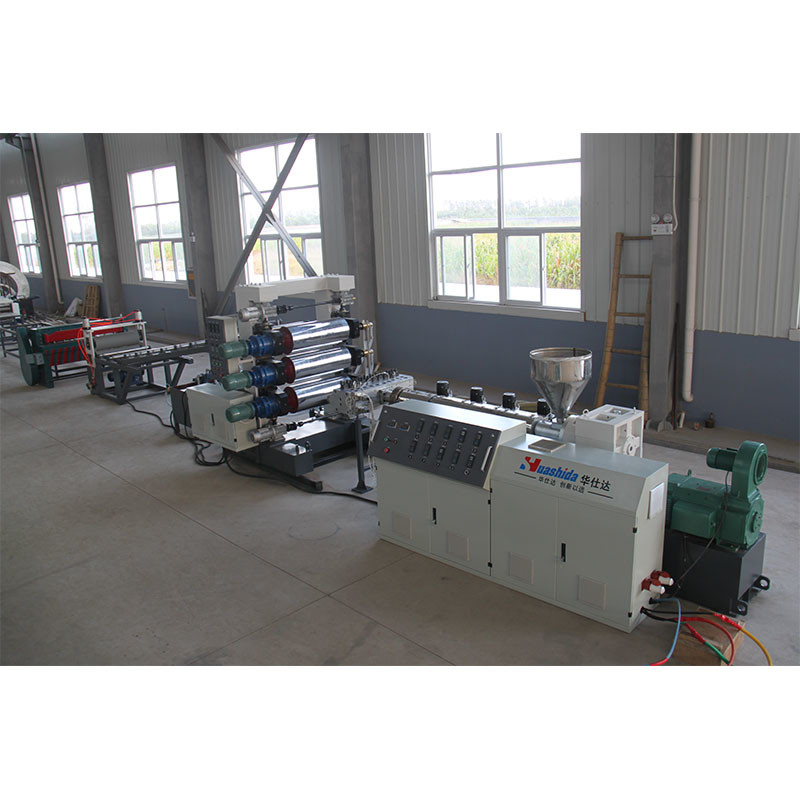

The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.

Others, The working principle is the 3 states of the hot-plastics at different temperatures: The pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.

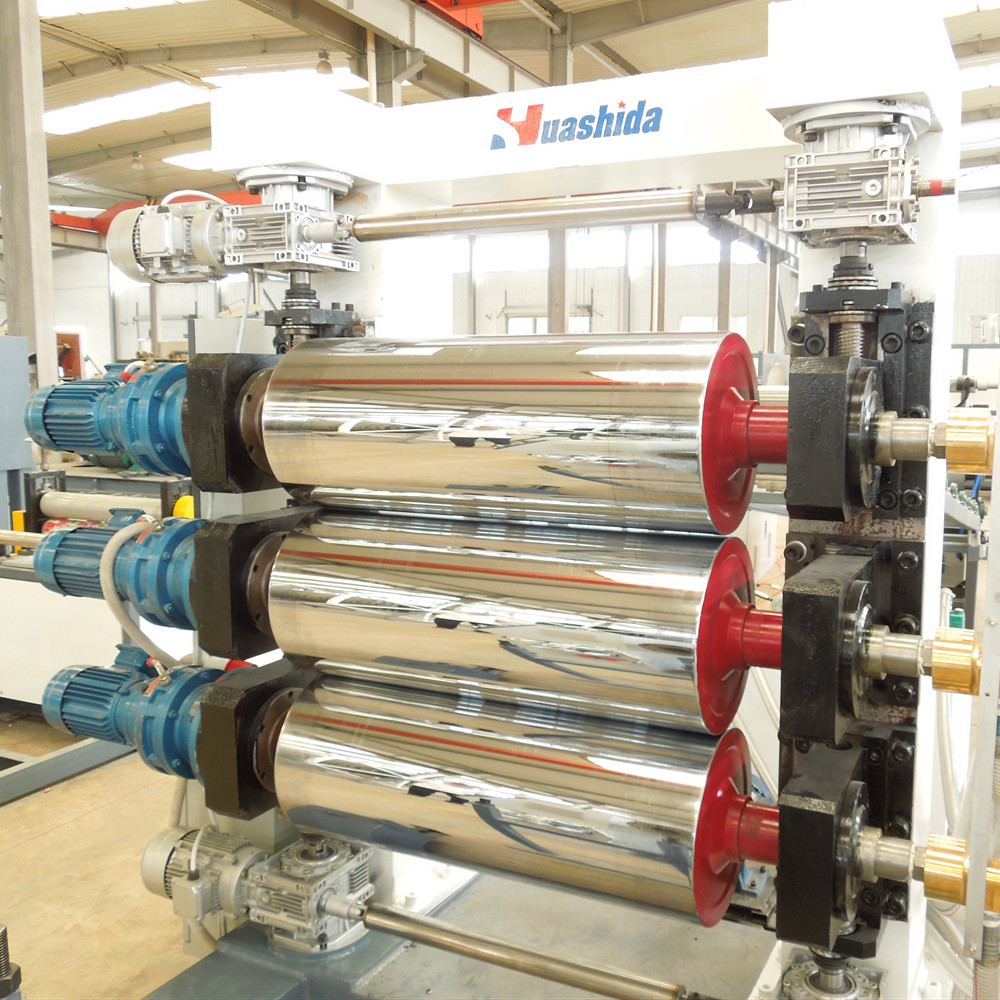

Features of the machinery unit: High grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even, For the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization,
Plastic PE Sheet Geomembrane Calendar Extrusion Machinery

Plastic PE Sheet Geomembrane Calendar Extrusion Machinery

The plate and sheet extrusion line is specifically designed for producing high-quality boards and sheets from materials like PP (Polypropylene) and PE (Polyethylene). It features advanced components, including the SBJZ-Series Single Screw Extruder for specialized applications, the SJZ-Series Conical Twin Screw Extruder for enhanced plasticization and mixing, and the SJ-Series Parallel Twin Screw Extruder for consistent output and processing capability.

This versatile line can process a variety of materials and includes auxiliary accessories for cooling, stretching, and cutting, along with custom moulds tailored to specific dimensions. It is ideal for applications in packaging, construction, automotive parts, and consumer products. Overall, this extrusion line offers an efficient solution for producing high-quality plates and sheets across diverse industries.

(Modle)	(width)	Thickness(MM)	Seedtm/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560
