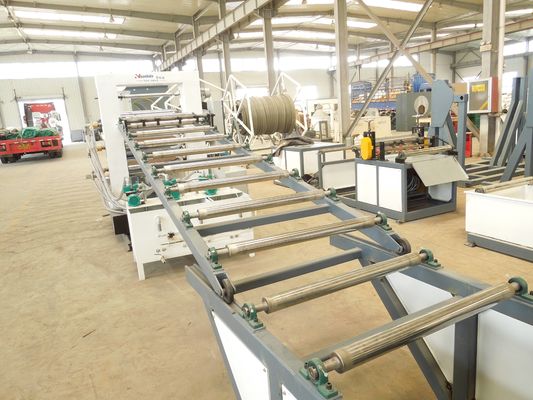

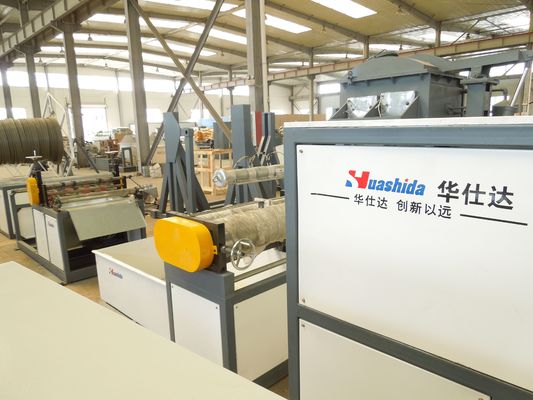

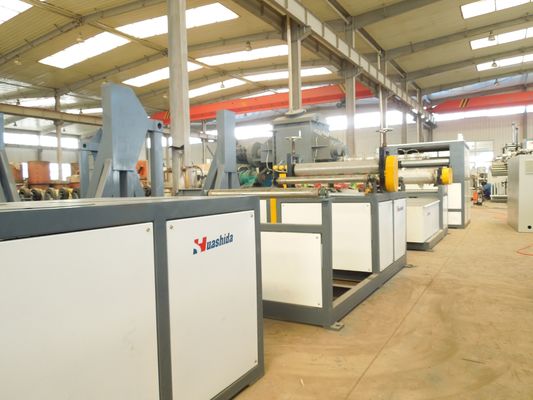

PE Sheet Extrusion Machine with Single Screw Extrusion for 3-16mm Polyethylene Sheet Production Line and High-Efficiency Cooling System

Our sheet extrusion line represents one of the most complete, high-performance, and reliable sheet production systems available. We offer three complete system specifications equipped with 65mm, 90mm, or 120mm extruders to meet various capacity and production requirements. This production line is engineered for exceptional efficiency, stability, and versatility in producing diverse plastic sheets and films.

• High-Efficiency Single Screw Extruder: Equipped with premium motor, digital control system, vacuum venting, screen changer, gearbox, and flexible die. Optional PLC/PCC control system with specially designed screws for processing HIPS, PP, and PET materials.

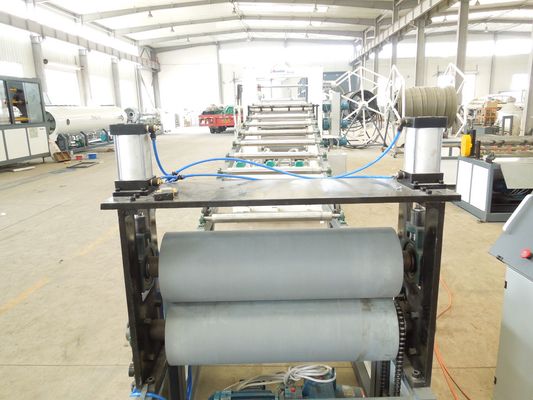

• Three-Roller Calender: Features three hard surface polished rollers with flawless mirror chrome plating for maximum heat transfer efficiency. Each roller includes individual, high-volume pressurized water temperature control for precise temperature management and superior sheet surface quality.
• High-Performance Cooling System: Utilizes forced water cooling technology to significantly enhance production efficiency while maintaining temperature synchronization for consistent product quality.

• Extruder: SBJZ series single screw extruder, SJZ series conical twin screw extruder, or SJ series parallel twin screw extruder
• Screen Changer: Ensures stable melt flow
• Melt Pump: Provides stable melt flow rate
• T-Die: Ensures uniform melt distribution without stagnation, maintaining even sheet thickness
• Three-Roller or Multi-Roller Calender: Guarantees sheet flatness
• Cooling Device: Effectively cools melt while maintaining high efficiency
• Edge Cutter: Precisely trims sheet edges
• Haul-off System: Smoothly pulls the sheet through the process
• Plate Cutter/Winder: Efficiently cuts and winds finished sheets
• Electrical Control System: Ensures automation and efficient operation

The plastic material undergoes three distinct states at different temperatures: The screw's pushing force transforms the material from a glassy state to an elastic state and finally to a viscous, fluid state. The material flows through the narrow gap of the die, followed by calendering, cooling, shaping, edge cutting, haul-off, cutting, and winding processes to produce the finished sheet product.

• High-Strength Alloy Structural Steel: Material barrel, screw, and die constructed from high-grade alloy structural steel (38CRMOALA) treated by nitriding for exceptional hardness, corrosion resistance, and extended service life.
• Advanced T-Die Design: Flow channel engineered for smooth melt flow without stagnation, ensuring uniform sheet thickness distribution.
• Optimized Calendering Design: Large conical slot design enhances internal roller cooling, maintaining temperature synchronization for high-quality production output.

• PC/PP Hollow Cross-Section Plates
• PVC Transparent Soft & Hard Plates and Sheets
• PVC Foamed Plates
• PMMA/ABS Co-Extrusion Bathing Plates
• Refrigerator Interior Plates
• Multi-Layer Composite Co-Extrusion Sheets and Films

• ABS Sheets: Widely utilized in refrigerator industry for components including fridge drawers and gallbladders
• PS Sheets: Primarily employed in semiconductor electronics and computer communications industries
• PE/PP Sheets: Featuring low density, excellent sanitation performance, corrosion resistance, and heat resistance - widely used in anti-corrosion materials and container manufacturing

• Loader & Hopper Dryer
• Extruder
• Screen Changer
• T-Die
• Three-Roller Calender
• Cooling Device
• Edge Cutter
• Haul-off System
• Plate Cutter/Winder
• Electrical Control System

• Water-Cooled Forced Feeding System: Reduces main motor power consumption
• Extended L/D Ratio and Mixing Head: Ensures perfect gelatinization and high output efficiency
• Specialized T-Die Design: Facilitates sensitive thickness adjustment capabilities
• Intelligent Temperature Control System: Precisely manages roller temperatures for high-quality, efficient production

• Sheet Width Range: 300mm - 700mm
• Sheet Thickness Range: 0.2mm - 45mm
• Output Rate Range: 80 - 1800kg/h

This advanced sheet extrusion line represents the optimal choice for producing various plastic sheets and films, delivering exceptional efficiency, operational stability, and energy-saving performance. Widely applied across machinery, chemicals, electronics, and numerous other industrial sectors.
