Polyethylene Three-Layer Anti-Corrosion Coating Line for Pipes

Product Overview

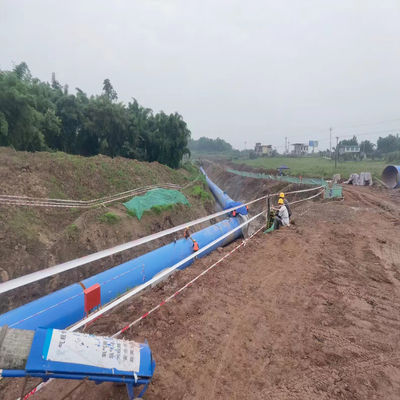

The 3PE anti-corrosion coating production line is designed for applying a three-layer coating to steel pipes, enhancing their mechanical strength, electrical insulation, and durability. It is ideal for oil, gas, water, and other fluid transmission pipelines.

Coating Structure:
First Layer: Fusion-bonded epoxy powder (FBE > 100µm)
Second Layer: Adhesive (AD) 170 ~ 250µm
Third Layer: Polyethylene (PE) 2.5 ~ 3.7mm

Key Features:
·Enhances pipe lifespan from 5-10 years to 50-100 years
·High mechanical strength, excellent electrical insulation, waterproof, wear-resistant, and anti-aging properties
·Suitable for harsh environments and corrosive conditions

Key Customer Benefits:
1. Simplified Operation & Reduced Skill Dependence
Well-known brand PLC control system with large touchscreen and stored diameter recipes enables one-click specification change with automatic parameter setting, significantly reducing dependence on skilled operators and ensuring consistent product quality even with staff turnover.

2. Consistent Coating Quality
Extrusion die with medium frequency induction heating ensures uniform PE coating thickness distribution (tolerance within ±0.1mm ) and reliable adhesion, enabling every pipe to consistently pass international standard inspection and eliminating costly rework and project delivery delays.

3. Reduced Operational Energy Cost
Integrated waste heat recovery system combined with full-line variable frequency drives reduces overall energy consumption by approximately 25% , significantly lowering monthly electricity expenses and improving profit margins over the equipment lifecycle.

4. Professional Installation & Commissioning
Senior engineers with experience in commissioning 200+ production lines provide on-site installation, commissioning, and operator training, ensuring the client's team achieves stable independent production before engineer departure, significantly reducing ramp-up time and operational risks.

5. Wide Diameter Range Coverage
Modular conveying system with adjustable roller spacing enables a single production line to cover a wide diameter range , eliminating the need for multiple equipment investments and allowing clients to accept orders across various pipe specifications without capacity limitations

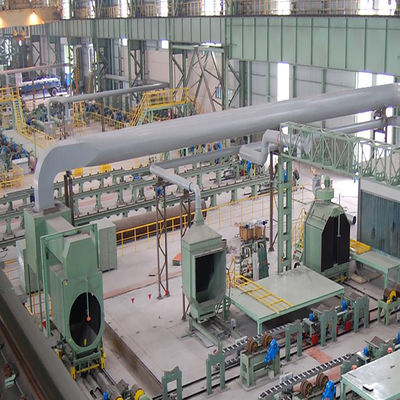

Production Line Components
Rust Removal Equipment: Includes shot blast cleaning machine, dust collectors, and rust removal PLC control system.

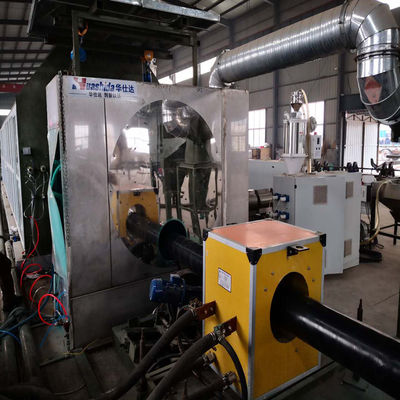

Coating Equipment: Features powder spraying device, heating system, coating devices, cooling spray, and extruders.
Platform Equipment: Steel pipe platform, storage platform, hydraulic equipment.
Groove Equipment: Includes PE beveling machines and lifting machinery.
Compressed Air Equipment: Air compressors, precision filters, and gas tanks.
Main Equipment of 3PE anticorrosion processing
Configuration List


Product Picture

Technological Process
Pipe Input: Upload pipes
Conveying: Pipe screw conveyor

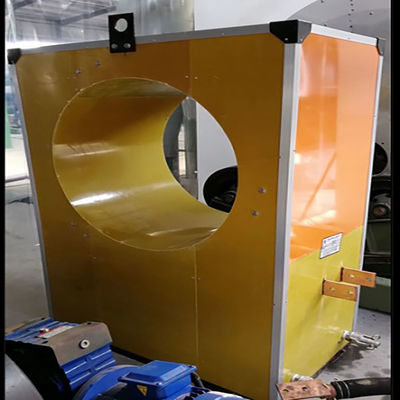

Rust Removal: Intermediate frequency heating
Coating: Epoxy powder coating, adhesive, and polyethylene
Cooling: Spray cooling system
Finishing: Grinding and unloading pipes


Specifications
Pipe Diameter Range: Φ219 ~ Φ1420
Coating Thickness: 80 ~ 800µm
Production Output:
Max. 3-8 km/day
Annual processing capacity: 2 million square meters (Φ508mm)
Coating Standards: Meets SY/T0413-2002, GB/T23257-2009, German DIN 30670, American Corrosion Association, and other international standards.

Frequently Asked Questions

What is the pipe diameter range the equipment can produce?

-48-219mm, 219-1220mm, 800-1600mm, 1000-2400mm

What is the sandblasting grade?

-SA2.5

What is the anti-corrosion coating standard?

-Meets multiple international standards, including SY/T0413-2002 and DIN 30670.

What is the delivery time?

-2-3 months after deposit.

What is the production output?

-Max. 3-8 km/day, annual capacity of 2 million square meters (Φ508mm).

What is the coating thickness?

-80 ~ 800µm.

Where has the 3PE equipment been sold?

-Countries including Russia, Iran, UAE, India, Belarus, Kazakhstan, etc.

What after-sales services are offered?

-Warranty: 12 months for mechanical parts, 6 months for electrical parts.
Support: Technical services, training, and guidance for operators.

Packaging &Shipping
Packaged by wrapping film, the charge should be beard if used wooden pallet or wooden case demanded by buyer.

After Sales Service
-The guarantee period is 12 months for machinable parts, 6monthes for electrical parts. After the end of the Guarantee period the Supplier is obliged to provide with lifelong service at the expense of Buyer.
-During a warranty period of exploitation the Seller undertakes to execute warranty service of the equipment, troubleshooting and replacement of out of service spares, except for breakings, bound with incorrect exploitation of the equipment by the Buyer.
-Seller provide the technical service with free, and training the workers of buyers.
Company Profile

Exhibition

Certification

For clients seeking a reliable, high-performance 3PE/FBE Steel Pipe Anti-Corrosion Coating Line, Qingdao Huashida provides complete turnkey solutions from factory layout design to final production verification. Contact us with your specific requirements for a customized technical proposal and quotation within 48 hours.
