Features

Specifications

Surface Treatment: Chrome

Application: Pipeline Antocorrosion Joint

Thickness: 2.0/2.5/3.5mm

Transport Package: Standard Package

Connection: Welding

Head Type: Round

Width: 450/500

Delivery Time: 7-10days

Specification: EN253,EN448,EN728,ISO1133,ISO8501-1.ISO9001

Highlight:

huashida pe pipe wrap sleeves

huashida pe heat shrinkable sleeve

Basic Infomation

Place of Origin: china

Brand Name: huashida

Certification: CE, ISO9001:2008, QS, GMP

Payment & Shipping Terms

Packaging Details: Standard packaging

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100set a year

Gallery

HUASHIDA HSS Radiation Cross-Linked PE Heat Shrinkable Sleeve Tape for Pre-Insulation Pipeline Joint End Seal

Product Description

radiation cross-linked polyethylene Heat Shrinkable sleeve for pre-insulation pipe Joint tape

INTRODUCTION
PE heat shrinkable tape (sleeve) is composed of cross-linked polyethylene back and special heat melt adhesive. Heat melt adhesive has good bonding with PE back, steel pipe and Fusion bonded epoxy (FBE layer). By heating PE back shrinks, adhesive layer melts, and closely wraps around pipe joints, then it forms together with FBE a firm and continuous anti-corrosion body. It is resistant to corrosion, wear, impact, UV and aging, easier to be operated.

Wraparound products
Application area:
It is mainly used for wrapping around pipe, anti-corrosion of kinds of pipe joints, and repairing pipes.
For example: Oil and gas pipe, PU insulation pipe, 3PE/2PE steel pipe.

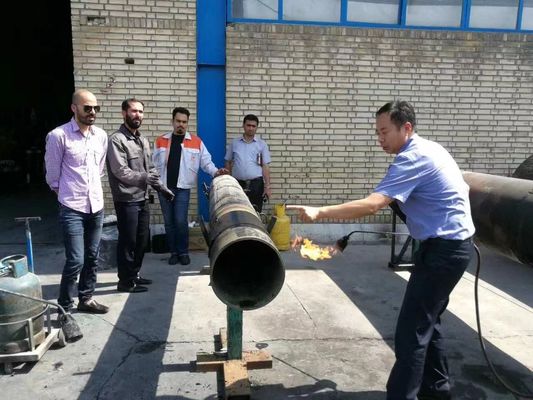

CONSTRUCTION CASE

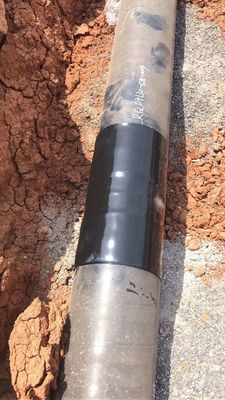

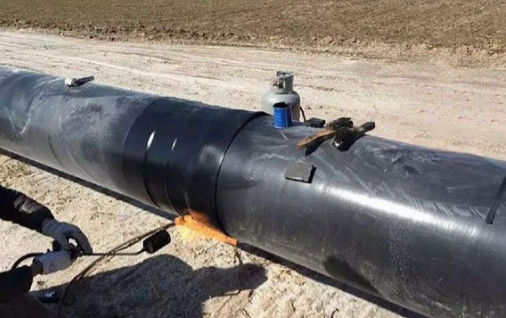

Heat shrinkable sleeve for Oil & Gas Pipe HSS Radiation Cross-Linked PE Heat Shrinkable Sleeve Tape for Pre-Insulation Pipeline Joint End Seal

HSS Radiation Cross-Linked PE Heat Shrinkable Sleeve Tape for Pre-Insulation Pipeline Joint End Seal

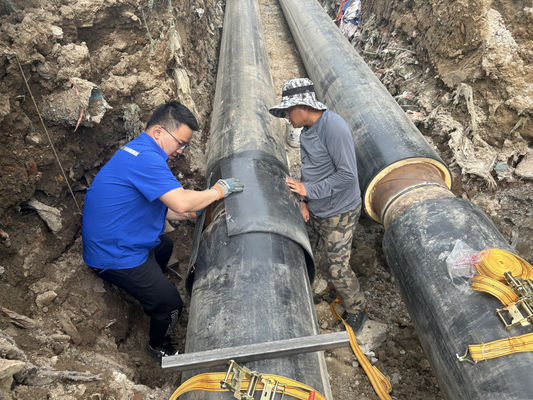

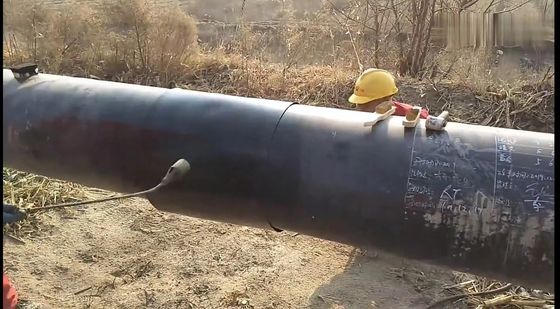

Heat shrinkable sleeve forThermo Insulated Pipe
HSS Radiation Cross-Linked PE Heat Shrinkable Sleeve Tape for Pre-Insulation Pipeline Joint End Seal
COMPARISIONS

TECHNICAL PARAMETERS

NO	Text Item			Unit	Performance	Text Result	Text Metho
Back Material
1	Tensile Strengt			MPa	≥17	19.47	ASTM D638
2	Elongatio			%	≥400	626	ASTM D638
3	Vicat Softening Poin			ºC	≥90	92	ASTM D1525
4	Brittleness Temperatur			ºC	<-65	<-65	ASTM D2671C
5	Dielectric Strengt			MV/m	≥25	33.13	ASTM D149
6	Volume Resistivit			Ω.m	≥1*1013	1.1*1013	ASTM D257
7	Environment Stress Crac			h	≥1000	>1000	GB/T1842
8	Chemical resistance (7d	10% HCI	Tensile strength	MPa	≥85	104.9	ASTM D638
		10% HCI	Elongation	%	≥85	96.3	ASTM D638
		10% NaAH	Tensile strength	MPa	≥85	102.1	ASTM D638
		10% NaAH	Elongation	%	≥85	95.6	ASTM D638
		10% NaCL	Tensile strength	MPa	≥85	108.3	ASTM D638
		10% NaCL	Elongation	%	≥85	94.1	ASTM D638
9	Thermal aging (150ºC,168h		Tensile strength	MPa	≥14	20.7	ASTM D638
9	Thermal aging (150ºC,168h		Elongation	%	≥300	630	ASTM D638

NO.	Text Ite		Uni	Performanc	Text Resul	Text Metho
Adhesive
1	Softening Poin		ºC	≥90	90.1	ASTM E28
2	Brittleness Temperatur		ºC	<-15	<-15	ASTM D2671C
3	Lap Shea		MPa	≥1.0	1.5	ASTM D1002
4	Peel Strength (23±2ºC	Steel	N/cm	≥70	145.6	ASTM D1000
		Primer	N/cm	≥70	205.9	ASTM D1000
		PE laye	N/cm	≥70	190.0	ASTM D1000
Non-solvent Epoxy Primer
5	Shear of cured primer		MPa	≥5.0	12	SY/T0041

We are also producing machine of heat shrinkable sleeve, You are welcom to ask for more information.
