Vacuum Calibration Polyurethane Insulated Pipe Production Line

Our vacuum calibration PU insulated pipe production line manufactures high-performance pre-insulated pipes for district heating, oil/gas, and industrial applications. The pipes feature:

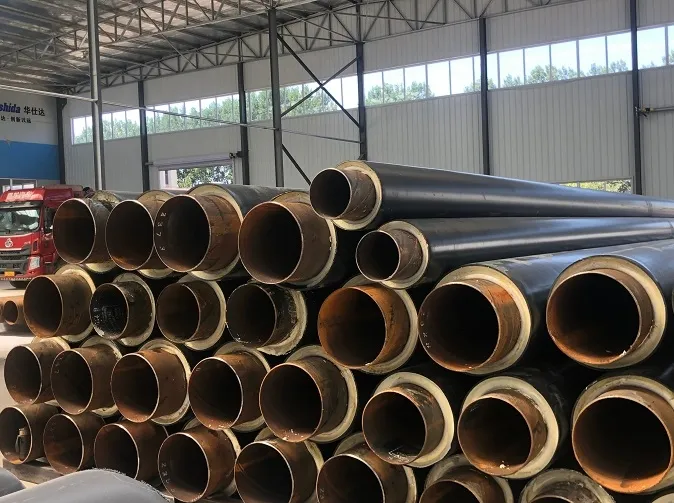

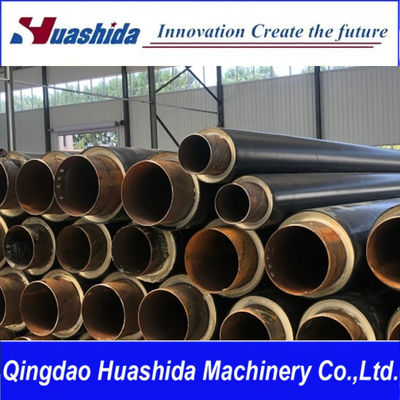

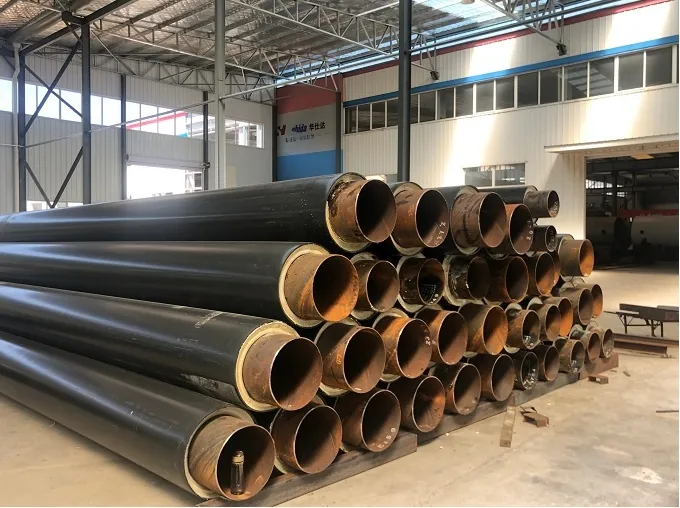

• 3-Layer Structure:

  • Inner Layer: Steel pipe (60-2000mm) for fluid/steam transport.

  • Middle Layer: Polyurethane (PU) foam insulation (low thermal conductivity: ≤0.033 W/m·K).

  • Outer Layer: HDPE/PE protective casing (corrosion-resistant, UV-stable).

 Materials: ISO/POLY (PU foam), HDPE, carbon steel/galvanized steel pipes.

Why Choose Our Production Line?

Advanced Technology

• German-engineered extruder with barrier screw (10% energy saving).

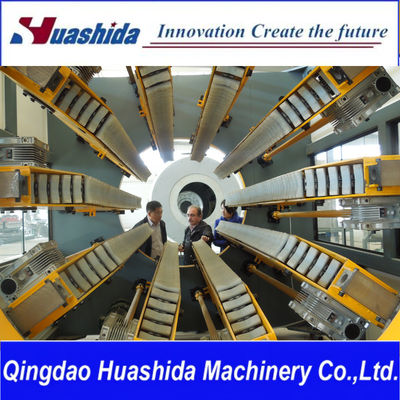

• Vacuum calibration system ensures perfect roundness and smooth surfaces.

• PLC control (Siemens) for precision automation.

High Efficiency & Profitability

• 24-hour output: 90 pipes (Φ500mm x 11.6m each).

• Scrap rate <0.5% (minimal material waste).

• One-operator operation reduces labor costs.

Customization & After-Sales

• Support OEM/ODM (pipe diameter, thickness, automation level).

• Lifetime technical support + 12-month warranty.

Production Process

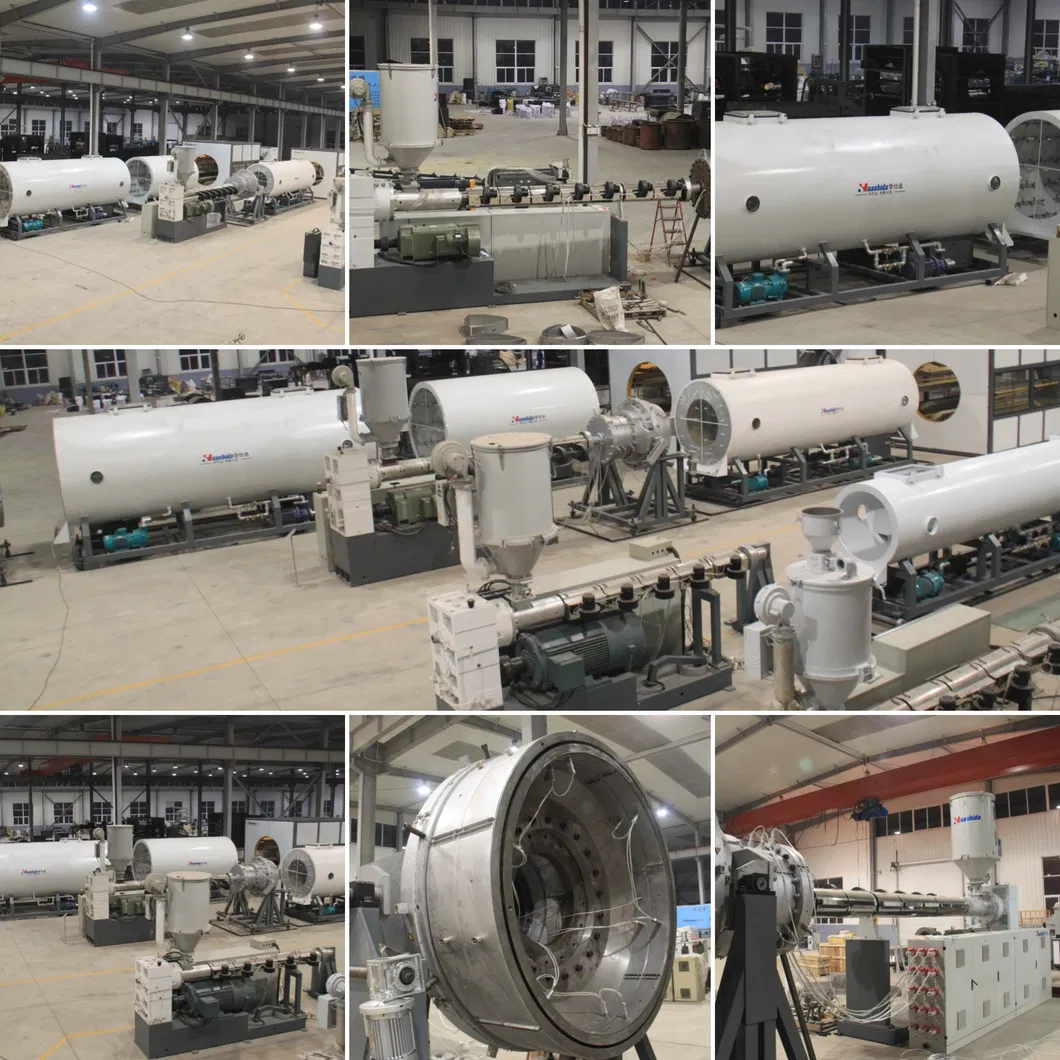

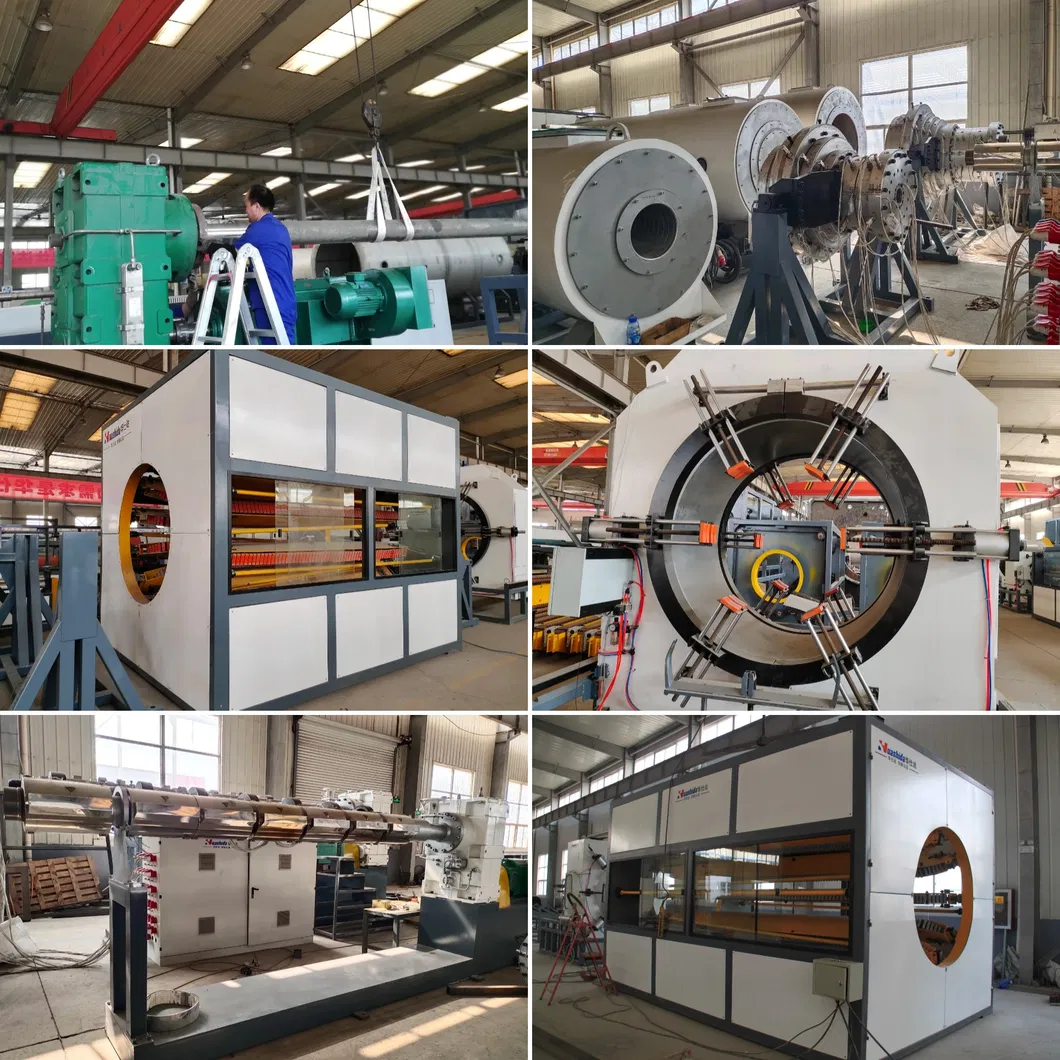

1. HDPE Jacket Extrusion:

   • Vacuum feeding → Drying → Extrusion → Vacuum calibration → Cooling → Cutting.

2. PU Foam Injection:

   • Steel pipe assembly → PU foaming → Curing → Outer HDPE casing.

Applications

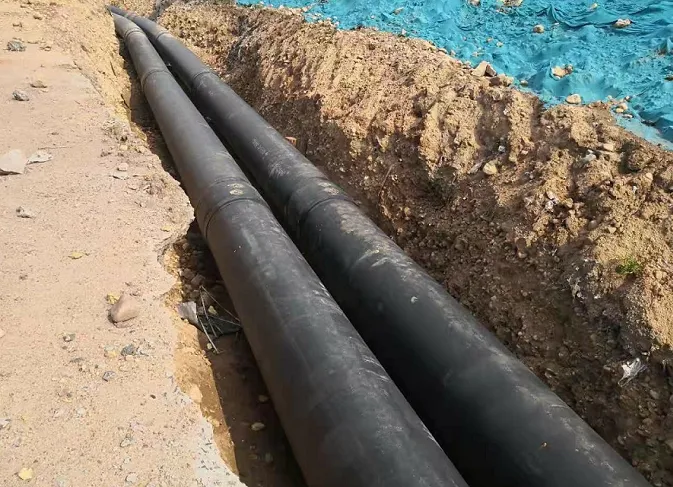

• District heating/cooling systems

• Oil & gas pipelines

• Geothermal/industrial insulation pipes

Certifications & Quality

• ISO 9001, CE, and SGS certified.

• Compliant with EN 253/EN 448 standards for pre-insulated pipes.

Contact Us Today!

• Free quotation & project design

• Video demo available

• Installation & training support

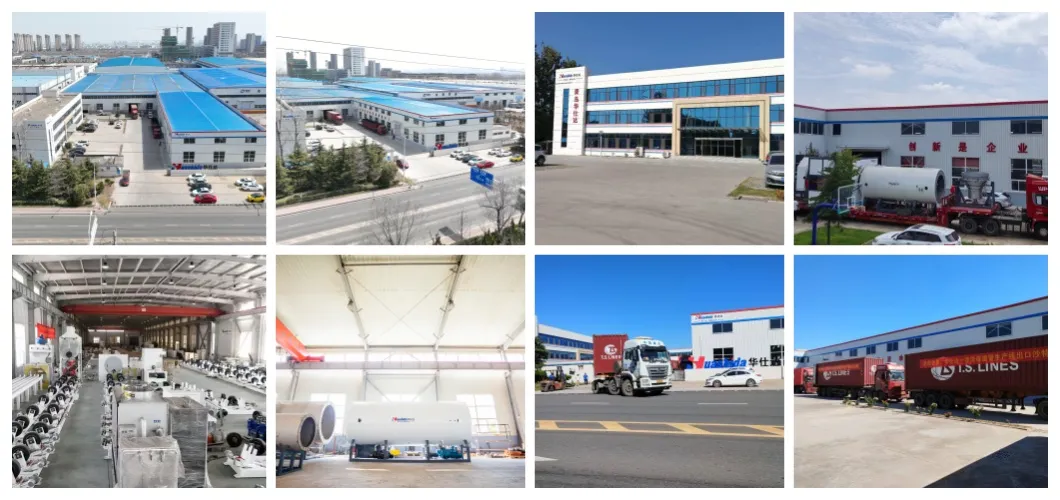

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
