vacuum calibration pipe extrusion line

vacuum calibration pipe production line

Basic Infomation

Place of Origin: china

Brand Name: huashida

Certification: CE, ISO9001:2008, QS, GMP

Payment & Shipping Terms

Packaging Details: Standard packaging

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100set a year

Gallery

Vacuum Calibration Plastic HDPE Thin Wall Casing Jacket Pipe Production Line

Product Description

Pre Insulated Steel Pipe Plastic HDPE PE Jacket Casing Shell Pipe Extrusion Line

PE Shell Pipe Extrusion Line is high-efficient with high speed and energy saving for producing HDPE thin wall pipe, which is used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standards.

The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.
Pre-Insulated Pipe Plastic HDPE PE Jacket Casing Shell Pipe Extrusion Line
Features of HDPE jacket pipe extrusion line
-small space required
-high degree of automation, can be operated by 1-2 people, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output and stable performance.
-pipe wall is uniform and smooth
-no waste of raw material
-once forming. No need to trim the edge.
-Dust-free cutting

Working Conditions

Electric source	3 380V(-10%,+5%)50Hz
Total power	~160kW
Cooling water	≤20ºC,≥0.3Mpa, 26~30 m3/h
Compressed air	0.4m3/min,>0.5MPa
Dimension	2433m
Material	HDPE granules

Equipment list and specification

1	Vacuum loader	Vacuum automatic feeding
2	Hopper dryer	Hot air drying
3	High-efficiency single screw extruder	Adopt German new-generation barrier screw, with higher efficiency, 10% energy saved.
4	Die head	Multi-layer helical distributing pipe dies

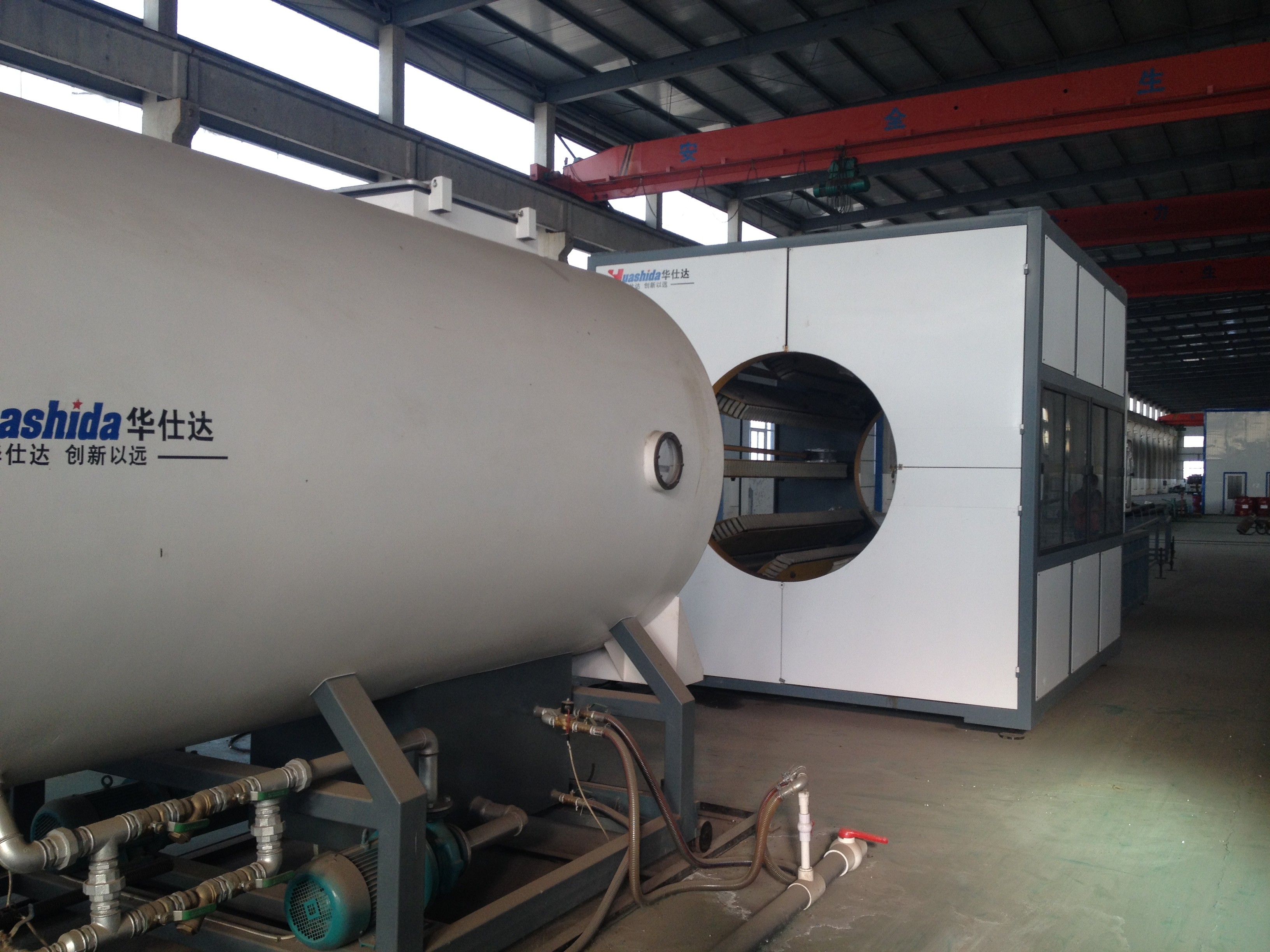

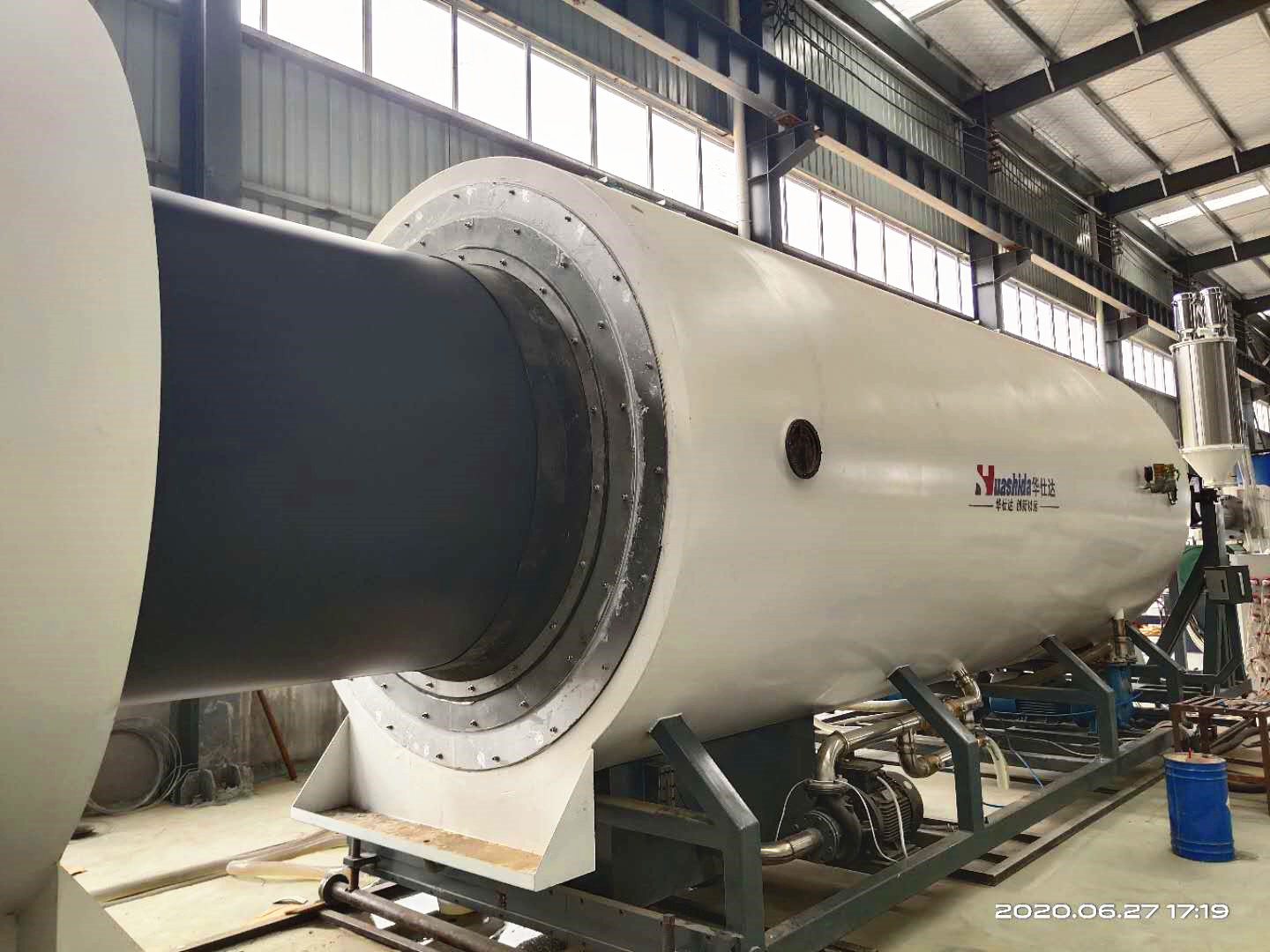

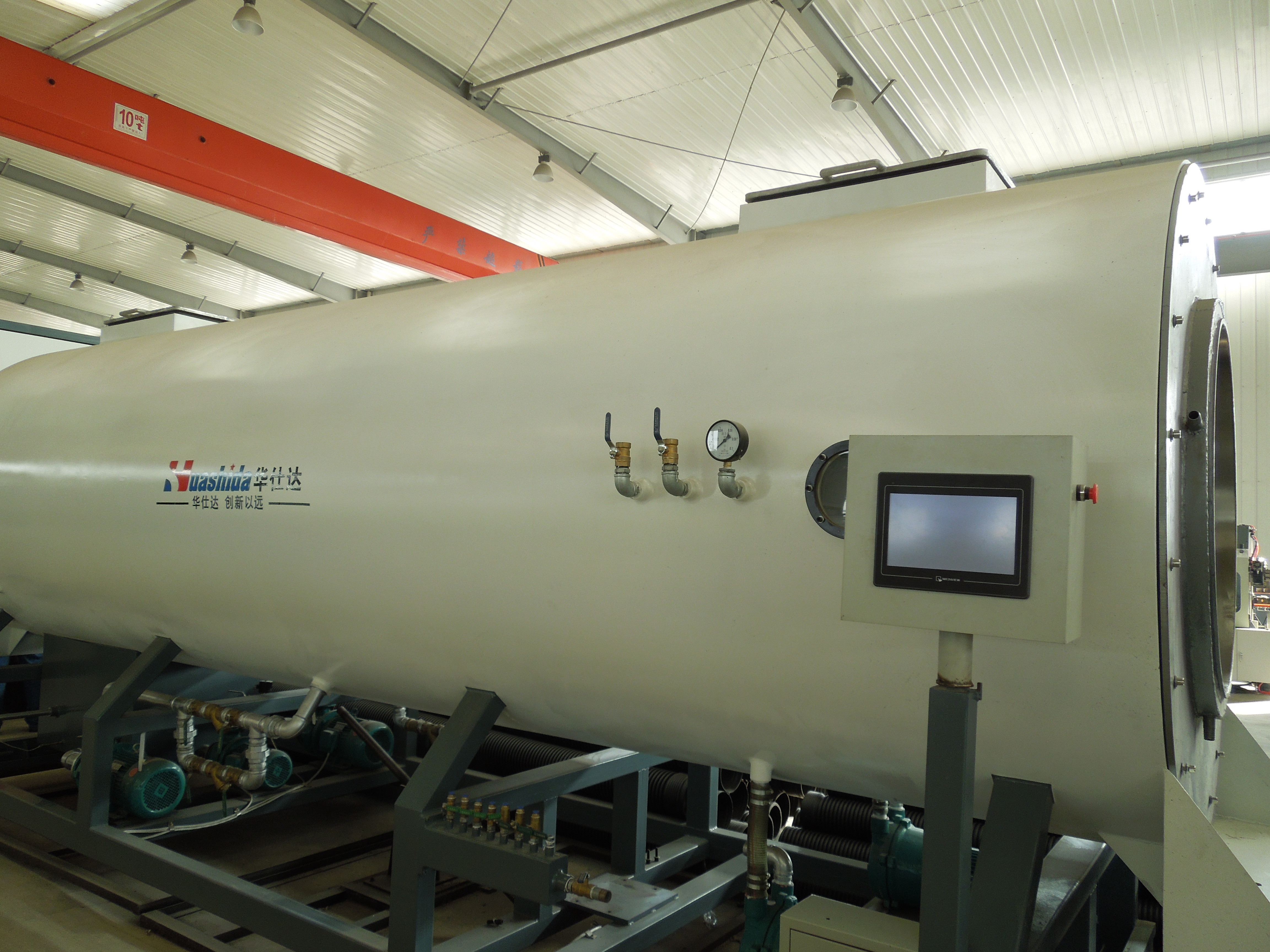

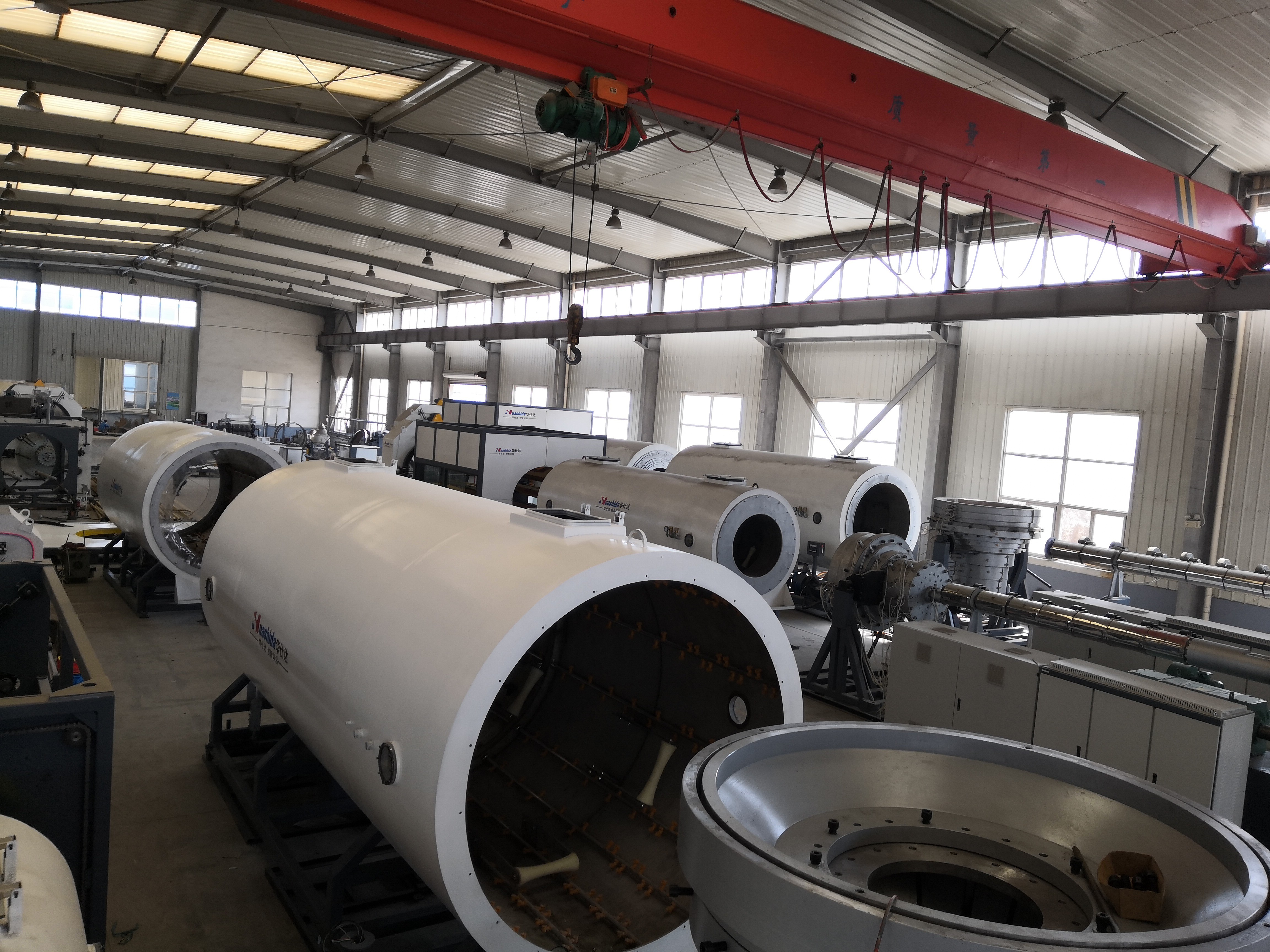

5	Vacuum calibration tank	Rapid Vacuum calibration, pipe with smooth surface and uniform wall thickness
6	Hauling machine	By tracks, mechanical clamping
7	Cutting machine	Dust-free planetary cutting
8	Discharging Frame	Free to move
9	Siemens PLC	Most professional plastic machinery control system in the world

Production range: pipe dia. 110-2000mm

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	26m	32m	36m	40m	45m

Main machine- High-efficiency single screw extruder
The screw is with barrier & mixing head; the barrel is a new model with slotting (channel). Both guarantee good jellification, large output and stable performance of the extruder.
Pre-Insulated Pipe Plastic HDPE PE Jacket Casing Shell Pipe Extrusion Line
The straight cylinder section of the pipe die makes the pipe wall smooth and uniform;

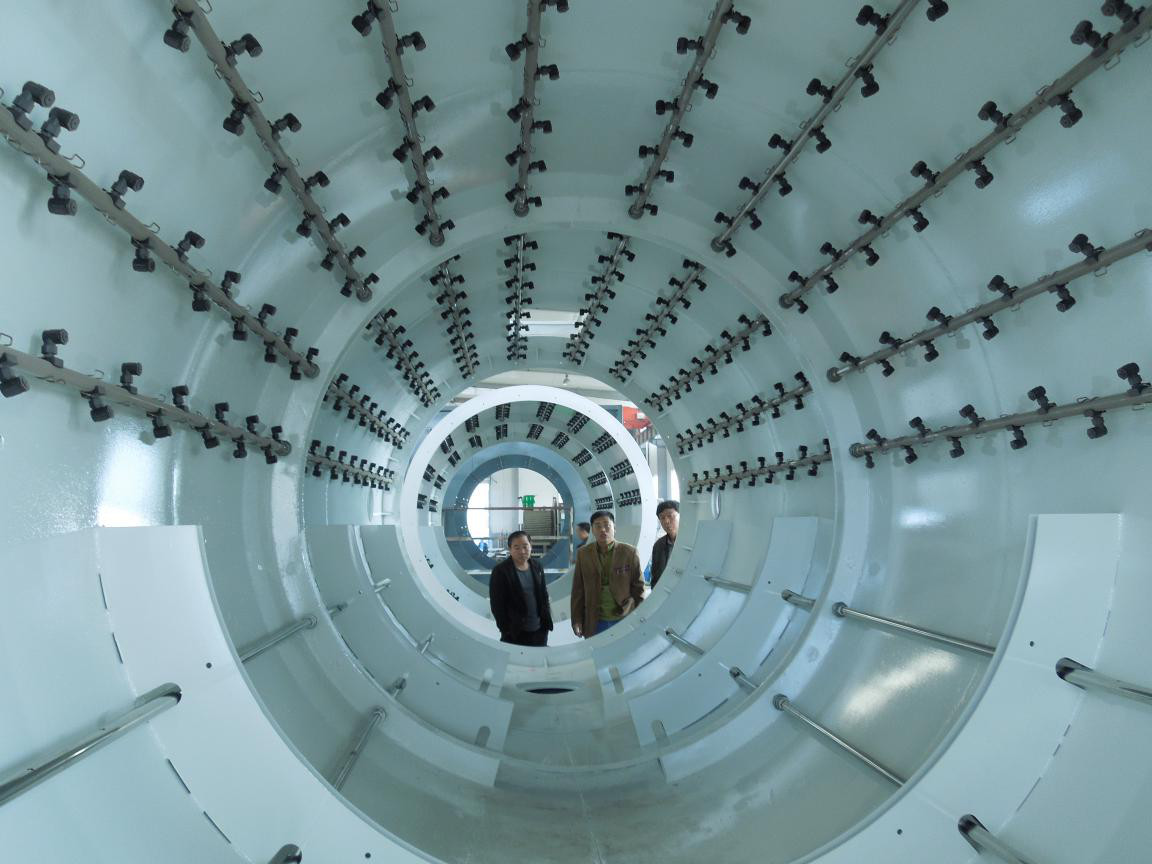

Calibrators

Dust-free planetary cutting machine
It adopts the blade punching principle to realize no-dust cutting. It is mainly composed of the cutting device, the clamping device, the synchronous movement device and the frame.

Controlling system
The complete line is controlled by PLC, with a good human-machine interface, all technical parameters could be set and indicated by touching the screen. The controlling system is designed according to the customer's requirements.
