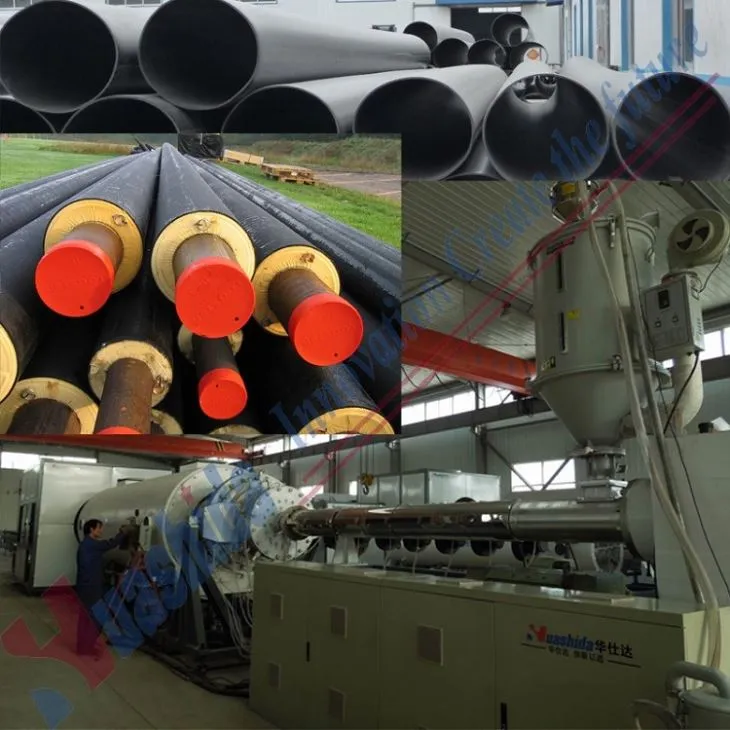

HDPE Jacket Shell Casing Extrution Machinery for PUR Foaming Pre-Insulated Pipe Line

HDPE Jacket Shell Casing Extrution Machinery for PUR foaming pre-Insulated Pipe machine

Technology: Vacuum Calibrating Method

Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world. HSD brand absorbs the advanced technology from German and improve to meet development. Especially compared with internal pressure method, Vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.

We aopt PLC automatic operation , Big length-radius proportion screw stem to improve extrusion capacity, optimized design for extrusion mould, Planet cutter suitable for varioul size pipe, and so on. So You choose HSD machinery then you choose saving cost and steady capability and lifelong service etc.


HDPE JACKET Pipe produced by this line, is with excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on.

It has become the first choice for the city hot water supply pipe, cooling water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

1. Automatic Vacuum Feeding
2. Drying Machine
3. single screw Extruder
4. Mold
5. calibrating
6. vacuum calibrating water tank
7.Hauling Machine
8. Cutting Machine
9. Carrier
10. PLC Aotumatic Control System

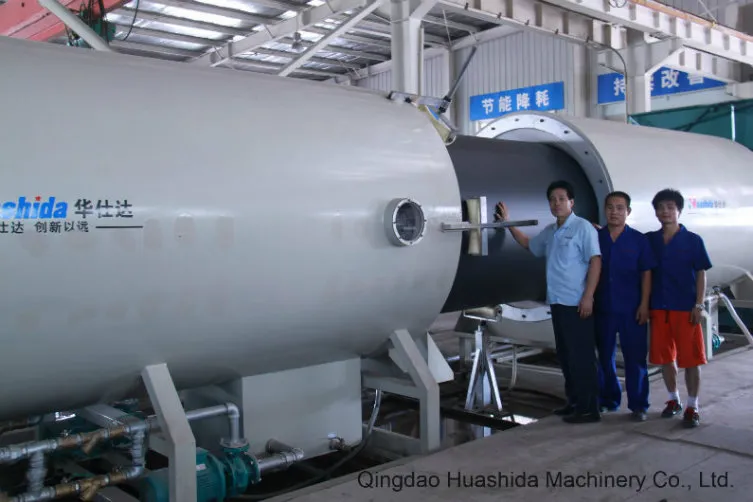

vacuum calibrating water tank

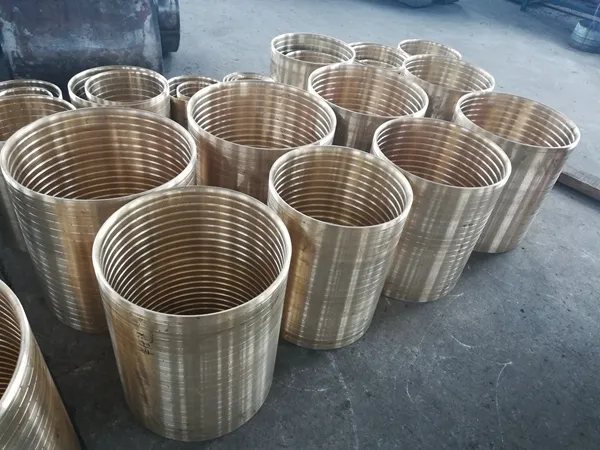

Tin Bronze Calibration

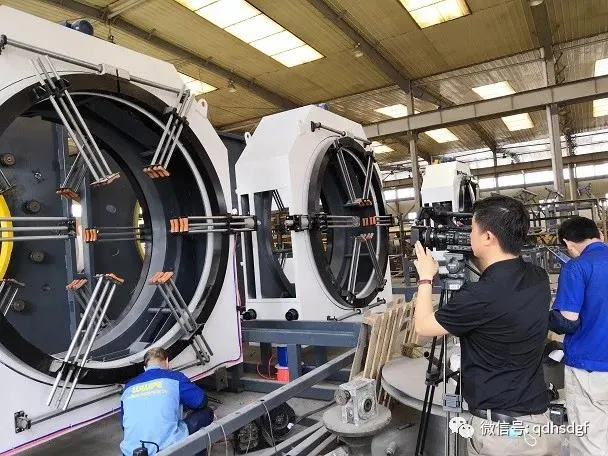

Chipless Planetary Cutter

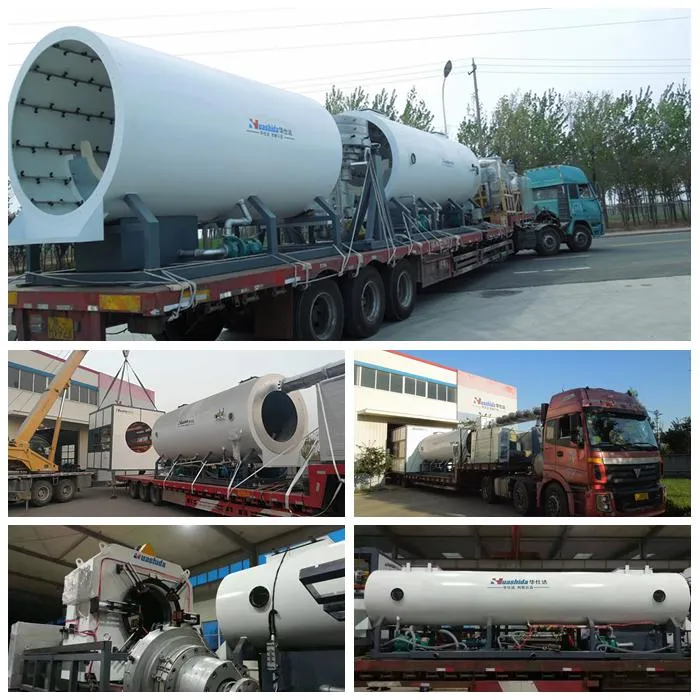

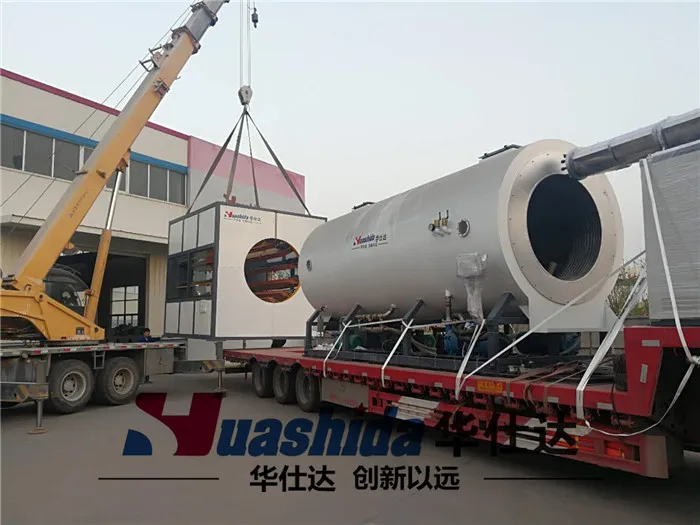

HDPE jacket extrusion line delivery

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.
During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.
We will provide the technical service train the workers from the buyers for free.
We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.

Certificate
