Home /Products/3LPE Coating Pipe Production Line/3lpe 3lpp Water Supply Steel Pipe Fbe Epoxy Powder Spray Anti-Corrosion Coating Line

3lpe 3lpp Water Supply Steel Pipe Fbe Epoxy Powder Spray Anti-Corrosion Coating Line

10 sets
MOQ
dollar +150000-200000+set
Price
3lpe 3lpp Water Supply Steel Pipe Fbe Epoxy Powder Spray Anti-Corrosion Coating Line
Features Gallery Product Description Request A Quote
Features
Specifications
Dust Removal Fan: Fan Power 5.5kw
Coating Layers: 3 Layers
Control System: PLC
Recycle Of Epoxy: Air Rate 50k M³
Pipe Surface Preparation: Shot Blasting
Origin: China
Connection Type: Welding
Operating Mode: Automatic
Highlight:

shot blasting pipe coating production line

,

shot blasting 3lpe coating pipe production line
Basic Infomation
Place of Origin: CHINA
Brand Name: huashida
Model Number: 001
Payment & Shipping Terms
Packaging Details: Container loading，sea transportation
Delivery Time: 20-30work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5-10 +sets+per mouth
Product Description

Product Description

3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Machine/Production Line

Description

Steel pipe 3PE external anti-corrosion coating production line is used for anti-corrosion coating steel pipe with a larger diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
This line can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.
3PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

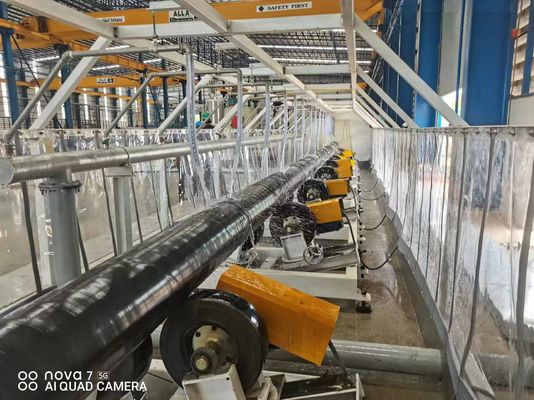

3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

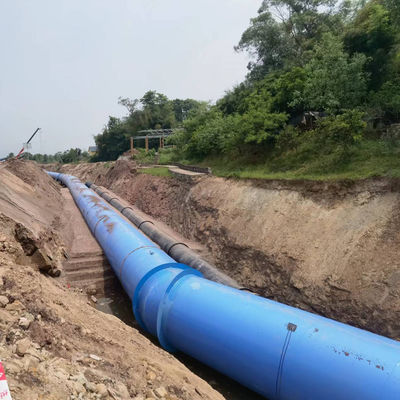

The 3PE anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipeline. 3PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable and anti-aging performance.

3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line


Steel pipe 3PE external anti-corrosion coating production line includes the following systems:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.


Technological process
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

Main Equipment List
No. Name Set
A. Derusting Equipment

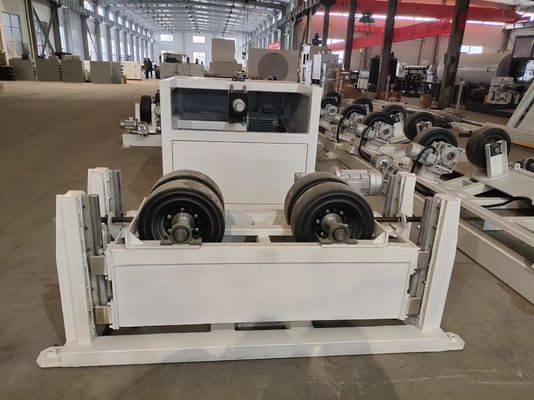

1 Pipe-conveying Equipment 1

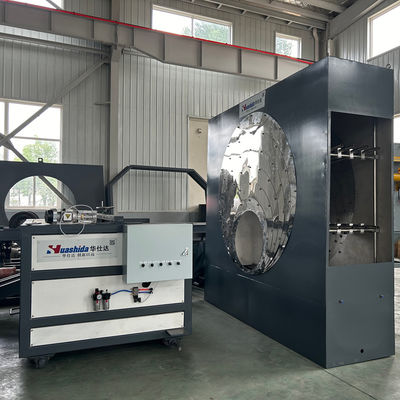

2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC 1
B. Coating equipment

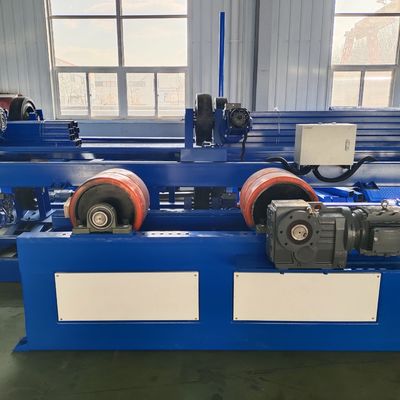

1 Coating transfer equipment 1

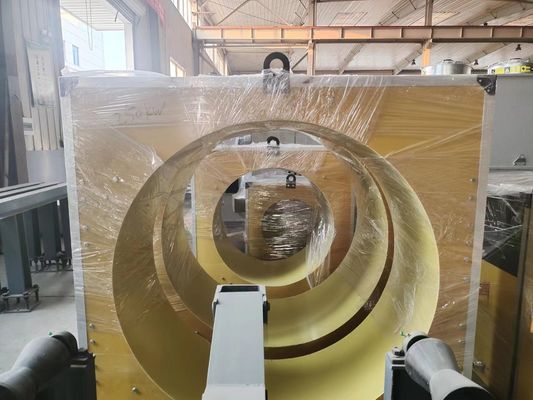

2 IF heating device 1
3 Powder spraying device 1
4 Automatic loading dryer 2

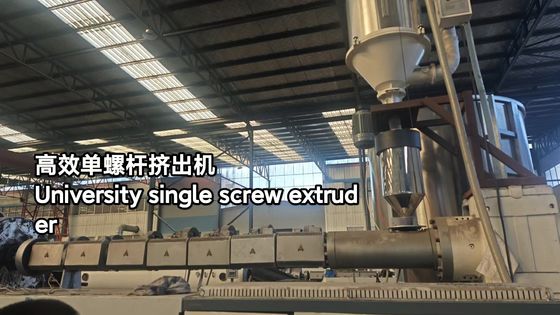

5 SJ-65/30 Extruder 1
6 SJ-180/30 Extruder 1
7 Hot melt adhesive extruder die 1

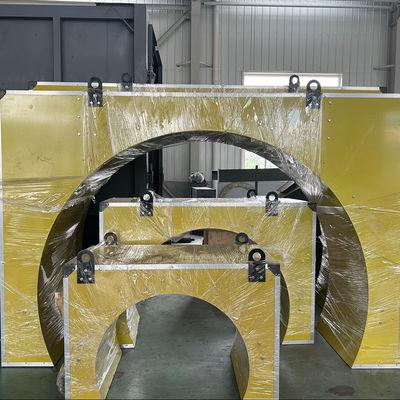

8 PE sheet extruder head mold 1
9 Hot melt adhesive/PE sheet coating device 1
10 Environmental Protection Ventilation equipment 1
11 Cooling Spray equipment 1
C.Platform Equipment
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Product tube storage platform 1
4 Hydraulic Equipment 3
D.Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1
4 PLC 1
E.Compressed air Equipment
1 Screw Air Compressor 1
2 Cold dry machine 1
3 Precision filters 3
4 Gas tanks 1

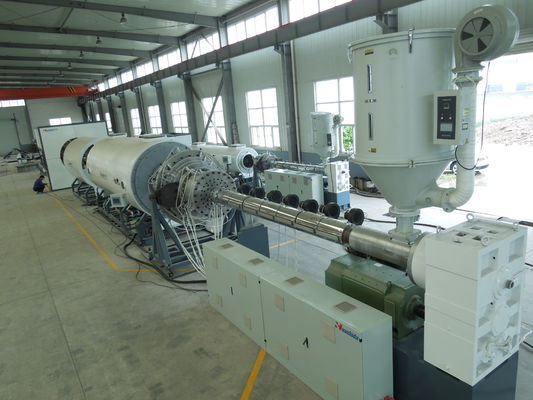

3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line
3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line
Our factory3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line
Our team
3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line
Workshop
3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

Customer visiting3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

Delivery3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line

Exhibition3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Line
