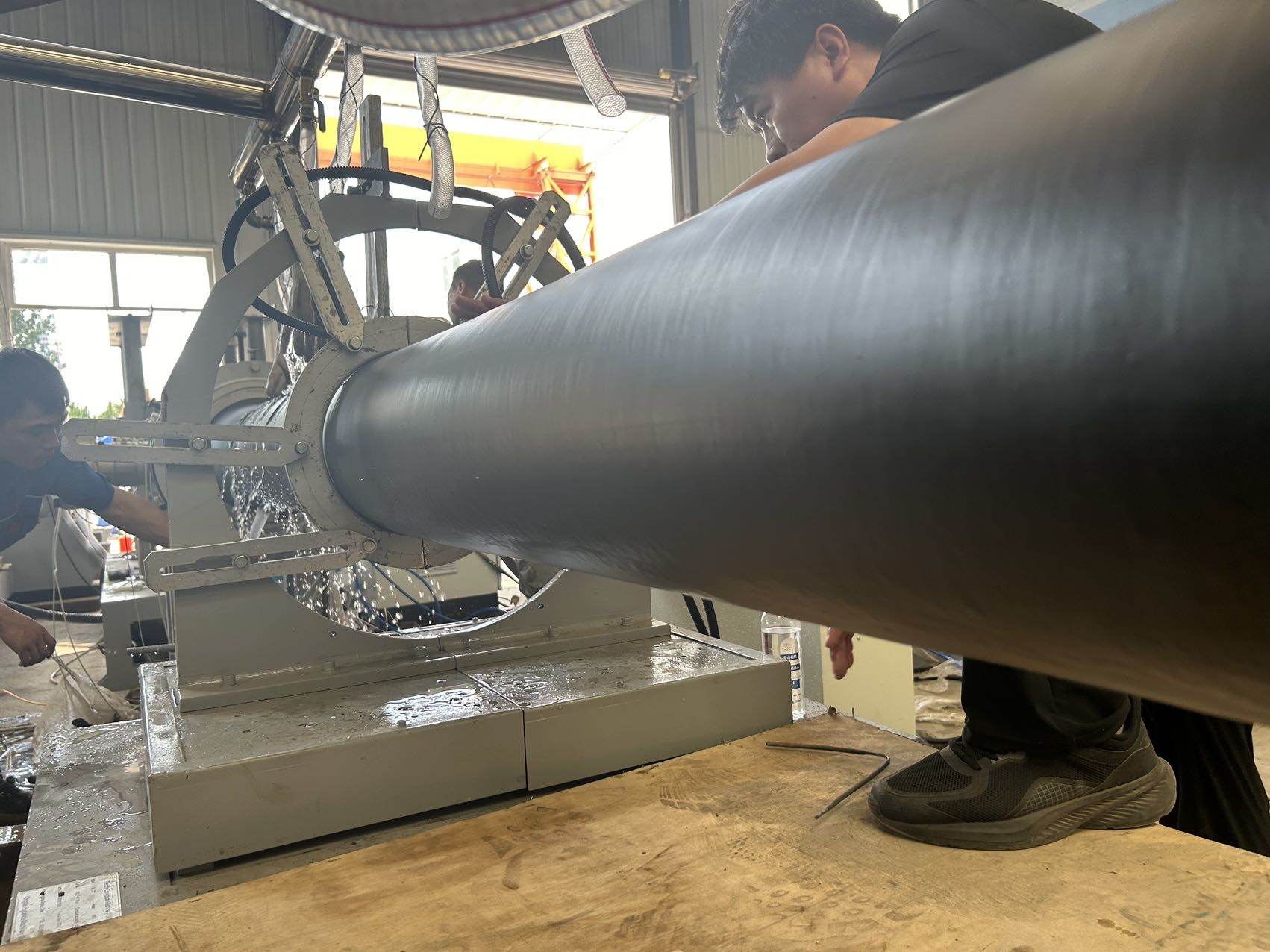

PERT II PEX Polyurethane Foam Flexible Pre-Insulated Pipe Machine
Production Line Characteristics

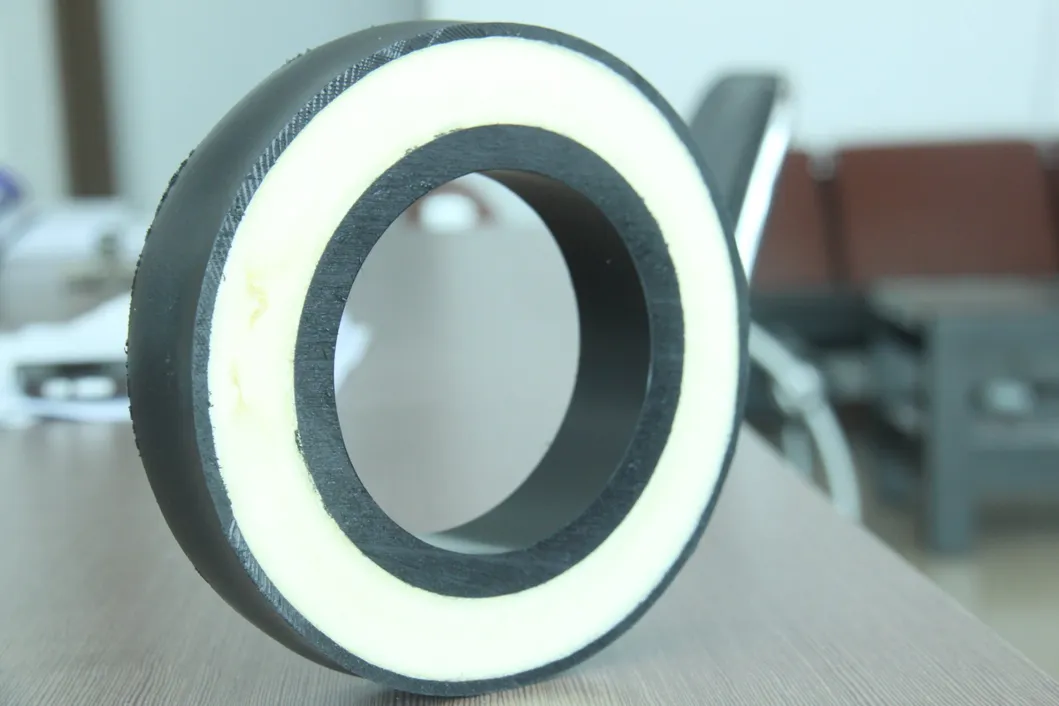

Products: Flexible pipe production line in polyurethane foam insulation
Pipe Diameter: 20-110 mm
Productivity: 1.5-5 m / min
Structure: Work tube - PE. PE-RT or steel
Isolation - PPU
Sheath pipe - LDPE
Flexible pipes production line in polyurethane foam insulation
| work/ shell tube dia. |
work tube dia. |
shell tube dia.and wall thickness |
| 20/78 |
20 |
78x 2.0 |
| 25/78 |
25 |
78x2.0 |
| 32/78 |
32 |
78х 2.0 |
| 40/93 |
40 |
93 х 2.2 |
| 50/113 |
50 |
113х 2,4 |
| 63/128 |
63 |
128 х 2,7 |
| 75/143 |
75 |
143 x 3,0 |
| 90/163 |
90 |
163 x 3.2 |
| 110/163 |
110 |
163 х 3,2 |
Introduction:
What is a polyurethane foam PERT insulation pipe?
Polyurethane PERT insulation pipe is called flexible insulation pipe in international, Chinese standard name is II type heat-resistant polyethylene (PE-RTII) low-temperature direct buried heating pipe.
PE-RTII insulation pipe
○PERT II Pipes Can Tolerate Temperatures of 110°C
○Pipeline smooth, no impurities, no pollution
○Heating companies can realize unattended, automated operation
○Low-temperature heating
○ 60 °C supply water 45 °C backwater to meet the heating demand.
○The construction is simple and convenient, and the excavation amount is 40%
○ ---- Greatly reduce construction costs
It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft
| |
s |
Dia.(mm) |
Wall Thickness(mm) |
Wall Thickness Area(m2) |
Density(kg/m3) |
Length(m) |
Weight
(kg) |
Weight Save
PERT/X |
| PERT II |
S3.2 |
16 |
2.2 |
9.5E-05 |
947 |
1000 |
90 |
|
| PERT I |
S2.5 |
16 |
2.7 |
1.1E-04 |
933 |
1000 |
105 |
-17% |
| PP-R |
S2 |
16 |
3.3 |
1.3E-04 |
900 |
1000 |
118 |
-31% |
| |
| PERT II |
S3.2 |
20 |
2.8 |
1.5E-04 |
947 |
1000 |
143 |
|
| PERT eI |
S2.5 |
20 |
3.4 |
1.8E-04 |
933 |
1000 |
165 |
-15% |
| PP-R |
S2 |
20 |
4.1 |
2.0E-04 |
900 |
1000 |
184 |
-29% |
| |
| PERT II |
S3.2 |
25 |
3.5 |
2.4E-04 |
947 |
1000 |
224 |
|
| PERT I |
S2.5 |
25 |
4.2 |
2.7E-04 |
933 |
1000 |
256 |
-14% |
| PP-R |
S2 |
25 |
5.1 |
3.2E-04 |
900 |
1000 |
287 |
-28% |
| |
| PERT II |
S3.2 |
32 |
4.4 |
3.8E-04 |
947 |
1000 |
361 |
|
| PERT I |
S2.5 |
32 |
5.4 |
4.5E-04 |
933 |
1000 |
421 |
-17% |
| PP-R |
S2 |
32 |
6.5 |
5.2E-04 |
900 |
1000 |
469 |
-30% |
Market Survey
International:
Up to now, there are only a few foreign companies engaged in PERT II cryogenic pipelines, mainly in northwest Europe, Russia and the Middle East.
Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meters. Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line. The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
Our factory locates in Cheng yang Industrial area, Qingdao , Shandong Province. we have been approved and got the certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.
