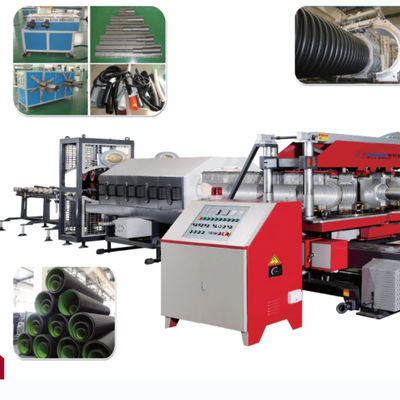

HDPE Hollow Wall Winding Pipe Extrusion Line Double-Wall Corrugated Pipe Machinery

1 set

MOQ

$100000-200000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Size: (ID) Φ90-250MM

Cutter: Automatically

Operation Power: 190-220kW

Type: Single Wall/ Double Wall

Key Word: High Speed

Capacity: 320-420,240-600,300-650(Kg/H)

HSD Code: 8477209000

Diameter: 300-1200mm,800-2000mm,2200-3000mm

Extrusion Speed: 1-12m,0.5-5m,0.3-3m

Customized: Customized

Highlight:

800-2000mm pipe extrusion production line

800-2000mm corrugated pipe production line

Basic Infomation

Place of Origin: Qingdao China

Brand Name: HSD

Certification: CE ,ISO9001-2008

Model Number: HSD-003

Payment & Shipping Terms

Packaging Details: standard package

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 340-420, 240-600, 300-650(Kg/H)

Gallery

HDPE Hollow Wall Winding Pipe Extrusion Line Double-Wall Corrugated Pipe Machinery

Product Description

HDPE Hollow Wall Winding Pipe Extrusion Line Double-Wall Corrugated Pipe Machinery

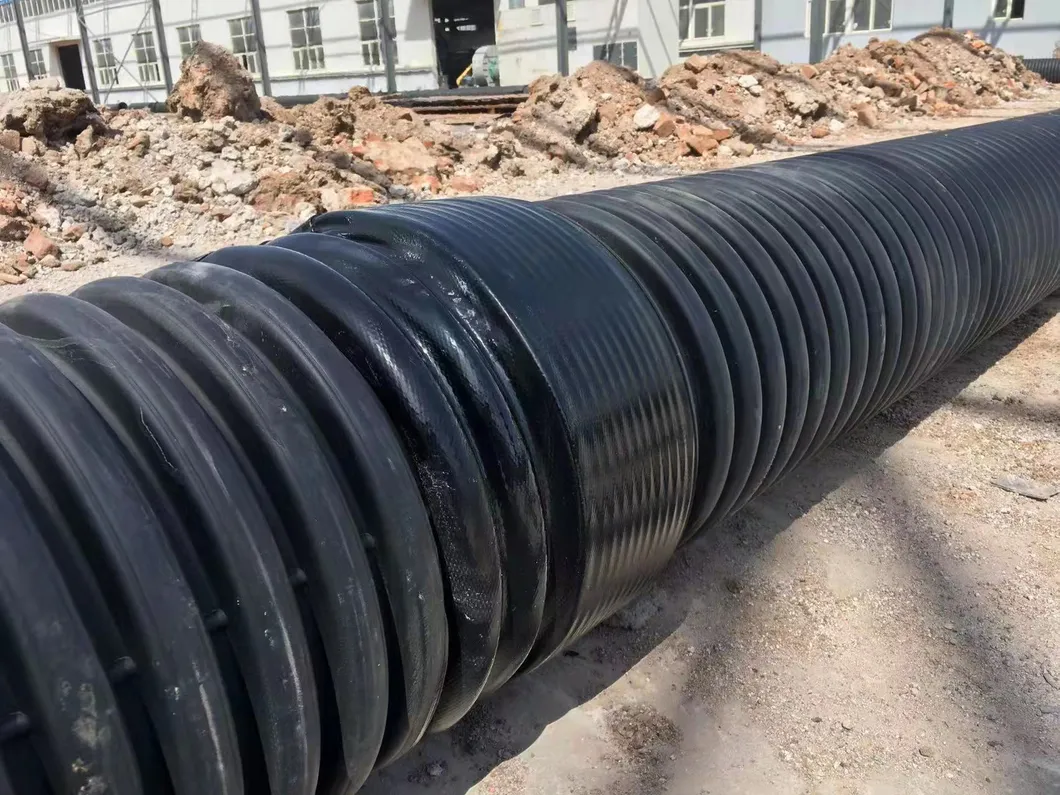

HDPE Hollow wall corrugated pipe produced by this line have high ring stiffness,high brunt intensity and low weight due to its unique structure,In addtional,it has many advantages such as good creep deformation resistance,outer pressure resistance,erosion resistance (such as acid,alkali and salt erc.) long life of approximate 50 years.It has been widely used for sewerage and drainage in multicipal, it will replace the cement pipe,cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.

Features of HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe Extrusion Line:

HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe Extrusion Line designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe ectrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit,cutting unit and stack unit.
INTRODUCTION
Pipe range: 200-800mm, 300-1200mm 1000-2000mm 2000-3000mm

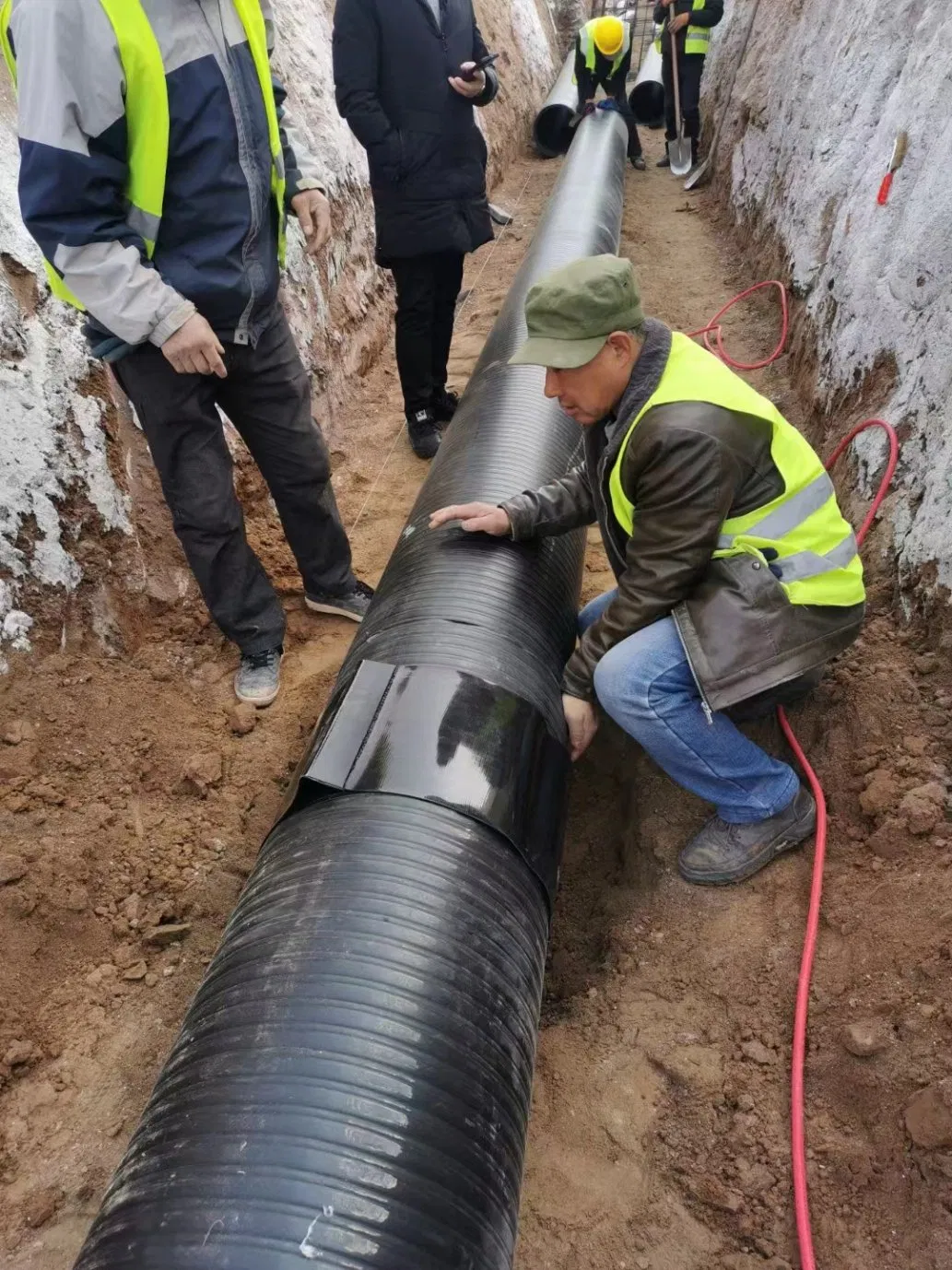

This kind of pipe is fit for municipal drainage of water less than 45ºC, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.

Model	Diameter(mm)	Style	Total Power	Extrusion speed	Capacity(kg/h)	Dimension(m)
SKRG 1200	300-1200	SJ-90×30 SJ-65×30	230kw	1-12	320-420	26×16×5.0
SKRG 2000	800-2000	SJ-100×33 SJ-65×33	400KW	0.5-5	600 240	32×16×6.0
SKRG 3000	2200-3000	SJ-120×30 SJ-90×30	520KW	0.3-3	600 300	42×18×7.0
