HDPE Pipe Extrusion Line Plastic Sheet Extruder 75mm-250mm

HDPE Pipe Extrusion Line Plastic Pipe Extruder (75mm-250mm)

Product Parameters

Composition

---Pipe diameter range: 75-250mm
---The extrusion line comprise equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
2sets Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker

Advantages

I. Pipe advantages and Usage
---HDPE water supplying pipe is with advantages of good hot melt, flexibility, corrosion resistance, and aging tolerance.
---- HDPE pipe is widely used in municipal water supplying, city gas transportation and other areas.

II. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

III. Spiral dihead & 25/25 co-extruder for mark line
---Diehead is spiral model. It has advantages of low melt temperature, good mixing, low cavity pressure, and stable performance.
----Special calibrating and cooling system. We use water film lubrication and water-ring cooling to fit for requirements of HDPE and PP material, to make sure accurate diameter and roundness of thick wall pipe when they are extruded at high speed.

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.

Company Profile

Qingdao Huashida, a global plastic extrusion equipment R&D manufacturer and solution provider, 70% of our customers from Europe, the United States, the Middle East and Southeast Asia and other overseas countries. Huashida's R&D and manufacturing insulation pipe production line is widely used in municipal heat, sewage, water supply, natural gas and communication pipe network construction, crude oil pipeline transportation and agricultural irrigation. Relying on our innovation and product strength, we have provided customized technical services for more than 1000 manufacturers , including more than 400 domestic enterprises and more than 500 foreign enterprises and established a 24-hour global service response mechanism to effectively solve customer concerns.

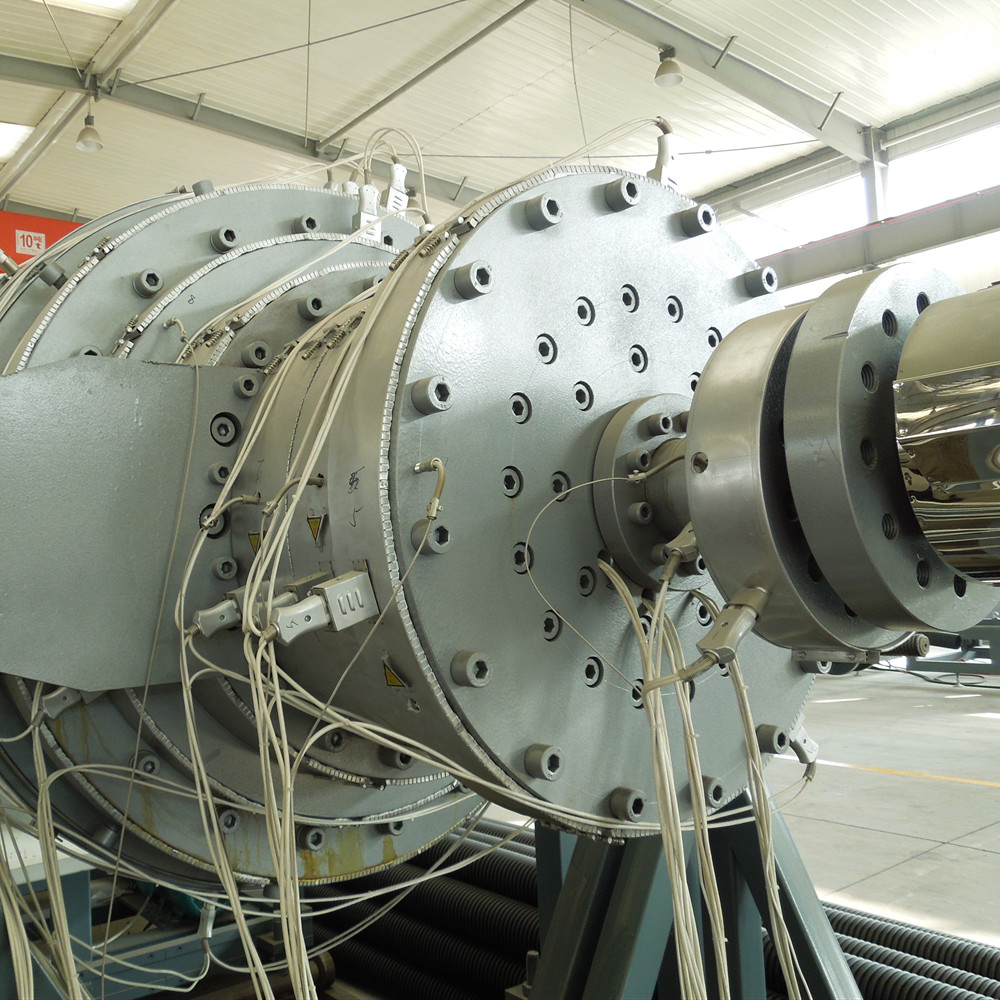

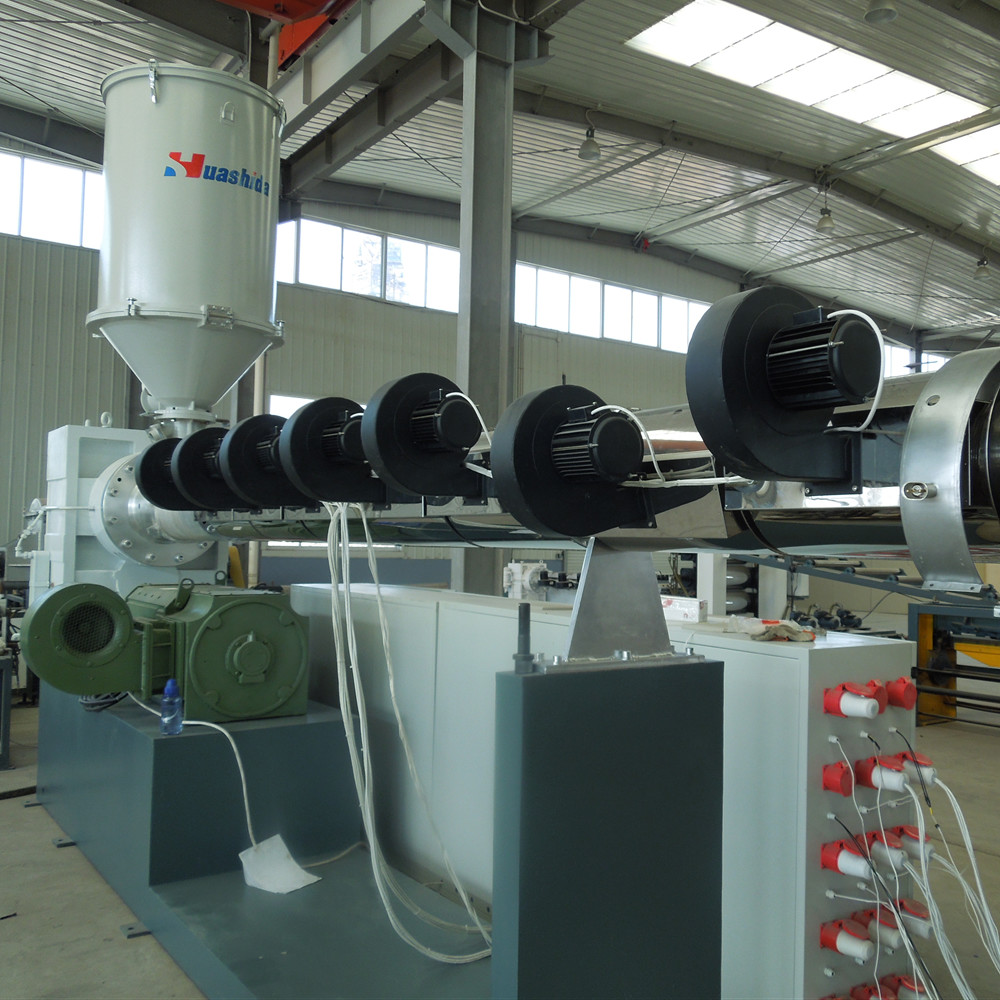

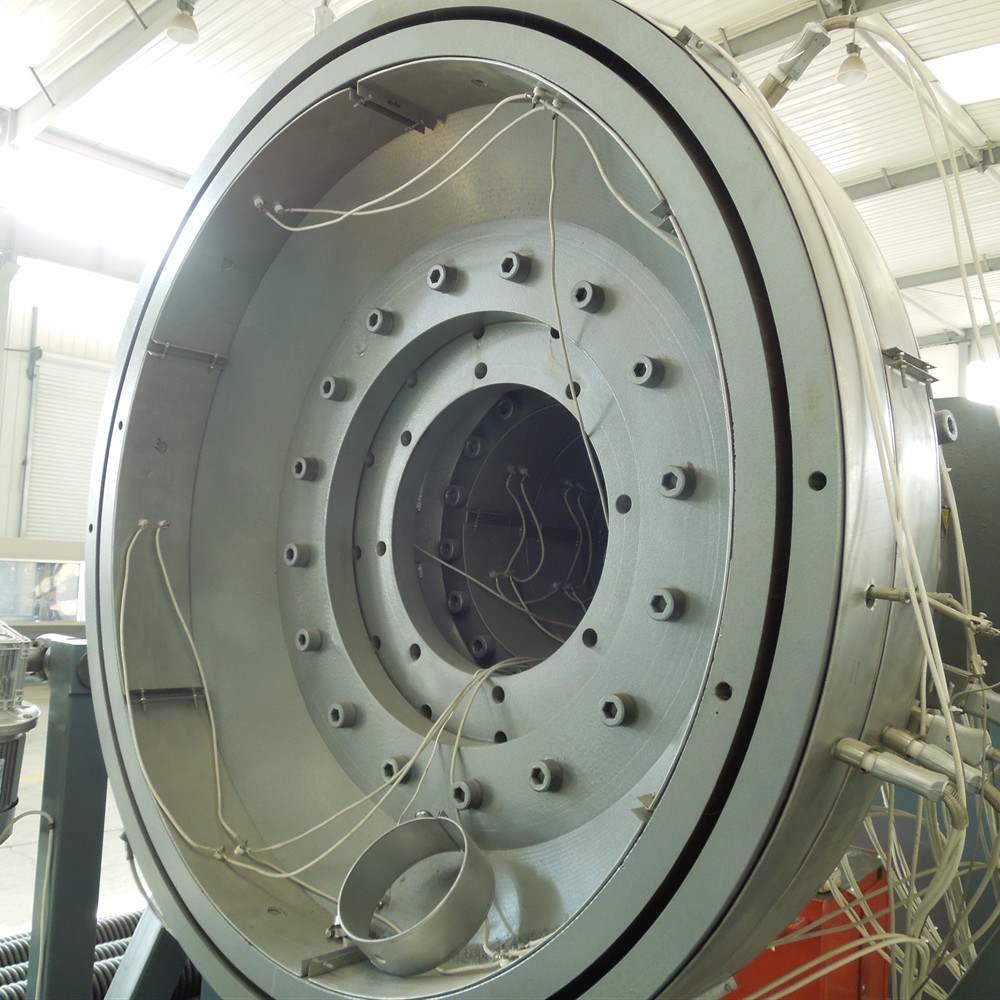

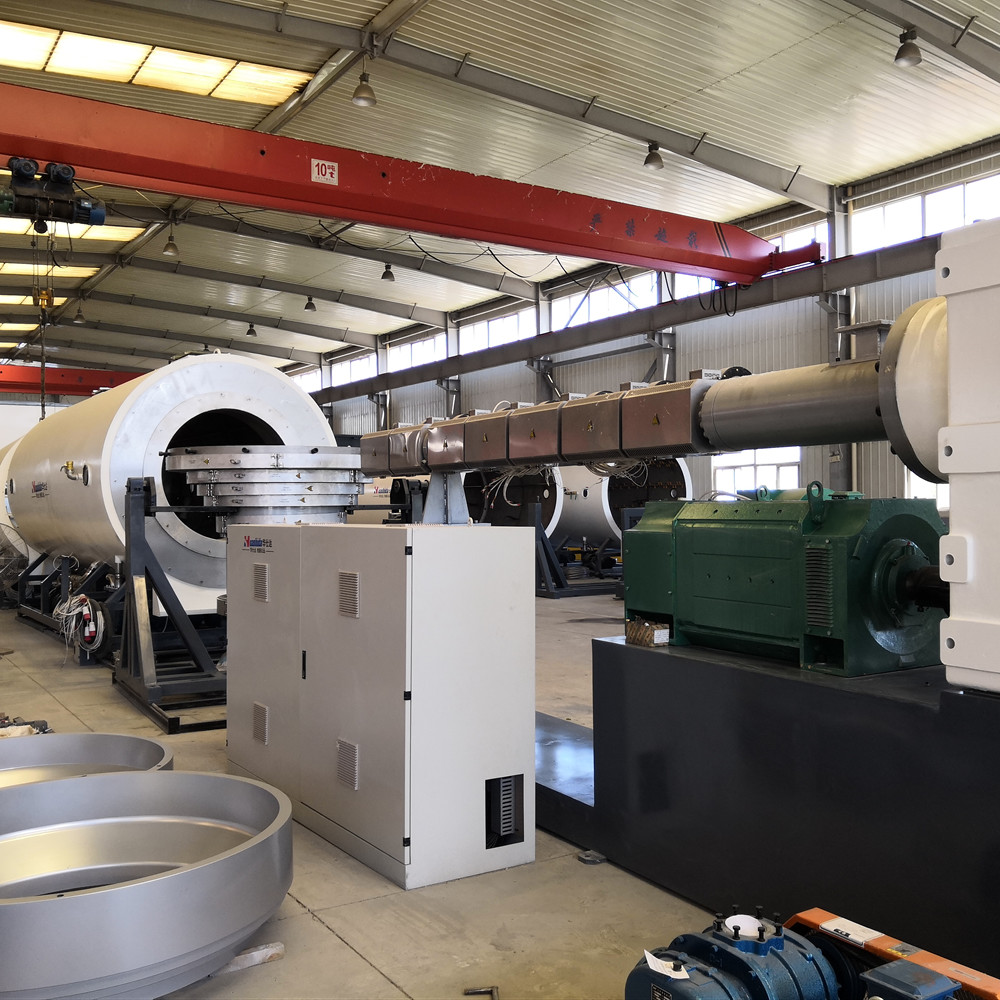

Photo Detail
