3PE Fbe Three Layer PE Steel Pipe Internal External Anti Corrosion Coating Line

3PE Fbe Three Layer PE Steel Pipe Internal External Anti Corrosion Coating Line


INTRODUCTION

3PE Anticorrosion coating processing line is to make 3 layer anti-corrosion coating for kinds of steel pipes.
3 layer coatings, first FBE coating, middle is adhesive layer, outside polyethylene layer.

3PE can strengthen the pipeline's mechanical properties, high electrical resistance, waterproof, wearable, anti-aging.
3PE coating/coated steel pipes are widely used in pipeline systems for the transmission of oil, gas, water and other fluids. They have highly resistance to corrosive from chemicals, moisture, harmful environment etc.

Equipment for FBE coating application
1) Internal or external shot blasting equipment for steel pipes

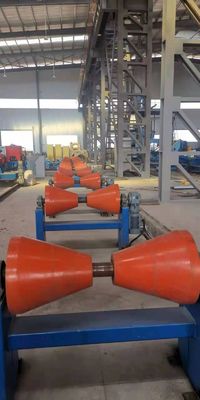

2) Steel pipe transmission equipment
3) Steel pipe heating equipment
4) Epoxy powder spray system
5) Cooling equipment

Main Equipment List

Question & Answer:
Q1. What is the range of pipe diameter the equipment can produce?
A: Diameter of steel Pipe: 48-219mm,219-1220mm,800-1600mm,1000-2400mm
Q2. What is the sand blasting grade?
A:SA2.5
Q3. What is your anti-corrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time?
A: 2-3monthes after deposit.
Q5. Production output
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Q7. To which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan and so on.
Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months for the electrical part.
Service:
The seller provides technical services and provides training and guidance to buyer operators.
