Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery

1
MOQ
Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
304 Powder Fluidized Box: Vibrating Screen With Power Recovery
Hot Melt Sheet Head Mold: Die Width 350 Mm
Vacuum Feeding Machine: Motor Power 7.5kw
Single Screw Extruder: Motor Power 45kw
Dust Removal Fan: Fan Power 5.5kw
Highlight:

3lpe Coating Process Pipe Production Line

,

China 3lpe Coating Pipe Production Line

,

Three Layer Polyethylene Pipe Production Line
Basic Infomation
Place of Origin: Qingdao，Shandong，China
Brand Name: HUASHIDA
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Packing according to Machine
Delivery Time: come to an agreement in respect of the delivery time
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery


Description


PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids. They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

Bend Pipe 3PE Coating Equipment is used to bend pipe 3PE coating, it consists of bend pipe transportation equipment, bend pipe blasting machine, bend pipe intermediate frequency heating, bend pipe 3PE coating, bend pipe spraying cooling.


Main Equipment List

No. Name Set
A. Derusting Equipment
1 Pipe conveyor 1
2 Shot Blasting machine 1

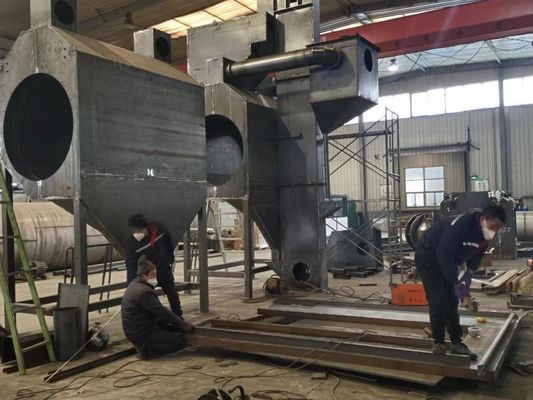

3 Cyclone Dust Collector 1
4 Catridge dust collector 1
5 Centrifugal exhaust fan 1

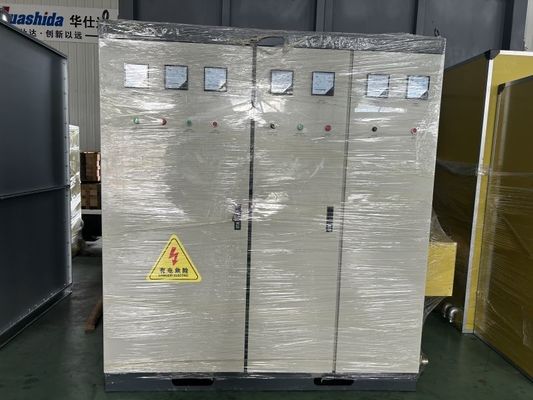

6 PLC control system 1
B. Coating equipment
1 Conveyor 1
2 Heating device 1
3 Powder spraying device 1
4 Cooling Spray equipment 1
C.Platform
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Hydraulic Equipment 3





The diameter of steel pipe: 426, 630, 720, 820
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery 0Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery 1
Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery 2Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery 3Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion Coating Machinery 4
