Description

2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids. They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.

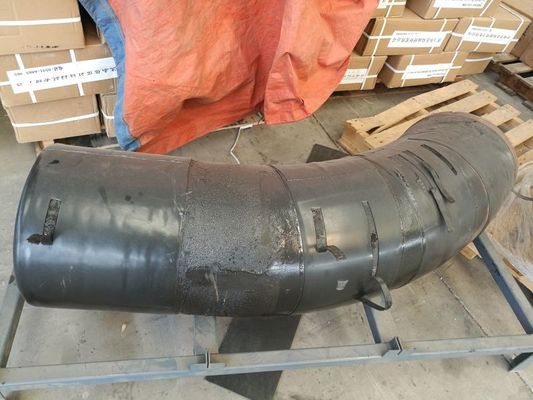

3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

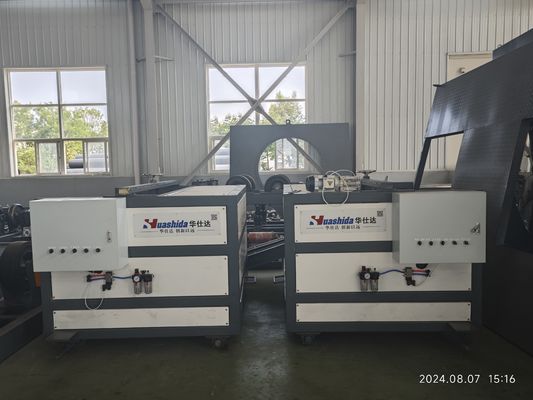

Bend Pipe 3PE Coating Equipment is used to bend pipe 3PE coating, it consists of bend pipe transportation equipment, bend pipe blasting machine, bend pipe intermediate frequency heating, bend pipe 3PE coating, bend pipe spraying cooling.


Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.

The diameter of steel pipe: 426, 630, 720, 820
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

Main Equipment List


Our Services
Quality guarantee period:12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer .because of wrong operation.
Service:The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.
