Oil Gas Pipline Steel Pipe 3lpe 2lpe Fbe External Internal Coating Machine
Description
Steel pipe anti-corrosion coating production line is used for anti-corrosion coating steel pipe with diameter from 57mm to 1220mm, which are widely used in varieties of engineering construction, especially in the heating, gas, oil industry.
This line can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP, and 3 layer PE anti-corrosion coating.

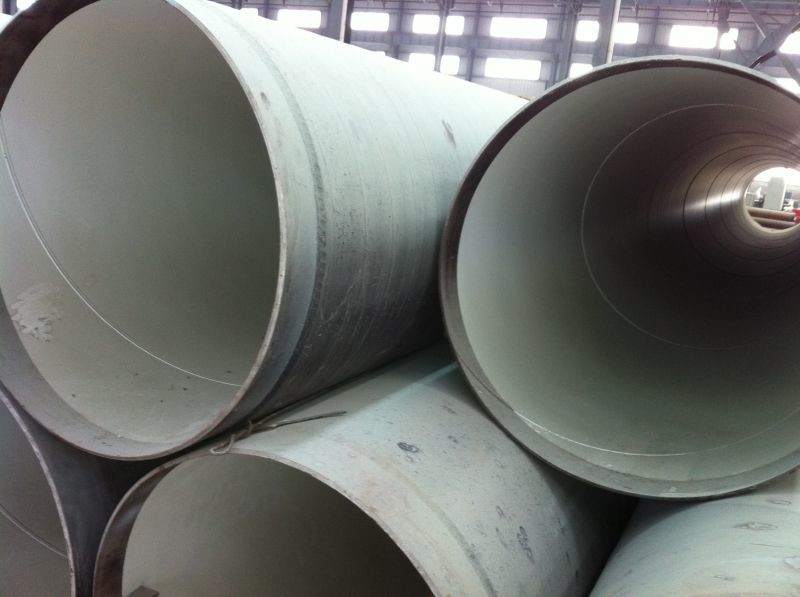

3 layer PE anti-corrosion coating consists of first FBE coating, a middle adhesive layer, and an outer polyethylene layer.
The three-layer polyethylene anti-corrosion coating is an advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe, and other fluid transmission pipelines. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.
Layer thickness
C kg/mKlasa A1Klasa A2Klasa A3Klasa B1Klasa B2Klasa B3Klasa C1Klasa C2Klasa C3
≤151,82,12,61,31,82,31,31,72,1
15≤C ≤502,02,43,01,52,12,71,51,92,4
50≤C ≤1302,42,83,51,82,53,11,82,32,8
130≤C ≤3002,63,23,92,22,83,52,22,53,2
300 < C3,23,84,72,53,34,22,53,03,8
Technological processes
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
Main Equipment List
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |

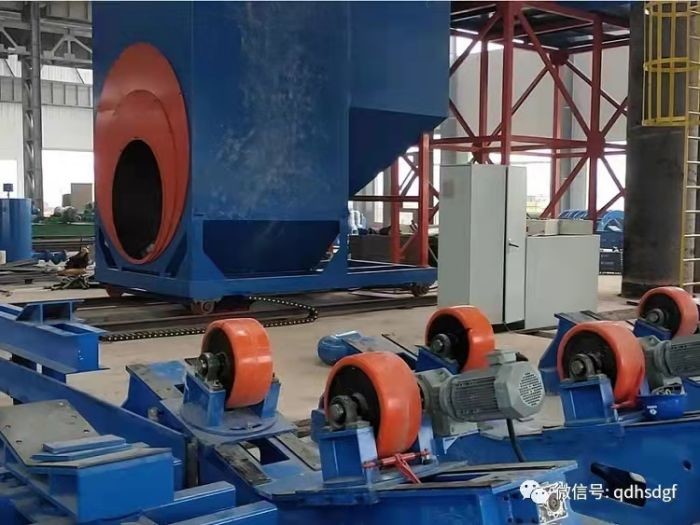

Pipe-conveying Equipment |
1 |
| 2 |
Shot Blast Cleaning Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC |
1 |
| B. Coating equipment |
| 1 |
Coating transfer equipment |
1 |
| 2 |
IF heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |
SJ-65/30 Extruder |
1 |
| 6 |
SJ-180/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |
PE sheet extruder head mold |
1 |
| 9 |
Hot melt adhesive/PE sheet coating device |
1 |
| 10 |
Environmental Protection Ventilation equipment |
1 |
| 11 |
Cooling Spray equipment |
1 |
| C.Platform Equipment |
| 1 |
Steel pipe platform |
1 |
| 2 |
Post-rust removal transition platform |
1 |
| 3 |
Product tube storage platform |
1 |
| 4 |
Hydraulic Equipment |
3 |
| D.Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |
| 4 |
PLC |
1 |
| E.Compressed air Equipment |
| 1 |
Screw Air Compressor |
1 |
| 2 |
Cold dry machine |
1 |
| 3 |
Precision filters |
3 |
| 4 |
Gas tanks |
1 |
