3 Layer Polyethylene 3LPE Coated Pipe Machine Epoxy Coating Production Line

Production description

Process parameters of winding anticorrosion:
Production line size: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters / min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.

Automatic steel pipe bends fittings 3LPE coating line

is an advanced solution to apply 3LPE/FBE external coating on steel pipe bends, which are widely used in pipeline systems for the transmission of oil, gas, water and other fluids.They have highly resistance to corrosive from chemicals, moisture, harmful environment etc.

Winding anticorrosive steel pipe parameters
Diameter of steel pipe: 426, 630, 720, 820
Curvature radius: 4-6 times D
Elbow angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: greater than 170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

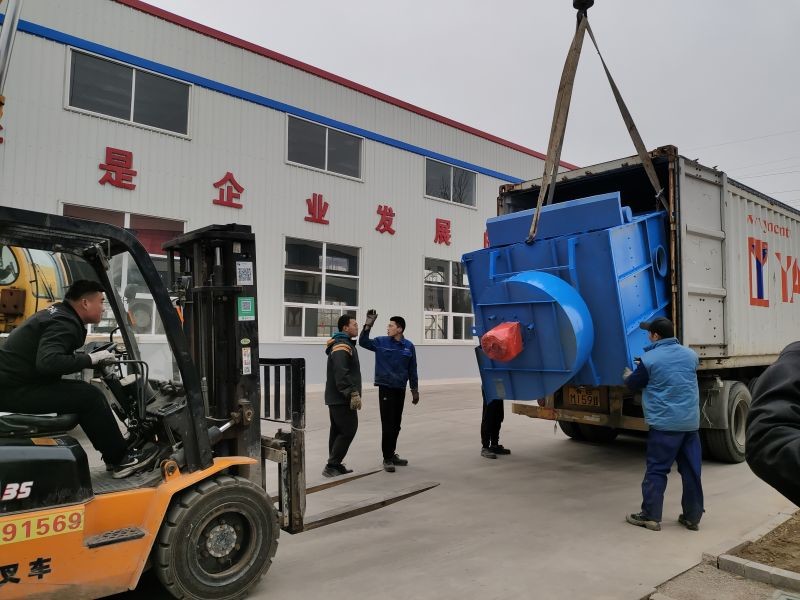

Russian SPV Steel pipe company, originally a steel pipe only business, because the Russian market has a large number of anti-corrosion steel pipe demand, they decided to invest in the construction of a production line for pipeline anti-corrosion. After signing the order with Walstad last year, Walstad prepared its production equipment for shipment according to the schedule requirements.

Overall dimension: 20 m X 15 m
Installed power:450 kw

Water: 30 m³
Compressed air: 6 m³/ min.
Temperature: ≥5℃
Pipe diameter range: 400-1220mm
Radius: 4-6D
Angle: 15-90 degrees.
Wall thickness: 8 mm -40mm
Epoxy powder thickness: ≥170 um
Adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7mm

3pe- Steel Anticorrosion Pipe Coating Production description
Model:159-1400mm
Diameter range:159mm-1400mm
Extrusion Capability:≤350kg/h

Technological processes:
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes

Our Services
3LPE coating processing line Quality guarantee period:12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer .because of wrong operation.
Service:The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.

The traditional 3pe anti-corrosion production line generally has three forms, whether it is the double-layer epoxy powder Ownchart operation method, or the manual heating installation method of polyethylene heat shrink sleeve, there are obvious defects to a certain extent. How to avoid all the above defects has become the direction of technological development, and it is the purpose of achieving high-quality anticorrosion in the real sense.
