Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine

1
MOQ
Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
MPa Classfication: Medium Pressure Piping
Pipe Length: 6m-55mm
Blasting Standard: SA2.5
Connection Type: Welding
Cross-Section Shape: Round
Pipe Dia.: 48-3200mm
Output Capability: 5-6m/Min
Highlight:

Steel Pipe Blasting Fbe Coating Machine

,

48-3400mm Blasting Fbe Coating Machine

,

3lpe Blasting Fbe Coating Machine

Basic Infomation
Place of Origin: Qingdao,Shandong,China
Brand Name: HUASHIDA
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Packing according to Machine
Delivery Time: come to an agreement in respect of the delivery time
Payment Terms: L/C
Product Description

Steel Pipe Inner/Outside 3lpe Blasting&Fbe Coating Machine (48-3400mm)Blasting Machine

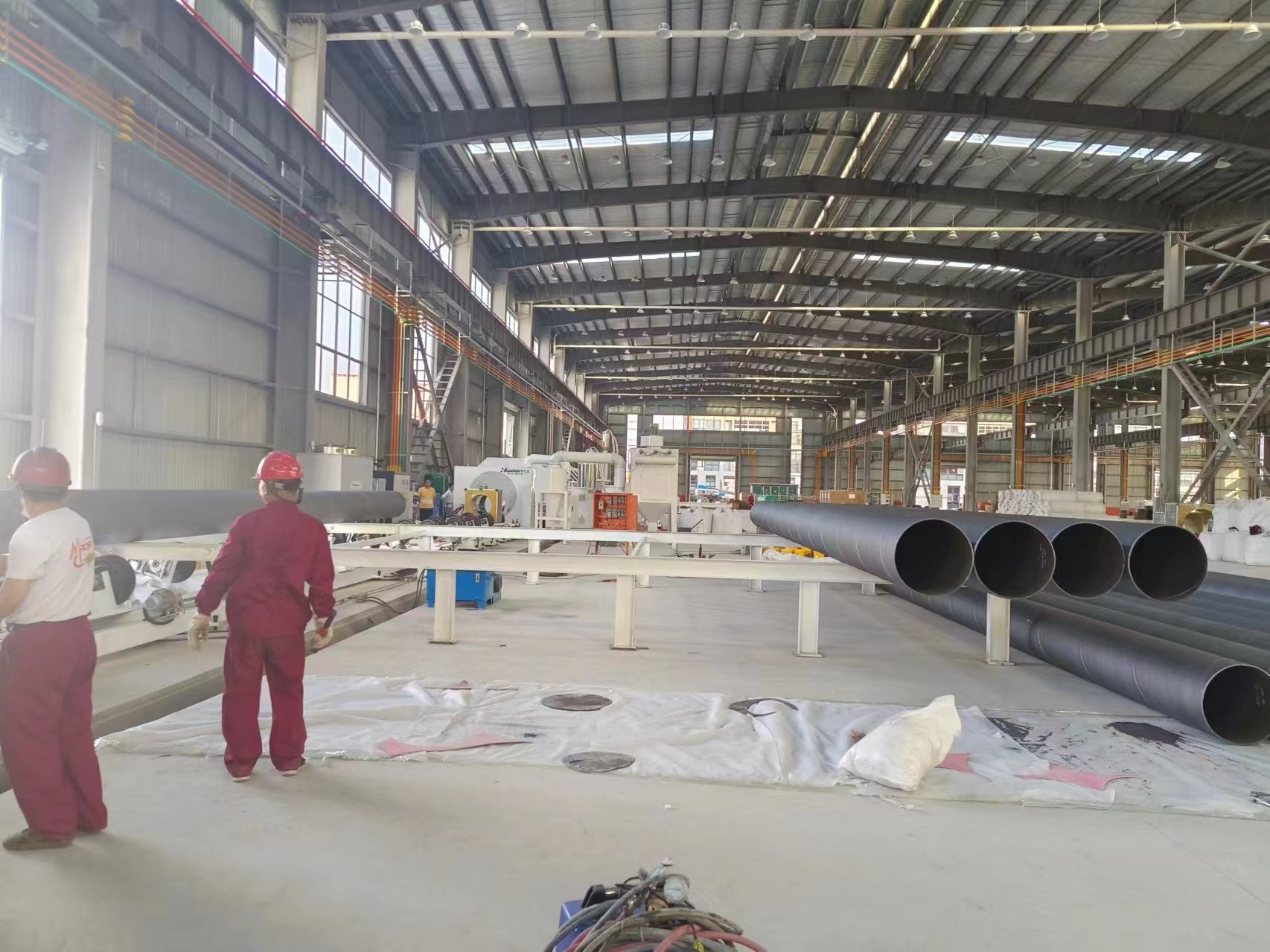

Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 0

Production description

3PE anti-corrosion coating production line, is three PE anti-corrosion structure of anti-corrosion pipeline production line, diameter range φ60 ~ φ1420, wall thickness range of 2.5-18mm, the use of three anti-corrosion. Namely, a layer of epoxy powder (FBE> 100µm), the second layer of adhesive (ad) 170 ~ 250µm, the third layer of polyethylene (PE) 2.5 ~ 3.7mm

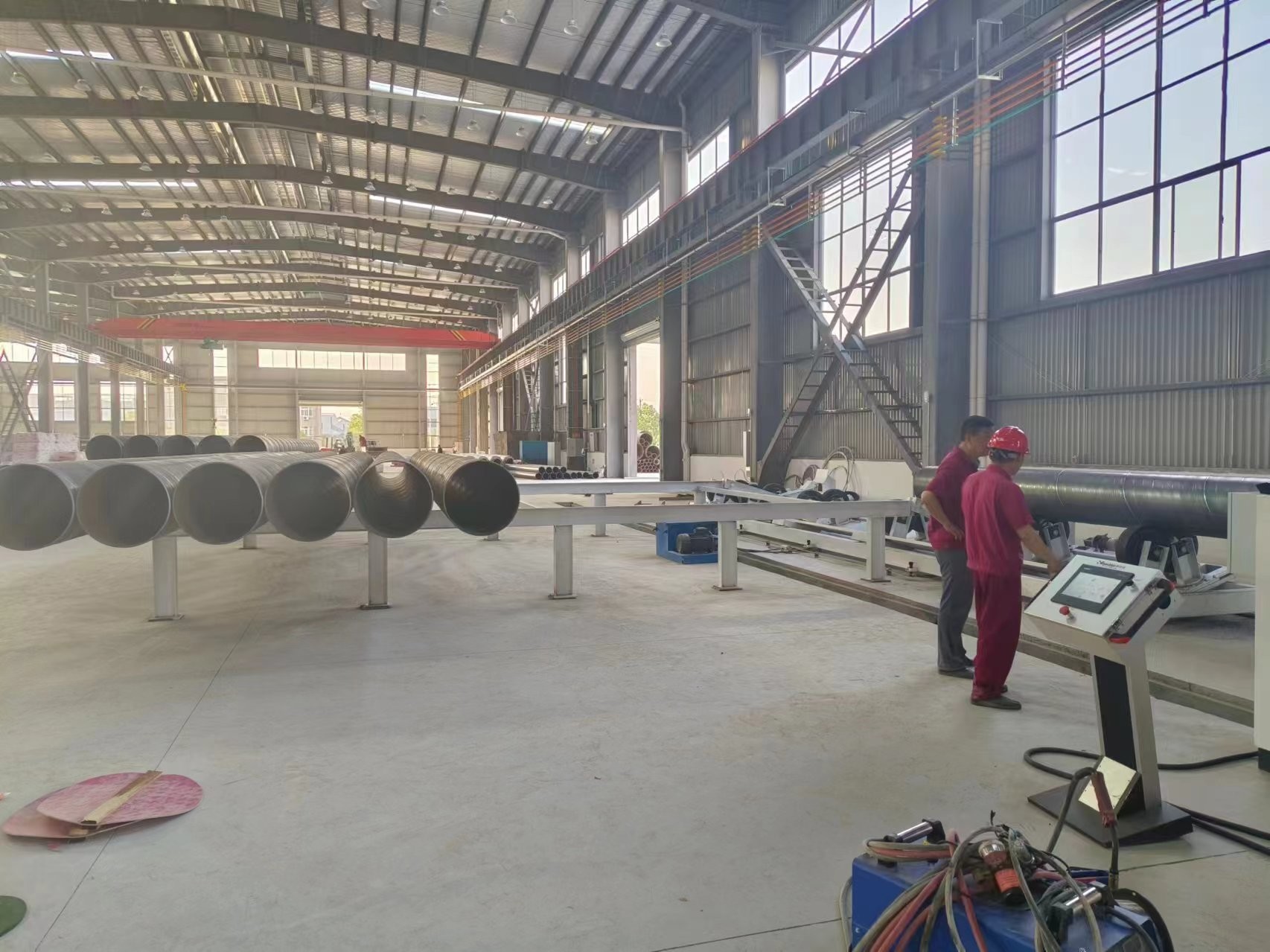

Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 1

The composition of 3-layer PE coating production line
The three -layer PE anticorrosion structure includes fusion bonded epoxy-powder bottom layer, polymer adhesive middle layer and polyethylene top layer. The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring, featuring good chemical anticorrosion and high molecular mechanical properties. The function of epoxy-powder bottom layer is to form continuous coating, providing excellent and cathodic disbanding resistance.
The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together. The three-layer PE process, with the epoxy powder coating as bottom layer, binding and bundling through polyethylene PE and adhesive, is widely used in anticorrosion of steel pipes at home and abroad, and applied to the oil pipeline and gas pipeline, as well as to the gas supply and water supply for civil use.

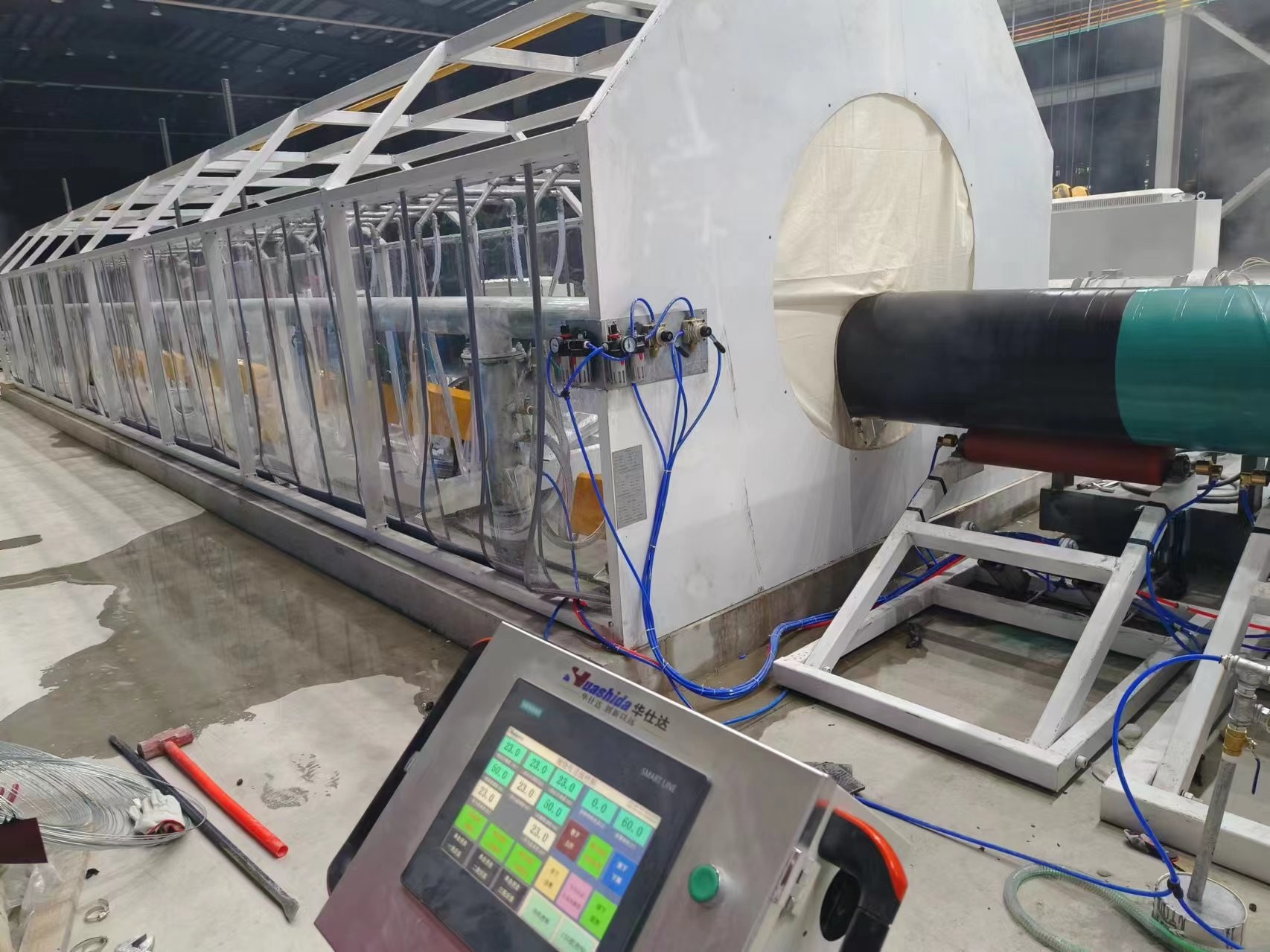

Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 2



Steel pipe outside shot blasting derusting operation line
No. Description Qty. Remark
1 Transmission line 1set
2 Shot blasting derusting line 1set
3 Cyclone dust collector 1set
4 Pulse filter cartridge dust collector 1set
5 Centrifugal wind blower 1set
6 Derusting equipment electrical control system



1set


Steel pipe outside spiral 3PE production line
No. Description Qty.
1 Coating transmit system 1set
2 Intermediate frequency heating system 1set
3 Epoxy spraying system 1set
4 Automatic feeding dryer 2sets
5 single screw high efficiency extruder SJ-65/30



1set


6 SJ-120/30 extruder 1set
7 Hot melt adhesive extrusion die head 1set
8 PE sheet extrusion die head 1set
9 Hot melt adhesive/PE sheet press device 1set
10 Stainless steel spray powder chamber 1set
11 Cooling water spray system 1set
Platform system
No. Description Qty.
1 Steel pipe up load platform 1set
2 Derusting transition platform 1set
3 Finished pipe storage system 1set
4 Hydraulic system 3sets
Grooving system
No. Description Qty.
1 PE grooving device 2sets
2 Hydraulic elevating pipe turner 2sets
3 Operating cabinet 1set



Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 3

Corrosion resistant steel pipe can be divided into two categories, inner lined anti-corrosion steel pipe and anti-corrosion steel pipe. Inner lined anti-corrosion mainly cement mortar lining anti-corrosion steel pipe application more, lower cost, using cement mortar coating on the pipeline to play a preservative effect. Outer wall anti-corrosion steel pipe applied more 3PE anti-corrosion steel pipe. Anti-corrosion technology with Huashida 3PE anti-corrosion coating production line is the process of protecting the outer wall or inner wall of the steel pipe to protect the pipeline itself. On the straight seam steel pipe, spiral pipe and other pipes can be processed. Huashida production line, the establishment of a sound quality assurance system, has passed ISO9001: 2000 certification, the implementation of the whole process of quality tracking control, reliable quality. Customers can assure.

Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 4


3pe- Steel Anticorrosion Pipe Coating Production description
Model:159-1400mm
Diameter range:159mm-1400mm
Extrusion Capability:≤350kg/h


Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 5
Technological processes:
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
3lpe /Fbe Pipe Blasting/ Coating/ PE Film Extrusion Assembly Production Line





Our Services
3LPE coating processing line Quality guarantee period:12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer .because of wrong operation.
Service:The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.




Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 7


Steel Pipe Inner / Outside 3lpe Blasting Fbe Coating Machine 48-3400mm Blasting Machine 8
3lpe /Fbe Pipe Blasting/ Coating/ PE Film Extrusion Assembly Production Line
3lpe /Fbe Pipe Blasting/ Coating/ PE Film Extrusion Assembly Production Line
