Three Layer / 3lpp Steel Pipe / Tube Anti Corrosion Coating Processing Machine

Three Layer/3lpp Steel Pipe/Tube Anti-Corrosion Coating Processing Machine

INTRODUCTION
3PE coating line is to make anti-corrosion of kinds of steel pipes, such as single layer FBE, double layer FBE, double layer PE, double layer PP and 3PE.
The line includes systems of steel pipe transportation, surface disposal, dust catching, pipe heating, electrostatic spraying, coating, water cooling, edge cutting, hydraulic and pneumatic device, detecting and electric controlling system.

Description:
3PE anti-corrosion coating production line means the steel pipe is protected by three layer to prolong the life of use from 5-10years to 50-100years.

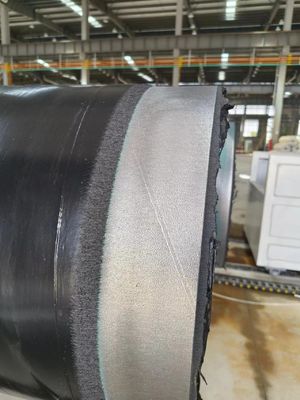

First layer is Fusion bonded epoxy layer (FBE> 100µm), the second layer of adhesive (AD) 170 ~ 250µm, the third layer of polyethylene (PE) 2.5 ~ 3.7mm. Present we can made the machinery for diameter range Φ159 ~ Φ1220.
3PE steel pipe outer coating has a high mechanical strength, excellent electrical insulation performance. The merits include high degree of mechanization, process parameters stable, not pollute the environment, etc. In recent years, the intensive of the pipeline corrosion engineering has been widely used.

3pe have Long-term corrosion resistance

FBE components have excellent adhesion to steel, providing excellent long-term corrosion resistance and protection for pipelines operating at moderate temperatures.

If desired, low application temperature (LAT) FBE can be selected as a primer to ensure low preheating conditions and long-term integrity of high strength steels (X80 or higher)

In addition, 3LPE systems have excellent cathodic stripping resistance, reducing the life cycle cost of cathodic protection

Technological processes:
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes

Company profile

Huashida Machinery, with over 21 years' experience, is one of the professional 3 layer pe steel pipe anti-corrosion coating processing production line manufacturers in China. Offering the customized service, we warmly welcome you to get the high qualified products from our factory.

Our Services
3LPE coating processing line Quality guarantee period:12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer .because of wrong operation.
Service:The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.
