Continue Flexible PU Foaming Yellow Jacket Insulation Pipe Machine HDPE / PP Extruder

Continue Flexible PU Foaming Yellow Jacket Insulation Pipe Machine HDPE/PP Extruder

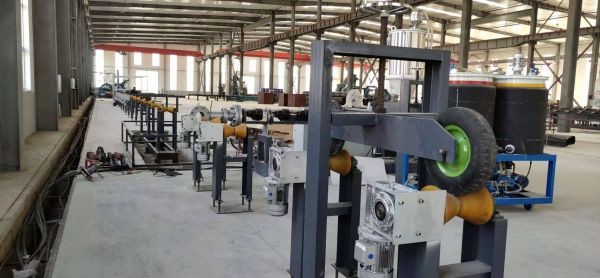

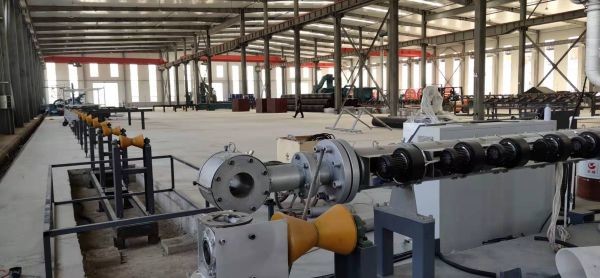

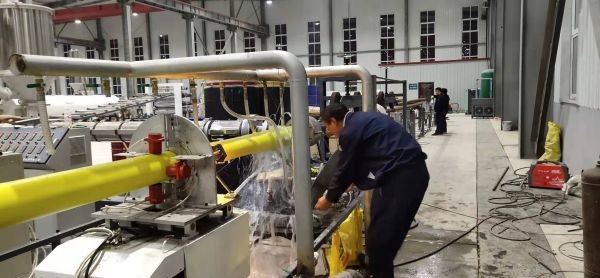

Continue polyurethane foam flexible insulation pipe Extrusion line, makes pipe diameter ranging from 48 to 426 mm.
The continue method is a relatively new advanced manufacturing technology. The inner tube, that is, the working tube (usually used of PE-RT, PE material) and the polyurethane foam mixture are continuously injected into the filling area, and the film is covered, followed by the outer protective tube covering the polyurethane insulation layer. Compared with the traditional technology, the continue method can reduce the density of the filled foam and reduce the wall thickness of the outer protective tube, thereby saving costs for the pipe manufacturer.
Continue method is applicable to both hose insulation and rigid pipe insulation.

Introduction:
What is polyurethane foam PERT insulation pipe?
Polyurethane PERT insulation pipe is called flexible insulation pipe in international, Chinese standard name is II type heat-resistant polyethylene (PE-RTII) low-temperature direct buried heating pipe.

PE-RTII insulation pipe

○PERT II Pipes Can Tolerate Temperatures of 110°C
○Pipeline smooth, no impurities, no pollution
○Heating companies can realize unattended, automated operation
○Low temperature heating
○ 60 °C supply water 45 °C backwater to meet the heating demand.
○The construction is simple and convenient, and the excavation amount is 40%
○ ---- Greatly reduce construction costs

It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft

Market Survey
International:
Up to now, there are only a few foreign companies engaged in PERT II cryogenic pipelines, mainly in northwest Europe, Russia and the Middle East.

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meter. Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
Our factory locates in Cheng yang Industrial area, Qingdao ,Shandong Province. we have been approved and got certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.
