HDPE Hollow Wall Winding Pipe Extruder Machine

HDPE Hollow Wall Winding Pipe Extruder Machine

Product description:

HDPE Large Diameter Hollow Wall Winding Pipe produced by this Line has high ring stiffness, high brunt intensity and low weight due to its unique structure. In addition, it has many advantages such as good creep deformation resistance, outer pressure resistance, erosion resistance (such as acid, alkali and salt etc. ), long life of approximate 50 years. It has been widely used for sewerage and drainage in municipal, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.

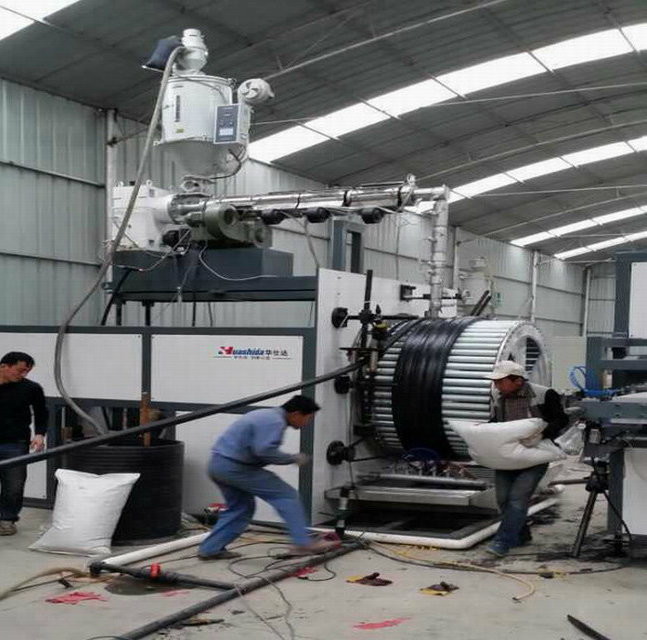

The production line comprises two main parts, PE pipe extrusion line & Spiral forming line.
1. PE pipe extrusion line includes equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder and diehead mould
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine


Features of HDPE Hollow Wall Corrugated Pipe:
It's designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank. 2ND single screww extruder for melting glue material, spiral forming unit, cutting and stack unit.


Warranty period:

The mechanical part is guaranteed for 12 months and the electrical part is guaranteed for 6 months from the date of shipment.

Service:

The seller provides technical support and related electrical drawings for the buyer free of charge, and trains the buyer’s operators.

Installation and commissioning of equipment:

The seller will send enough technicians to the buyer to install and debug the equipment. The cost of round-trip air tickets, boarding and lodging, transportation, medical treatment, insurance, etc. of the seller’s experts and 100 USD per person per day shall be borne by the buyer.

Product parameter:

It includes two parts.
The first part is PE Pipe Production Line. The function of it extrude PE/PP pipe or PE/PP Square Shaped Pipe ( according to your customer requirement ). It include as following equipment:
SJ series Single Screw Extruder / Die Head ( outer mold and mandrill) / Calibration Sleeve / Vacuum Cooling Tank / Spray Cooling Tank

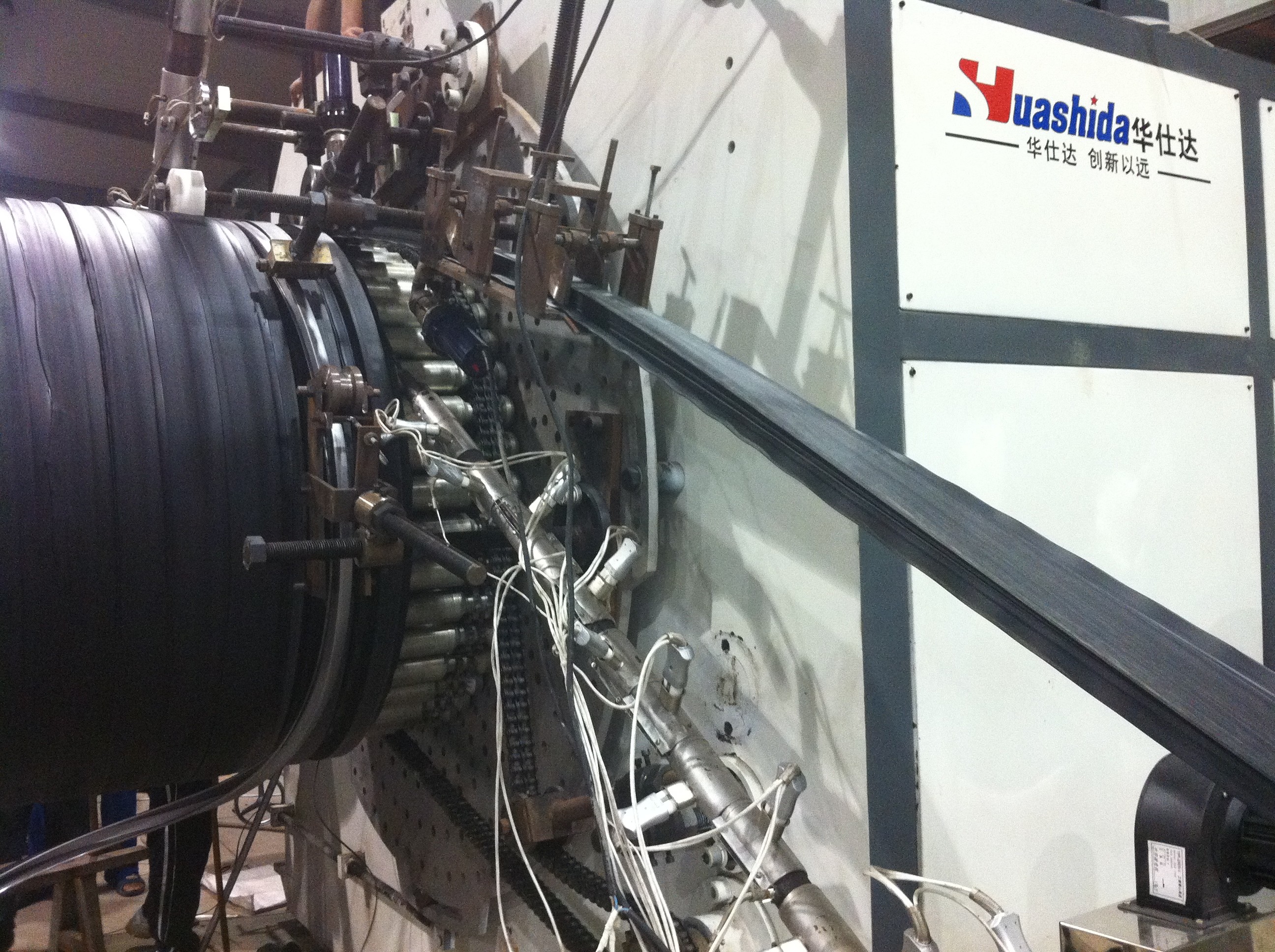

The second part is Forming Machine of HDPE Large Diameter Hollow Wall Winding Pipe. The function of it can produce qualified HDPE Large Diameter Hollow Wall Winding Pipe.
It includes as below equipment: SJ series Single Screw Extruder / Die Head / Spiral forming unit / Cutting Unit / Stack Unit / PLC control system with touch screen


you can go to website: hsdextruder.en.made-in-china.com for more informaiton or email for more information.
