PE Electrofusion Sleeve For Pre-Insulated Pipe Girth Weld Pipeline Joint Closure

PE Electrofusion Sleeve for Pre-Insulated Pipe Girth Weld Pipeline Joint Closure

More than 15 years of production experience
The organizer of the National Symposium on the Production and Application of Electro-fusion welding belt
Recipient of utility model patent for electric fusion sleeve
Exporting the electro-fusion welding tape to Turkey, Sudan, UAE, Japan, Russia, Kazakhstan and other countries with good feedback.


INTRODUCTION

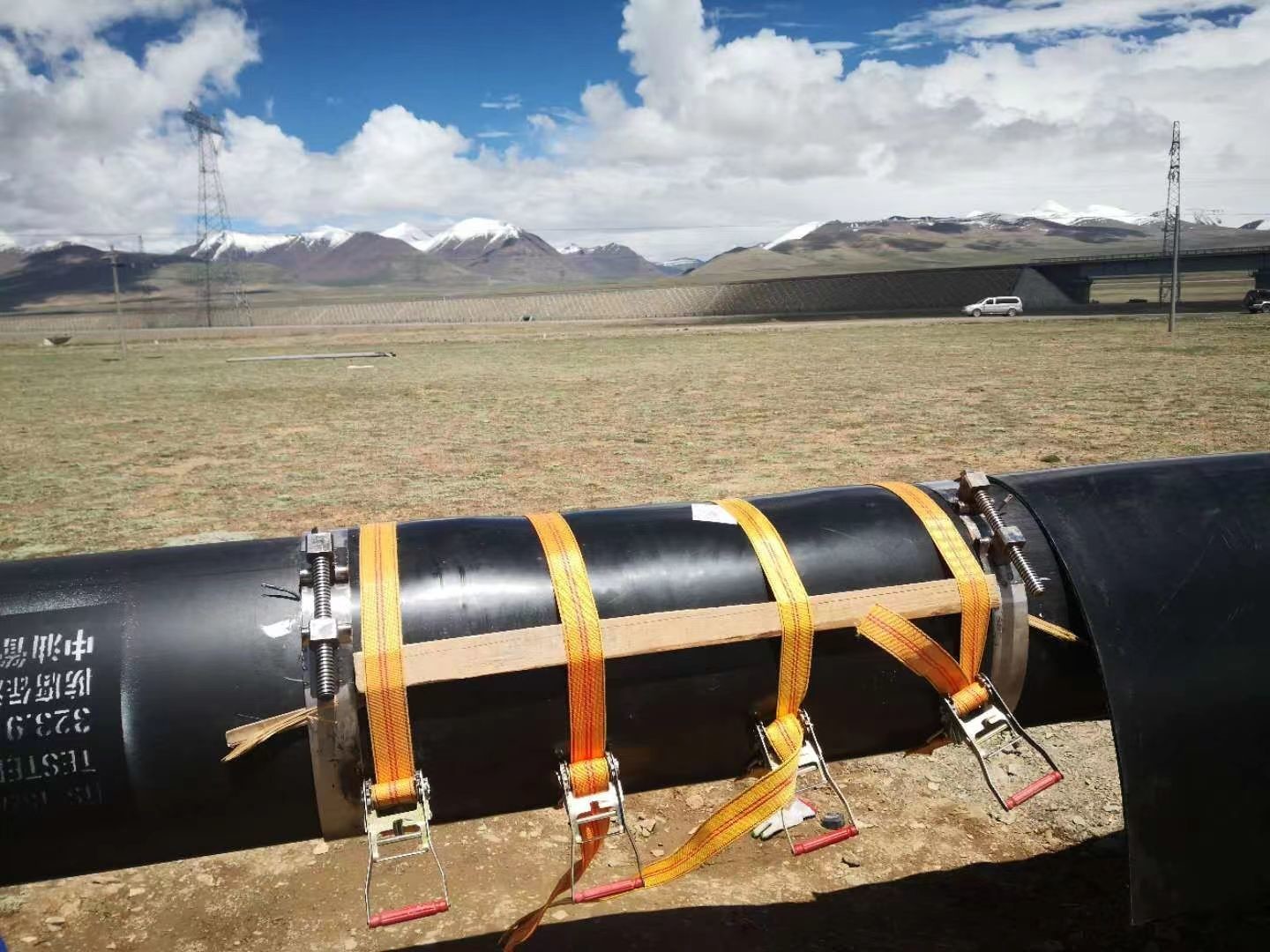

Electrofusion weldable joint is a pre-cut high-quality HDPE sheet embedded with nicochrome net. It is used as polymer pipe welding materials or fittings, which is installed by a special electric heating welder.
The tape size can be customized. It can be used for a big range of pipe diameter from 200mm.



Electrofusion mesh:

Material and composition: The electrofusion mesh is made of nickel and chromium thin-walled stainless steel plates by high-pressure punching. and the composition of the stainless steel plate meets the following requirements

Performance:
1. Adopt high-quality raw material: HDPE 2480 produced by China Petroleum &Chemical Corporation and High-temperature resistance nicochrome net.
2. The tape/sheet is fully fused with the pipe after electric heating with good sealing effect, corrosion resistance, and long life service.
3.Able to withstand axial forces initiated by axial movements of the pipe in the ground;
4.Able to withstand radial forces and bending moments;
5. Able to withstand the effects of temperature and temperature variations.

Size and deviation of the electrofusion mesh

Resistivity of electrofusion mesh should comply with the following standard

Resistivity of electrofusion mesh
