PE Electrofusion Sleeve / Ef Open Joint For HDPE Structural Wall Spiral Pipe Connecting

PE Electrofusion Sleeve/Ef Open Joint for HDPE Structural Wall Spiral Pipe Connecting

More than 15 years of production experience
The organizer of the National Symposium on the Production and Application of Electro-fusion welding belt
Recipient of utility model patent for electric fusion sleeve

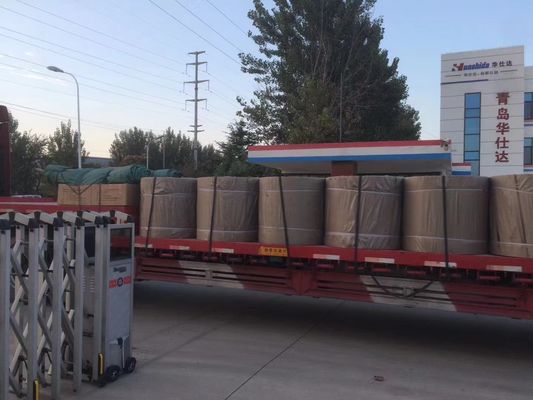

Exporting the electro-fusion welding tape to Turkey, Sudan, UAE, Japan, Russia, Kazakhstan and other countries with good feedback.


INTRODUCTION
Electrofusion weldable joint is a pre-cut high-quality HDPE sheet embedded with nicochrome net. It is used as polymer pipe welding materials or fittings, which is installed by a special electric heating welder.
The tape size can be customized. It can be used for a big range of pipe diameter from 200mm.



Application:
1. District thermal heating system construction
2. Pre-insulated pipes field joint welding and oil pipes joint welding;
3. Hollow wall spiral pipe joint fitting
4.Structure pipe joint fitting
5. Steel reinforced spiral pipe joint fitting


Performance:
1. Adopt high-quality raw material: HDPE 2480 produced by China Petroleum &Chemical Corporation and High-temperature resistance nicochrome net.
2. The tape/sheet is fully fused with the pipe after electric heating with good sealing effect, corrosion resistance, and long life service.
3.Able to withstand axial forces initiated by axial movements of the pipe in the ground;
4.Able to withstand radial forces and bending moments;
5. Able to withstand the effects of temperature and temperature variations.

Test report

Final Test	Unit	Standard	Test Result	Assess
HDPE Raw material density	g/cm 3	≥0.935	0.961	OK
Raw material melt flow rate	g/10min	≤0.50	0.46	OK
Appearance check	/	Internal and external surfaces are clean and free from other defects.	OK	OK
Heat reversion	%	≤3; shall not show any cracks	0.89, No cracks	OK
Tensile yield strength	Mpa	≥19	20.2	OK
Elongation at break	%	≥350	656	OK
Stress crack resistance	h	≥300	OK	OK
