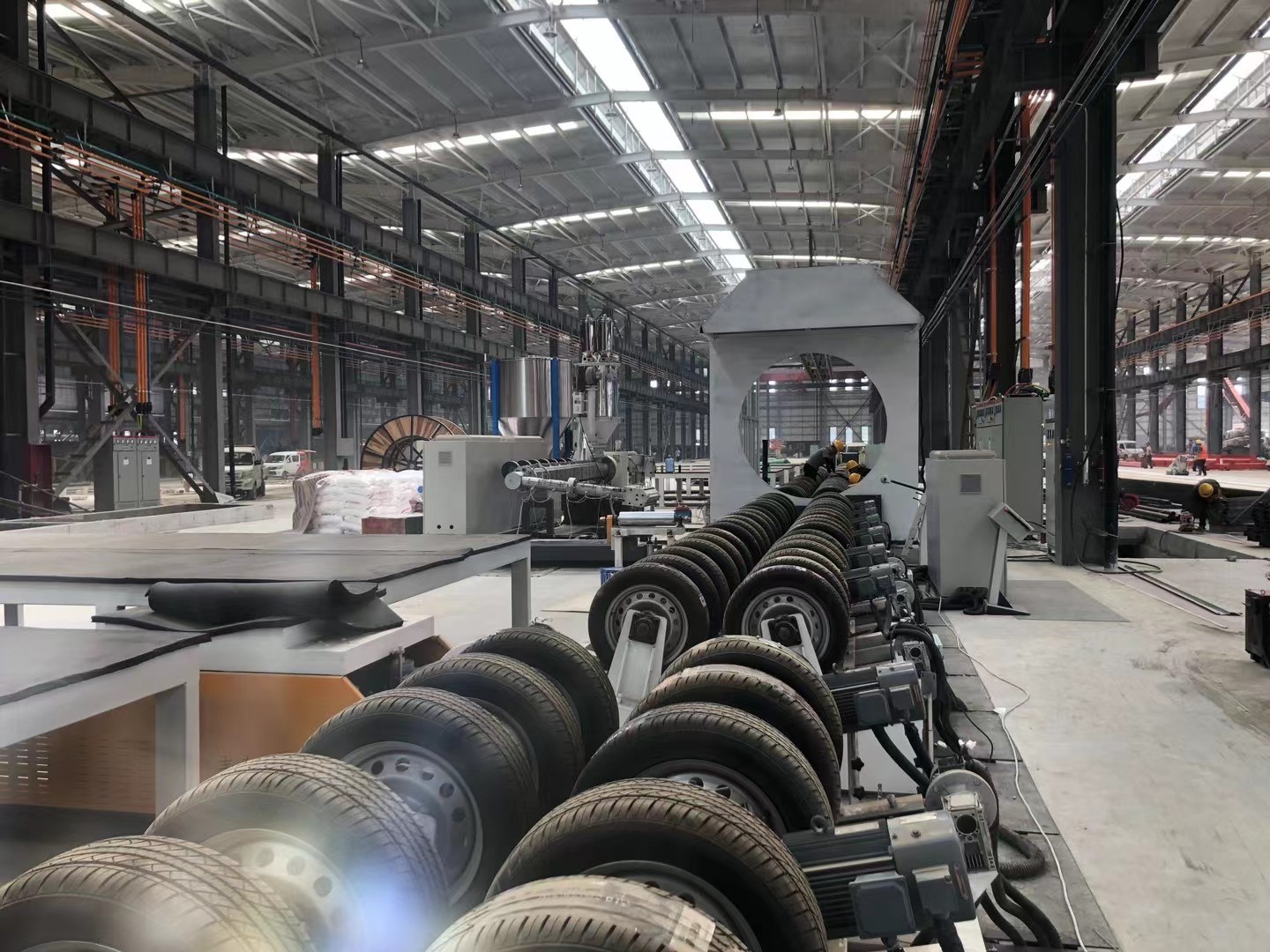

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine

2. Technological flow:

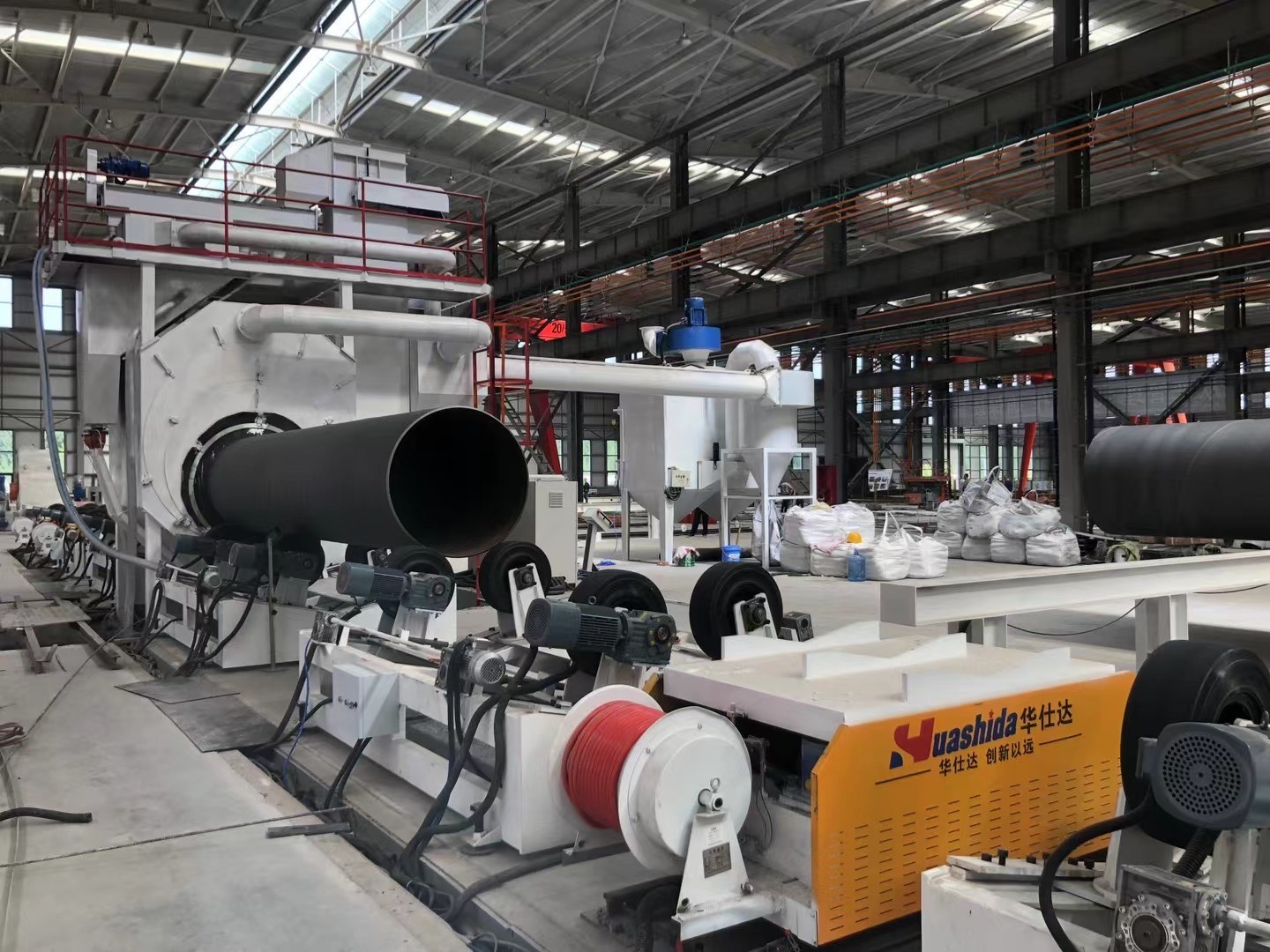

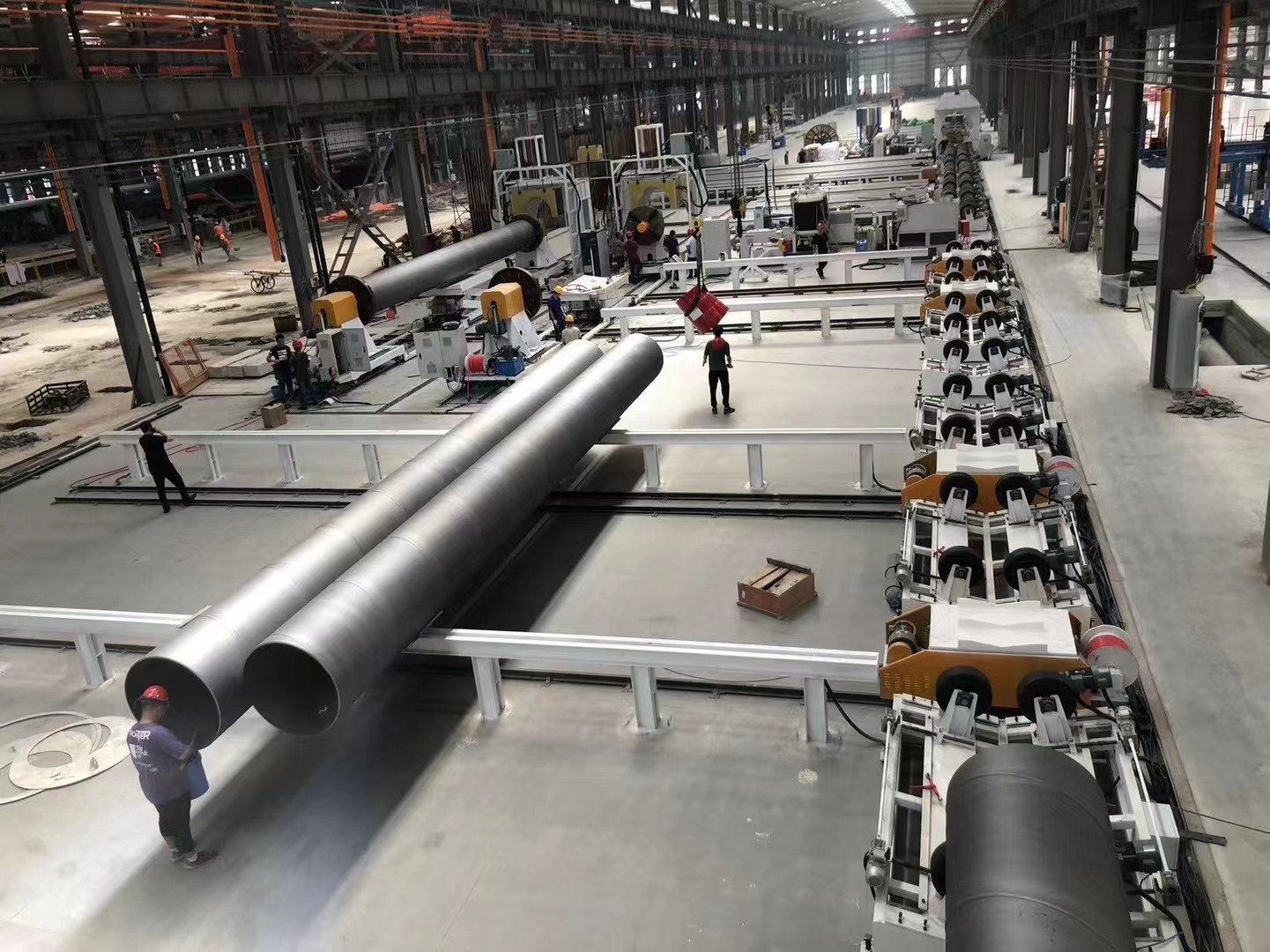

Steel pipe Load-up online---->External shot blasting ----> dust collector---->internal blow out---->lifting transport pipe trolley---->transport to chuck----> chuck hoist cylinder----> alignment chuck center---->mechanical arm station adjust---->chuck hydraulic clamping---->chuck guard at both ends----> carrier pipe servo transport---->IF heating----> PU foam spraying----> pipe load down line----> transport pipe ----> PE film wrapping----> water cooling---->cutting down pipeline---->trim end of pipe---->printing mark&loading down finished pipe---->sealing end of pipe

3.Disadvantages of steel pipe conveying systems on the market:


Universal joint transmission shaft type. The universal joint can drive at an angle of 15 degrees, resulting in a transmission shaft type conveyor where the angle of the conveyor wheel can be adjusted to a maximum of 15 degrees.

When removing rust from small diameter steel pipes, there are too few spirals and too much sand, which wastes energy and cannot improve production efficiency.

It is not advisable to use pneumatic tires for conveying the machine. The air pressure in the tires varies due to the exposure of the pneumatic tires to the sun and the cooling at night, and the rubber abrasion during steel pipe conveying is serious.

4. Main accessories

5. Company profile
