SA2.5 Steel Pipe External Shot Blasting Blastor Machine 114mm-1219mm

SA2.5 Steel Pipe External Shot Blasting Blastor Machine 114mm-1219mm

Description
The Steel pipe external wall shot blasting machine includes pipe conveyor, shot blastor, elevator, platform loading abrasive, dust removal system, electric control system.

No.	Name	Set
1	Pipe conveyor	1
2	Shot blast Machine	1
3	Elevator	1
4	Platform loading abrasive	1
5	Cyclone dust collector	1
6	Pulse cartridge dust collector	1
7	Centrifugal exhaust fan	1
8	PLC	1

Product Parameter

Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.

The diameter of steel pipe: 426, 630, 720, 820, 1220
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

Application

The three-layer HDPE stripe winding process, with epoxy powder coating as bottom layer and binding adhesive as second layer, is the widely used technique in steel pipe anti-corrosion all over the world. The anti-corrosion steel pipe are applied in oil, gas and water supply pipelines.

Blasting machinery

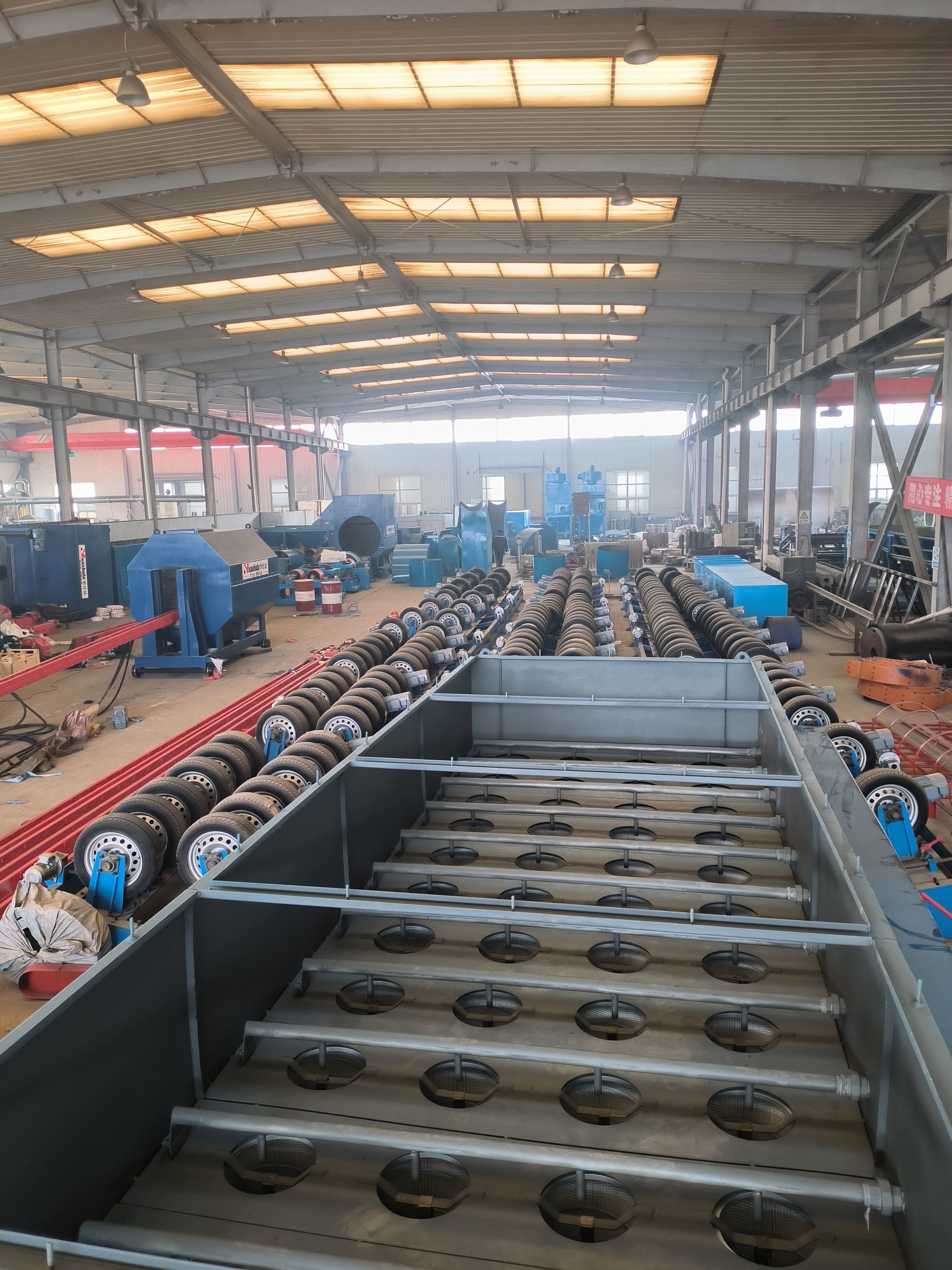

steel pipe conveyor

FBE Coating machinery

PE/PP layer wrap extruder line

Main Equipment of 3PE anti-corrosion coating processing

Main Equipment of 3PE anti-corrosion coating processing
