Metal Pipe Liquid / Fusion Epoxy Powder Coating 3lpp / PE Anticorrosion Machine

Metal pipe liquid/Fusion Epoxy powder coating 3LPP/PE anticorrosion machine

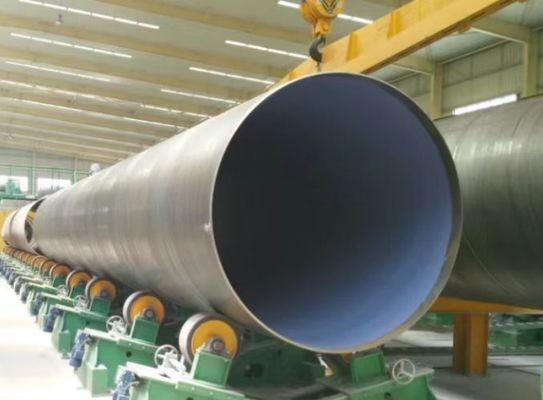

200mm-1420mm anti-corrosion coating production line is used for anti-corrosion coating steel pipe with a larger diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
This line can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.
​

3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipelines. 3 layer PE anti corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable and anti-aging performance.

The anti corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.

Technological processes
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes


Main Equipment List

No.	Name	Set
A. Derusting Equipment
1	Pipe-conveying Equipment	1
2	Shot Blast Cleaning Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Coating transfer equipment	1
2	IF heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	SJ-65/30 Extruder	1
6	SJ-180/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe platform	1
2	Post-rust removal transition platform	1
3	Product tube storage platform	1
4	Hydraulic Equipment	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC	1
E.Compressed air Equipment
1	Screw Air Compressor	1
2	Cold dry machine	1
3	Precision filters	3
4	Gas tanks	1

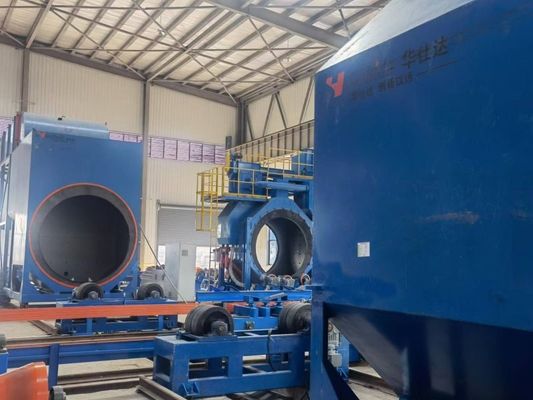

Our factory
