Features

Specifications

Coating Materials: Polyethylene, Adhesive, Epoxy

Pipe Length Range: 6-12 Meters

Material: Carbon Steel

Capacity: 1000-2000 Meters Per Day

Heating Method: Induction Heating

Welding Method: Submerged Arc Welding

Sed Material: FBE Powder, Binder, Polyethylene

Coating Type: 3LPE (Three Layer Polyethylene)

Highlight:

3lpe Anti Corrosion Coating Machine

Epoxy Powder Anti Corrosion Coating Machine

3lpe Epoxy Powder Steel Pipe Machine

Basic Infomation

Place of Origin: qingdao，shandong，china

Brand Name: HUASHIDA

Payment & Shipping Terms

Delivery Time: come to an agreement in respect of the delivery time

Payment Terms: L/C

Gallery

3lpe Epoxy Powder Steel Pipe External Anti Corrosion Coating Machine

Product Description

3PE anti-corrosion steel pipe production line,automated and easy to install

Product Description

3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly production line

production range

processing capacity

Cleaning class

used material

159mm-1600mm

Sa2.5

FBE powder, binder, polyethylene

Description:
3PE anti-corrosion coating production line means the steel pipe is protected by three layer to prolong the life of use from 5-10years to 50-100years.
First layer is Fusion bonded epoxy layer (FBE> 100µm), the second layer of adhesive (AD) 170 ~ 250µm, the third layer of polyethylene (PE) 2.5 ~ 3.7mm. Present we can made the machinery for diameter range Φ159 ~ Φ1220.
3PE steel pipe outer coating has a high mechanical strength, excellent electrical insulation performance. The merits include high degree of mechanization, process parameters stable, not pollute the environment, etc. In recent years, the intensive of the pipeline corrosion engineering has been widely used.

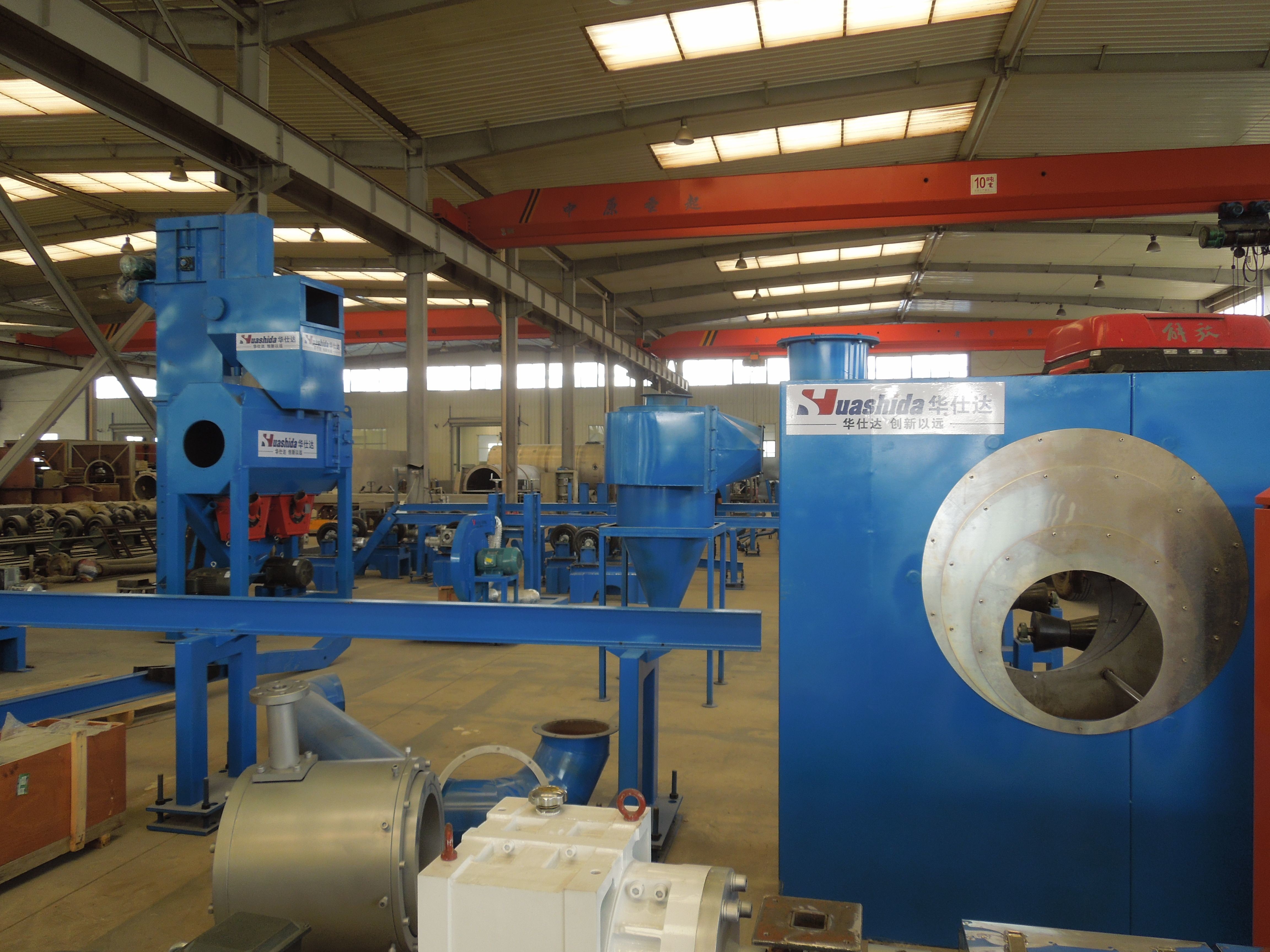

3lpe Epoxy Powder Steel Pipe External Anti Corrosion Coating Machine 0

Application:
3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly production line. The three-layer PE process, with the epoxy powder coating as bottom layer, binding and bundling through polyethylene PE and adhesive, is widely used in anticorrosion of steel pipes at home and abroad, and applied to the oil pipeline and gas pipeline, as well as to the gas supply and water supply for civil use.
Three-Layer PE pipe Structure Diagram
The three-layer PE anticorrosion structure includes fusion bonded epoxy-powder bottom layer, polymer adhesive middle layer and polyethylene top layer. The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring good chemical anticorrosion and higher mechanical properties. The function of epoxy powder bottom layer is to form continuous coating, providing excellent adhension by agglutinate and solidifying the steel tube surface with good chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together. 3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly production line

Technological processes:
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
3lpe /Fbe Pipe Blasting/ Coating/ PE Film Extrusion Assembly Production Line

3PE pipe structure

3PE tubes are made up of three functional components: a high-performance fused epoxy (FBE) primer, followed by a copolymer adhesive and polyethylene outer layer that provides tough and durable protection. The 3LPE system provides excellent pipeline protection for small and large pipelines operating at moderate high temperatures.

Service:
The seller provides free technical services and provides training and guidance to buyer operators.
Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.
Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and son on. Our pipeline production line is nearly 50sets at home and abroad.
HUASHIDA Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. HUASHIDA company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.

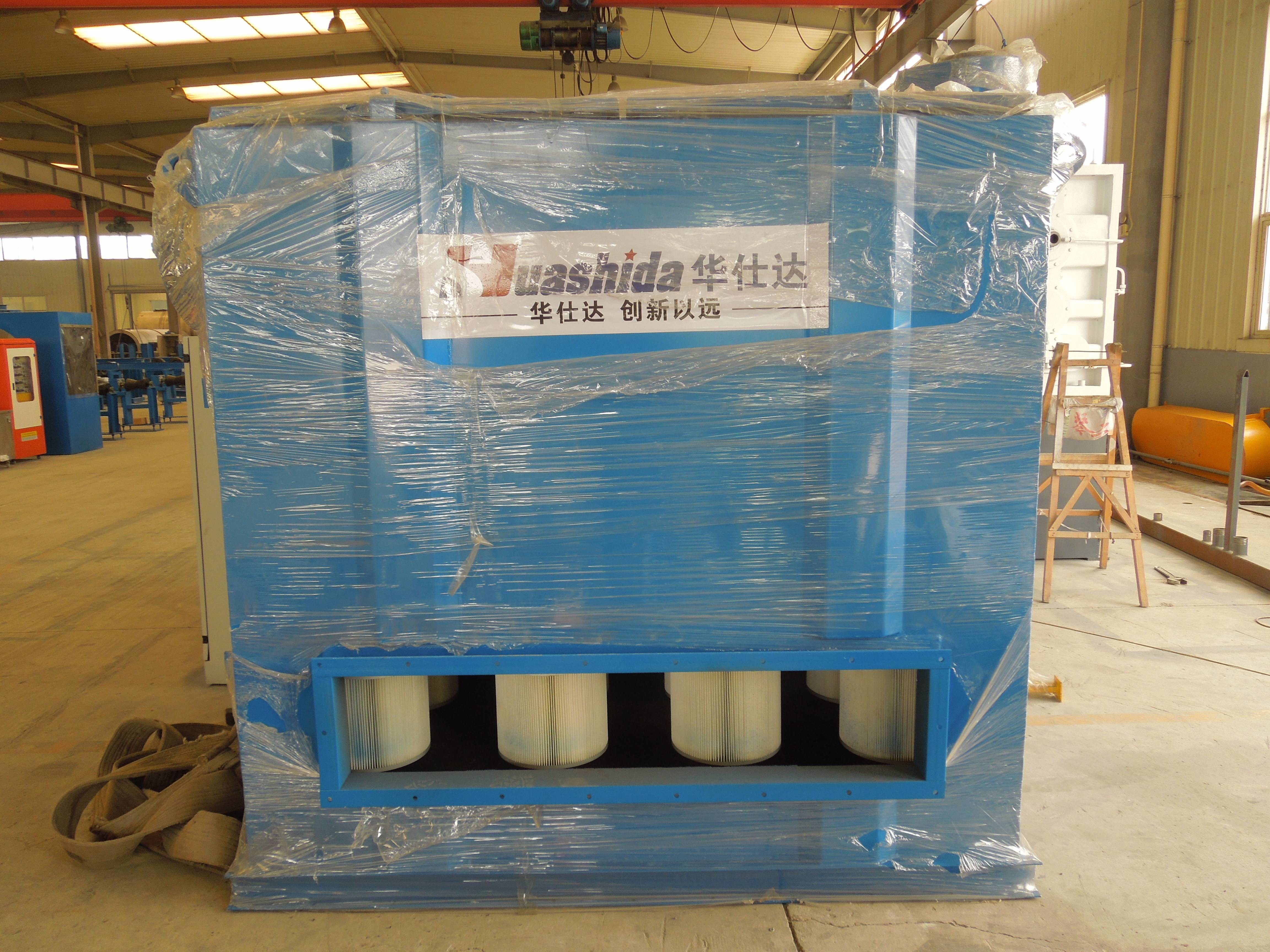

3lpe Epoxy Powder Steel Pipe External Anti Corrosion Coating Machine 3
