Vacuum Calibrating Pre Insulated pE Pipe Extrusion Line 150KW

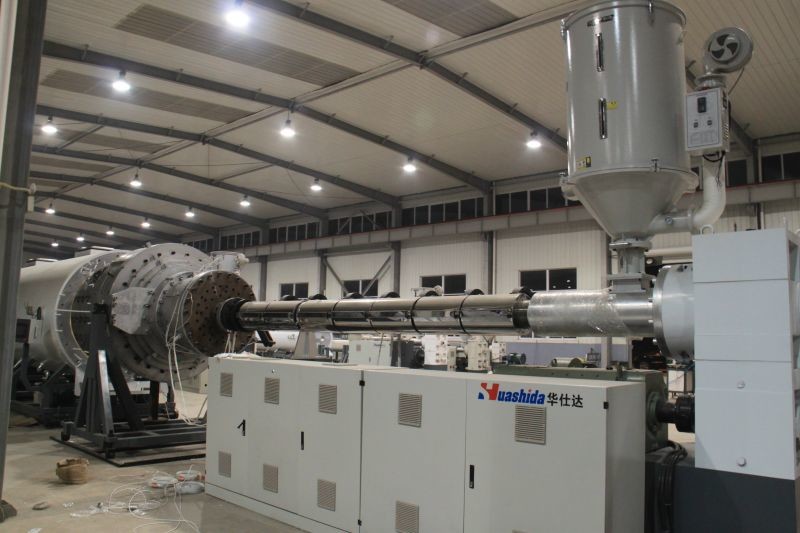

The extruder uses a new design of high efficiency single screw , introduce the most advanced technology to manufacture from abroad . Motor driven, Siemens PLC processor, ensure the equipment operation is stable and reliable . Host temperature control system is consist of Siemens PLC control system and expansion module . Temperature control accuracy can be controlled at ±0.5°C.

2 meters PE thermal insulation pipe production line which manufactured in SHANGHAI JWELL PIPE EQUIPMENT CO.,LTD , have a leading position in the industry, and the design is unique and novel . Adopt high efficiency single screw extruder , high degree of automation, easy operation, continuous production, stable and reliable.Due to the equipment production is stable ,mature technology ,customers are very satisfied .

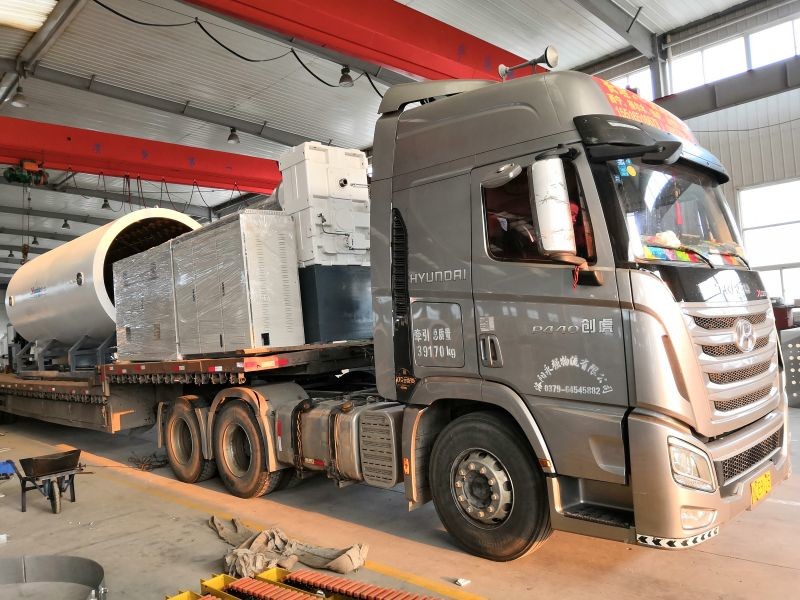

We have continuously supplied 10 production lines of 2meters super-large diameter insulation pipes extrusion line to the market. Have the most mature design experience and stable equipment quality!

Piping PUF insulation and fittings is a rigid structure "pipe in pipe" consisting of steel or galvanized steel carrier pipe, a layer of polyurethane foam insulation and the outer jacket pipe protective of high-density polyethylene - for underground installation or sheet galvanized steel - for above-ground pad.

Rigidity due to the presence of strong ties between the steel pipe layer polyurethane insulation and jacket pipe and provides pre-shot blast or blast cleaning the surface of the steel pipe, optimum performance polyurethane insulation, corona surface of polyethylene pipe shell.

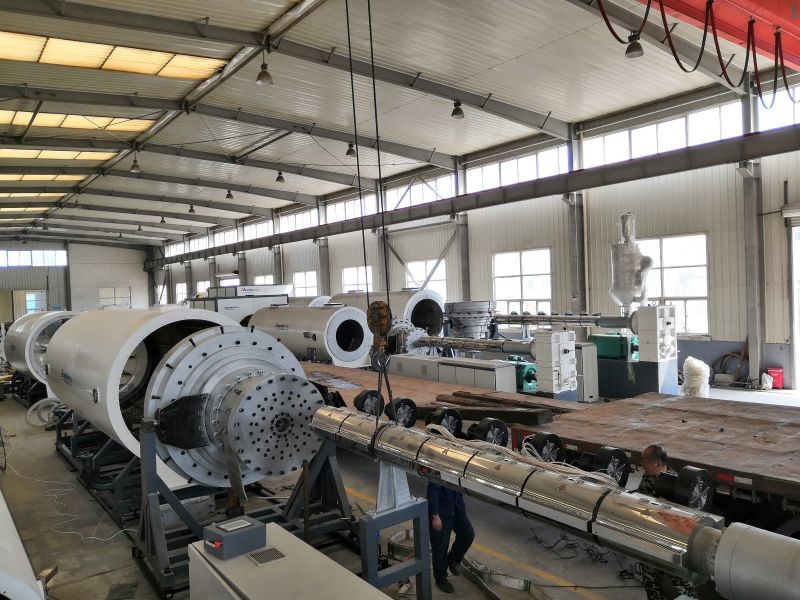

The mold uses a spiral structure, high-quality alloy steel forging ; Temperature control of mold core adopt electric heating .Temperature control have high precision , oil guide copper tube will not aggregate carbon . Heating ring distribute in more area , temperature adjustment for each area of the mold is controllable .
