550-700kg/H Thermal PE Insulation Pipe Extrusion Line 360kW

1
MOQ
550-700kg/H Thermal PE Insulation Pipe Extrusion Line 360kW
Features Gallery Product Description Request A Quote
Features
Specifications
Specification: PE-365/760
Main Extruder: PE-365/760
Pipe Diameter (mm): 365
Capacity (kg/h): 550
Highlight:

650mm-6800mm pe sheet extrusion machine

,

650mm-6800mm pe sheets extrusion machine

,

pe sheet extrusion machine 650mm-6800mm

Basic Infomation
Place of Origin: Qingdao,Shandong,China
Brand Name: Huashida
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: according to the actual condition
Delivery Time: 9workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Thermal PE Insulation Pipe Extrusion Line,Distric Supply Hot Water pipe

Product Description

gas/oil /water pipeline Puf Pre-Insulated Pipe PE shell casing plastic Machinery



HDPE Jacket pipe extrusion line for pre-insulated pipe is designed by Qingdao Huashida Machinery Co., LTD. It absorbs and improves developed HDPE pipe extruding technology.

The production line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.Vacuum calibrating method pre-insulation pipe outside casing extruded line is the advanced and popular machinery in the world.

Technical Prameters:

  PE-365/760 PE-420/960 PE-850/1372 PE-960/1680
Main extruder SJ-90/33 SJ-90/33 SJ-120/33 SJ-150/33
Pipe diameter (mm) Φ365-960 Φ420-960 Φ850-1372 Φ960-1680
capacity (kg/h) 550-700 550-700 700-900 800-1200
Installed power (kw) 360 380 440 580
Length (m) 35 36 40 48

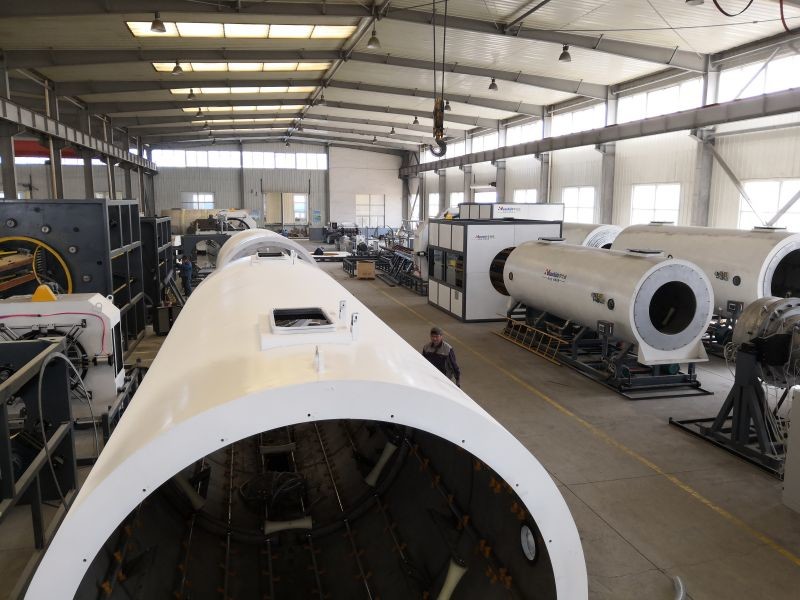

550-700kg/H Thermal PE Insulation Pipe Extrusion Line 360kW 0
Pipes insulated with polyurethane foam:
Pre-insulated pipe extrusion line designed by absorbing the tube extrusion developed technology from German and improved by Qingdao Huashida Machinery Co., Ltd.The line is an integration design composed by extruder, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.

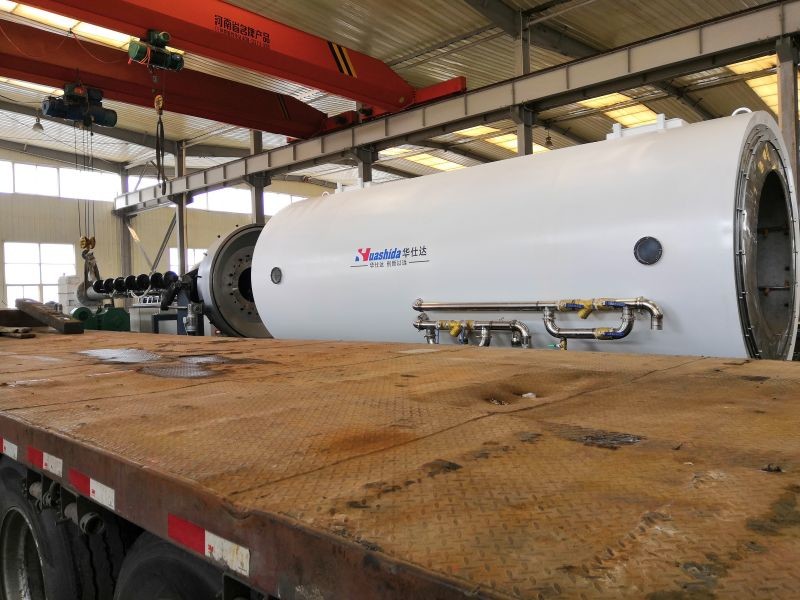

550-700kg/H Thermal PE Insulation Pipe Extrusion Line 360kW 1


Piping PUF insulation and fittings is a rigid structure "pipe in pipe" consisting of steel or galvanized steel carrier pipe, a layer of polyurethane foam insulation and the outer jacket pipe protective of high-density polyethylene - for underground installation or sheet galvanized steel - for above-ground pad.

Rigidity due to the presence of strong ties between the steel pipe layer polyurethane insulation and jacket pipe and provides pre-shot blast or blast cleaning the surface of the steel pipe, optimum performance polyurethane insulation, corona surface of polyethylene pipe shell.

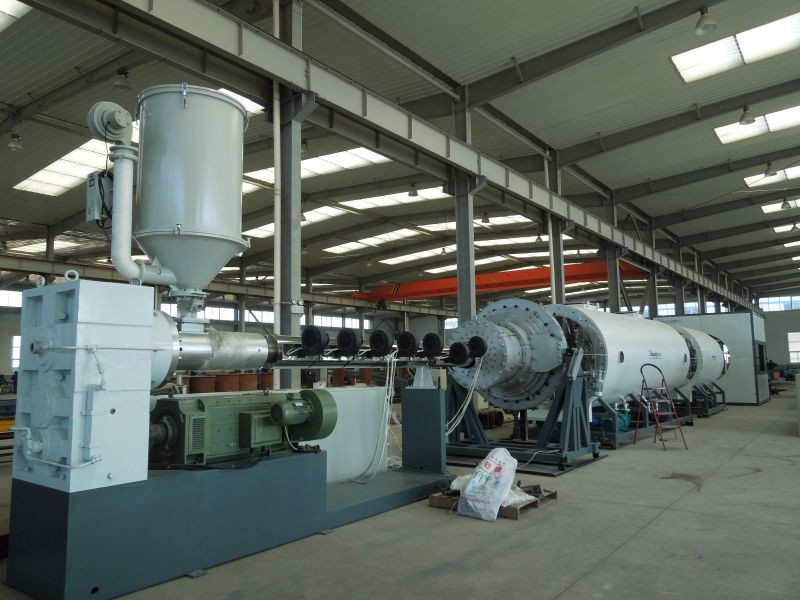

550-700kg/H Thermal PE Insulation Pipe Extrusion Line 360kW 2
gas/oil /water pipeline Puf Pre-Insulated Pipe PE shell casing plastic Machinery Advantages:
Significantly increases the reliability of the pipeline in the PUF insulation system operational availability of remote condition monitoring PUF insulation, which allows to detect and repair leaking coolant, preventing accidents typical for thermal networks of other designs.
Highly cost-effective use of pipelines in the foam insulation define the following parameters:
Simplifying the construction, maintenance and repair;
Increased service life of 30-40 years (traditional types of pipelines - 5-10 years);
Reduction of heat losses to 8% (traditional types of pipelines - 30-40%);
Reducing capital costs by 15-20% (not required construction of concrete channels and chambers for valves);
Reduced operating costs by 9 times;
Reduction in repair costs 3 times.
