Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection

1 set
MOQ
150000-1000000
Price
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Coating Layers: 3 Layers
Control System: PLC
Pipe Surface Preparation: Shot Blasting
Heating Method: Induction Heating
Elbow Angle: 15-90 Degrees
Epoxy Powder Thickness: More Than 170 Um
Ad Copolymer Adhesive Thickness: 170-250 Um
Substrate: Steel
Highlight:

3PE pipe coating system for corrosion protection

,

oil and gas pipeline coating system

,

3LPE coating pipe production line
Basic Infomation
Place of Origin: China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Model Number: 001
Payment & Shipping Terms
Packaging Details: Container loading，sea transportation
Delivery Time: 60work days
Payment Terms: T/T,Western Union,D/A
Supply Ability: 5-10 +sets+per mouth
Product Description
Product Overview
The 3PE Bend Pipe Coating Equipment is a specialized production line designed for applying high-performance three-layer polyethylene (3PE) anti-corrosion coatings to hot bending pipes. It integrates shot blasting, heating, coating, and cooling processes to achieve a uniform, durable, and tightly bonded coating—enhancing both the surface and internal quality of the pipe.
This equipment is widely used in oil & gas, water supply, and industrial pipeline systems where high corrosion resistance and coating reliability are essential.

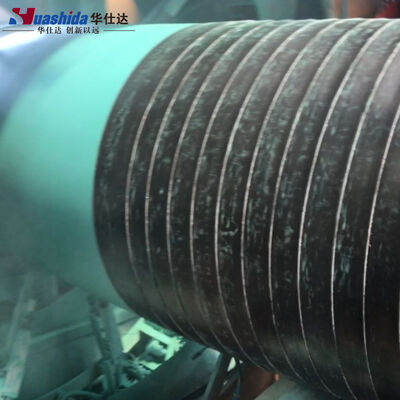

Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 0
Key Features
One-Pass Surface Treatment
The shot blasting and rust removal system efficiently removes rust, scale, and welding slag from hot bending pipes, structural parts, and section steel components. It also eliminates welding stress and improves fatigue strength, laying the foundation for strong coating adhesion.
Precision 3PE Coating Process
The line applies three protective layers:
  • Fusion Bonded Epoxy (FBE): Chemical and cathodic disbondment resistance
  • Adhesive Layer: Ensures firm bonding between FBE and polyethylene
  • Polyethylene (PE): Excellent physical protection against abrasion, impact, and moisture
Integrated Workflow
From pipe loading to final coating and cooling, the system ensures continuous, automated operation, delivering high production efficiency and consistent coating quality.
Technical Specifications
Equipment Parameters
Production Line Dimensions 20 m × 15 m
Water Consumption 30 m³
Power Consumption 450 kW
Gas Consumption 6 m³/min
Working Temperature ≥5°C (indoor)
Applicable Pipe Sizes
Diameter 426 mm, 630 mm, 720 mm, 820 mm
Bend Radius 4D-6D
Bending Angle 15°-90°
Wall Thickness 8 mm-12 mm
Coating Layer Thickness
FBE Layer ≥170 μm
Adhesive Layer 170-250 μm
PE Layer 2.5-3.7 mm
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 1 Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 2
System Components
  • Pipe Feeding & Transport System - Smooth and accurate movement of bend pipes through each station
  • Shot Blasting Machine - Removes impurities and prepares the pipe surface for optimal coating
  • Intermediate Frequency Heating System - Heats the pipe uniformly to ensure coating adhesion
  • 3PE Coating Application System - Simultaneously applies the three layers with high precision
  • Cooling System - Rapid cooling of the coated pipe to ensure strong bonding and surface finish
Performance Advantages
Long-Term Corrosion Protection
Excellent Adhesion & Layer Bonding
High Resistance to Impact, Moisture & Abrasion
Suitable for Underground & Above-Ground Pipelines
Manufacturer Profile
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years.
We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.
Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, and other international markets.
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 3
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 4
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 5
Advanced 3PE Pipe Coating System for Oil & Gas Pipeline Corrosion Protection 6
